DLT1411 Transmitter TOSLINK Optical Audio Transceiver Module
DLT1411 1411T 1411 PCB-mount TOSLINK optical transmitter/receiver module for S/PDIF audio. Converts electrical audio to light over isolated plastic optical fiber.

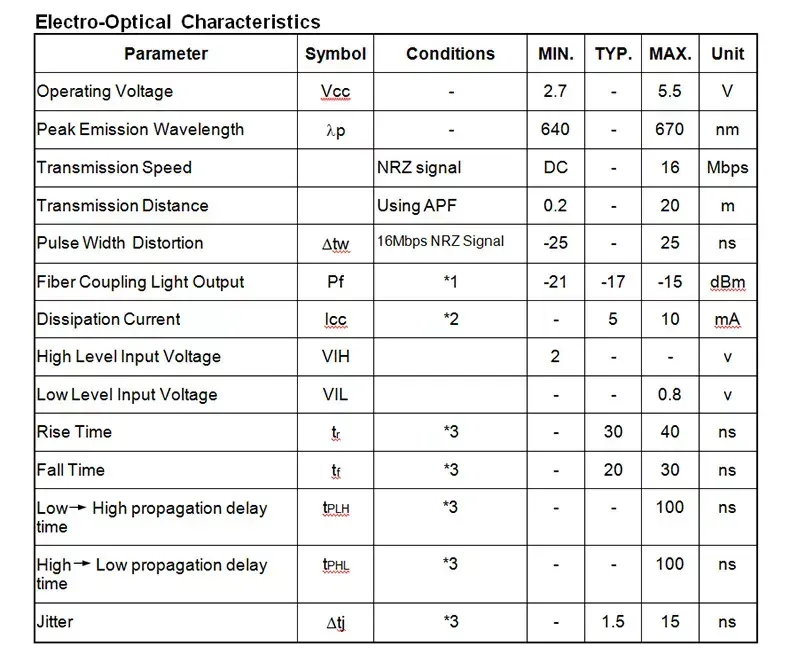

Specifications
- Type
- Fiber Optic Transceivers, SPDIF
- Application
- PCB
- Certifaction
- ISO9001 ,ROHS
- Gray shutter
- Two plastic fixed feet
- Operating temperature
- -20~+70C
- Gender
- Female
- Operating Volta
- 3 to 5V
- Color
- Black
- Certification
- ISO9001 ,ROHS
DLT1411 Transmitter TOSLINK Optical Audio Transceiver Module
The DLT1411 1411T 1411 optical audio module from JINSHANG TECH provides the electro-optical transmit or receive stage in a plastic-fiber S/PDIF link.
Manufactured for production use rather than as a one-off sample, the DLT1411 1411T 1411 is built to a stable fiber specification so orders can be repeated with consistent dimensions and performance.
Key Characteristics
- Certified to ISO9001 ,ROHS
- Housing/jacket color: Black
- Operating temperature range: -20~+70C
- Supply voltage: 3 to 5V
- Purpose-built TX (LED) or RX (detector) optical sub-assembly for S/PDIF

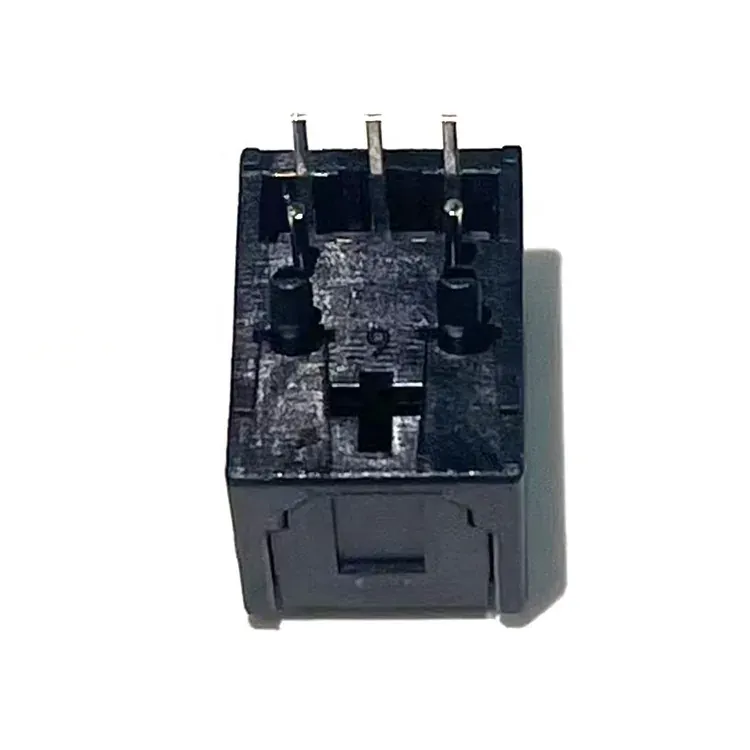

- PCB-mountable with molded optical port and locating features
- Low-voltage (3.3–5 V class) operation for consumer audio boards
- Wide operating temperature range for AV equipment
Typical Applications
The DLT1411 1411T 1411 is commonly used for TOSLINK input/output ports on AV receivers, soundbars and DACs, digital audio boards, multimedia and consumer electronics, and electrically isolated audio interfaces for appliances. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions

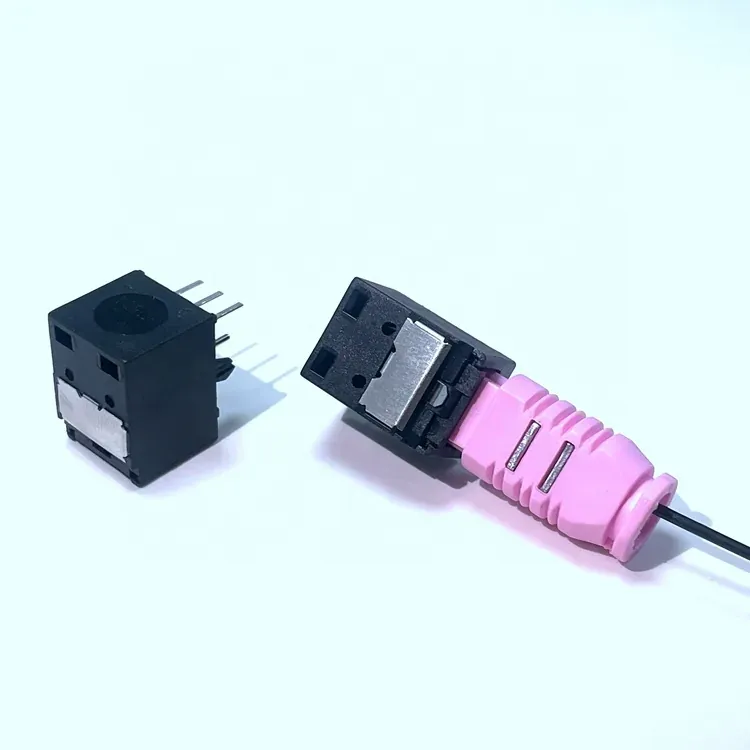

Q: How is it mounted? A: The module is PCB-mounted and couples to a standard TOSLINK optical port; supply voltage and orientation are given in the module specification.

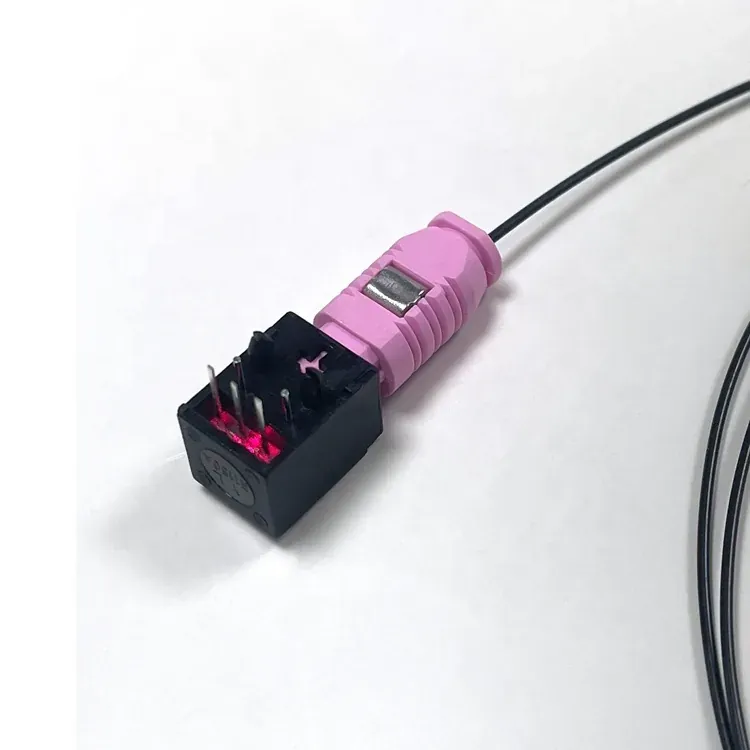

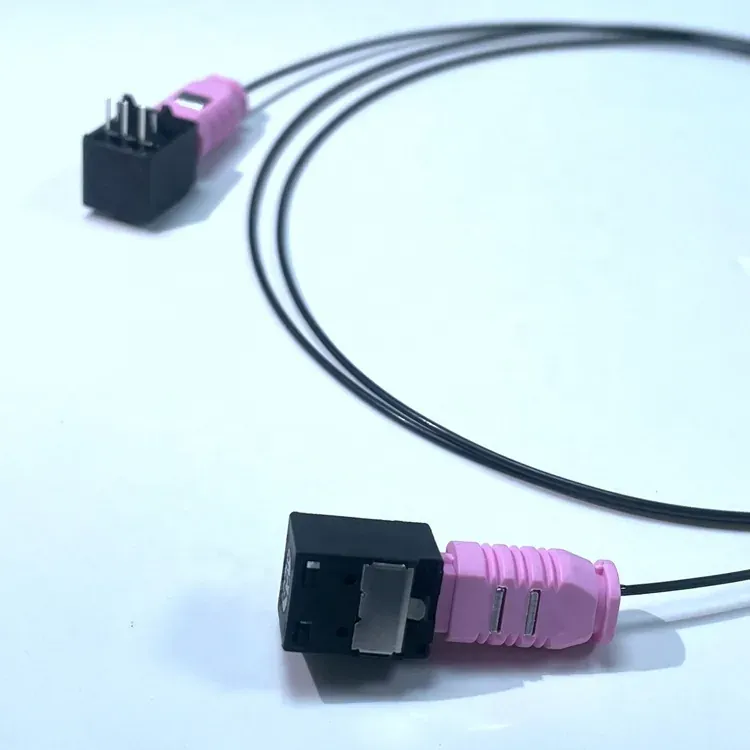

Q: Is it compatible with ordinary TOSLINK cable? A: Yes, these modules are designed to mate with standard plastic optical TOSLINK leads and connectors.
Q: Do I need a transmitter or receiver module? A: A transmitter (TX) launches light into the fiber from a source device; a receiver (RX) detects it at the destination. Full-duplex/transceiver ports use both.

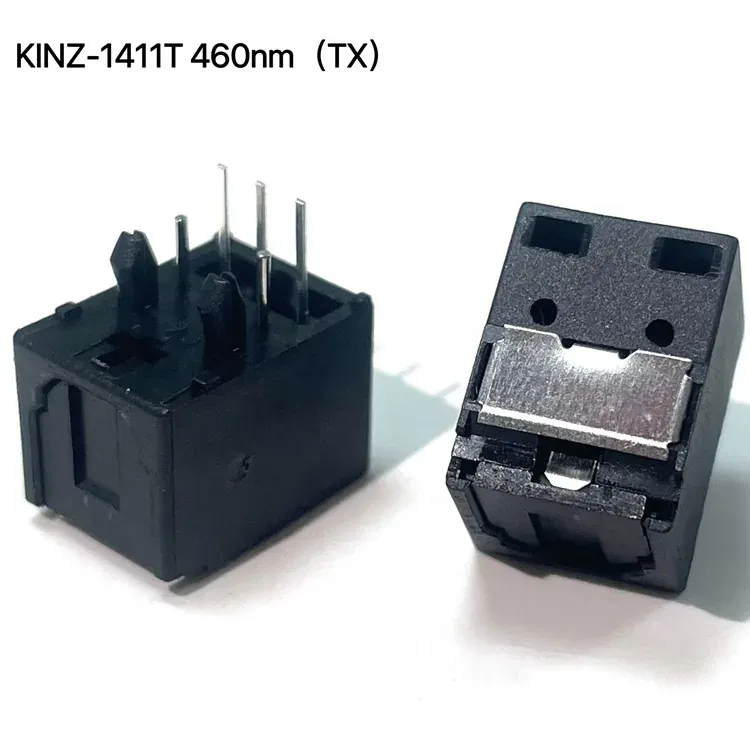

Q: What wavelength does it use? A: Consumer TOSLINK modules use red visible light (commonly around 650 nm); the exact wavelength is given for the specific model (e.g. 460/520 nm variants as listed).
