HFBR CONNECTOR

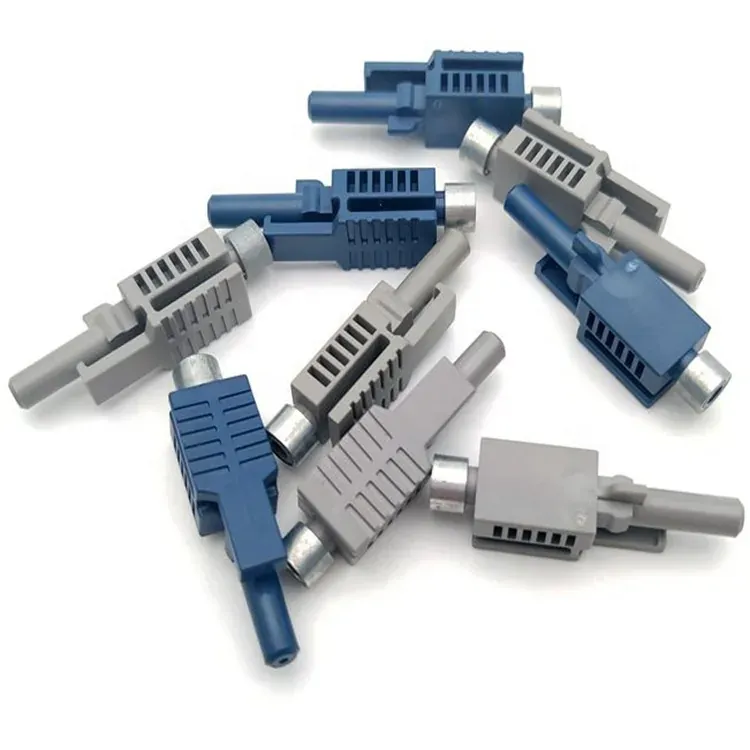

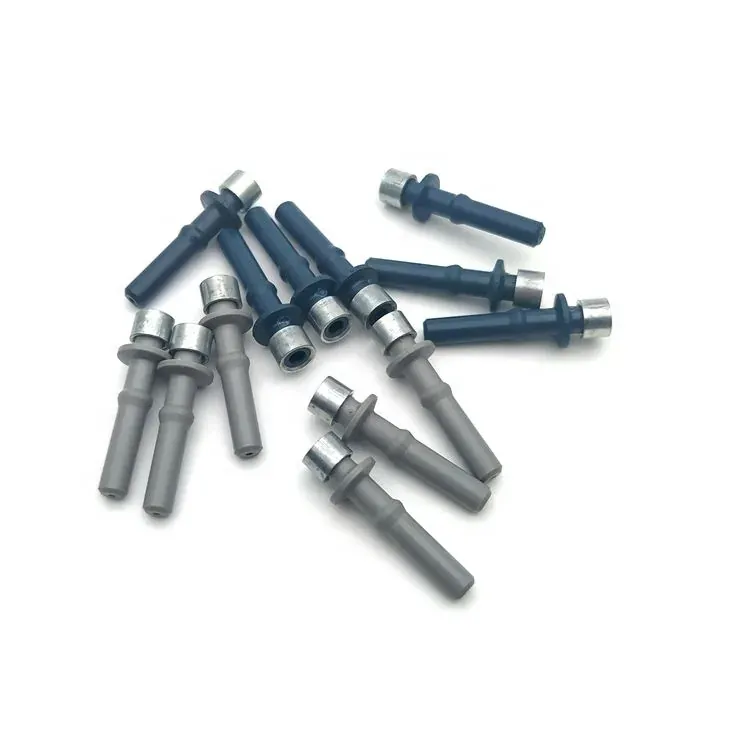

HFBR-4526Z Avago HFBR Versatile Link POF Connector
HFBR-4526Z HFBR Versatile Link POF connector for 1 mm plastic optical fiber and Avago/Broadcom HFBR modules — quick field-terminatable snap-in interface.
Specifications
- Type
- connector, Avago connector
- Application
- Industrial automation control bus system
- Cross Reference
- Medical sensing system
- Color
- Black
- Certifaction
- ISO9001 ,ROHS...
- Working temperature
- -55C ~85C
- Payment
- TT,Western Union,Paypal,Escrow...
- Gender
- male or female
- Connector code 2

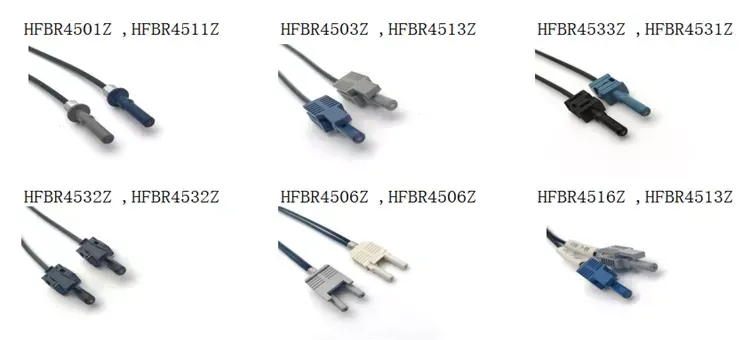

- HFBR-4511Z/4513Z/4516Z/4532Z/4533Z
HFBR-4526Z Avago HFBR Versatile Link POF Connector
HFBR-4526Z is a Avago / Broadcom HFBR-style POF connector that terminates 1 mm plastic optical fiber for Versatile Link industrial and consumer optical links.
Because the optical path is non-conductive, the HFBR-4526Z provides electrical isolation between connected equipment and can be routed past motors, drives and power wiring without picking up noise.
Key Characteristics
- Connector/interface: HFBR-4511Z/4513Z/4516Z/4532Z/4533Z
- Certified to ISO9001 ,ROHS...
- Housing/jacket color: Black
- Operating temperature range: -55C ~85C
- Terminates standard 1 mm core / 2.2 mm POF cable
- Low-cost, rugged POF interface for industrial and consumer links
Typical Applications
The HFBR-4526Z is commonly used for connections to HFBR optical transmitters/receivers in equipment. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions
Q: What cable does it accept? A: It is designed for the standard 1 mm PMMA core, 2.2 mm OD plastic optical fiber used in Versatile Link systems.
Q: What is an HFBR connector? A: HFBR/Versatile Link is the common snap-in connector system for 1 mm plastic optical fiber, used with Avago/Broadcom HFBR optical modules in industrial and consumer links.
Q: How is polarity managed? A: The connector is keyed so TX and RX cannot be swapped incorrectly, simplifying installation.
Q: Is field termination possible? A: Yes — HFBR POF connectors are intended for simple field termination using the specified cutting and crimping tools, without a fusion splicer.
