POF CABLE
SK80 Mitsubishi ESKA 2 mm PMMA End-Glow Fiber Optic Cable for Decorative Lighting
SK80 2 mm end-glow PMMA plastic optical fiber for star ceilings, luminous furniture and decorative lighting. Flexible, waterproof, cool-running POF supplied in continuous spool lengths.
Specifications
- Working Temperature(°C)
- -50°C to +70°C
- IP Rating
- IP68
- Fiber diameter
- 0.25mm , 0.3mm , 0.75mm , 1.0mm , 1.5mm ~3.0mm
- Application
- Lighting Decoration
- Effect
- End glow , side glow and sparkle
- Bend Radius (mm)
- ≥10*Fiber Diameter
- Max Receive Angle
- 60
- Length/Weight (OD:2.00mm)
- 350m/1.68kg
- Attenuation (dB/km)
- ≤350(650nm)
- Clad Material
- Fluorine Polymer
- Core Material Refractive Index
- 1.49
- Fiber Type
- PMMA end glow fiber optic cable
- Certification
- EMC, Reach, FCC, ISO9001
SK80 Mitsubishi ESKA 2 mm PMMA End-Glow Fiber Optic Cable for Decorative Lighting
The SK80 is a Mitsubishi 2 mm PMMA end-glow plastic optical fiber (POF) that carries light along a transparent polymer core, used as the light-distribution strand in star ceiling / starry sky.
Manufactured for production use rather than as a one-off sample, the SK80 is built to a stable fiber specification so orders can be repeated with consistent dimensions and performance.
Key Characteristics
- Minimum bend radius: ≥10*Fiber Diameter
- Refractive index figures: 1.49
- Operating temperature range: -50°C to +70°C
- IP68 ingress protection for damp or wash-down environments
- Standard length: 350m/1.68kg
- Certified to EMC, Reach, FCC, ISO9001

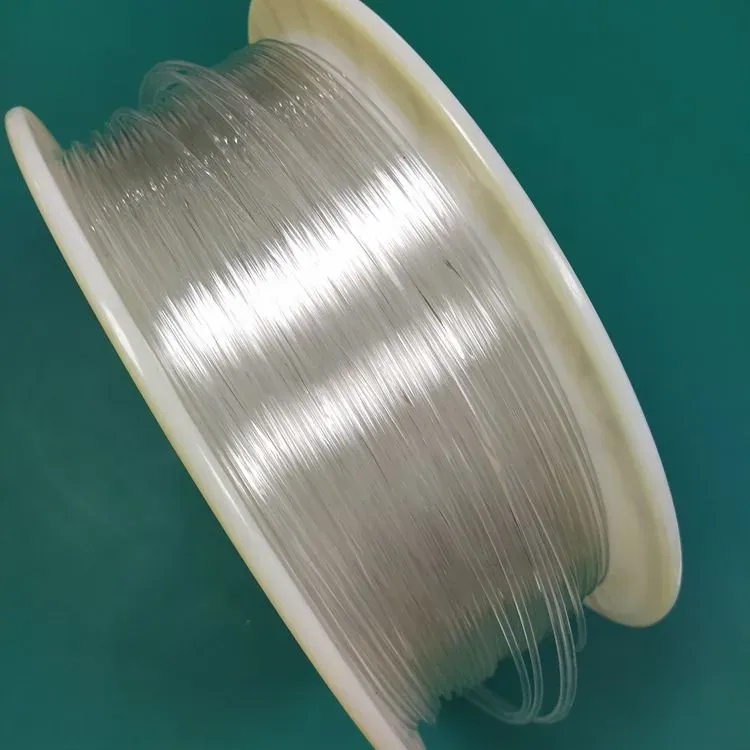

- Available in continuous spool lengths for large ceilings, curtains and textiles
- Safe around water and in public spaces — no electrical current at the light-emitting point
Typical Applications
The SK80 is commonly used for star ceilings and starry-sky panels in hotels, KTV rooms, home theaters and bedrooms. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions
Q: Does it emit UV or heat? A: Virtually no UV or IR reaches the end points, which helps protect sensitive fabrics and artwork and makes the fiber comfortable to touch.
Q: How is it cut and installed? A: The POF is cut with a sharp fiber cutter and bundled into the illuminator chuck; no fusion splicing or electrical work is needed at the lit end.
Q: Is the fiber safe near water or in a ceiling? A: Yes. The fiber itself carries no electricity and stays cool at the emitting end, so it is suitable for wet areas and occupied spaces when paired with a remotely located light source.

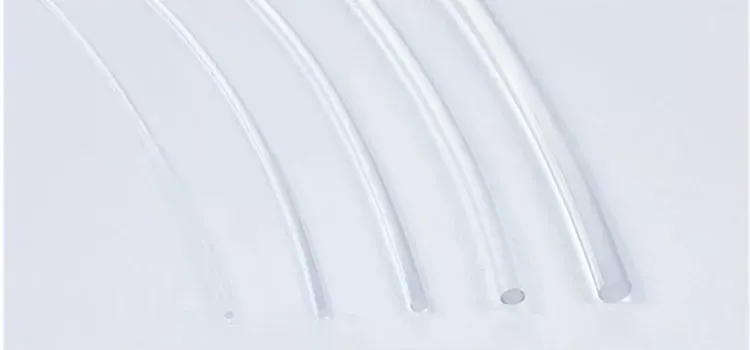

Q: What core diameter should I choose? A: Smaller diameters (0.25–0.75 mm) give fine, dense star points, while 1.0–3.0 mm strands produce brighter points over longer runs. Match the diameter to your illuminator and desired star density.
