ST CONNECTORS

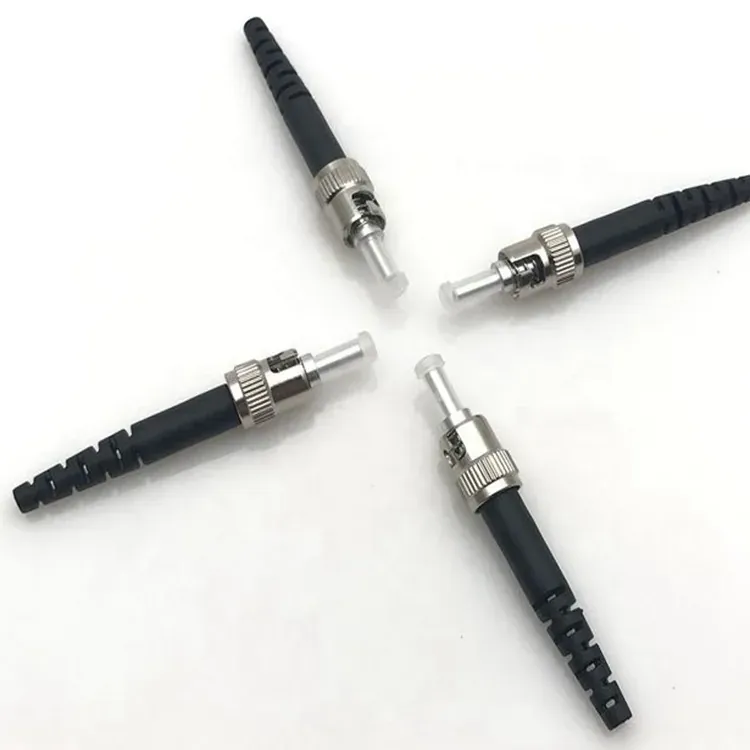

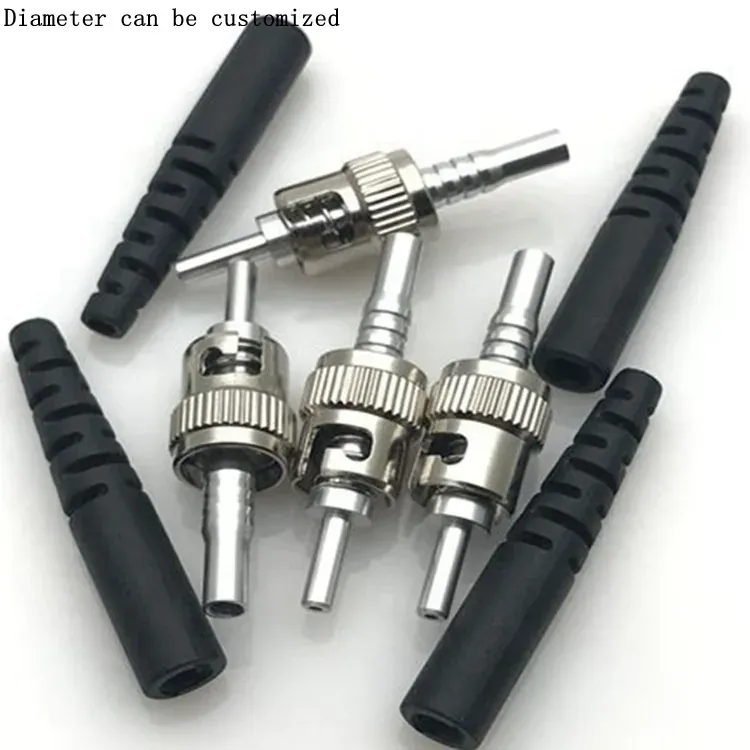

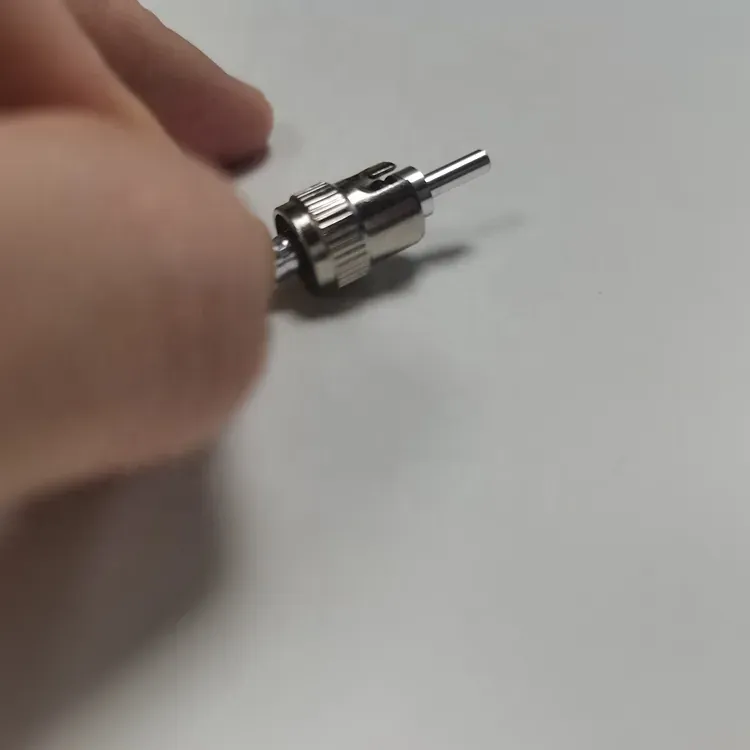

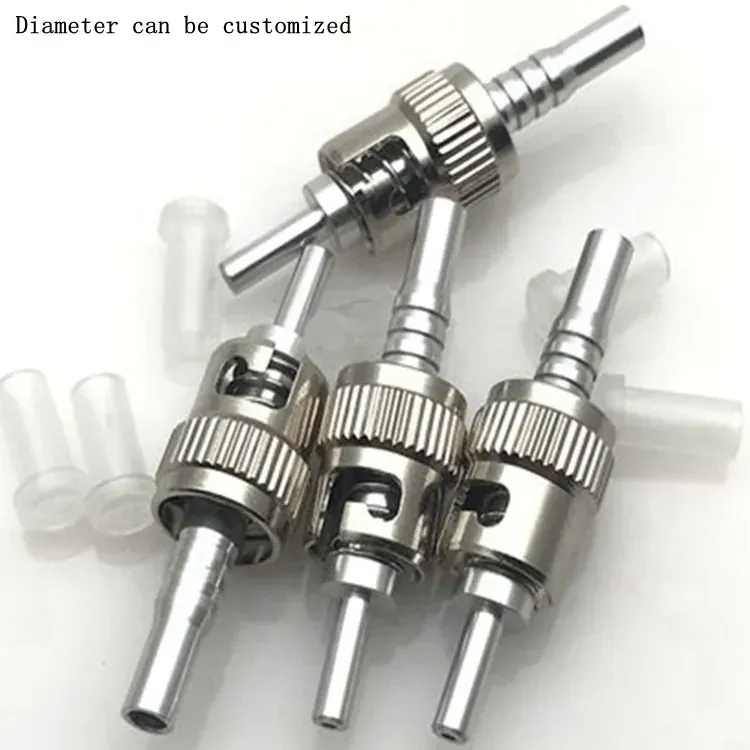

ST (BFOC) POF Fiber Optic Connector Type 3
ST ST (BFOC) bayonet fiber connector for POF/HCS — precision ferrule and vibration-resistant quarter-turn coupling for industrial links.
Specifications
- Type
- fiber optic connector
- Fiber type
- Dual mode
- Certifaction
- ISO9001 ,ROHS,CE
- Diameter
- 1.0mm
- Return loss
- ≥50.0dB
- Durability
- 1000 insertions and removals
- Operating temperature
- -20 °C to + 70 °C
- Test wavelength
- 1310nm, 1550nm
ST (BFOC) POF Fiber Optic Connector Type 3
The ST is a JINSHANG TECH ST (BFOC) bayonet fiber-optic connector for plastic and hard-clad fibers, providing the familiar twist-lock ST interface for POF links.
Manufactured for production use rather than as a one-off sample, the ST is built to a stable fiber specification so orders can be repeated with consistent dimensions and performance.
Key Characteristics
- Fiber diameter: 1.0mm
- Operating wavelength: 1310nm, 1550nm
- Operating temperature range: -20 °C to + 70 °C
- Standard length: 1310nm, 1550nm
- Certified to ISO9001 ,ROHS,CE
- Return loss: ≥50.0dB
- Quarter-turn bayonet ST/BFOC coupling that stays seated under vibration
- Precision ferrule for repeatable insertion loss
Typical Applications
The ST is commonly used for industrial POF/HCS links that need a rugged bayonet fit. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions
Q: What is an ST connector? A: ST (straight tip / BFOC) is a bayonet, quarter-turn-locking fiber connector valued for a secure, vibration-resistant connection.
Q: Does it fit plastic optical fiber? A: ST connectors for POF are supplied with ferrules matched to the plastic or HCS fiber diameter — select the matching ferrule for your cable.
Q: ST vs SC? A: ST twists to lock with a bayonet; SC is a push-pull connector. ST is often preferred where vibration could loosen a push-fit connector.
