Toshiba TOCP100 Optic Fiber Cable for CNC Controller JIS F05

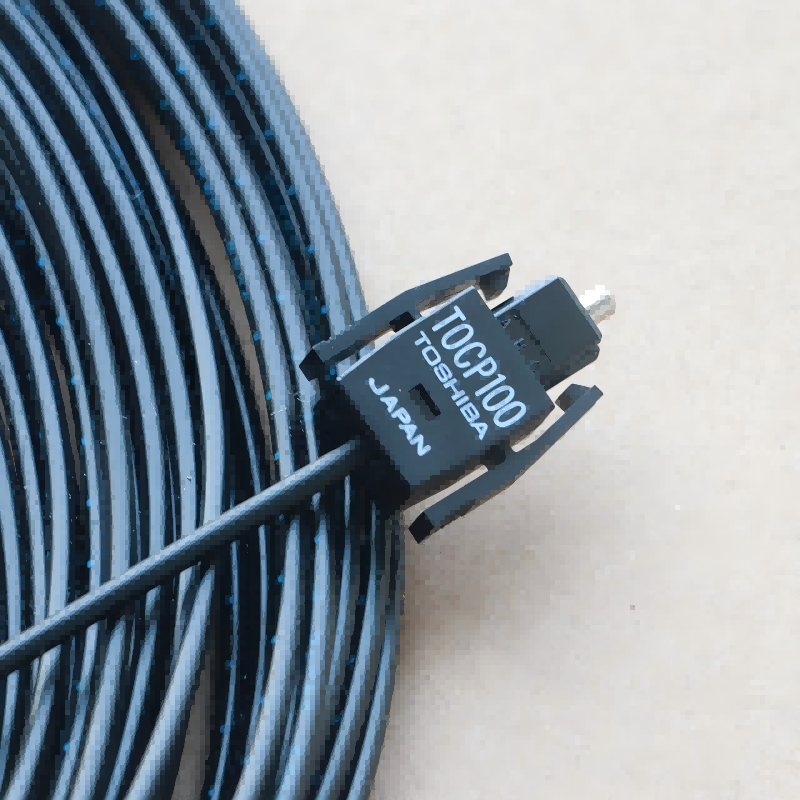

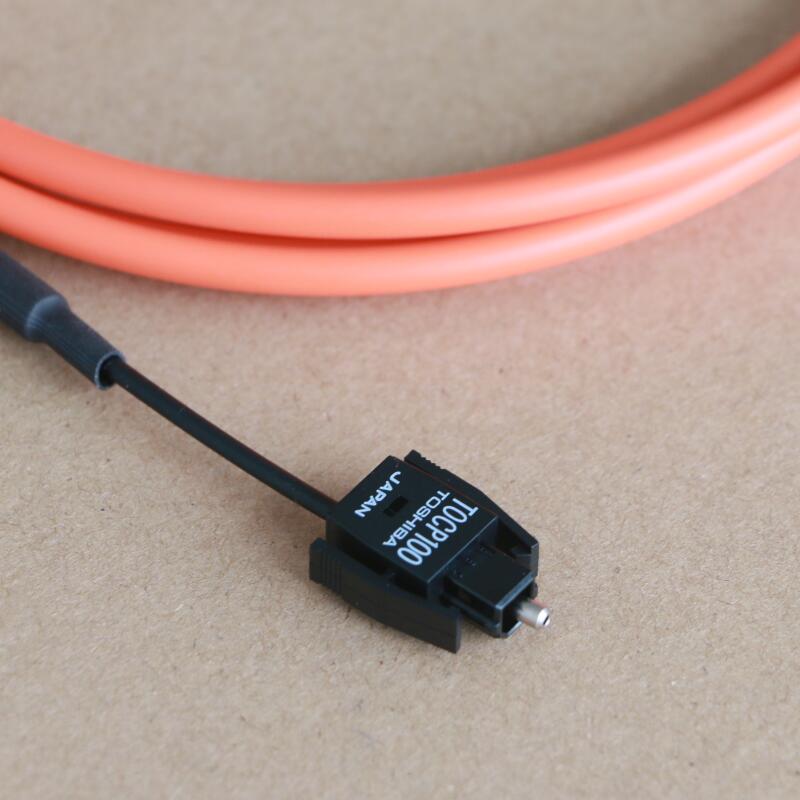

TOSHIBA TOCP100 optical fiber Cable reference TOSHIBA TOCP 100 for sale. This is an optical fiber type TOCP100 with 2 connectors TOCP100; The length of this cable is customized. This optical fiber TOCP100 is used with NUM CNC serie 1000 or other CNC equipement.
This TOSHIBA TOCP100 is ready to replace your defective or broken optical fiber cable installed on your CNC Machine.
Compatible with Toshiba Toslink F05 interface universal optical link transceiver, divided into simplex and simplex lock.
TOCP100 TOSHIBA
Comply with RoHS standard, Japan JIS C5974-1998 F05 single-core optical fiber interface standard
JISF05 HCS 200/230µm fiber optic jumpers are in line with JIS C5974-1998 industrial standards.
It is suitable for optical link transmission systems over 100 meters and can be fully compatible with Toshiba and Sumitomo F05 interface general optical link transmitters and receivers.
Compatible with Toshiba: TOTX1701(F)TORX1701(F)TOTX1960(F)TORX1950(F)TOTX1860(F)TORX1960(F)
Compatible with Sumitomo: DF-1710/TDF-1710/RDF-1810/TDF-1810/R
Compatible fiber optic connectors: CF-1071, CF-1571, CF-1001H, CF-1501H, TOCP100Q, TOCP150, TOCP151Q, IAT-1000
APPLICATIONS of TOCP100 Optics Fiber Cable:
Industrial automation control system
Industrial robot system and servo system
Easy to install and connect without maintenance.
Digital multimedia systems
Medical sensor system
Compliance with Profibus, Interbus, ControlNet and SERCOS standards
FEATURES of TOCP100 TOSHIBA Optic Fiber Cable:
Light in weight; energy saving and safe;
High bandwidth; excellent flexibility; vibration resistance;
Anti-electromagnetic interference; stable and reliable signal transmission;
