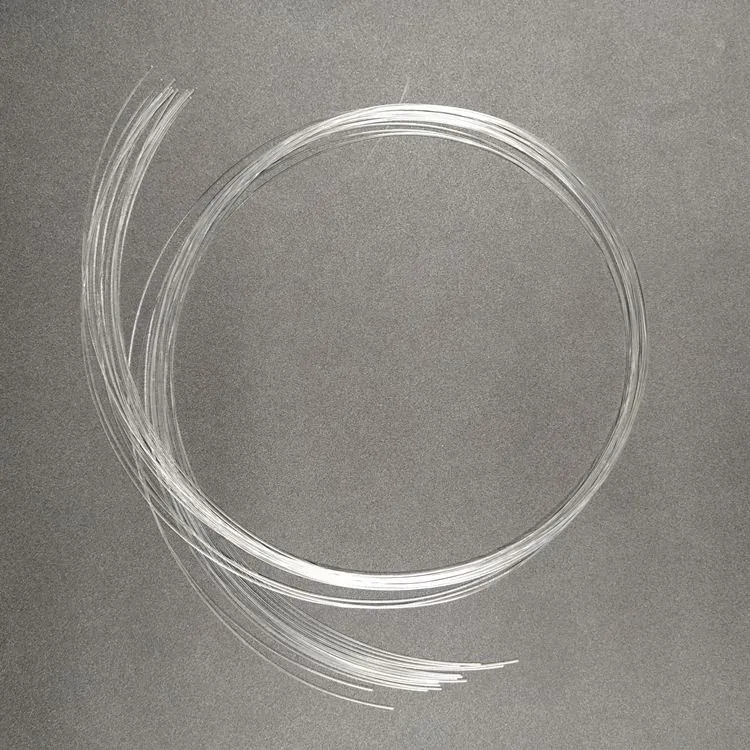

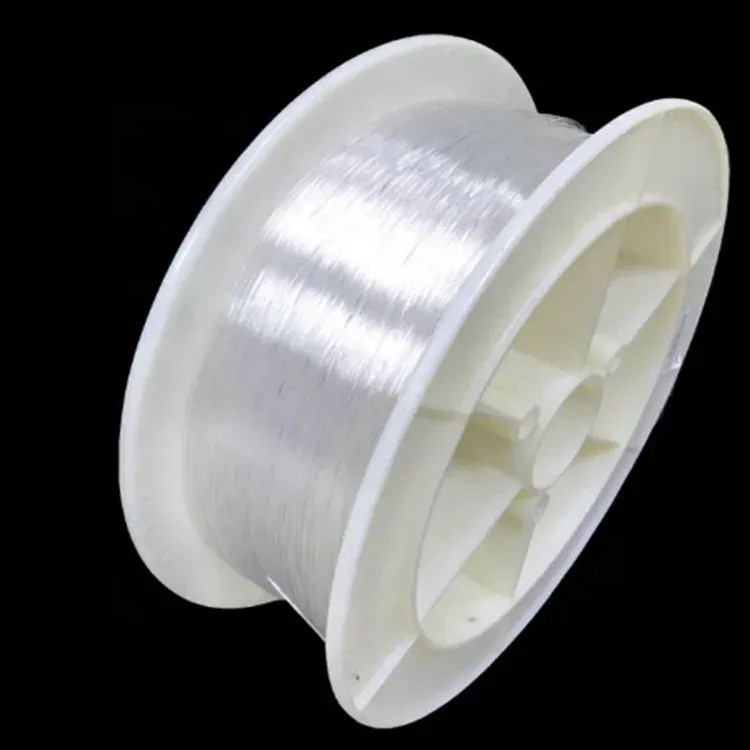

0.75 mm PMMA End-Glow Fiber Optic Cable for Decorative Lighting
This is a 0.75 mm end-glow PMMA plastic optical fiber for star ceilings, luminous furniture and decorative lighting. Flexible, waterproof, cool-running POF supplied in continuous spool lengths.

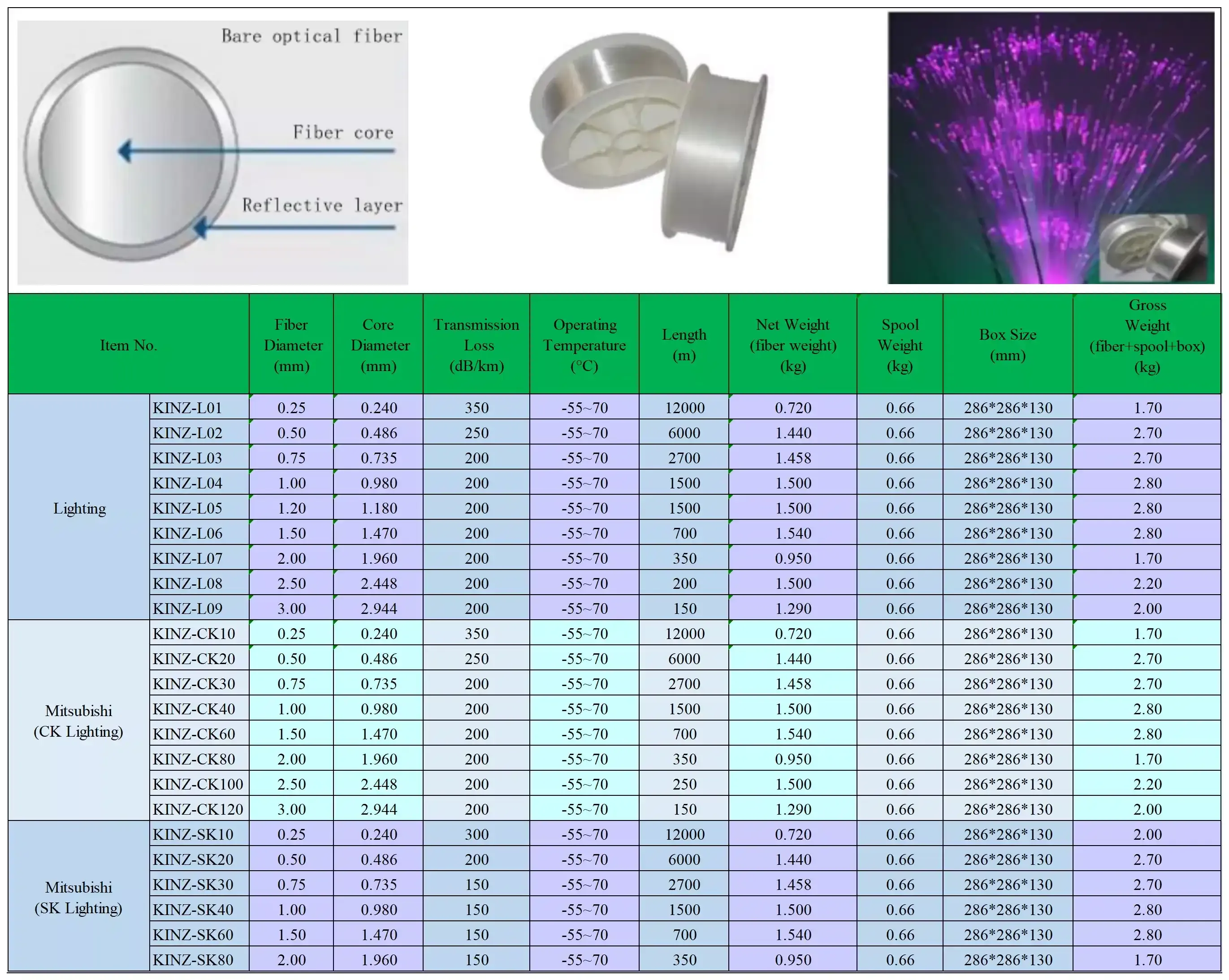

Specifications
- Working Temperature(°C)
- -20~70
- IP Rating
- IP68
- Application
- Illumination&Signal Transmission,,Decoration, ceilling,lighting
- Fiber Type
- PMMA end glow fiber optic cable
- Fiber Diameter/Material
- 0.75/PMMA

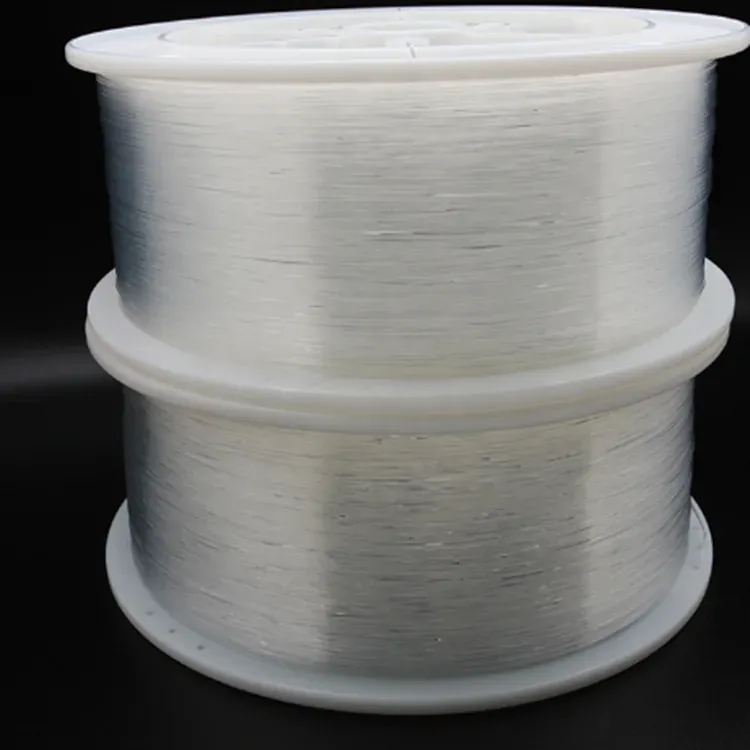

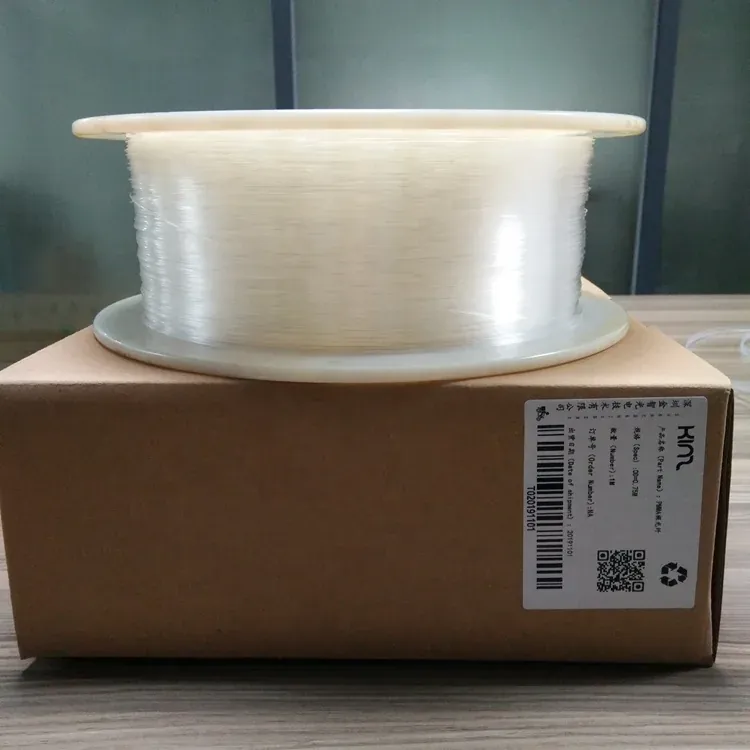

- Length/ roll , weight(Diameter 0.75mm)
- 2700m/ roll, 2.12kg/roll
- Max Receive Angle
- 60
- Attenuation (dB/km)
- ≤350(650nm)
- Core Material Refractive Index
- 1.49
- Numerical Aperture
- 0.5
- Bend Radius (mm)
- ≥10*Fiber Diameter
- Clad Material
- Fluorine Polymer
- Certification
- Reach, IS09001

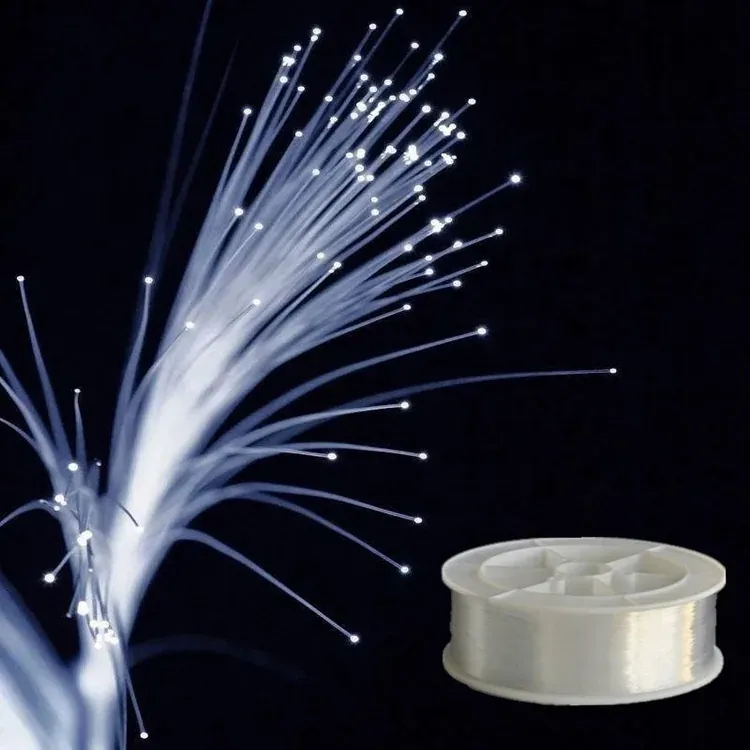

0.75 mm PMMA End-Glow Fiber Optic Cable for Decorative Lighting
This denotes a JINSHANG TECH 0.75 mm PMMA end-glow fiber — a flexible, electrically passive light guide built for star ceiling / starry sky.
Manufactured for production use rather than as a one-off sample, the unit is built to a stable fiber specification so orders can be repeated with consistent dimensions and performance.
Key Characteristics
- Minimum bend radius: ≥10*Fiber Diameter
- Refractive index figures: 1.49
- Operating temperature range: -20~70
- IP68 ingress protection for damp or wash-down environments
- Standard length: 2700m/ roll, 2.12kg/roll
- Certified to Reach, IS09001
- Uniform core diameter and smooth cladding for consistent brightness strand to strand

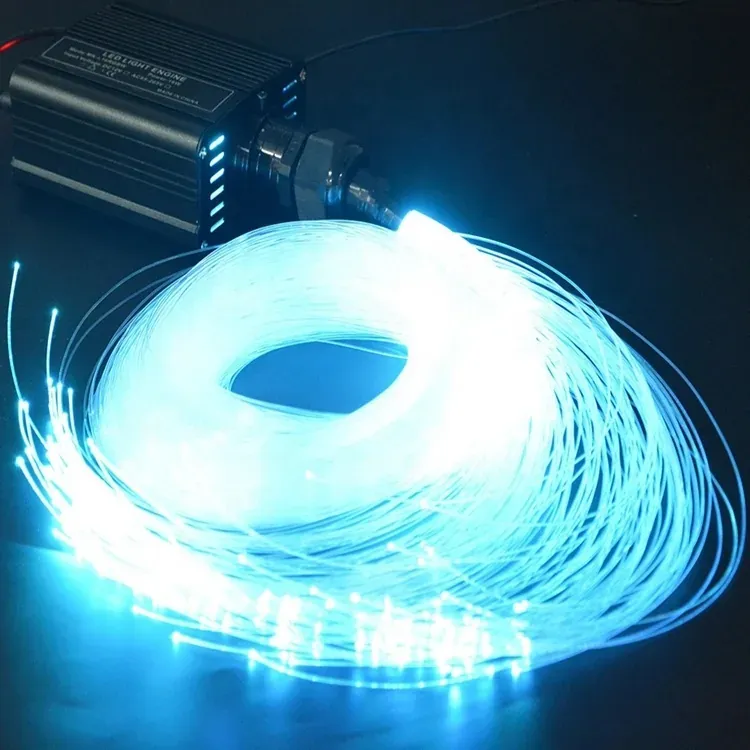

- High numerical aperture gives strong light-gathering and simple coupling to LED illuminators
Typical Applications

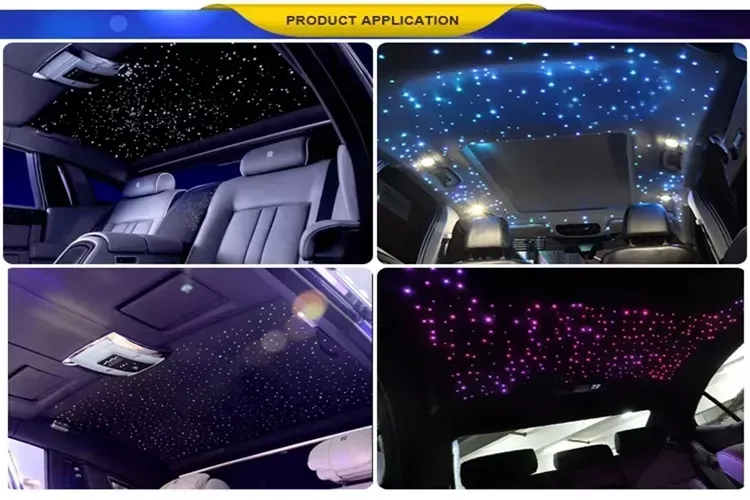

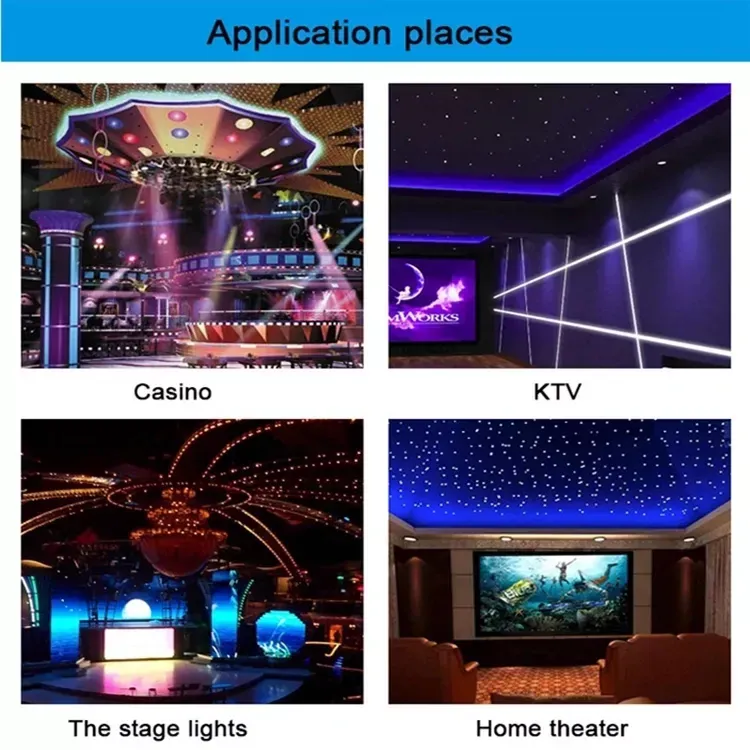

The unit is commonly used for star ceilings and starry-sky panels in hotels, KTV rooms, home theaters and bedrooms. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions
Q: What core diameter should I choose? A: Smaller diameters (0.25–0.75 mm) give fine, dense star points, while 1.0–3.0 mm strands produce brighter points over longer runs. Match the diameter to your illuminator and desired star density.
Q: Does it emit UV or heat? A: Virtually no UV or IR reaches the end points, which helps protect sensitive fabrics and artwork and makes the fiber comfortable to touch.
Q: Is the fiber safe near water or in a ceiling? A: Yes. The fiber itself carries no electricity and stays cool at the emitting end, so it is suitable for wet areas and occupied spaces when paired with a remotely located light source.

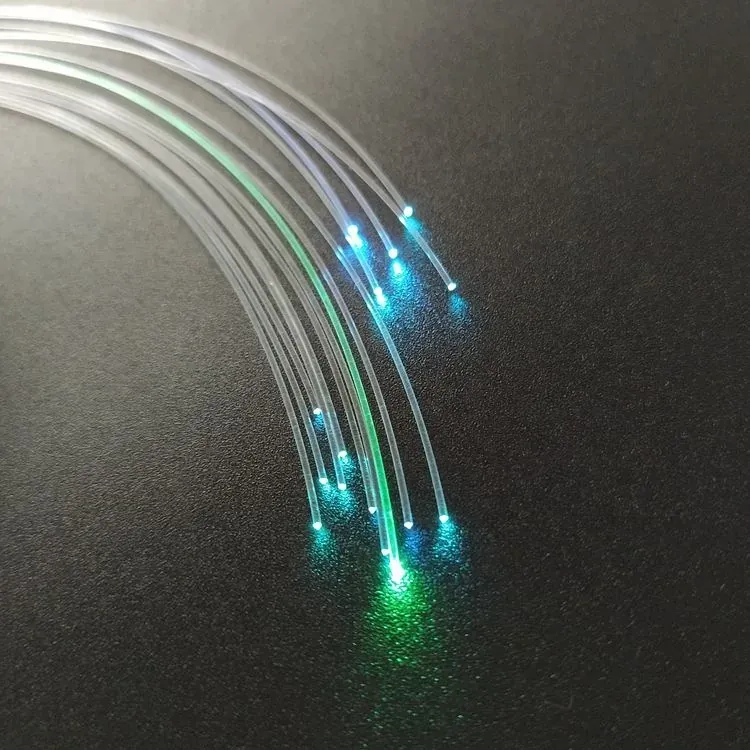

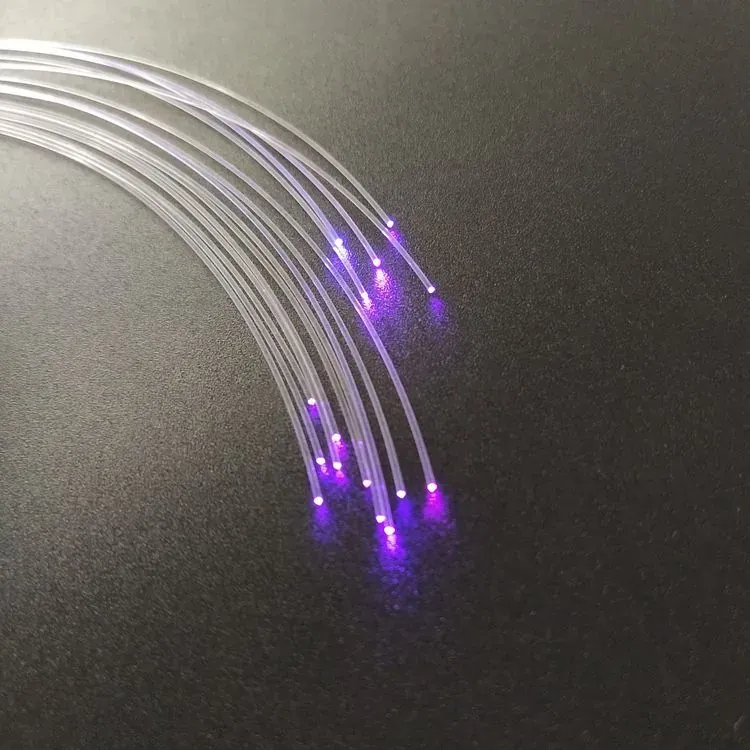

Q: What is end-glow PMMA fiber used for? A: End-glow PMMA fiber transmits light from a remote illuminator to the end of each strand, producing pin-points of light used for star ceilings, curtains, furniture and architectural decoration.
