POF CABLE

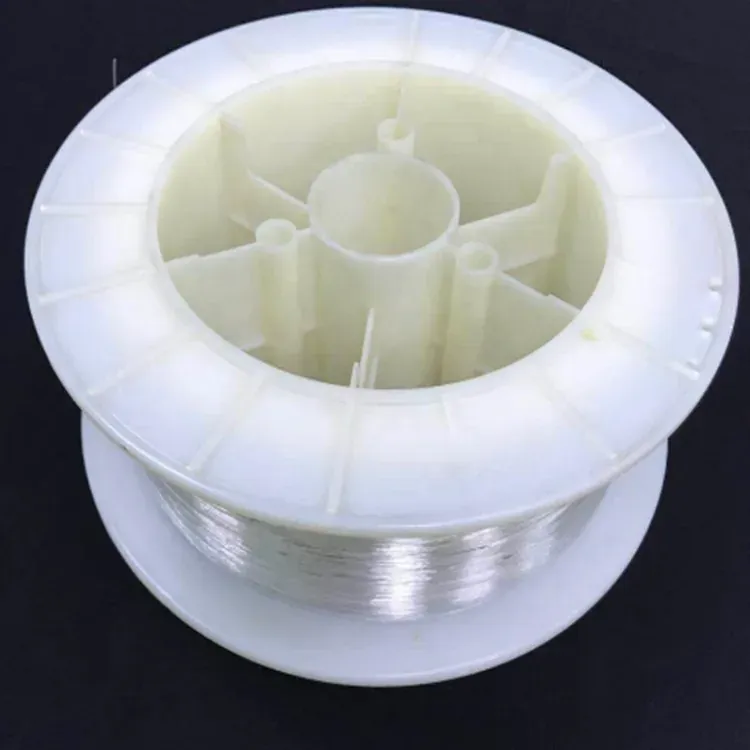

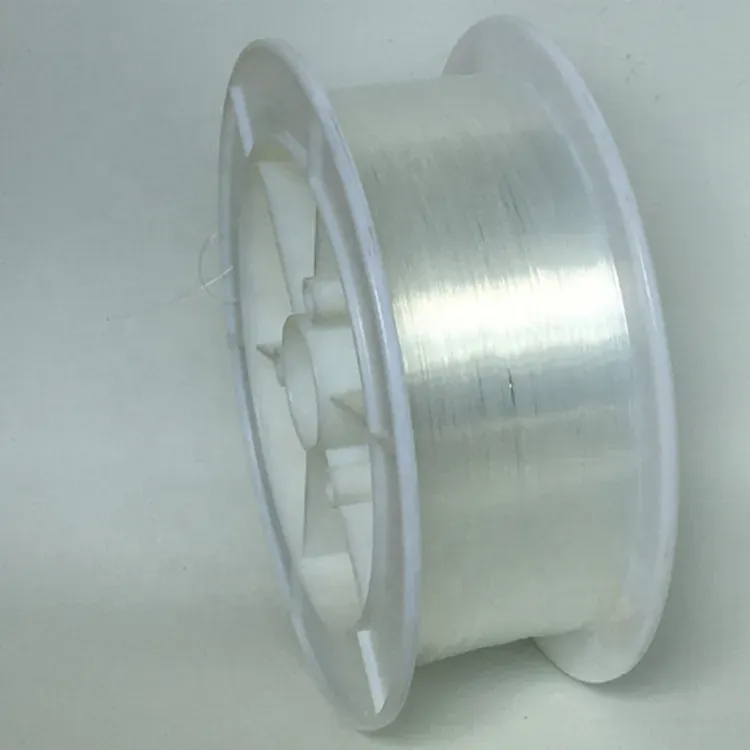

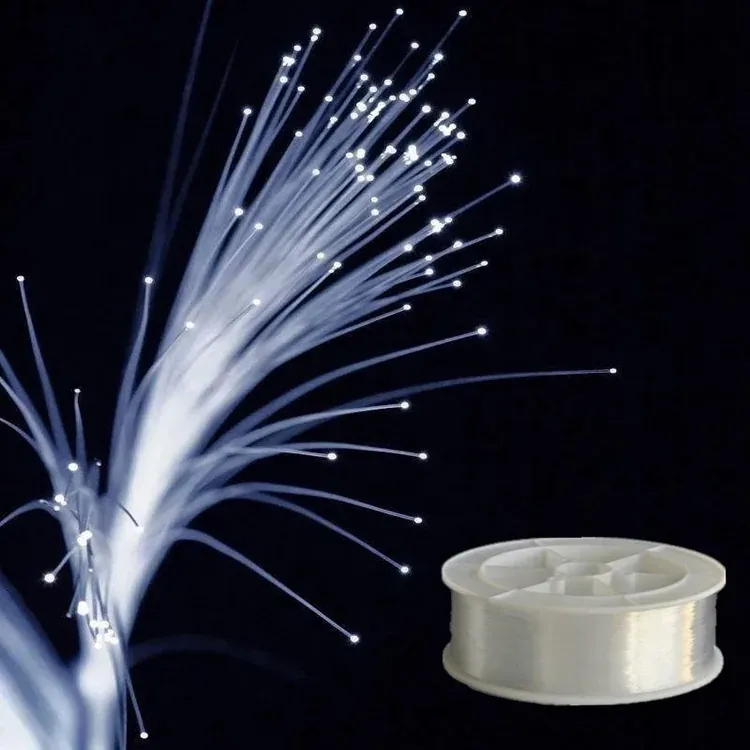

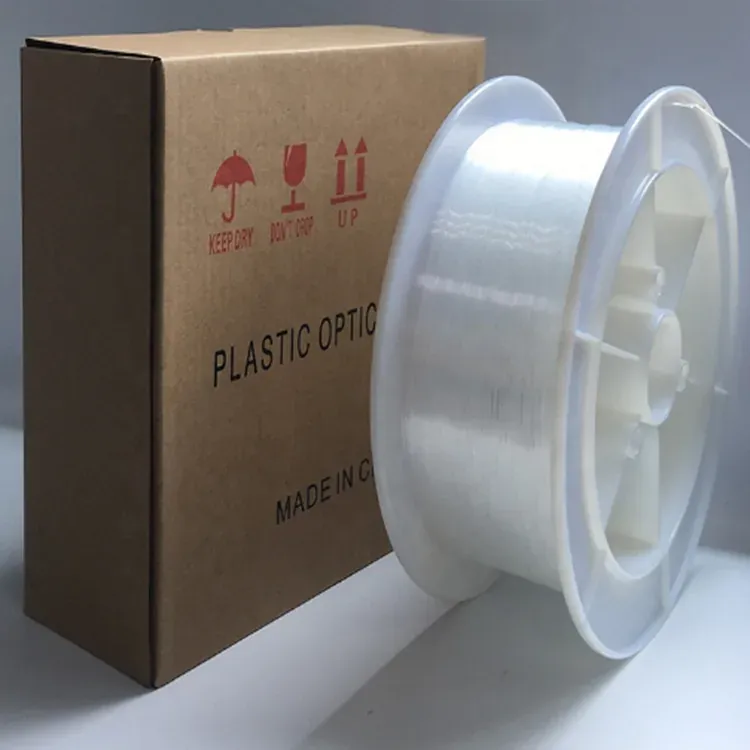

1 mm PMMA End-Glow Fiber Optic Cable for Decorative Lighting
This is a 1 mm end-glow PMMA plastic optical fiber for star ceilings, luminous furniture and decorative lighting. Flexible, waterproof, cool-running POF supplied in continuous spool lengths.

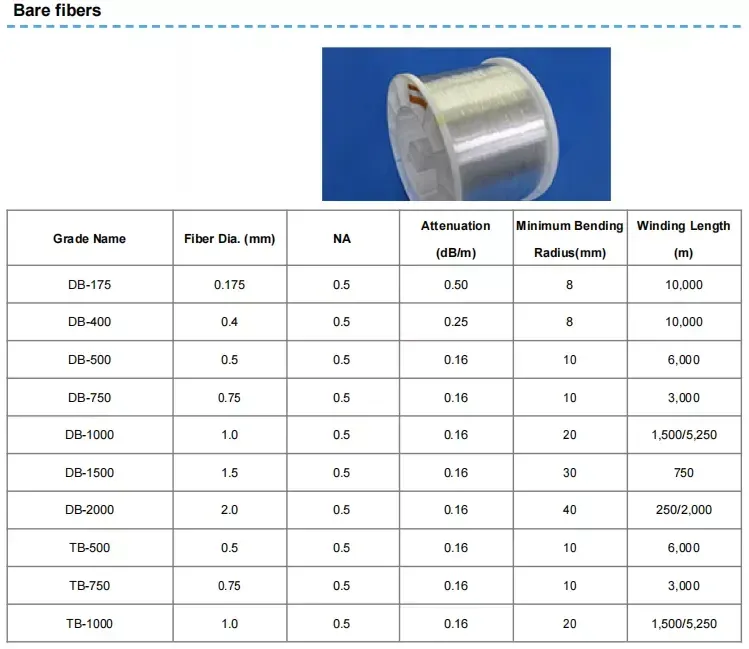

Specifications
- Working Temperature(°C)
- -20~70
- IP Rating
- IP68
- Application
- Illumination&Signal Transmission,,Decoration, ceilling,lighting
- Fiber Type
- PMMA end glow fiber optic cable
- Grade Name
- TB01000
- Fiber Dia. (mm)
- 1.00
- NA
- 0.5
- Attenuation (dB/m)
- 0.16
- Minimum Bending Radius(mm)
- 10
- Winding Length (m)
- 3,000
- Certification
- Reach, ISO9001
1 mm PMMA End-Glow Fiber Optic Cable for Decorative Lighting
This end-glow POF from JINSHANG TECH is a 1 mm polymer light-guide fiber that emits light at the far end, engineered for decorative lighting.
Because the optical path is non-conductive, the unit provides electrical isolation between connected equipment and can be routed past motors, drives and power wiring without picking up noise.
Key Characteristics
- Standard length: 3,000
- Certified to Reach, ISO9001
- Attenuation rated at 0.16 over the operating wavelength
- Minimum bend radius: 10
- Operating temperature range: -20~70
- IP68 ingress protection for damp or wash-down environments
- Cuts and terminates with simple tools; no polishing or fusion equipment required
- Uniform core diameter and smooth cladding for consistent brightness strand to strand

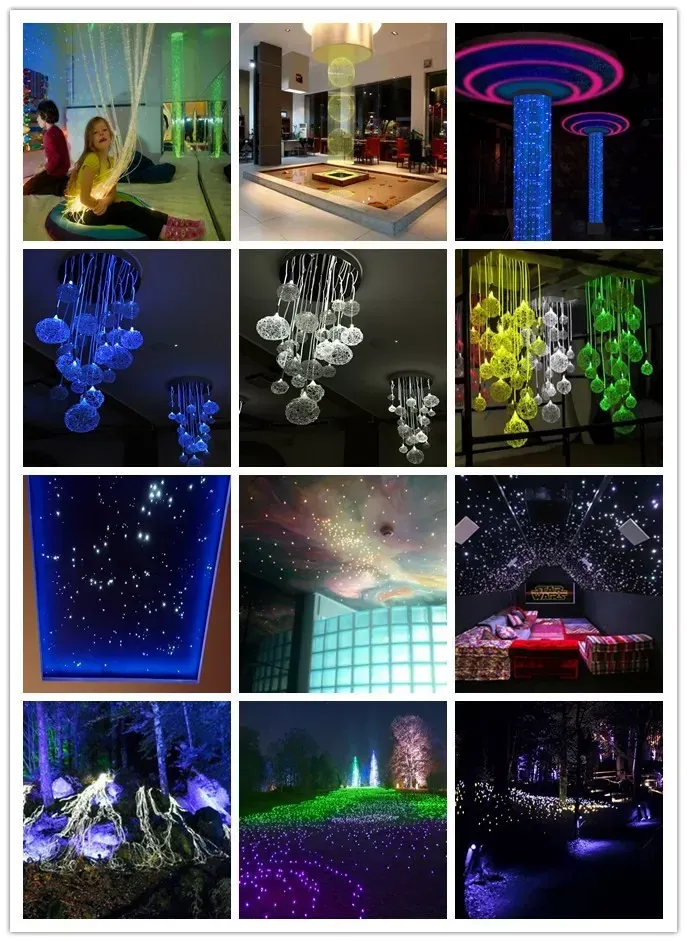

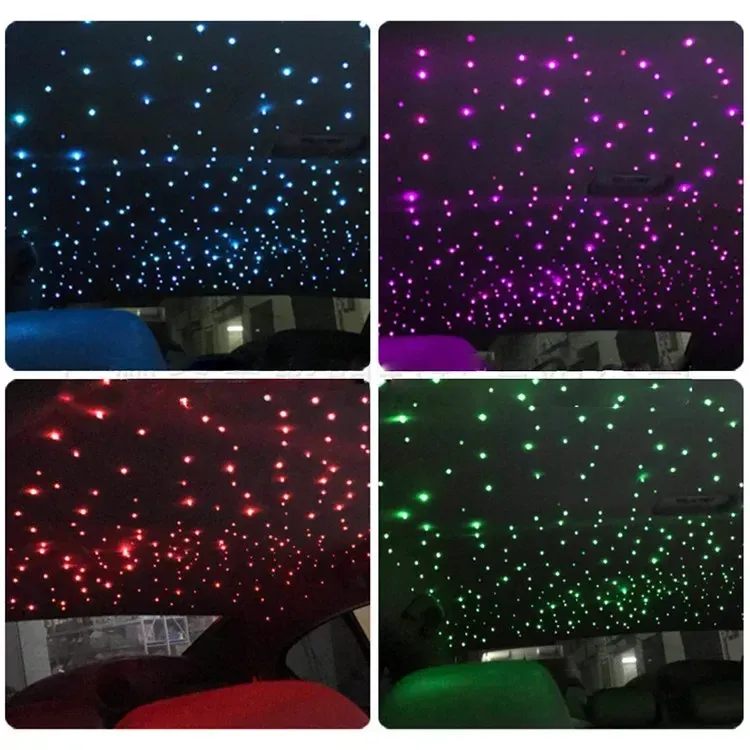

Typical Applications
The unit is commonly used for decorative outlines for bars, restaurants, weddings and public buildings. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions
Q: How is it cut and installed? A: The POF is cut with a sharp fiber cutter and bundled into the illuminator chuck; no fusion splicing or electrical work is needed at the lit end.
Q: What is end-glow PMMA fiber used for? A: End-glow PMMA fiber transmits light from a remote illuminator to the end of each strand, producing pin-points of light used for star ceilings, curtains, furniture and architectural decoration.
Q: Is the fiber safe near water or in a ceiling? A: Yes. The fiber itself carries no electricity and stays cool at the emitting end, so it is suitable for wet areas and occupied spaces when paired with a remotely located light source.
Q: Does it emit UV or heat? A: Virtually no UV or IR reaches the end points, which helps protect sensitive fabrics and artwork and makes the fiber comfortable to touch.
