POF CABLE
2.2 mm Black PMMA End-Glow Fiber Optic Cable for Decorative Lighting

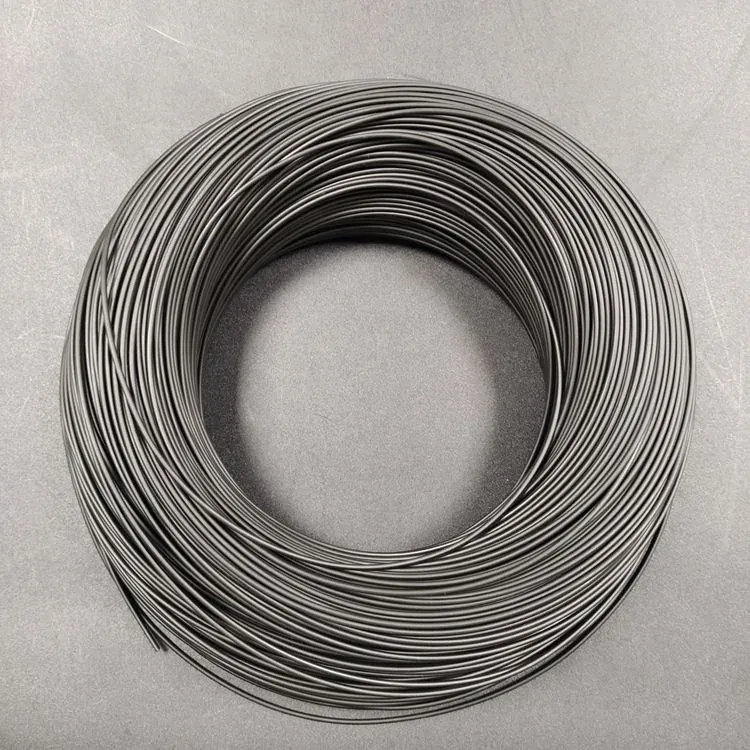

This is a 0.5 mm/2.2 mm end-glow PMMA plastic optical fiber for star ceilings, luminous furniture and decorative lighting. Flexible, waterproof, cool-running POF supplied in continuous spool lengths.
Specifications
- Type
- Fiber Optic Cable
- Application
- Communication, Transmission signal
- Fiber type
- PMMA fiber optic cable
- Certification
- ISO9001, RoHS, CE
- Core diameter
- 0.5mm
- Outer diameter
- 2.2mm
- Attenuation(dB/KM)
- ≤0.2
- Operating temperature
- -55~80Degree
- IP rating
- IP68
- Outer material
- PE
- Core Material
- pmma
2.2 mm Black PMMA End-Glow Fiber Optic Cable for Decorative Lighting
This end-glow POF from JINSHANG TECH is a 0.5 mm/2.2 mm polymer light-guide fiber that emits light at the far end, engineered for industrial optical applications.
Manufactured for production use rather than as a one-off sample, the unit is built to a stable fiber specification so orders can be repeated with consistent dimensions and performance.
Key Characteristics
- Certified to ISO9001, RoHS, CE
- Outer jacket: 2.2mm
- Core/fiber material: 0.5mm
- Fiber diameter: 0.5mm
- Attenuation rated at ≤0.2 over the operating wavelength
- Operating temperature range: -55~80Degree
- High numerical aperture gives strong light-gathering and simple coupling to LED illuminators
- Works with standard LED/halogen fiber illuminators and remote light sources
Typical Applications
The unit is commonly used for star ceilings and starry-sky panels in hotels, KTV rooms, home theaters and bedrooms, fiber curtains, screens, waterfalls and large-area luminous displays, and luminous furniture, home textiles and wearable or fabric-embedded lighting. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions
Q: Does it emit UV or heat? A: Virtually no UV or IR reaches the end points, which helps protect sensitive fabrics and artwork and makes the fiber comfortable to touch.
Q: How is it cut and installed? A: The POF is cut with a sharp fiber cutter and bundled into the illuminator chuck; no fusion splicing or electrical work is needed at the lit end.
Q: Is the fiber safe near water or in a ceiling? A: Yes. The fiber itself carries no electricity and stays cool at the emitting end, so it is suitable for wet areas and occupied spaces when paired with a remotely located light source.
Q: What core diameter should I choose? A: Smaller diameters (0.25–0.75 mm) give fine, dense star points, while 1.0–3.0 mm strands produce brighter points over longer runs. Match the diameter to your illuminator and desired star density.
