OPTICAL FIBER CABLES

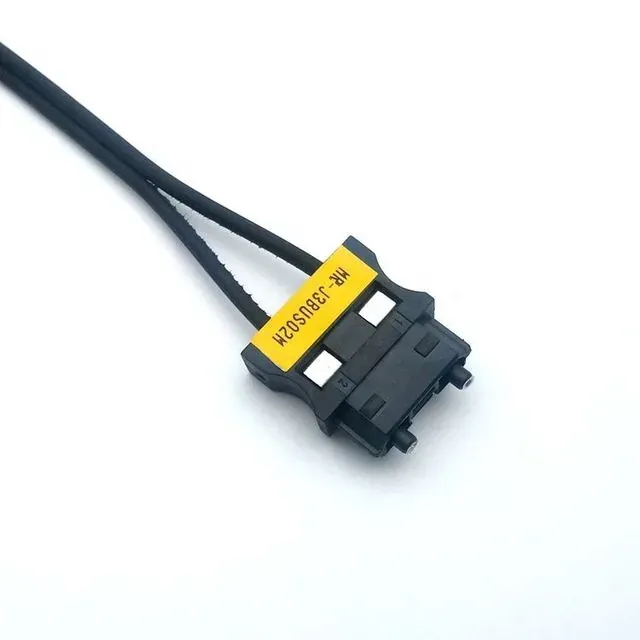

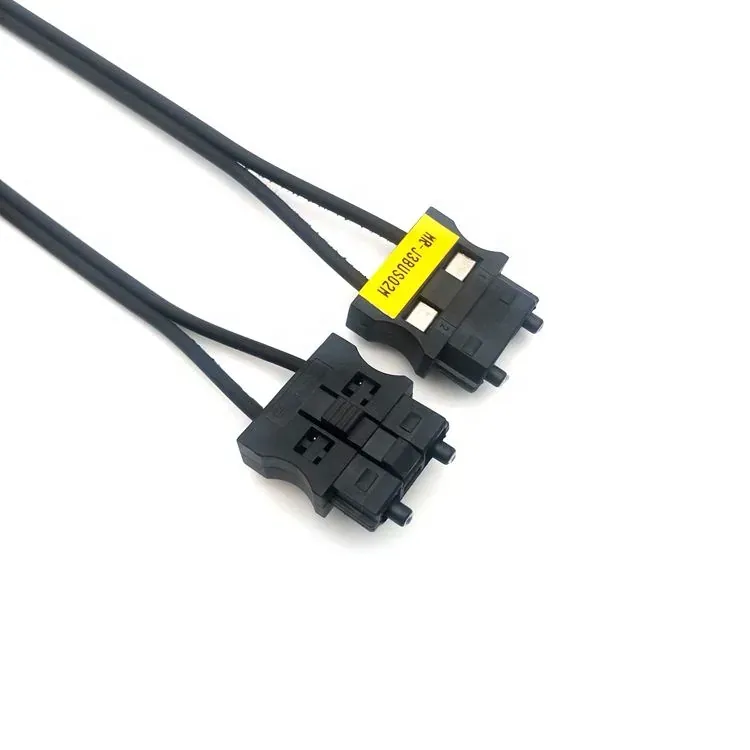

2.2 mm Industrial Fiber Optic Cable Harness Assembly
This is a factory-terminated industrial fiber-optic harness — EMI-immune optical cable assembly for servo drives, CNC and factory automation networks.

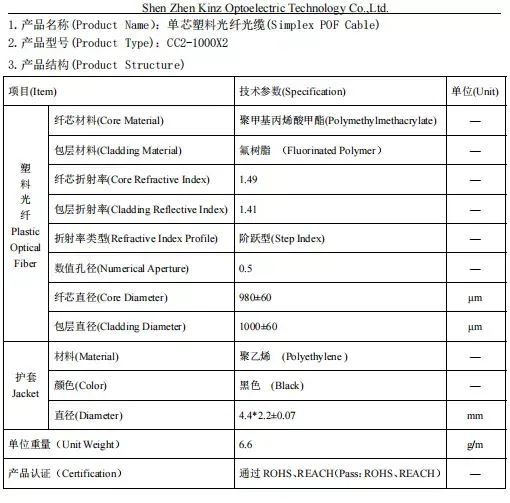

Specifications
- Type
- Fiber Optic Cable
- Application
- Sensor,Lighting ,Communication, Transmission signal
- Fiber type
- PMMA fiber optic cable
- Certification
- ISO9001, RoHS, CE
- Core diameter
- 1.0mm
- Outer diameter
- 2.2*4.4mm
- Attenuation(dB/KM)
- ≤0.2
- Operating temperature
- -55~80Degree
- IP rating
- IP68
- Core Material
- pmma
2.2 mm Industrial Fiber Optic Cable Harness Assembly
This is a JINSHANG TECH 4 mm/1 mm/2.2 mm industrial optical fiber jumper/harness supplied with connectors for EMI-immune motion-control links.
Because the optical path is non-conductive, the unit provides electrical isolation between connected equipment and can be routed past motors, drives and power wiring without picking up noise.
Key Characteristics
- IP68 ingress protection for damp or wash-down environments
- Certified to ISO9001, RoHS, CE
- Outer jacket: 2.2*4.4mm
- Core/fiber material: 1.0mm
- Fiber diameter: 1.0mm
- Attenuation rated at ≤0.2 over the operating wavelength
- EMI-immune optical link between servo drives, amplifiers and controllers
- Drop-in replacement for industrial OEM optical cables
Typical Applications
The unit is commonly used for servo drive and amplifier networks in motion control, CNC, PLC and factory automation optical links, and machine and equipment harnesses requiring OEM-form fit. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions
Q: Is it a direct replacement for the OEM cable? A: The harness is built to match the listed fiber type and connector interfaces, so confirm the model/part number against the original equipment before ordering.
Q: Why use fiber in a servo system? A: Optical links are immune to drive-generated EMI and provide galvanic isolation, improving reliability in noisy motion-control cabinets.
Q: How do I choose the length? A: Standard lengths are listed in the specifications; custom lengths can be produced by confirming the routing distance and connectors.
Q: What is a fiber-optic harness? A: It is a factory-terminated optical cable with connectors installed on both ends, ready to plug into servo drives, controllers or modules without field termination.
