POF CABLE
3 mm PMMA End-Glow Fiber Optic Cable for Decorative Lighting

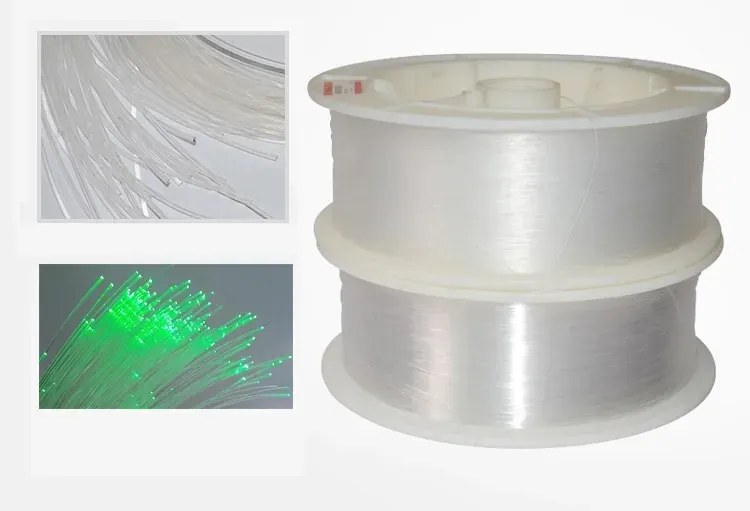

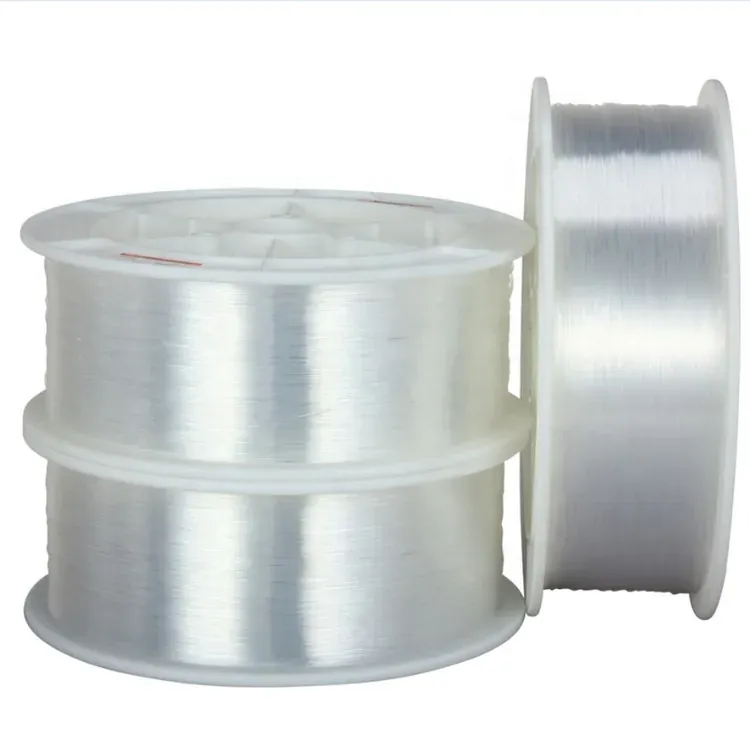

This is a 0.75 mm/1 mm/1.5 mm/2 mm end-glow PMMA plastic optical fiber for star ceilings, luminous furniture and decorative lighting. Flexible, waterproof, cool-running POF supplied in continuous spool lengths.

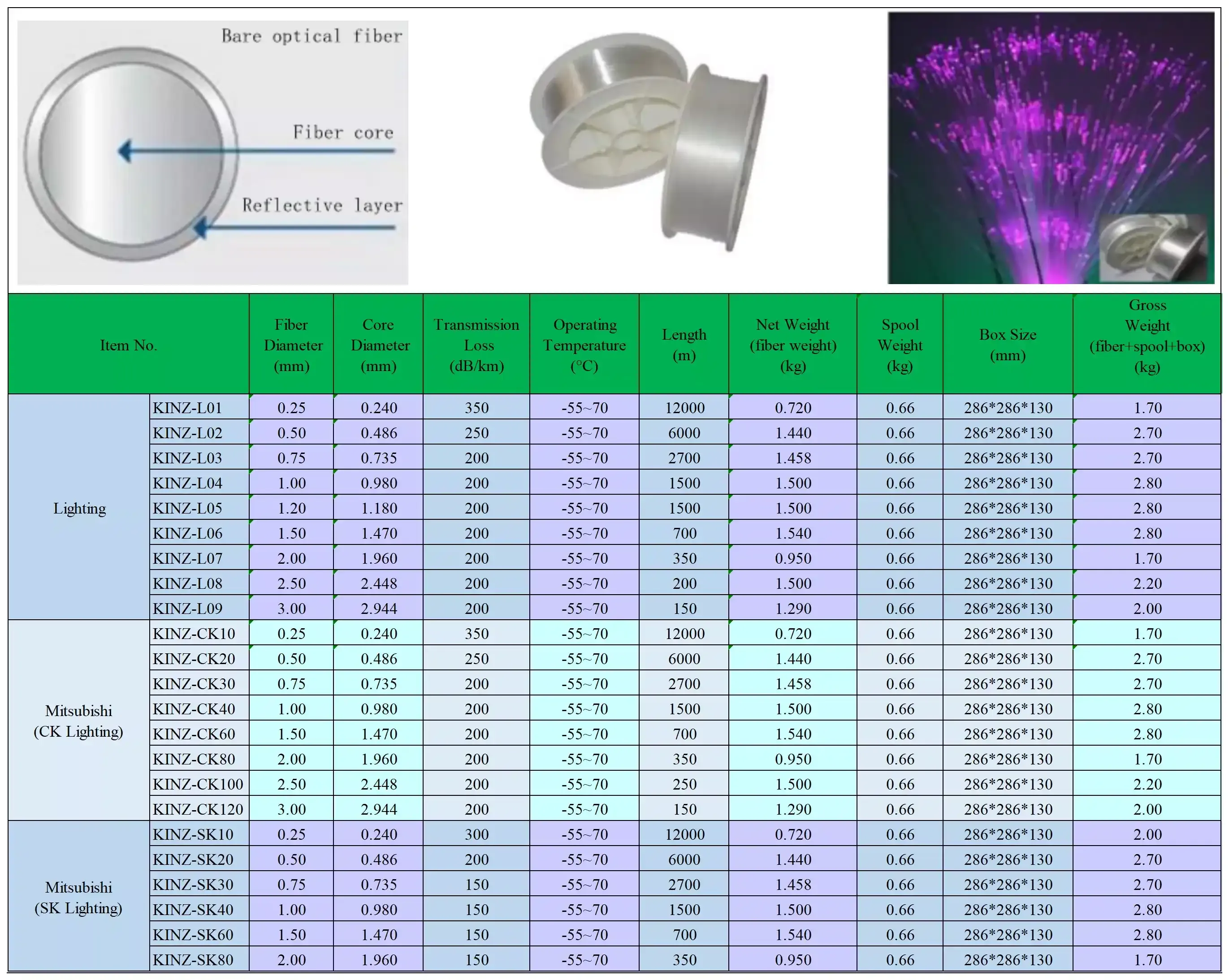

Specifications
- Working Temperature(°C)
- -20~70
- IP Rating
- IP68
- Application
- Lighting Decoration
- Fiber Type
- PMMA end glow fiber optic cable
- Fiber Diameter
- 0.25mm , 0.3mm , 0.75mm , 1.0mm , 1.5mm ~3.0mm
- Attenuation (dB/km)
- ≤350(650nm)
- Core Material Refractive Index
- 1.49
- Bend Radius (mm)
- ≥10*Fiber Diameter
- Clad Material
- Fluorine Polymer
- Length
- 150m~12000m
- Effect
- End glow , side glow and sparkle
- Certification
- EMC, Reach, FCC
3 mm PMMA End-Glow Fiber Optic Cable for Decorative Lighting
This is a JINSHANG TECH end-emitting plastic optical fiber with a 0.75 mm/1 mm/1.5 mm/2 mm PMMA core and fluorinated-polymer cladding, supplied for star ceiling / starry sky.
JINSHANG TECH supplies the unit as a production item; fiber diameter, jacketing, connectorization and length can be confirmed against the specification before ordering.
Key Characteristics
- Refractive index figures: 1.49
- Operating temperature range: -20~70
- IP68 ingress protection for damp or wash-down environments
- Standard length: 150m~12000m
- Certified to EMC, Reach, FCC
- Core/fiber material: 1.49
- Safe around water and in public spaces — no electrical current at the light-emitting point
- Fully dielectric light path: the fiber itself carries no electricity, heat or UV at the illuminated end
Typical Applications

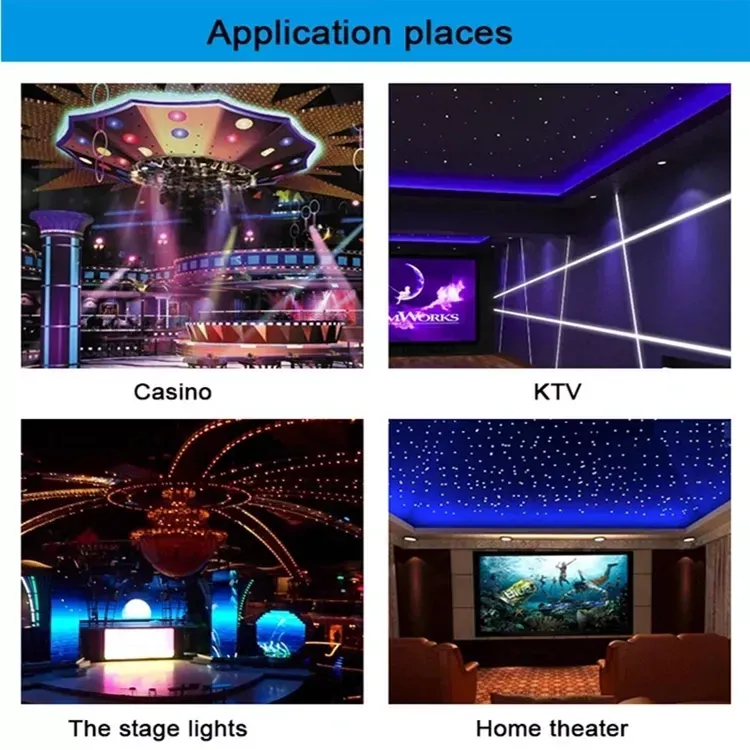

The unit is commonly used for star ceilings and starry-sky panels in hotels, KTV rooms, home theaters and bedrooms. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions

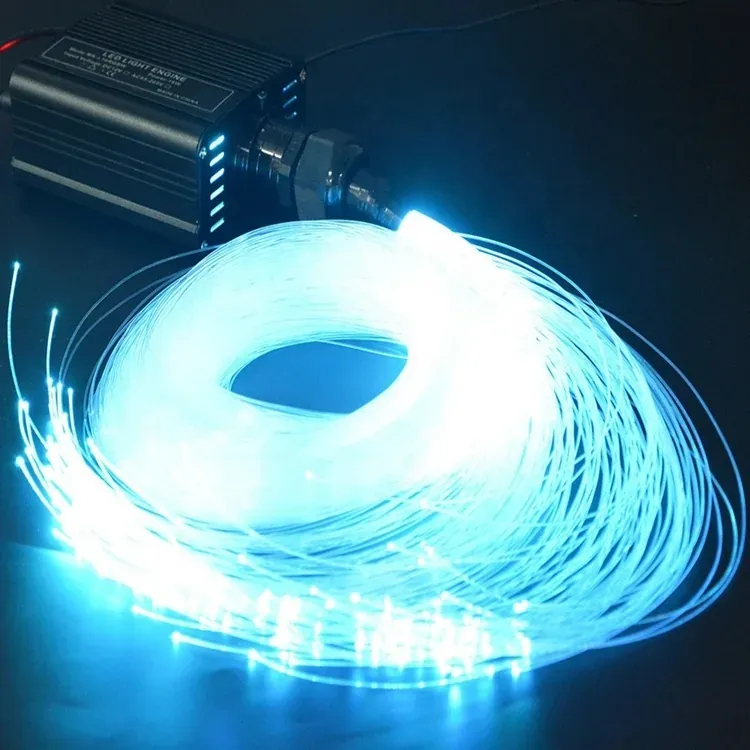

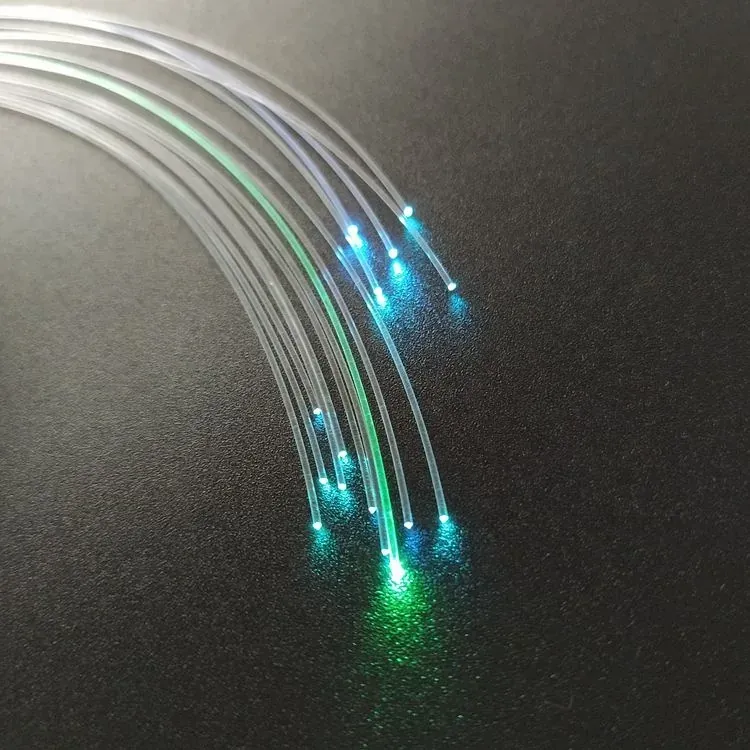

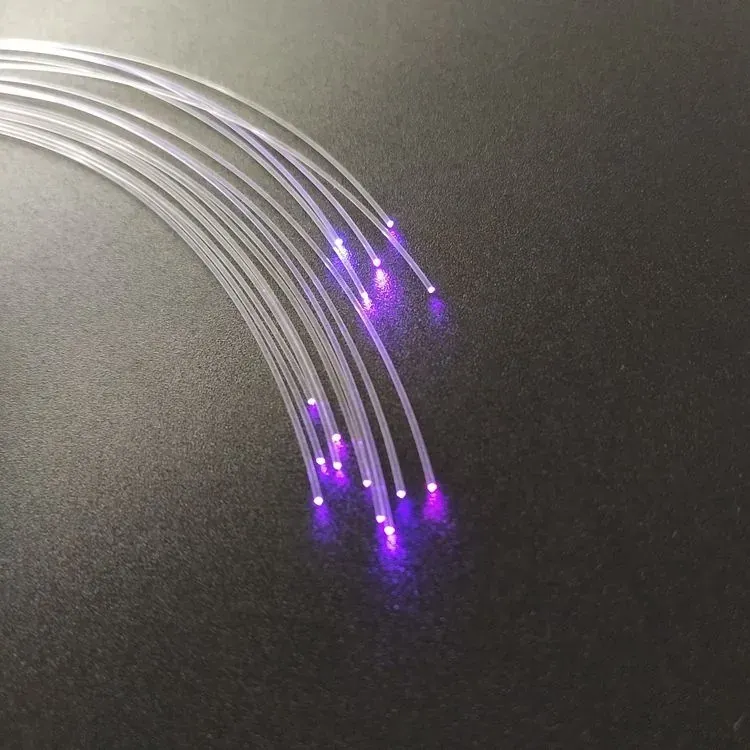

Q: What is end-glow PMMA fiber used for? A: End-glow PMMA fiber transmits light from a remote illuminator to the end of each strand, producing pin-points of light used for star ceilings, curtains, furniture and architectural decoration.
Q: What core diameter should I choose? A: Smaller diameters (0.25–0.75 mm) give fine, dense star points, while 1.0–3.0 mm strands produce brighter points over longer runs. Match the diameter to your illuminator and desired star density.
Q: Is the fiber safe near water or in a ceiling? A: Yes. The fiber itself carries no electricity and stays cool at the emitting end, so it is suitable for wet areas and occupied spaces when paired with a remotely located light source.
Q: How is it cut and installed? A: The POF is cut with a sharp fiber cutter and bundled into the illuminator chuck; no fusion splicing or electrical work is needed at the lit end.
