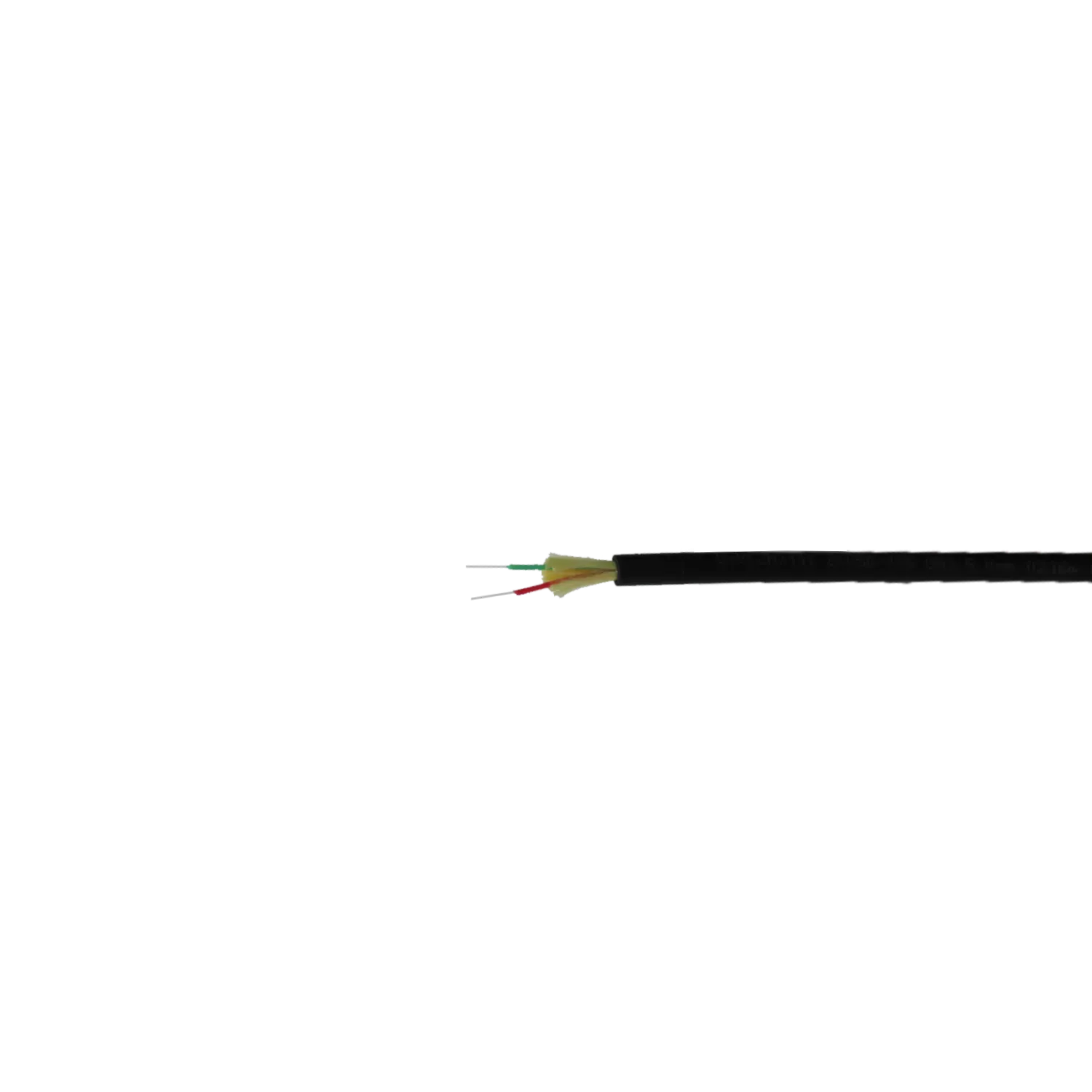

ALPTICS MedOptics U-V(ZN)Y11Y 2G50-125 OM3 5.0mm xxxxm WW-YY fiber structure

GOF Cable

ALPTICS MedOptics U-V(ZN)Y11Y 2G50_125 OM3 5.0mm xxxxm WW_YY

POF Cable Plastic optical fiber (POF) is a type of optical fiber that employs a polymethyl methacrylate (PMMA) as its core, surrounding by a cladding made of fluorinated polymethyle methacrylate. The typical POF has a core diameter 980um and cladding diameter 1000um, with NA 0.5. Match with cost effective LED source peferctly. POF is distinguished by its material composition, practical application and unique advantages, making it suitable for specific uses that demand tight bending radius and robust performance under less critical conditions than those served by GOF and PCF. For example, medicine, Factory automation, Automotive industry and Sensing technology.

Application
Flexible dual core metal free cable has a double layer jacket, it is suitable for dynamic application For example industrial drag chain,robust and medical equipment

Reference Standard
IEC 60794-2	In-door cable
IEC 60793-2-10 A1a.2	Multi-mode fiber

Structure
Fiber
Fiber type	2xG50/125,OM3
Buffer diameter	0.60± 0.1 mm
Buffer material	TPE-E
Buffer color	Red, Green
Reinforce element
Kevlar
Jacket
Out diameter	5.0± 0.3 mm
Wall thickness	1.0± 0.1 mm
Color	Black
Material	TPU

Optics Performance
Attenuation	< 3.0 dB/km @850nm
	< 1.0 dB/km @1300nm
Bandwidth	> 1500 MHz·km @850 nm
	> 500 MHz·km @1300 nm
NA	0.200 +0.015

Mechanical Parameter
Tensile strength	> 400 N Long term
	> 800 N Short term
Bending radius	> 100 mm Long term
	> 75 mm Short term
Torsion	50 N, 1 m, ±180°
Crush	> 1000 N/dm
Repeat bending	R= 50 mm, Load 50 N, Cycles: 1000
Drag Chain	Cycle > 10 Mil.
	Bending radius 75 mm
	Speed 60 cycles/min

Climate Properties
Storage and transportation	-10℃/ + 70℃
During installation	-10℃/ + 55℃
Operation	-20℃/ + 75℃

Flame Characteristic
Out Jacket material	UL94 HB
