POF CABLE
Automotive MOST Plastic Optical Fiber Cable Audi
This is an automotive MOST plastic optical fiber cable — lightweight, EMI-immune vehicle-grade POF for infotainment, sensing and ambient cabin lighting.

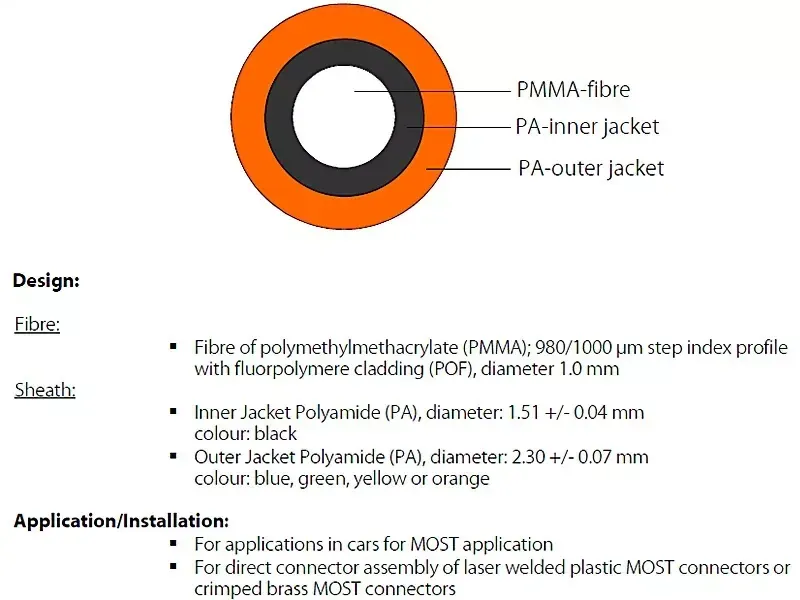

Specifications
- Type
- Fiber patch cord,Jumper
- Finished diameter
- 2.3mm
- Core material diameter
- 1.0mm
- Core material
- imported Japanese optical fiber
- Standard length
- 1000mm, 0-100m can be customized
- Working temperature
- -55 °C-+ 85 °C
- Attenuation
- less than 180dB / km
- Color
- Black Connector ,Qrange Cable
- Application
- GPS navigation system,Video display etc.
- Certifaction
- ISO9001, European ROHS,CE
- No. of Fiber
- 2.

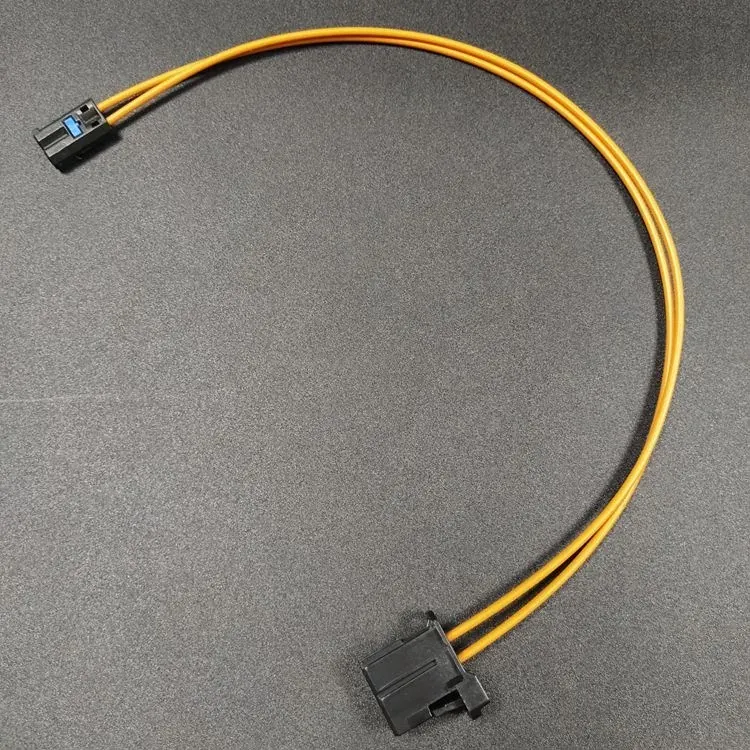

Automotive MOST Plastic Optical Fiber Cable Audi
This is a JINSHANG TECH automotive POF cable/assembly for optical data and illumination inside vehicles.
Because the optical path is non-conductive, the unit provides electrical isolation between connected equipment and can be routed past motors, drives and power wiring without picking up noise.
Key Characteristics
- Operating temperature range: -55 °C-+ 85 °C
- Fiber count: 2.
- Standard length: 1000mm, 0-100m can be customized
- Certified to ISO9001, European ROHS,CE
- Housing/jacket color: Black Connector ,Qrange Cable
- Core/fiber material: 1.0mm
- Immune to electrical noise in the vehicle harness environment
- Vehicle-grade jacketing for temperature and vibration
Typical Applications
The unit is commonly used for MOST-bus infotainment and multimedia optical networks. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions
Q: Can it handle cabin temperatures? A: Vehicle-grade POF cable is specified for the automotive temperature and vibration range listed in the specification.
Q: Is automotive POF different from lighting POF? A: Automotive assemblies use vehicle-rated jacketing and the connectors the in-vehicle network requires; lighting POF is optimized for light delivery.
Q: What is MOST? A: MOST (Media Oriented Systems Transport) is a multimedia/infotainment network standard that historically uses plastic optical fiber in vehicles.
Q: Where is optical fiber used in a car? A: Plastic optical fiber serves MOST infotainment networks, ambient lighting and sensing links where its light weight and EMI immunity are valuable.
