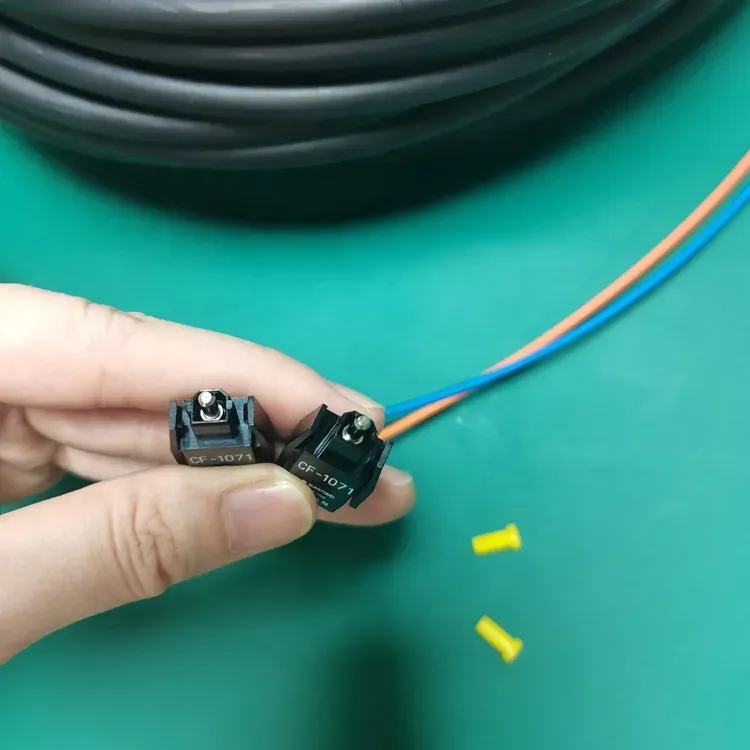

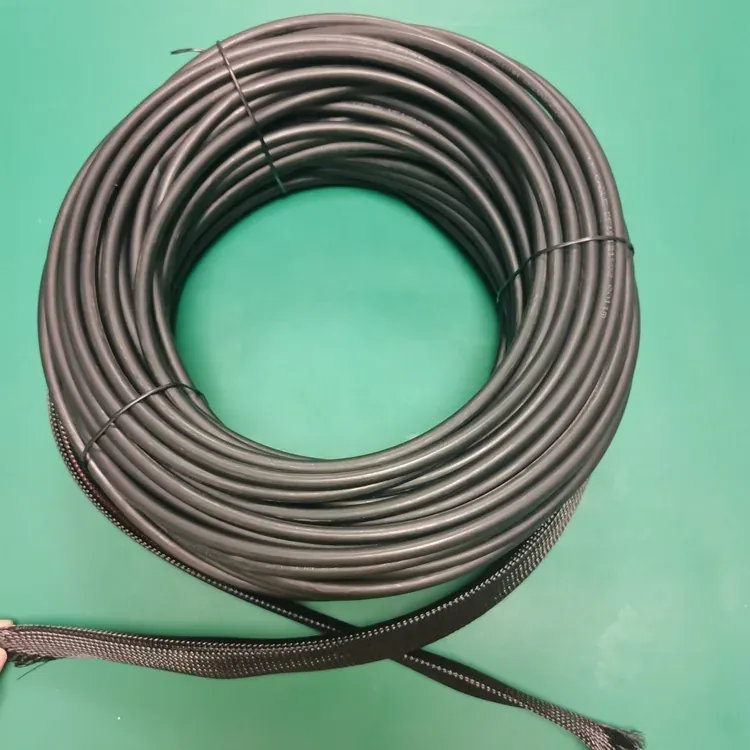

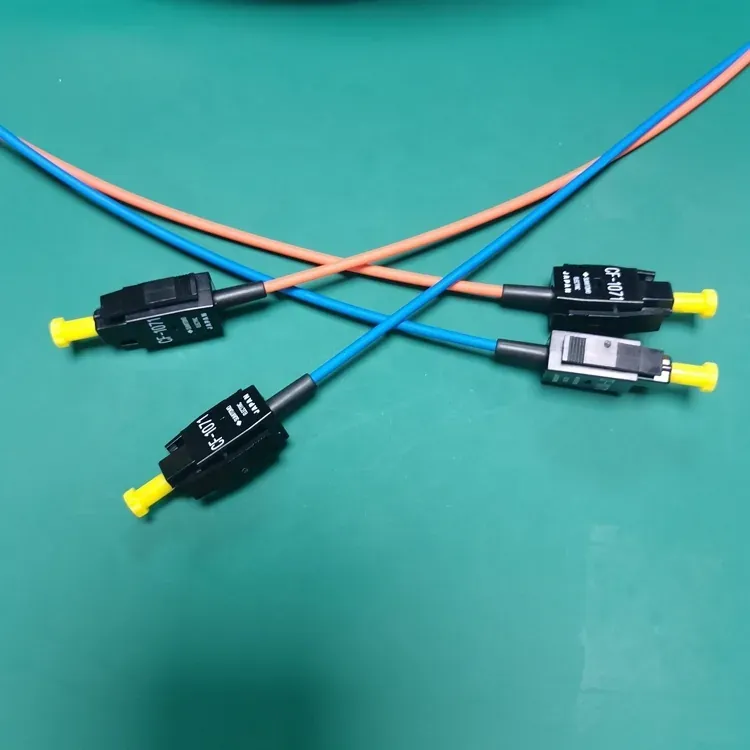

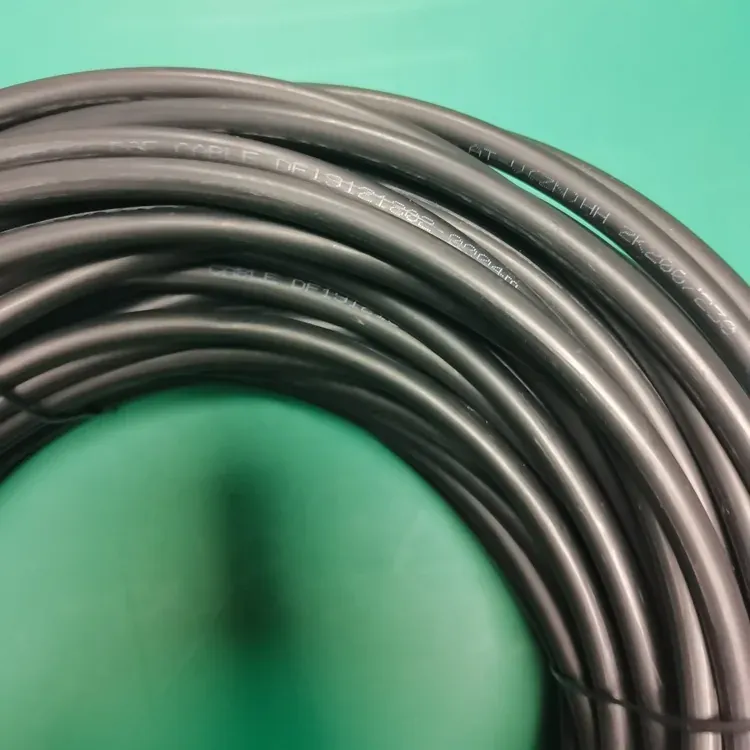

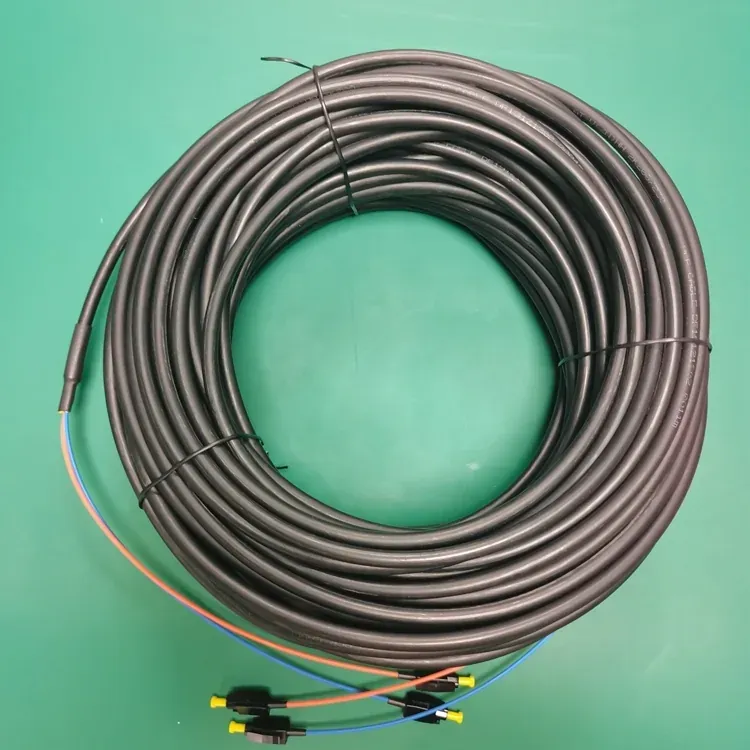

CF-1071 Duplex 7.5/2.2 mm Industrial Fiber Optic Cable Harness Assembly
CF-1071 factory-terminated industrial fiber-optic harness — EMI-immune optical cable assembly for servo drives, CNC and factory automation networks.
Specifications
- Type
- Fiber optic patch cord
- Transmission wavelength
- 650nm
- Certifaction
- ISO9001,ROHS,CE
- Fiber material
- PMMA
- length
- 1m, Accept customization
- Operating temperature
- -20~+70C
- Color
- Black
- Weight
- 0.01kg
- No. of Fiber
- 1.
CF-1071 Duplex 7.5/2.2 mm Industrial Fiber Optic Cable Harness Assembly
CF-1071 is a JINSHANG TECH 2.2 mm industrial optical fiber jumper/harness supplied with connectors for EMI-immune motion-control links.
Manufactured for production use rather than as a one-off sample, the CF-1071 is built to a stable fiber specification so orders can be repeated with consistent dimensions and performance.
Key Characteristics
- Operating wavelength: 650nm
- Operating temperature range: -20~+70C
- Fiber count: 1.
- Standard length: 650nm
- Certified to ISO9001,ROHS,CE
- Housing/jacket color: Black
- Available in multiple standard lengths with custom lengths on request
- Drop-in replacement for industrial OEM optical cables
Typical Applications
The CF-1071 is commonly used for servo drive and amplifier networks in motion control, CNC, PLC and factory automation optical links, and machine and equipment harnesses requiring OEM-form fit. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions
Q: Is it a direct replacement for the OEM cable? A: The harness is built to match the listed fiber type and connector interfaces, so confirm the model/part number against the original equipment before ordering.
Q: Why use fiber in a servo system? A: Optical links are immune to drive-generated EMI and provide galvanic isolation, improving reliability in noisy motion-control cabinets.
Q: How do I choose the length? A: Standard lengths are listed in the specifications; custom lengths can be produced by confirming the routing distance and connectors.
Q: What is a fiber-optic harness? A: It is a factory-terminated optical cable with connectors installed on both ends, ready to plug into servo drives, controllers or modules without field termination.
