DB-1500 specification pmma end glow fiber

POF CABLE

DB-1500 Asahi Kasei 1.5 mm PMMA End-Glow Fiber Optic Cable for Decorative Lighting

DB-1500 1.5 mm end-glow PMMA plastic optical fiber for star ceilings, luminous furniture and decorative lighting. Flexible, waterproof, cool-running POF supplied in continuous spool lengths.

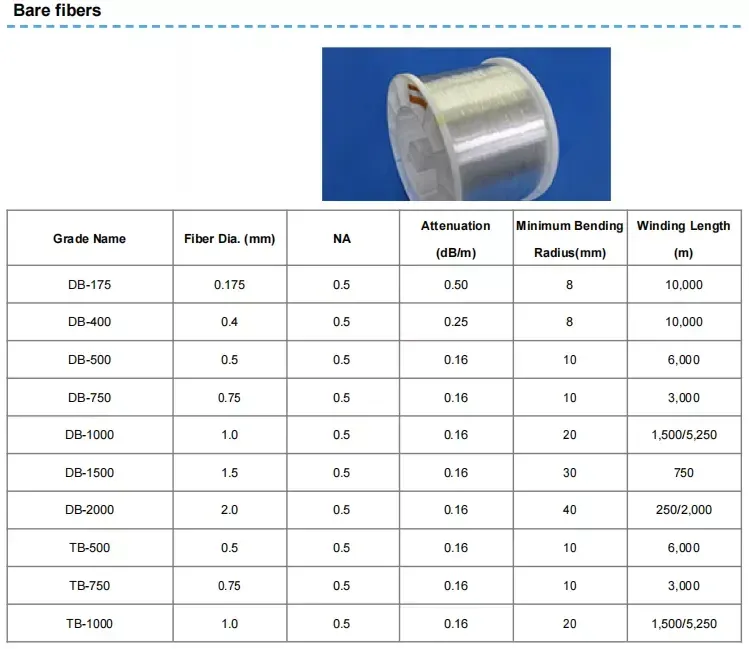

Specifications

Working Temperature(°C): -20~70
IP Rating: IP68
Application: Illumination&Signal Transmission,,Decoration, ceilling,lighting
Fiber Type: PMMA end glow fiber optic cable
Grade Name: DB-500
Fiber Dia. (mm): 0.5
NA: 0.5
Attenuation (dB/m): 0.16
Minimum Bending Radius(mm): 10
Winding Length (m): 6,000
Certification: Reach, ISO9001

DB-1500 Asahi Kasei 1.5 mm PMMA End-Glow Fiber Optic Cable for Decorative Lighting

DB-1500 is a Asahi Kasei end-emitting plastic optical fiber with a 1.5 mm PMMA core and fluorinated-polymer cladding, supplied for industrial optical applications.

Manufactured for production use rather than as a one-off sample, the DB-1500 is built to a stable fiber specification so orders can be repeated with consistent dimensions and performance.

Key Characteristics

IP68 ingress protection for damp or wash-down environments

Standard length: 6,000

Certified to Reach, ISO9001

Attenuation rated at 0.16 over the operating wavelength

Minimum bend radius: 10

Operating temperature range: -20~70

Safe around water and in public spaces — no electrical current at the light-emitting point

Fully dielectric light path: the fiber itself carries no electricity, heat or UV at the illuminated end

Typical Applications

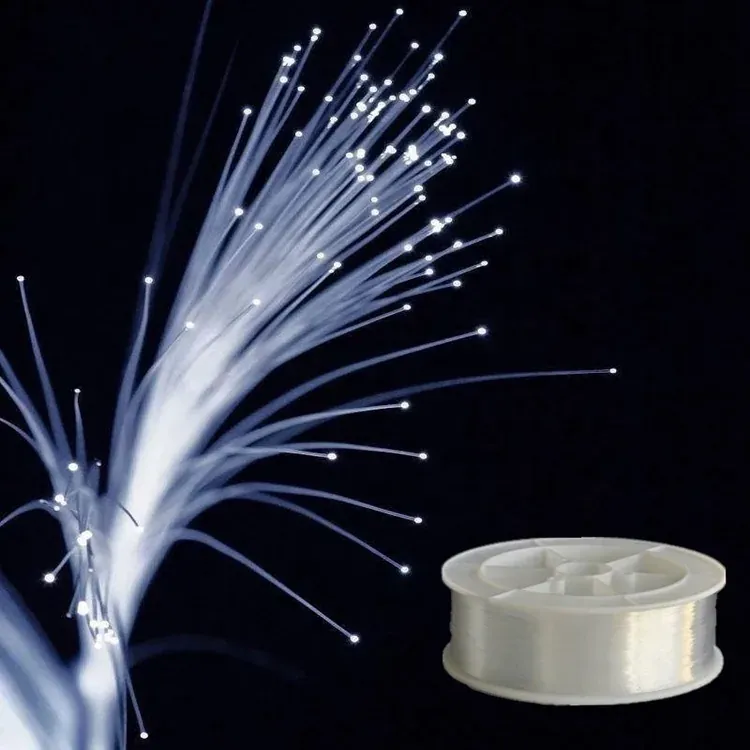

The DB-1500 is commonly used for star ceilings and starry-sky panels in hotels, KTV rooms, home theaters and bedrooms, fiber curtains, screens, waterfalls and large-area luminous displays, and luminous furniture, home textiles and wearable or fabric-embedded lighting. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.

Frequently Asked Questions

Q: Is the fiber safe near water or in a ceiling? A: Yes. The fiber itself carries no electricity and stays cool at the emitting end, so it is suitable for wet areas and occupied spaces when paired with a remotely located light source.
