POF CABLE
DB-175 Asahi Kasei 0.175 mm Fiber Optic Decorative Light / Luminous Fabric
DB-175 fiber-optic decorative light / luminous fabric driven by a remote RGBW engine — cool, safe, color-changing fibers for sensory rooms, jellyfish and star panels.
Specifications
- Material
- 100% Polyester
- Fiber Type
- Staple
- Application
- Illumination&Signal Transmission,,Decoration, ceilling,lighting
- Fiber Type
- PMMA end glow fiber optic cable
- Grade Name
- DB-175
- Fiber Dia. (mm)
- 0.175
- NA
- 0.5
- Attenuation (dB/m)
- 0.5
- Minimum Bending Radius(mm)
- 8
- Winding Length (m)
- 10,000
DB-175 Asahi Kasei 0.175 mm Fiber Optic Decorative Light / Luminous Fabric
The DB-175 fiber-optic decor from Asahi Kasei uses a remote LED light engine so the visible feature stays cool, waterproof and free of electrical current.
JINSHANG TECH supplies the DB-175 as a production item; fiber diameter, jacketing, connectorization and length can be confirmed against the specification before ordering.
Key Characteristics
- Attenuation rated at 0.5 over the operating wavelength
- Minimum bend radius: 8
- Standard length: 10,000
- Lightweight and drapable compared with LED strips or neon
- RGBW color-changing, twinkle and meteor effects via the illuminator
- The visible fabric/feature carries no electricity and stays cool to touch
- Waterproof options for jellyfish, pool and event installations
- Soft, flexible fibers woven into textiles or arranged as hanging strands
Typical Applications

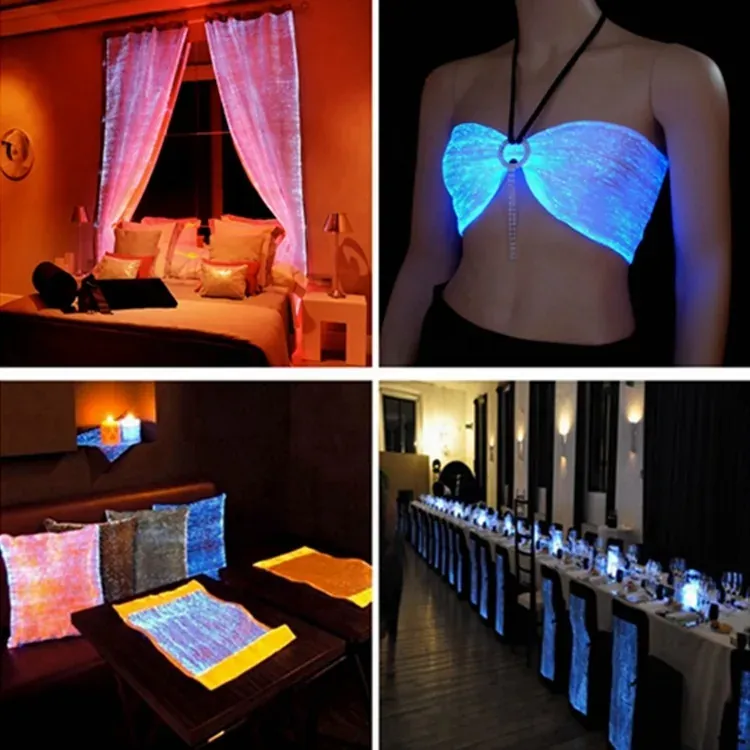

The DB-175 is commonly used for woven luminous fabric, clothing, curtains and textiles. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions
Q: Can it be made into clothing or curtains? A: The fibers can be woven or embroidered into fabric, curtains and wearable textiles, giving a soft, drapable luminous surface.
Q: Is it waterproof? A: Hanging and jellyfish-style features can be supplied waterproof for use over water or in humid venues; confirm the rating for the specific model.
Q: Is the lit fabric safe to touch? A: Yes. The light is produced by a remote illuminator and carried through fibers, so the fabric itself is cool, low-voltage-free and safe for children and sensory environments.
Q: How does it change color? A: An RGB or RGBW remote light engine drives all the fibers, allowing color changes, dimming, twinkle and flowing effects across the whole piece.
