POF CABLE

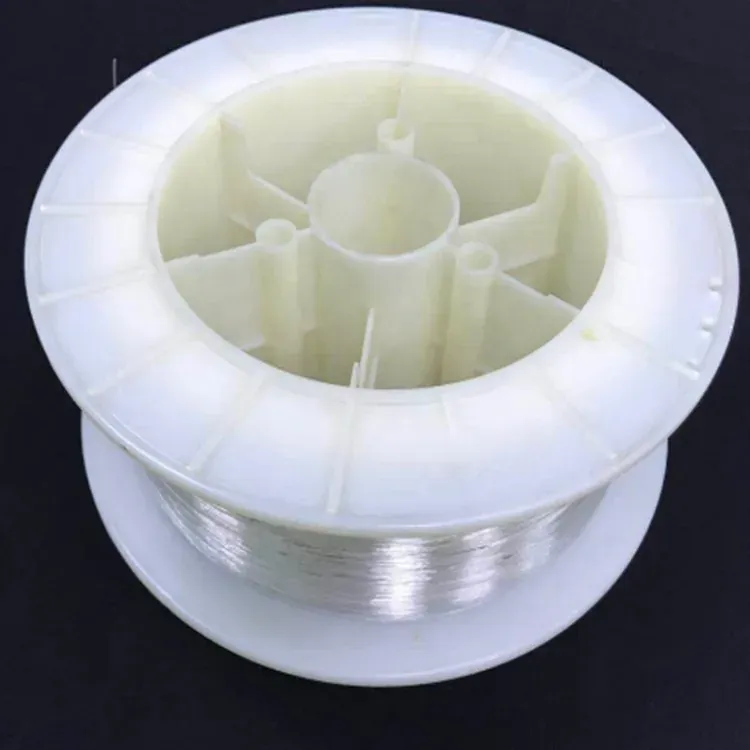

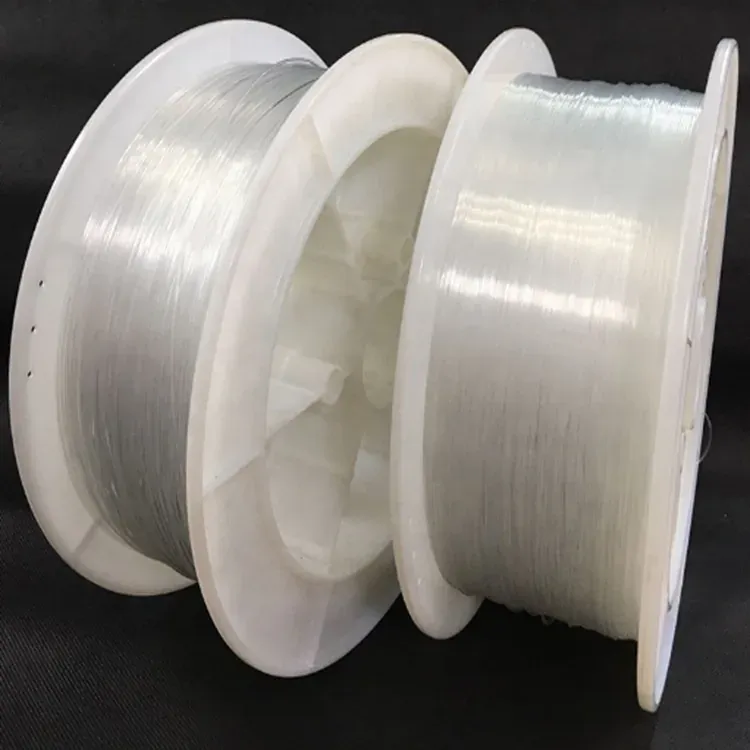

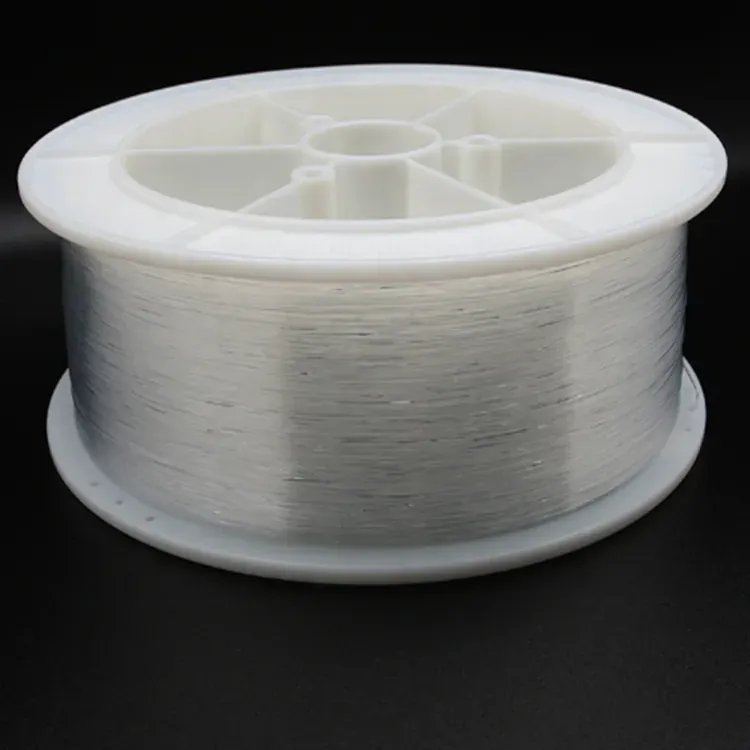

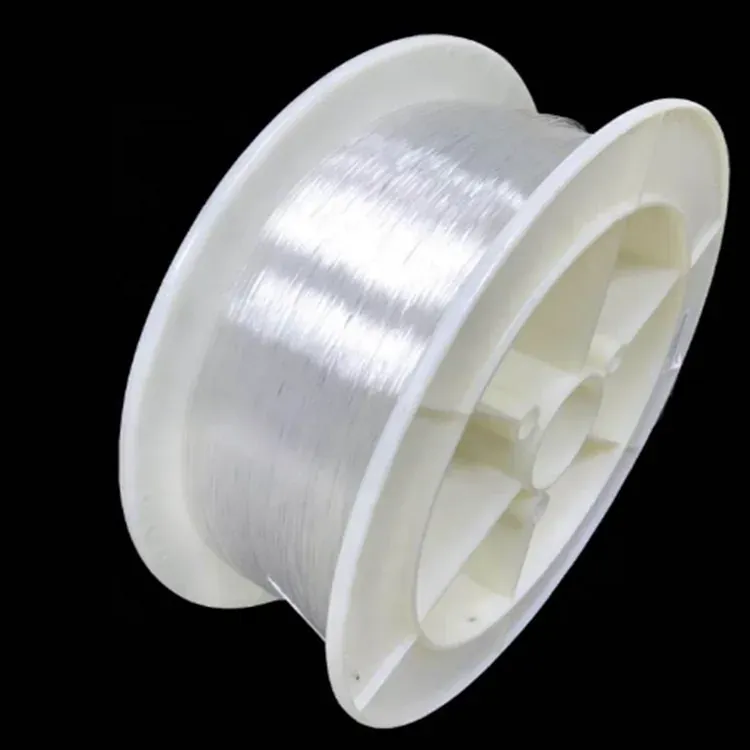

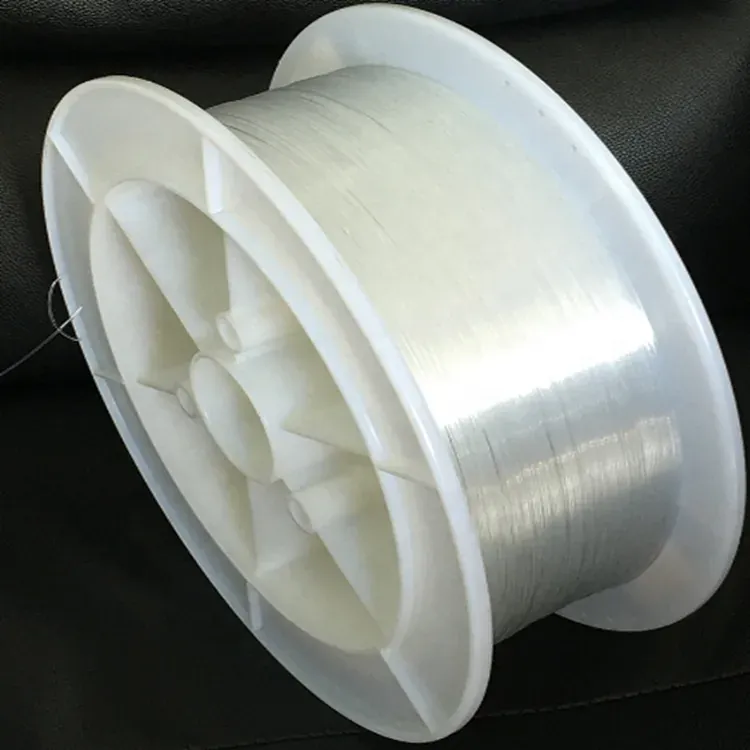

DB-3000 Asahi Kasei 3 mm PMMA End-Glow Fiber Optic Cable for Decorative Lighting
DB-3000 3 mm end-glow PMMA plastic optical fiber for star ceilings, luminous furniture and decorative lighting. Flexible, waterproof, cool-running POF supplied in continuous spool lengths.
Specifications
- Working Temperature(°C)
- -20~70
- IP Rating
- IP68
- Application
- Illumination&Signal Transmission,,Decoration, ceilling,lighting
- Fiber Type
- PMMA end glow fiber optic cable
- Grade Name
- DB-3000
- Fiber Dia. (mm)
- 3.00
- NA
- 0.5
- Attenuation (dB/m)
- 0.20
- Minimum Bending Radius(mm)
- 16
- Winding Length (m)
- 150/ 1000
- Certification
- Reach, ISO9001
DB-3000 Asahi Kasei 3 mm PMMA End-Glow Fiber Optic Cable for Decorative Lighting
The DB-3000 is a Asahi Kasei 3 mm PMMA end-glow plastic optical fiber (POF) that carries light along a transparent polymer core, used as the light-distribution strand in decorative lighting.
Manufactured for production use rather than as a one-off sample, the DB-3000 is built to a stable fiber specification so orders can be repeated with consistent dimensions and performance.
Key Characteristics
- Attenuation rated at 0.20 over the operating wavelength
- Minimum bend radius: 16
- Operating temperature range: -20~70
- IP68 ingress protection for damp or wash-down environments
- Standard length: 150/ 1000
- Certified to Reach, ISO9001
- Available in continuous spool lengths for large ceilings, curtains and textiles
- Safe around water and in public spaces — no electrical current at the light-emitting point
Typical Applications

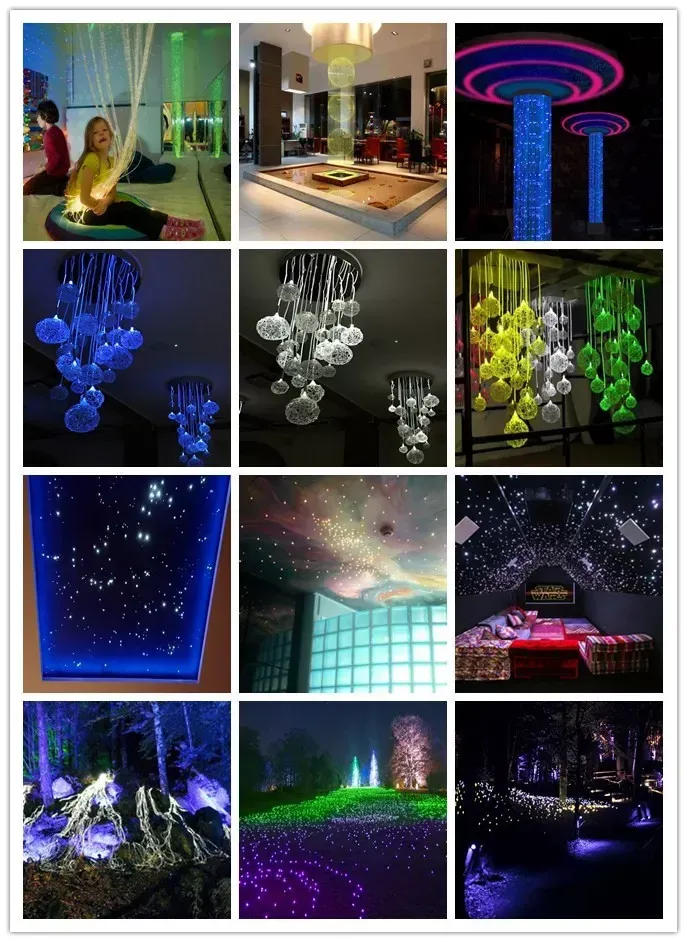

The DB-3000 is commonly used for star ceilings and starry-sky panels in hotels, KTV rooms, home theaters and bedrooms, and decorative outlines for bars, restaurants, weddings and public buildings. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions
Q: Is the fiber safe near water or in a ceiling? A: Yes. The fiber itself carries no electricity and stays cool at the emitting end, so it is suitable for wet areas and occupied spaces when paired with a remotely located light source.
