Dual Core Metal Armor Cable Multi mode fiber
Dual Core Metal Armor Cable Multi mode fiber Dual core metal armor cable has a tight structure design, it is suitablefor telecom. In space limit area, fixing and in-door installation.Typicaapplication are datacenter and factory automation.
Dual Core Metal Armor Cable Multi mode fiber
Application | |
Dual core metal armor cable has a tight structure design, it is suitablefor telecom. In space limit area, fixing and in-door installation.Typicaapplication are datacenter and factory automation. | |
| |
Standard | |
IEC 60793-2-10Cat. A1b | Multi-mode fiber |
IEC 60794-2 | In-door cable |
EC 60794-1-2 | Cable type test |

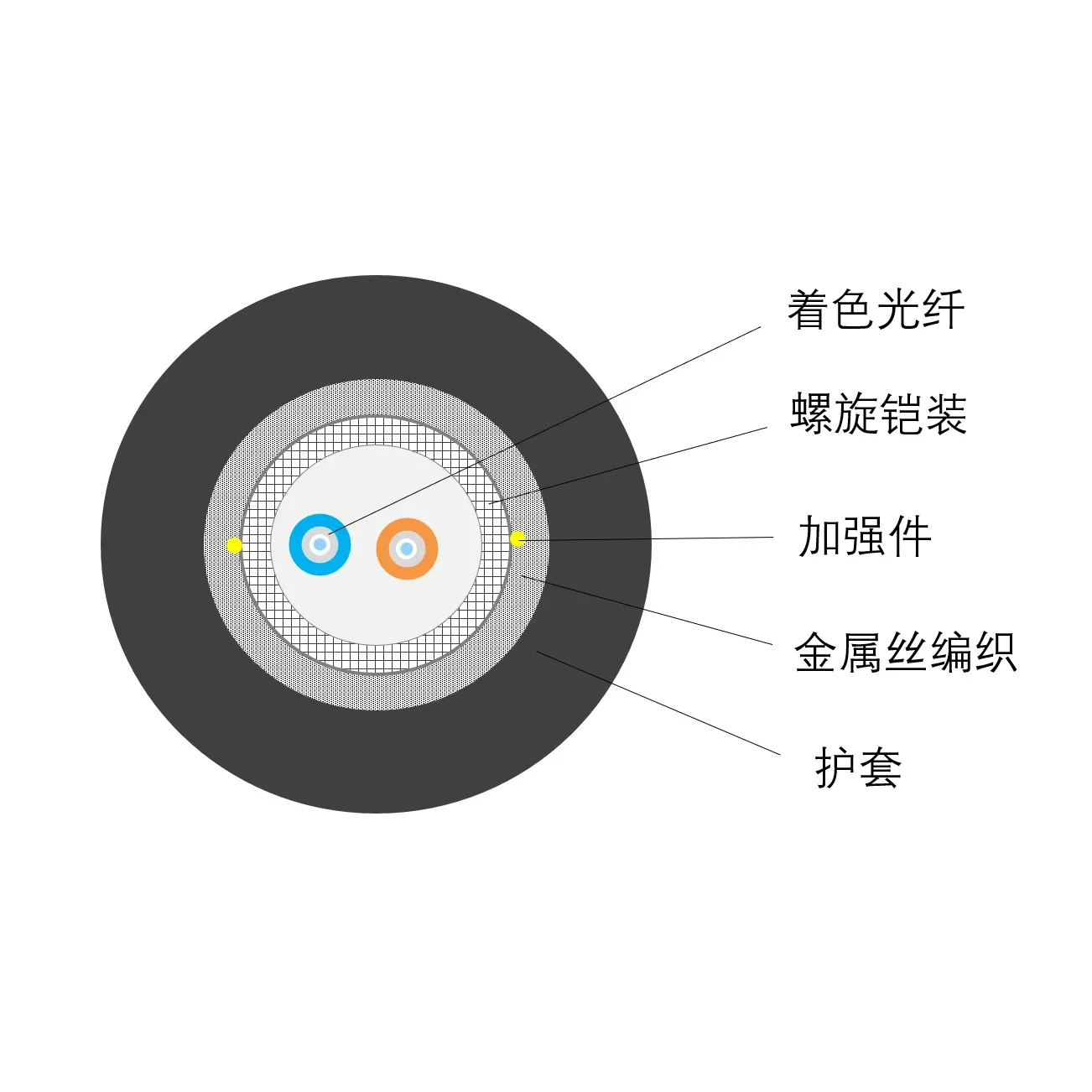

Structure
Fiber | |
Core diameter | 62.5 ± 3 um |
Cladding diameter | 125 ± 2 um |
Coating diameter | 245 ± 10 um |
Color | Blue、Orange |
Metal Armor | |
Material | SUS204 |
Outer diameter | 1.6 ± 0.2 mm |
Inner diameter | 1.1 ± 0.2 mm |
Reinforce element | |
Kevlar | |
Braiding | |
Material | SUS 3*16 |
Wire diameter | 0.07 ± 0.01 mm |
Jacket | |
Material | LSZH |
Wall thickness | 0.4 ± 0.1 mm |
Outer diameter | 3.0 ± 0.2 mm |
Color | Gray |
Printing | U-F(ZS)B(ZS)H 2xG62.5/125 |
| OM1 xxxxM WW/YY |
Optical Performance
Attenuation | < 1.2 dB/km @1300 nm |
| < 3.2 dB/km @850 nm |
Bandwidth | >500 MHz·km @1300 nm |
| >200 MHz·km @850 nm |
NA | 0.275 ±0.015 |
Mechanical Parameter
Tensile strength | >200N Long term |
| > 300N Short term |
Bending radius | >60mm Long term |
| > 45mm Short term |
Torsion | 20N,1m,±180° |
Crush | > 3000 N/dm |
Repeat bending | R=60mm,load 40N, Cycles:100 times |
Climate Properties
Storage and transportation | -25°C to + 70°C |
During installation | -20°C to + 50°C |
Operation | -40°C to + 70℃ |
Flame Characteristic
Single cable vertical flammability | GB/T 18380.12-2022 |
Bundle cable vertical flammability | Cat.A GB/T 18380.33-2022 |
Bundle cable vertical fammability | Cat.B GB/T 18380.34-2022 |
Smoke density >60% | GB/T 17651.2-2021 |
Absence of halogen <= 5 mg/g | GB/T 17650.1-2021 |
