OPTICAL FIBER CABLES

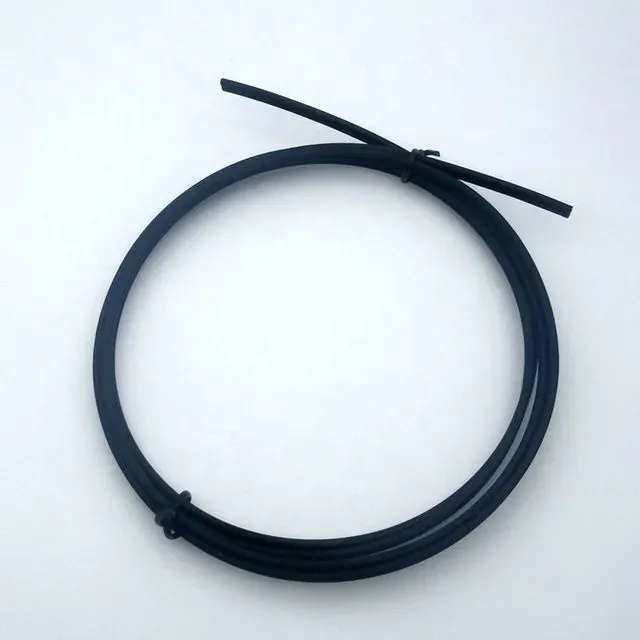

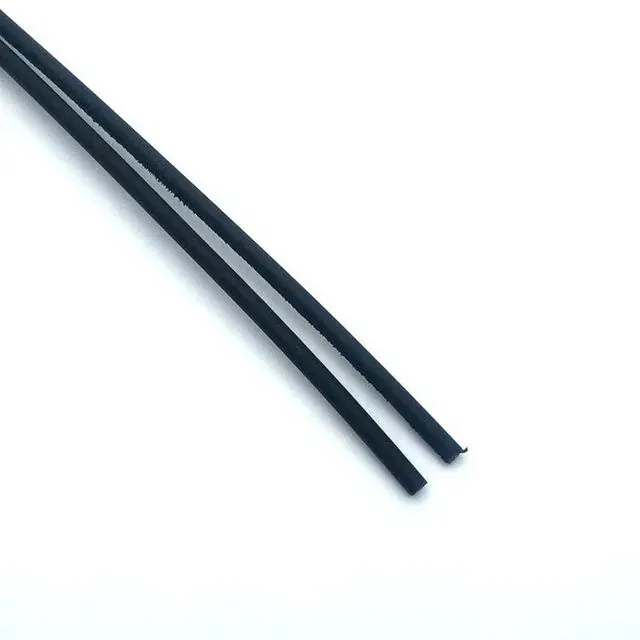

Duplex 4.4 mm Industrial Fiber Optic Cable Harness Assembly
This is a factory-terminated industrial fiber-optic harness — EMI-immune optical cable assembly for servo drives, CNC and factory automation networks.

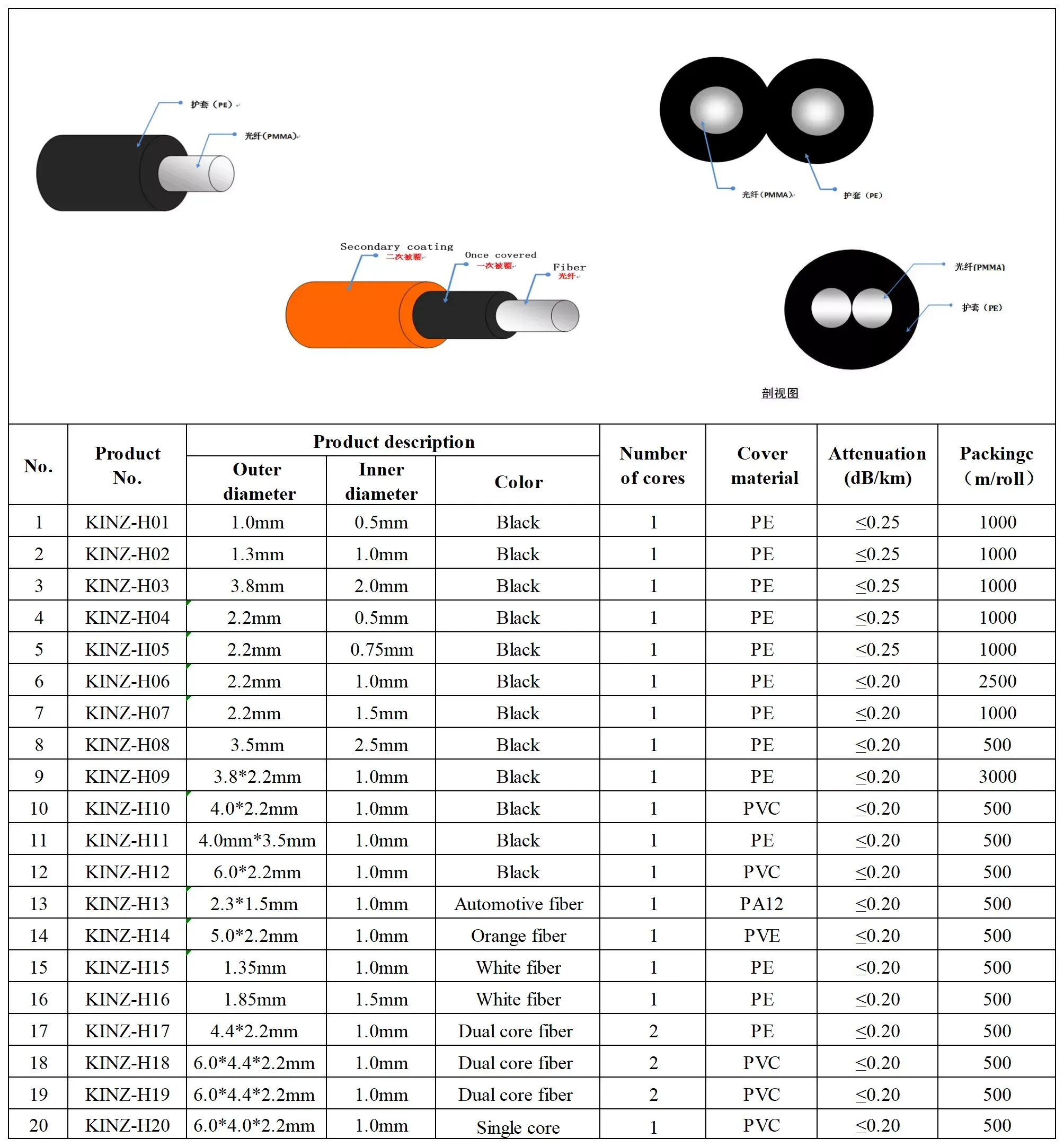

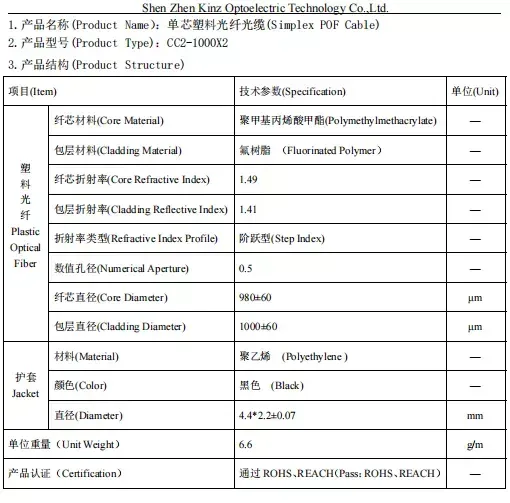

Specifications
- Type
- Fiber Optic Cable
- Application
- Lighting ,Communication, Transmission signal
- Fiber type

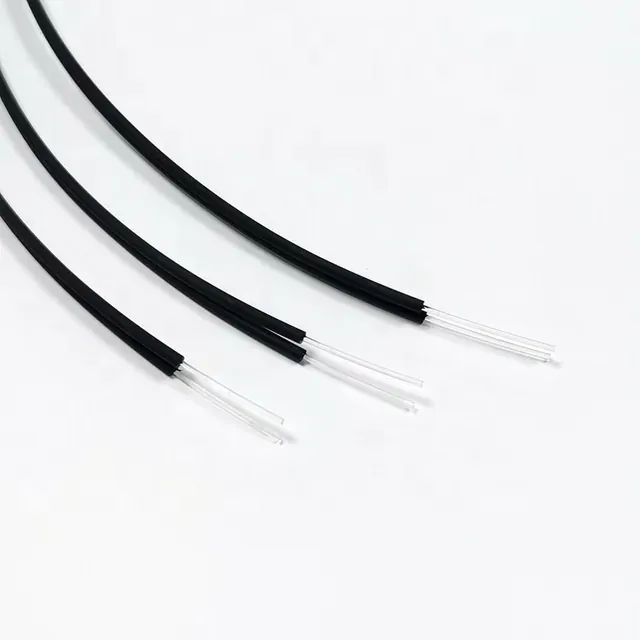

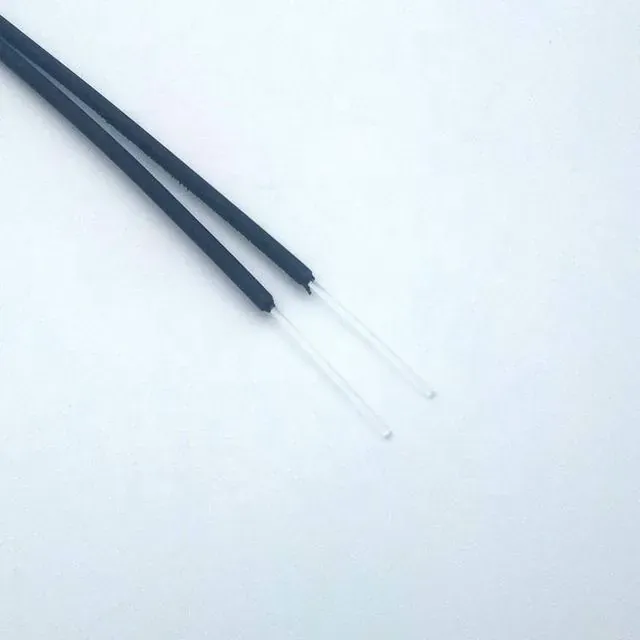

- PMMA fiber optic cable
- Certification
- ISO9001, RoHS, CE
- Core diameter
- 1.0*2.2mm
- Outer diameter
- 4.4mm
- Attenuation(dB/KM)
- ≤0.2
- Operating temperature
- -55~80Degree
- IP rating
- IP68
- Outer material
- PE
- Core Material
- pmma
Duplex 4.4 mm Industrial Fiber Optic Cable Harness Assembly

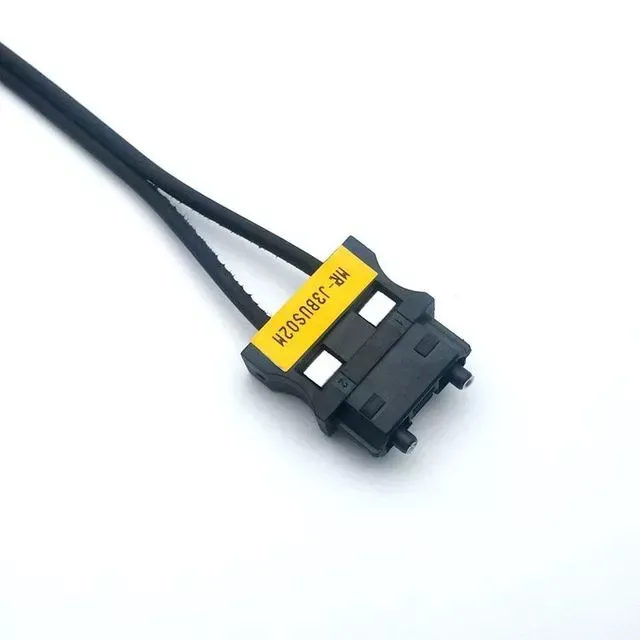

This is a JINSHANG TECH 1 mm/2.2 mm/4.4 mm industrial fiber-optic cable assembly (harness) terminated with factory connectors for direct installation in servo, CNC and control systems.
JINSHANG TECH supplies the unit as a production item; fiber diameter, jacketing, connectorization and length can be confirmed against the specification before ordering.
Key Characteristics
- Fiber diameter: 1.0*2.2mm
- Attenuation rated at ≤0.2 over the operating wavelength
- Operating temperature range: -55~80Degree
- IP68 ingress protection for damp or wash-down environments
- Certified to ISO9001, RoHS, CE
- Outer jacket: 4.4mm
- Flexible, drag-chain-compatible jacketing where specified
- EMI-immune optical link between servo drives, amplifiers and controllers
Typical Applications
The unit is commonly used for servo drive and amplifier networks in motion control, CNC, PLC and factory automation optical links, and machine and equipment harnesses requiring OEM-form fit. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions
Q: What is a fiber-optic harness? A: It is a factory-terminated optical cable with connectors installed on both ends, ready to plug into servo drives, controllers or modules without field termination.
Q: How do I choose the length? A: Standard lengths are listed in the specifications; custom lengths can be produced by confirming the routing distance and connectors.
Q: Why use fiber in a servo system? A: Optical links are immune to drive-generated EMI and provide galvanic isolation, improving reliability in noisy motion-control cabinets.
Q: Is it a direct replacement for the OEM cable? A: The harness is built to match the listed fiber type and connector interfaces, so confirm the model/part number against the original equipment before ordering.
