OPTICAL FIBER CABLES

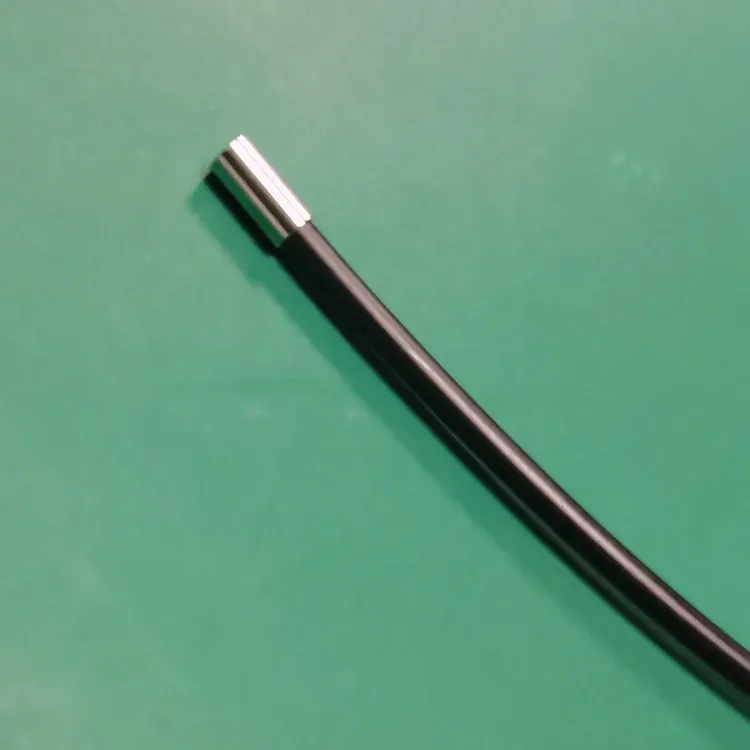

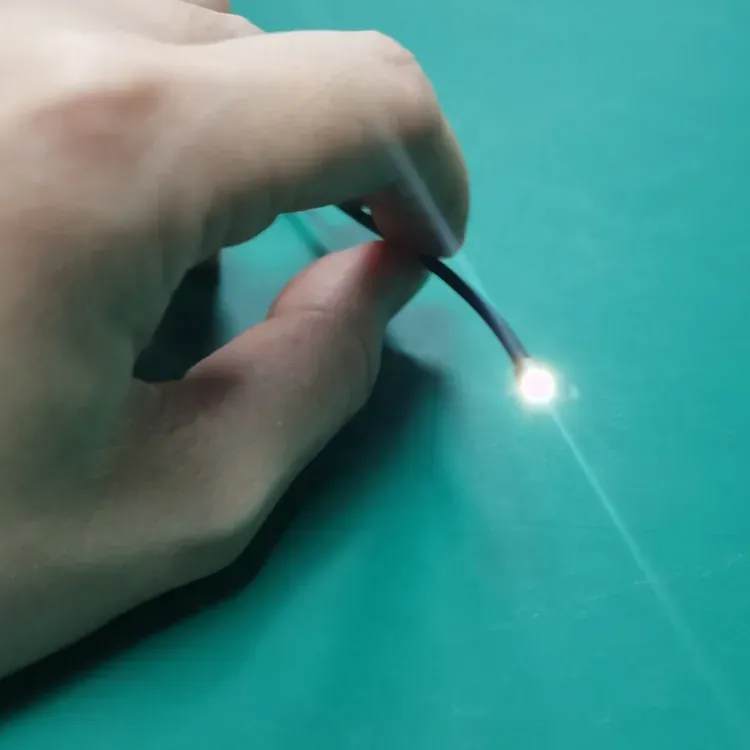

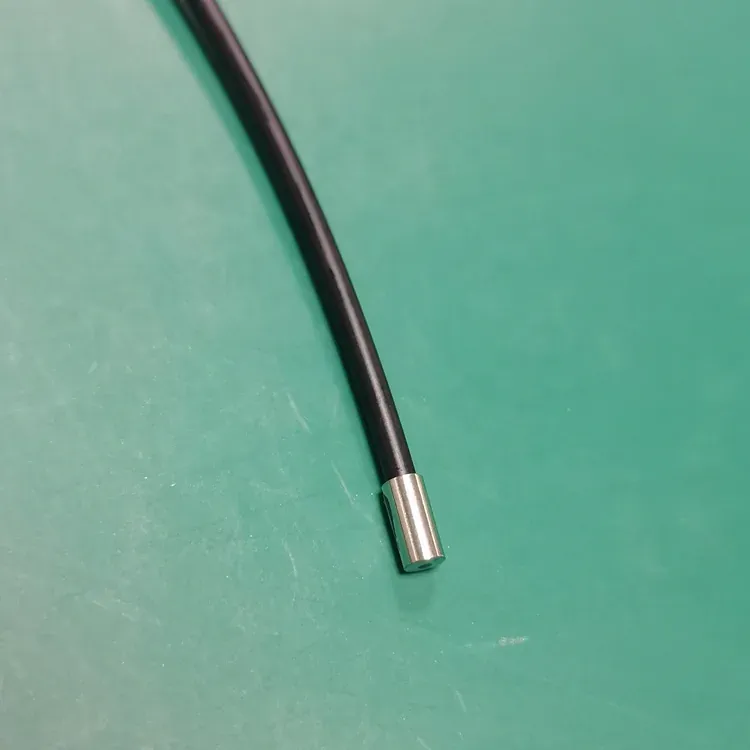

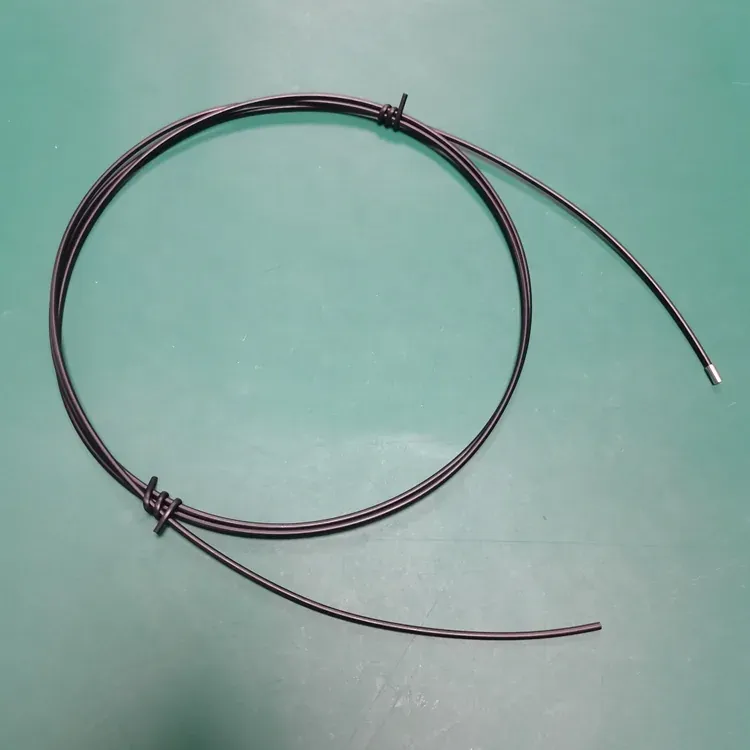

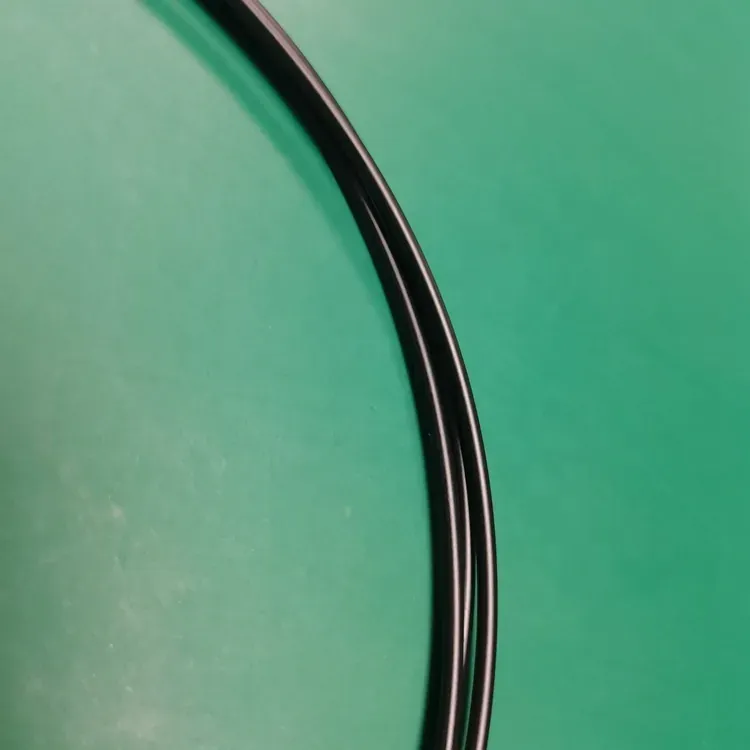

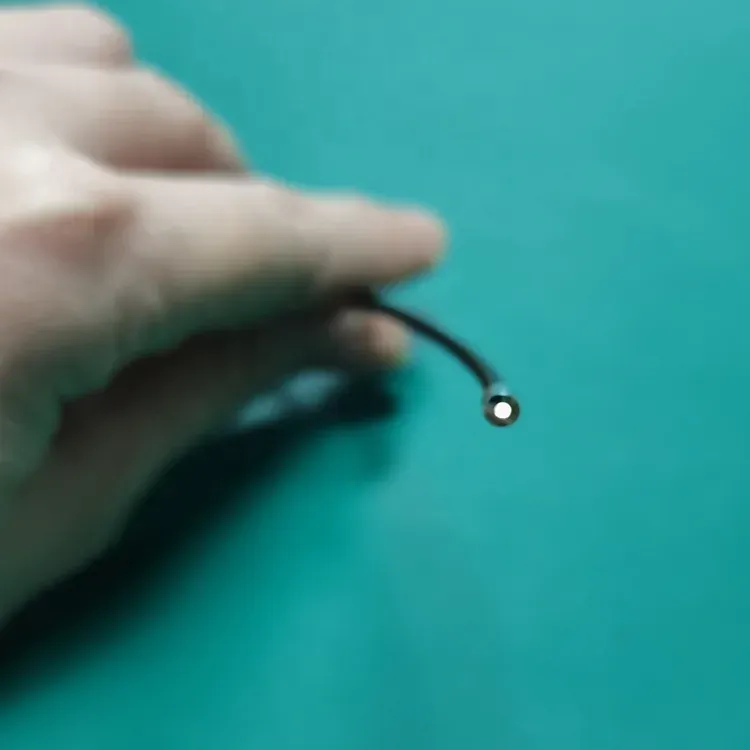

Fiber Optic Patch Cord Jumper
This is a factory-terminated fiber-optic patch cord with matched connectors for plug-and-play, low-loss POF/HCS/glass connections.
Specifications
- Type
- Fiber optic patch cord
- Transmission wavelength
- 650nm
- Certifaction
- ISO9001,ROHS,CE
- Fiber material
- PMMA
- length
- 1m, Accept customization
- Operating temperature
- -20~+70C
- Color
- Black
- Weight
- 0.01kg
- No. of Fiber
- 1.
Fiber Optic Patch Cord Jumper
This is a JINSHANG TECH fiber patch lead for data, control or instrumentation optical ports.
JINSHANG TECH supplies the unit as a production item; fiber diameter, jacketing, connectorization and length can be confirmed against the specification before ordering.
Key Characteristics
- Operating wavelength: 650nm
- Operating temperature range: -20~+70C
- Fiber count: 1.
- Standard length: 650nm
- Certified to ISO9001,ROHS,CE
- Housing/jacket color: Black
- Flexible, durable jacket in standard and custom lengths
- Factory-terminated both ends for controlled insertion loss
Typical Applications
The unit is commonly used for device-to-panel and device-to-device optical connections, transceiver and instrument patching in data/control systems, and replacement jumpers for existing optical networks. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions
Q: Is it shielded against noise? A: An optical patch cord carries no electrical signal, so it is inherently immune to EMI and provides ground isolation.
Q: Can I order a specific length? A: Standard lengths are available and custom lengths can be supplied by specifying the routing distance.
Q: Which connectors should each end have? A: Match the connectors to the two ports being joined; confirm the fiber type (POF/HCS/glass) and the connector standard (ST/SC/LC/SMA/HFBR/F07).
Q: What is a patch cord? A: A patch cord is a factory-terminated optical cable with connectors on both ends, used to link transceivers, panels or devices without field termination.
