HFBR-EUS500Z Avago HFBR Versatile Link POF Cable Assembly
HFBR-EUS500Z HFBR Versatile Link POF cable assembly — 1 mm PMMA fiber pre-terminated with HFBR connectors for plug-and-play, EMI-immune optical links.
Specifications
- Type
- Fiber Optic Cable
- Application
- Sensor,Lighting ,Communication, Transmission signal
- Fiber type
- PMMA fiber optic cable
- Certification
- ISO9001, RoHS, CE
- Core diameter
- 1.0mm
- Attenuation(dB/KM)
- ≤0.2
- Operating temperature
- -55~80Degree
- IP rating
- IP68
- Core Material
- pmma
- Jacket
- PE
HFBR-EUS500Z Avago HFBR Versatile Link POF Cable Assembly

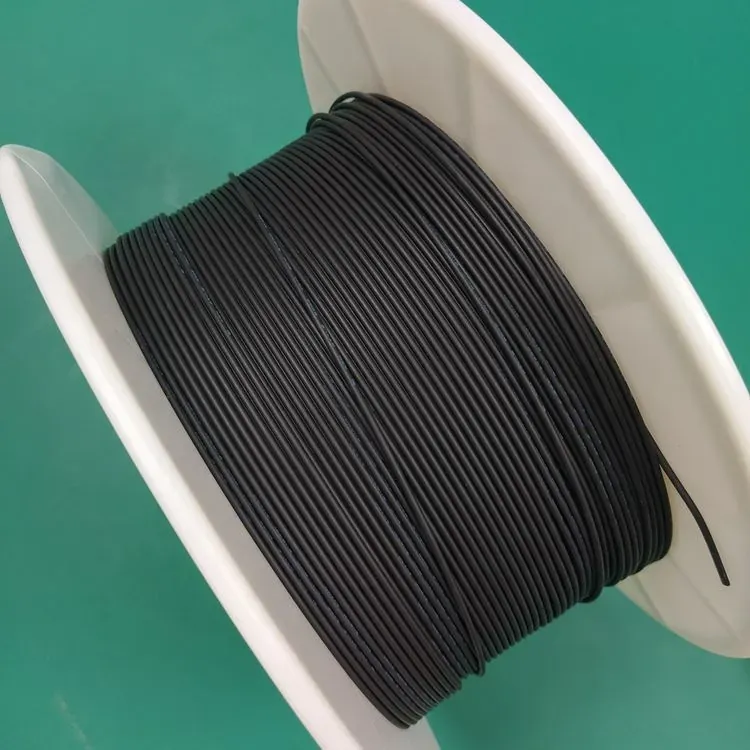

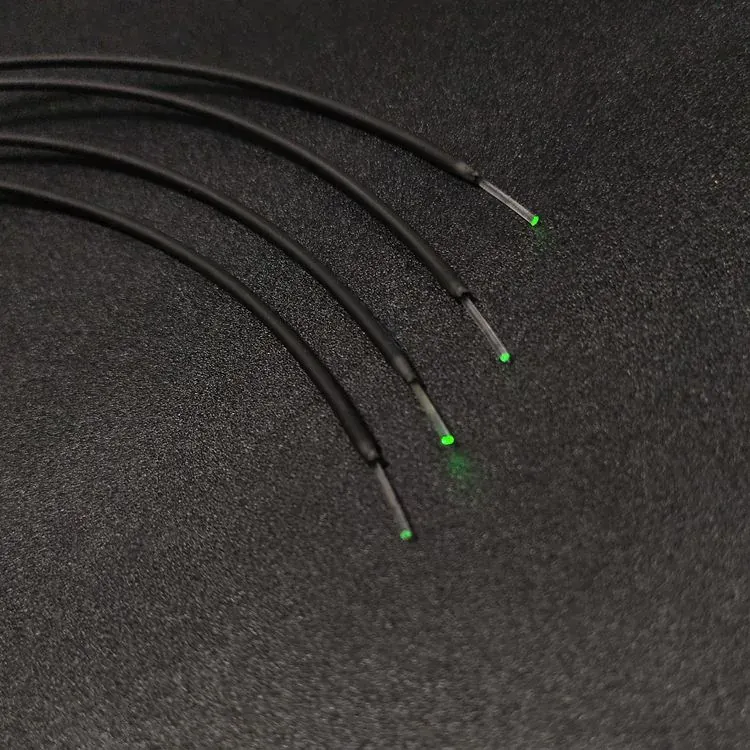

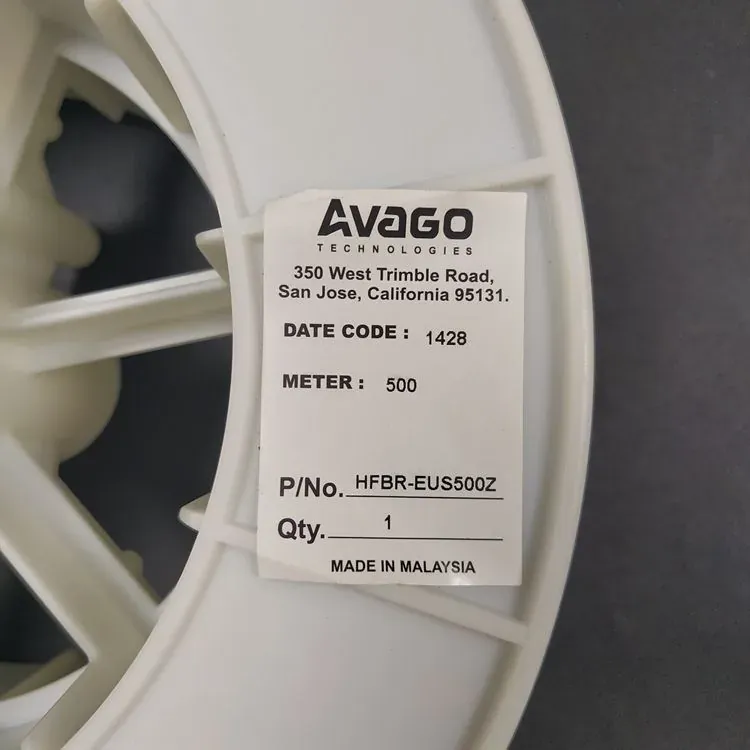

The HFBR-EUS500Z HFBR POF assembly from Avago / Broadcom is a pre-terminated 1 mm plastic optical lead for Versatile Link optical ports.
JINSHANG TECH supplies the HFBR-EUS500Z as a production item; fiber diameter, jacketing, connectorization and length can be confirmed against the specification before ordering.
Key Characteristics
- Operating temperature range: -55~80Degree
- IP68 ingress protection for damp or wash-down environments
- Certified to ISO9001, RoHS, CE
- Outer jacket: PE
- Core/fiber material: 1.0mm
- Fiber diameter: 1.0mm
- Plugs directly into HFBR transmitter and receiver modules
- Uses standard 1 mm core, 2.2 mm OD PMMA POF

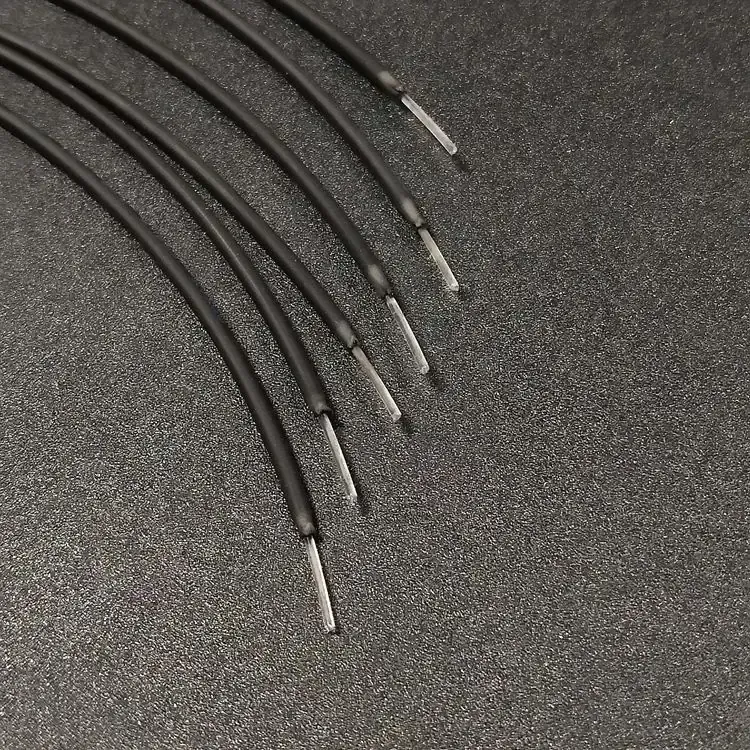

Typical Applications
The HFBR-EUS500Z is commonly used for links between HFBR optical modules in industrial equipment, and noise-immune control and data leads. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions
Q: Do I need to terminate it myself? A: No — the assembly is supplied with connectors installed and ready to plug in.
Q: Can it be supplied in custom lengths? A: Standard lengths are stocked; custom lengths are available by confirming the connection distance.
Q: What is a Versatile Link cable? A: It is a 1 mm POF cable pre-fitted with HFBR (Versatile Link) connectors that plug directly into Avago/Broadcom HFBR optical modules.
Q: What fiber does it use? A: Standard 1 mm PMMA core / 2.2 mm OD plastic optical fiber, the Versatile Link standard.
