POF Cable
Plastic optical fiber (POF) is a type of optical fiber that employs a polymethyl methacrylate (PMMA) as its core, surrounding by a cladding made of fluorinated polymethyle methacrylate. The typical POF has a core diameter 980um and cladding diameter 1000um, with NA 0.5. Match with cost effective LED source peferctly.
POF is distinguished by its material composition, practical application and unique advantages, making it suitable for specific uses that demand tight bending radius and robust performance under less critical conditions than those served by GOF and PCF. For example, medicine, Factory automation, Automotive industry and Sensing technology.
OtherApplication | |
This cable is suitable for harsh environment industrial application, Cable for high flexible application, drag chain and robots | |
| |
Standard | |
IEC 60793-2-10 Cat.A4a | Multi-mode fiber |
IEC 60794-2 | In-door cable |
IEC 60794-1-2 | Cable type test |

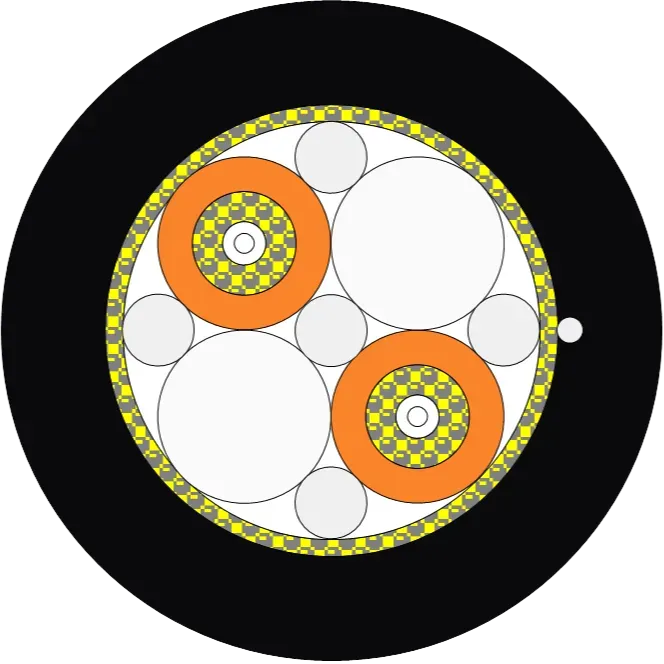

Structure | |
Fiber | |
Material | PMMA |
Core diameter | 980 ± 5 um |
Cladding diameter | 1000 ± 5 um |
Sub-cable | |
Diameter | 2.2 ± 0.1 mm |
Material | Nylon |
Color | Black, Orange |
Reinforce element | |
Aramide yarn | |
Jacket | |
Material | TPU |
Diameter | 7.0 ± 0.3 mm |
Wall thickness | 1.2 ± 0.15 mm |
Color | Black |
Printing | POF Trailing Cable Profinet Type C 2P980/1000 xxxxm |
| |
Optics Performance | |
Attenuation | < 180dB/km @ 650nm |
| < 275dB/km @ 660nm |
Bandwidth | > 10MHz·100m @ 650nm |
NA | 0.5 ± 0.1 |
| |
Mechanical Parameter | |
Tensile strength | IEC 60794-1-2 E1 |
| > 300N Long term |
| > 600N Short term |
Bending radius | IEC 60794-1-2 E11 |
| > 45mm Long term |
| > 30mm Short term |
Crush | IEC 60794-1-2 E3 |
| >200 N/dm |
Torsion | IEC 60794-1-2 E7 |
| Cycles: 10000 times |
| Length: 1000 mm |
| Angle: +360 degree |
| Load: 50N |
Repeat bending | IEC 60794-1-2 E6 |
| Radius: 70mm |
| Weight: 5N |
| Cycles: 100000 |
Drag Chain | Bending Radius 70 mm |
| Travel speed 10 m/s |
| Acceleration 10 m/s² |
| Cycles 5 mil. |
| |
Climate Properties | |
Storage and transportation | -40℃ to + 80℃ |
During installation | -5℃ to + 50℃ |
Operation | -40℃ to + 70℃ |
| |
Flame Characteristic | |
Fire resist and halogen free | |
