OPTICAL FIBER CABLES

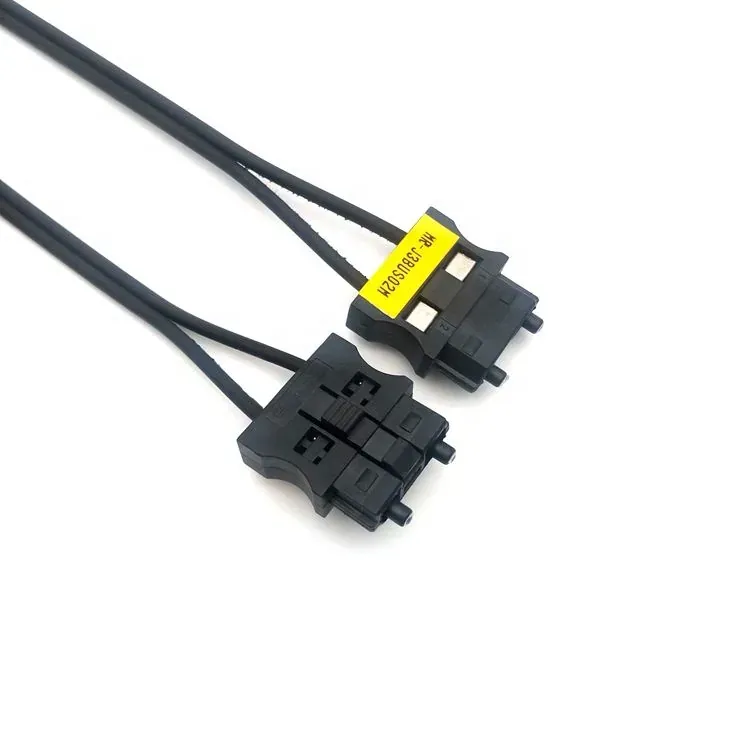

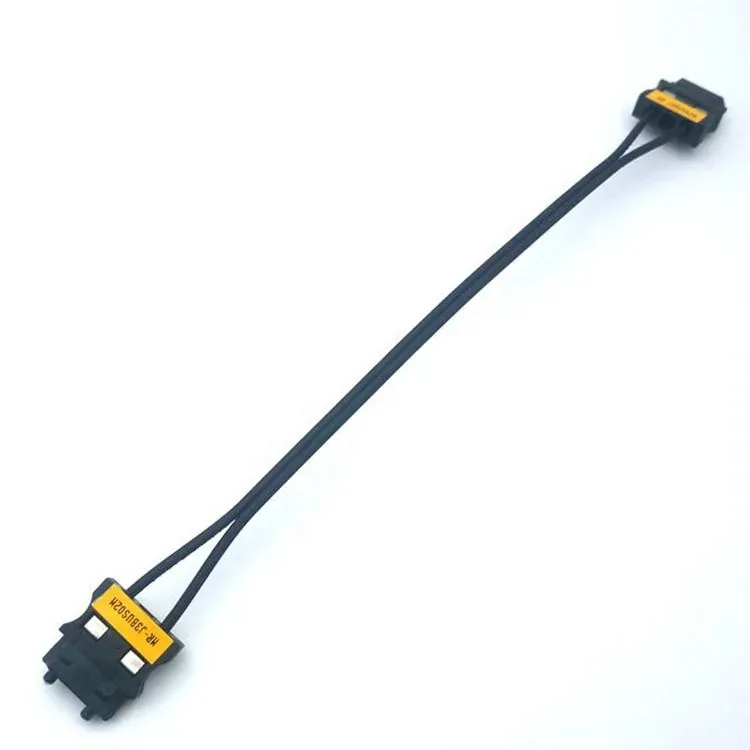

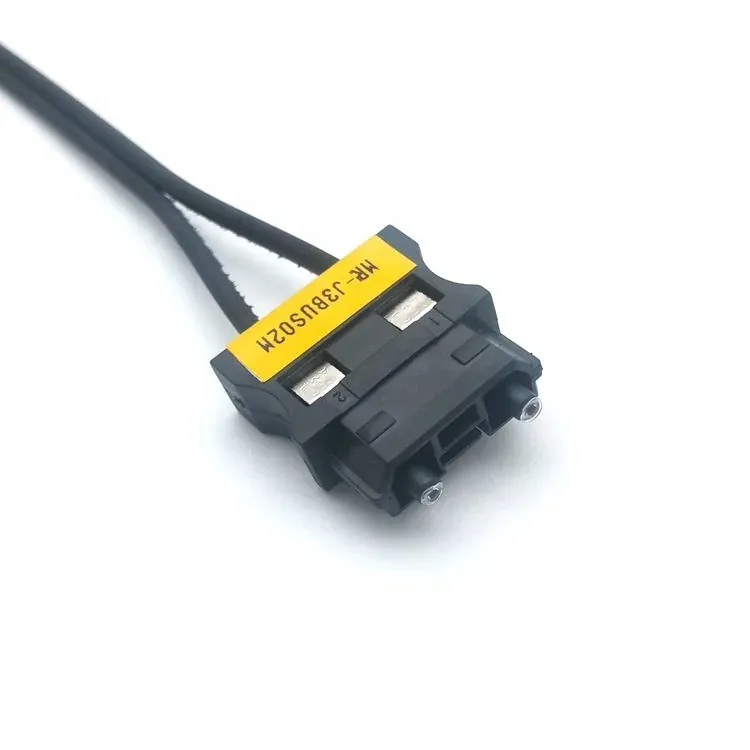

MR-J3BUS1 Mitsubishi ESKA 2-7 m Industrial Fiber Optic Cable Harness Assembly
MR-J3BUS1 MR-J3BUS2M MR-J3BUS4M factory-terminated industrial fiber-optic harness — EMI-immune optical cable assembly for servo drives, CNC and factory automation networks.
Specifications
- Type
- Fiber Optic Cable
- Use
- FTTH,FTTX,FTTP
- Interface Type
- F07-AMP
- Certifaction
- ISO9001,ROHS,CE
- Fiber material
- PMMA-1.0mm
- length
- 1m, Accept customization
- Operating temperature
- -55~+85C
- Color
- Black
- Fiber patch cord Outer diameter
- PE ,2.2mm
- Application
- Servo industrial system
- No. of Fiber
- 2.
MR-J3BUS1 Mitsubishi ESKA 2-7 m Industrial Fiber Optic Cable Harness Assembly
The MR-J3BUS1 MR-J3BUS2M MR-J3BUS4M is a Mitsubishi industrial fiber-optic cable assembly (harness) terminated with factory connectors for direct installation in servo, CNC and control systems.
Manufactured for production use rather than as a one-off sample, the MR-J3BUS1 MR-J3BUS2M MR-J3BUS4M is built to a stable fiber specification so orders can be repeated with consistent dimensions and performance.
Key Characteristics
- Certified to ISO9001,ROHS,CE
- Outer jacket: PE ,2.2mm
- Housing/jacket color: Black

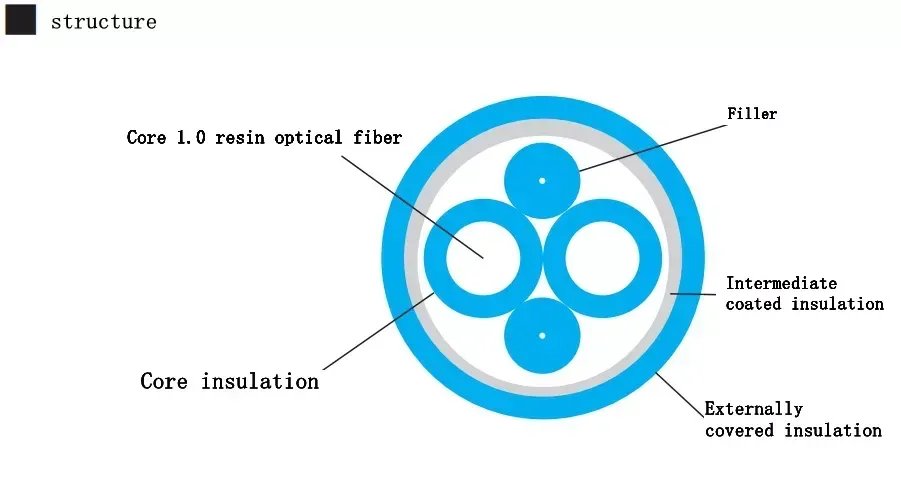

- PMMA (polymethyl methacrylate) core for high light transmission and low-cost optical links
- Fiber diameter: PE ,2.2mm
- Operating temperature range: -55~+85C
- Factory-terminated connectors for consistent, low-loss performance
- EMI-immune optical link between servo drives, amplifiers and controllers
Typical Applications

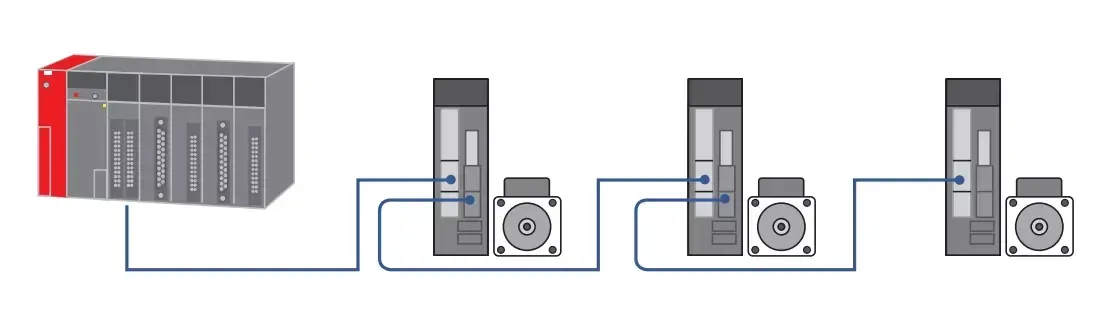

The MR-J3BUS1 MR-J3BUS2M MR-J3BUS4M is commonly used for servo drive and amplifier networks in motion control. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions
Q: What is a fiber-optic harness? A: It is a factory-terminated optical cable with connectors installed on both ends, ready to plug into servo drives, controllers or modules without field termination.
Q: How do I choose the length? A: Standard lengths are listed in the specifications; custom lengths can be produced by confirming the routing distance and connectors.
Q: Why use fiber in a servo system? A: Optical links are immune to drive-generated EMI and provide galvanic isolation, improving reliability in noisy motion-control cabinets.
Q: Is it a direct replacement for the OEM cable? A: The harness is built to match the listed fiber type and connector interfaces, so confirm the model/part number against the original equipment before ordering.
