Orange 3 mm Fluorescent Plastic Optical Fiber for Sights
This is a fluorescent (light-gathering) plastic optical fiber in red, green and orange for bright, battery-free fiber-optic sight aiming points and replacement rods.
Specifications
- Type
- Fiber Optic Cable
- Color
- Orange,Yellow ,Red ,Green
- Application
- Scientific,Gun sights, modeling, and artistic
- Core Material Refractive Index
- 1.49
- Max receive angle
- 60
- Operation Temperature
- -20~70 °C
- Bend Radius
- 30mm
- Attenuation (dB/km)
- ≤350(650nm)
- Core Material
- PMMA
- Item
- Fluorescent fiber optic
- Diameter
- 0.5mm 0.75mm 1mm 1.5mm 2mm,2.5mm ,3.0mm
Orange 3 mm Fluorescent Plastic Optical Fiber for Sights
This fluorescent fiber from JINSHANG TECH is a 0.5 mm/3 mm light-collecting polymer fiber used to highlight aiming points and for passive indication.
JINSHANG TECH supplies the unit as a production item; fiber diameter, jacketing, connectorization and length can be confirmed against the specification before ordering.
Key Characteristics
- Attenuation rated at ≤350(650nm) over the operating wavelength
- Minimum bend radius: 30mm
- Refractive index figures: 1.49
- Housing/jacket color: Orange,Yellow ,Red ,Green
- Core/fiber material: 1.49
- Fiber diameter: 0.5mm 0.75mm 1mm 1.5mm 2mm,2.5mm ,3.0mm

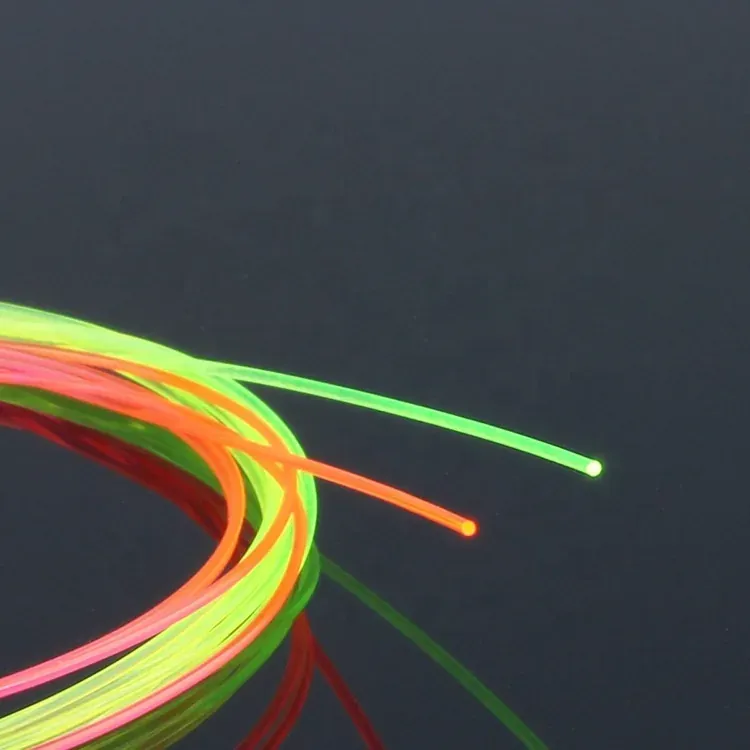

- Supplied in red, green and orange and multiple diameters (0.5–3.0 mm)
- High-contrast glowing end for a fast, daylight-visible aiming point
Typical Applications
The unit is commonly used for front and rear fiber-optic pistol/rifle sights, daylight-visible aiming-point highlights, and replacement fluorescent rods for existing sights. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions
Q: Does it need a light source? A: No. Unlike end-glow illumination fiber, fluorescent fiber collects ambient light and glows on its own during daylight use.

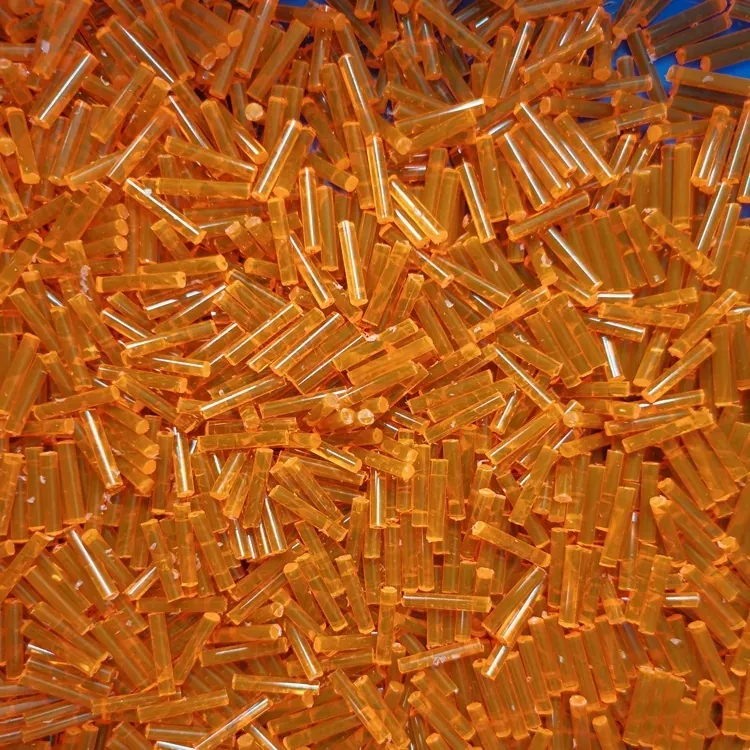

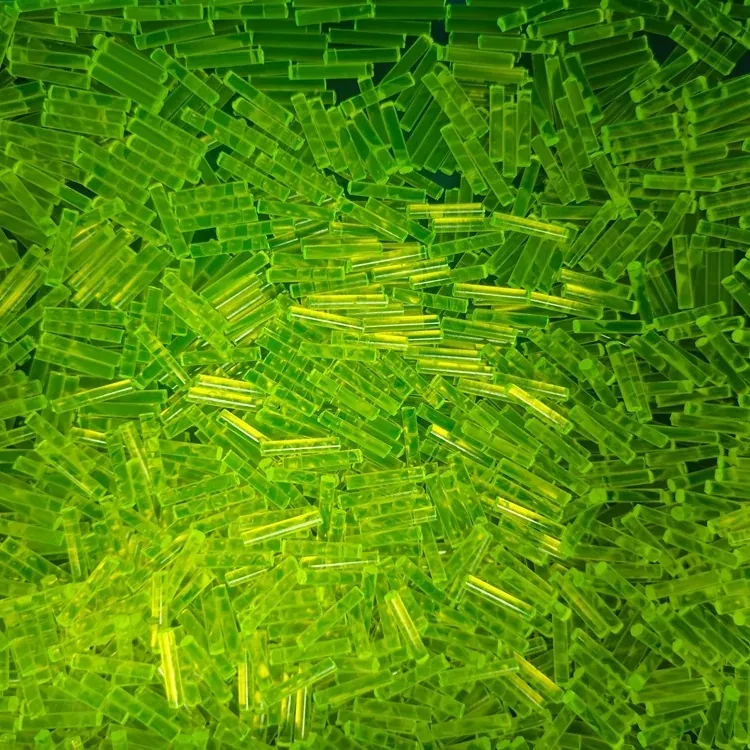

Q: Can it be cut to length? A: Yes, the rods are cut to the required sight length and finished to sit flush in the sight housing.
Q: What is fluorescent fiber used for? A: It gathers ambient light along its length and concentrates it at the tip, creating a bright glowing aiming point on fiber-optic sights without a battery.
Q: Which color and diameter should I pick? A: Colors (red/green/orange) are a visibility preference; diameters typically run 0.5–3.0 mm and must match the sight channel — measure the existing rod when replacing it.
