PG-FB1500 Toray PMMA End-Glow Fiber Optic Cable for Decorative Lighting

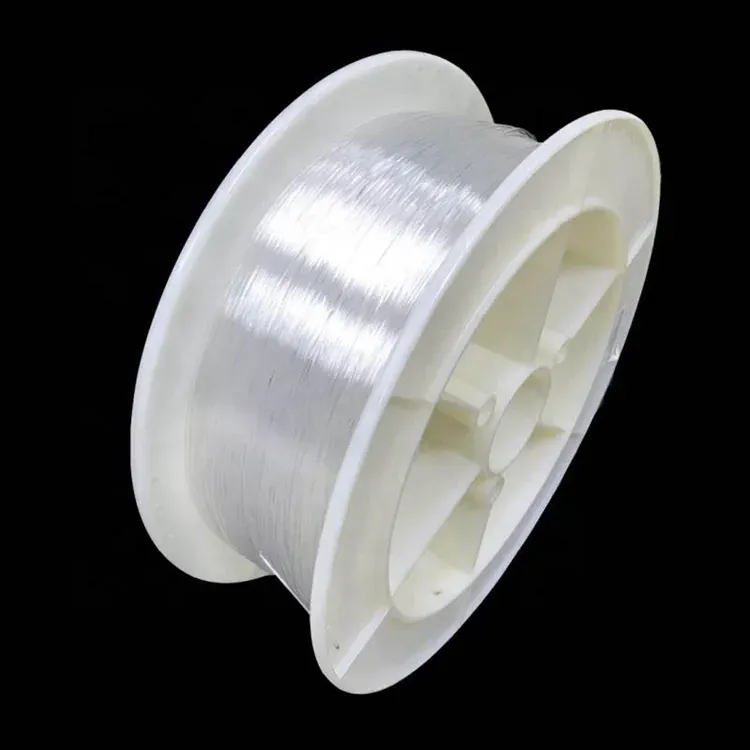

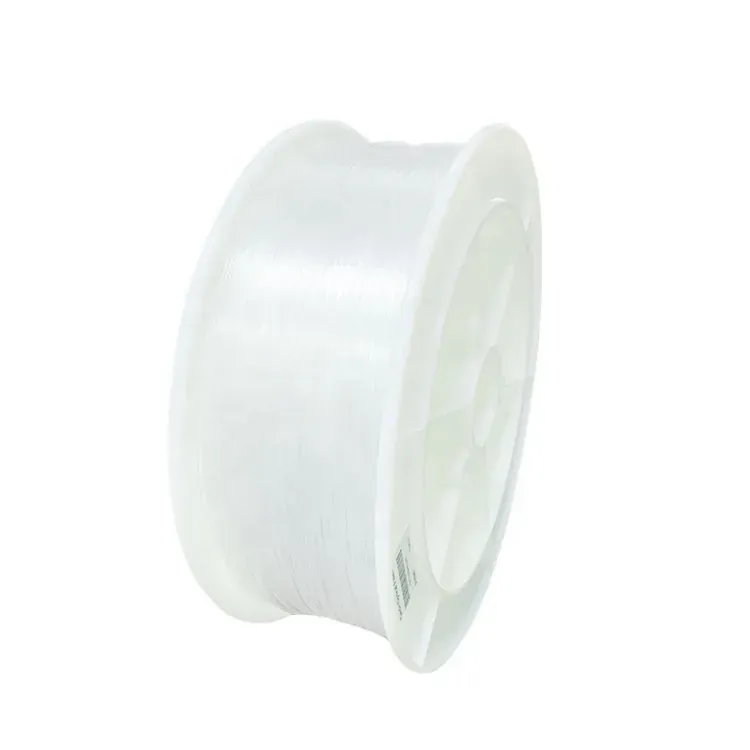

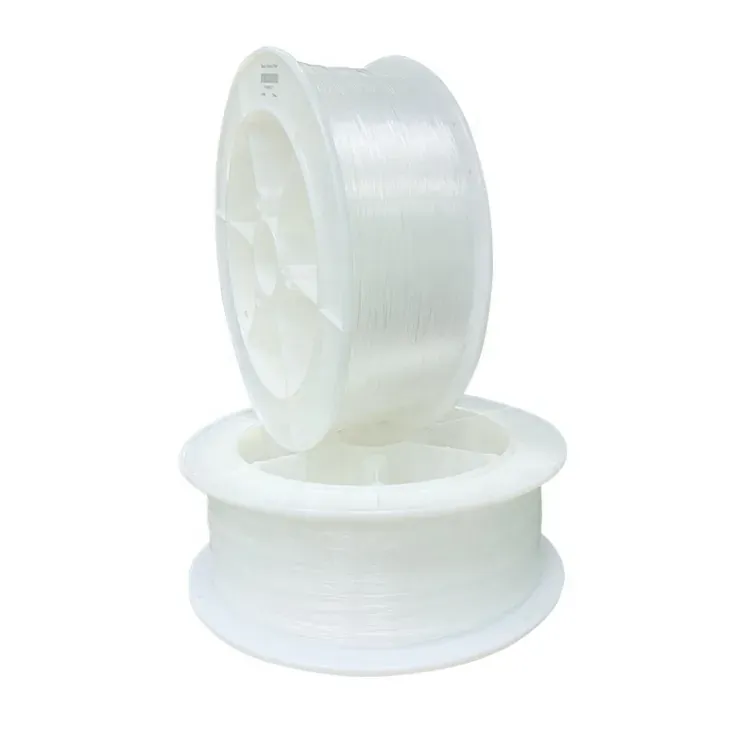

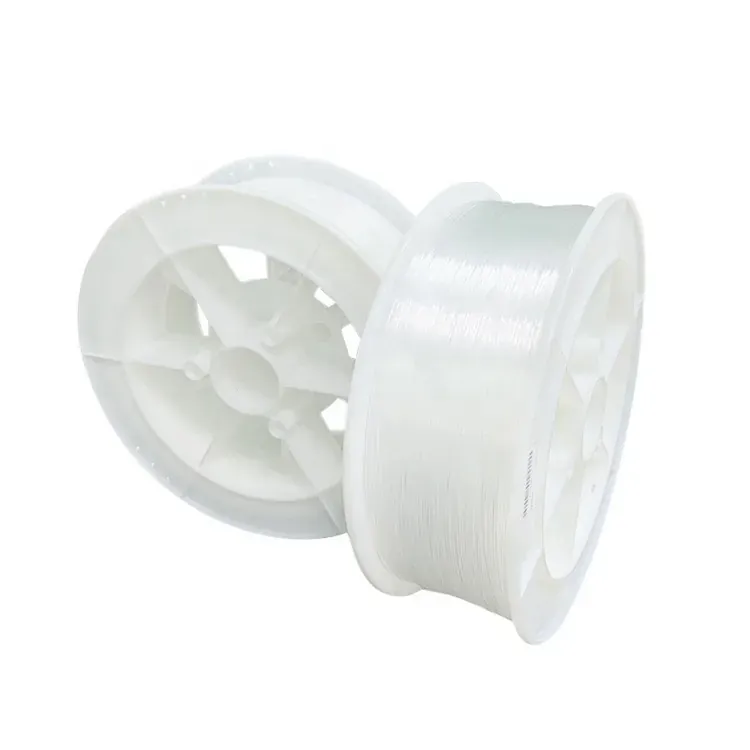

PG-FB1500 PG-FB2000 PG-FB3000 end-glow PMMA plastic optical fiber for star ceilings, luminous furniture and decorative lighting. Flexible, waterproof, cool-running POF supplied in continuous spool lengths.

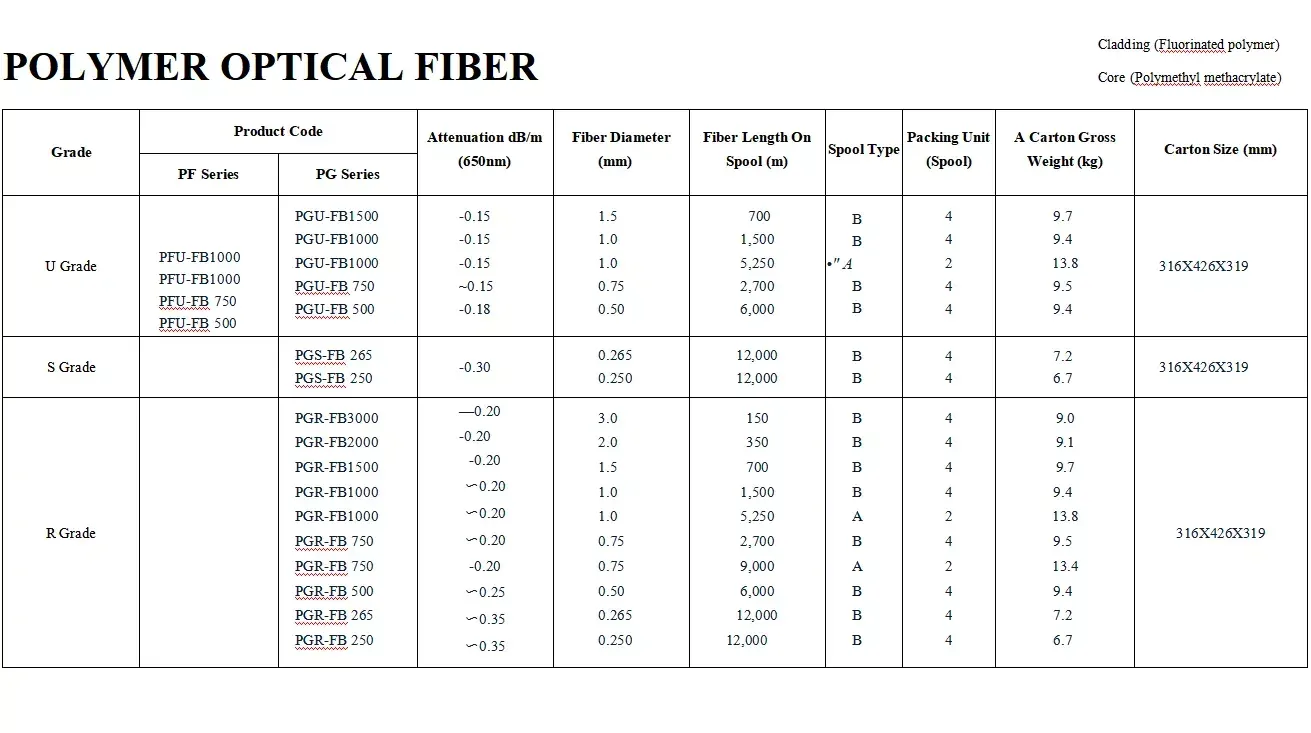

Specifications

Working Temperature(°C): -20~70
IP Rating: IP68
Application: Illumination&Signal Transmission,,Decoration, ceilling,lighting
Fiber Type: PMMA end glow fiber optic cable
Grade Name: PG-FB-250 PG-FB-500 PG-FB-750 PG-FB-1000
Fiber Dia. (mm): PG-FB-250 PG-FB-500 PG-FB-750 PG-FB-1000
NA: 0.5
Attenuation (dB/m): 0.75
Minimum Bending Radius(mm): 10
Winding Length (m): 3,000
Certification: Reach, ISO9001

PG-FB1500 Toray PMMA End-Glow Fiber Optic Cable for Decorative Lighting

The PG-FB1500 PG-FB2000 PG-FB3000 end-glow POF from Toray is a polymer light-guide fiber that emits light at the far end, engineered for industrial optical applications.

Manufactured for production use rather than as a one-off sample, the PG-FB1500 PG-FB2000 PG-FB3000 is built to a stable fiber specification so orders can be repeated with consistent dimensions and performance.

Key Characteristics

Attenuation rated at 0.75 over the operating wavelength

Minimum bend radius: 10

Operating temperature range: -20~70

IP68 ingress protection for damp or wash-down environments

Standard length: 3,000

Certified to Reach, ISO9001

High numerical aperture gives strong light-gathering and simple coupling to LED illuminators

Works with standard LED/halogen fiber illuminators and remote light sources

Typical Applications

The PG-FB1500 PG-FB2000 PG-FB3000 is commonly used for star ceilings and starry-sky panels in hotels, KTV rooms, home theaters and bedrooms, fiber curtains, screens, waterfalls and large-area luminous displays, and luminous furniture, home textiles and wearable or fabric-embedded lighting. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.

Frequently Asked Questions

Q: How is it cut and installed? A: The POF is cut with a sharp fiber cutter and bundled into the illuminator chuck; no fusion splicing or electrical work is needed at the lit end.

Q: What is end-glow PMMA fiber used for? A: End-glow PMMA fiber transmits light from a remote illuminator to the end of each strand, producing pin-points of light used for star ceilings, curtains, furniture and architectural decoration.

Q: Is the fiber safe near water or in a ceiling? A: Yes. The fiber itself carries no electricity and stays cool at the emitting end, so it is suitable for wet areas and occupied spaces when paired with a remotely located light source.

Q: Does it emit UV or heat? A: Virtually no UV or IR reaches the end points, which helps protect sensitive fabrics and artwork and makes the fiber comfortable to touch.
