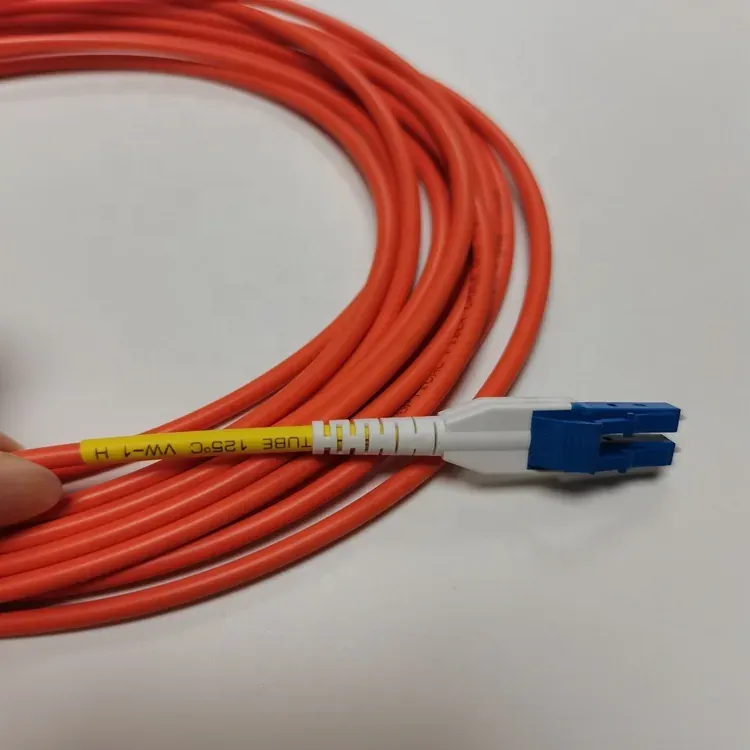

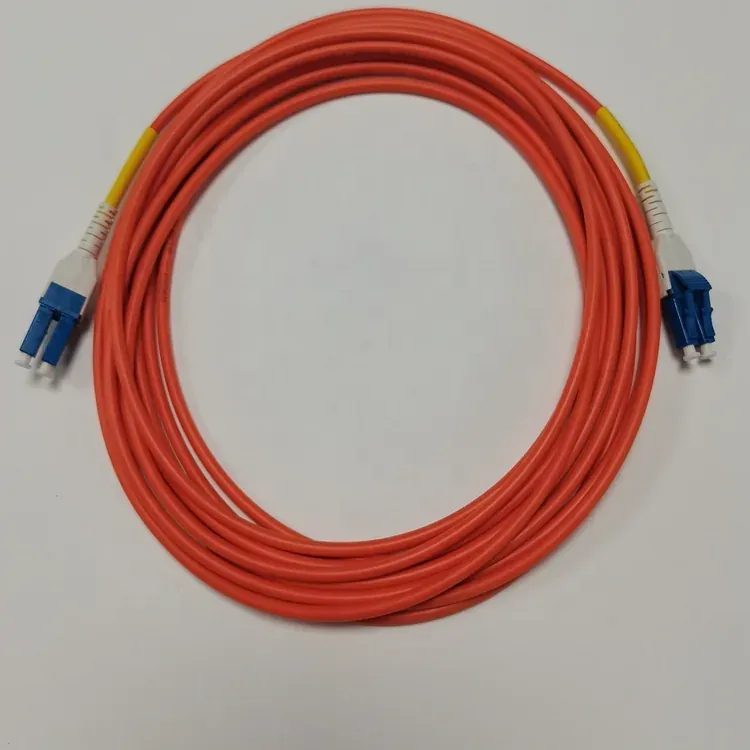

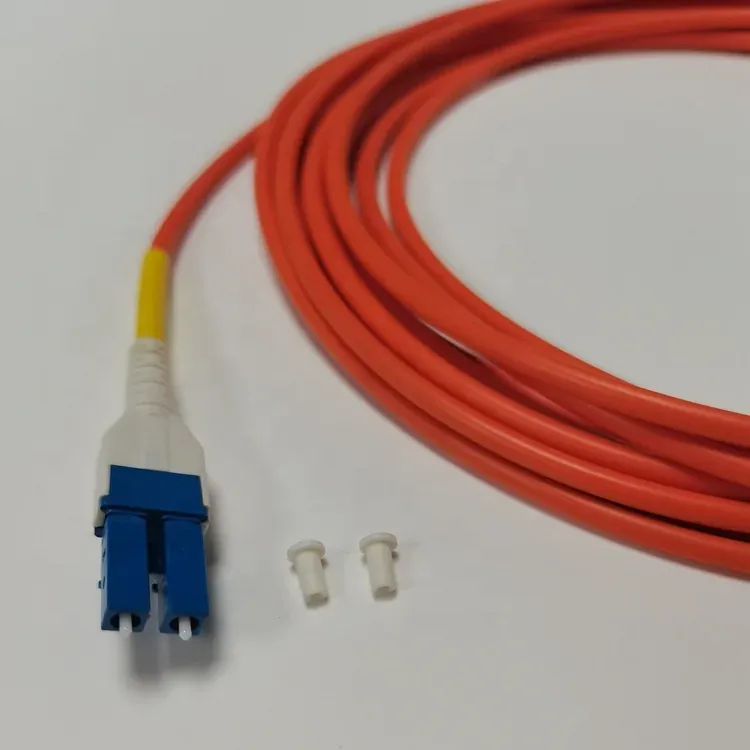

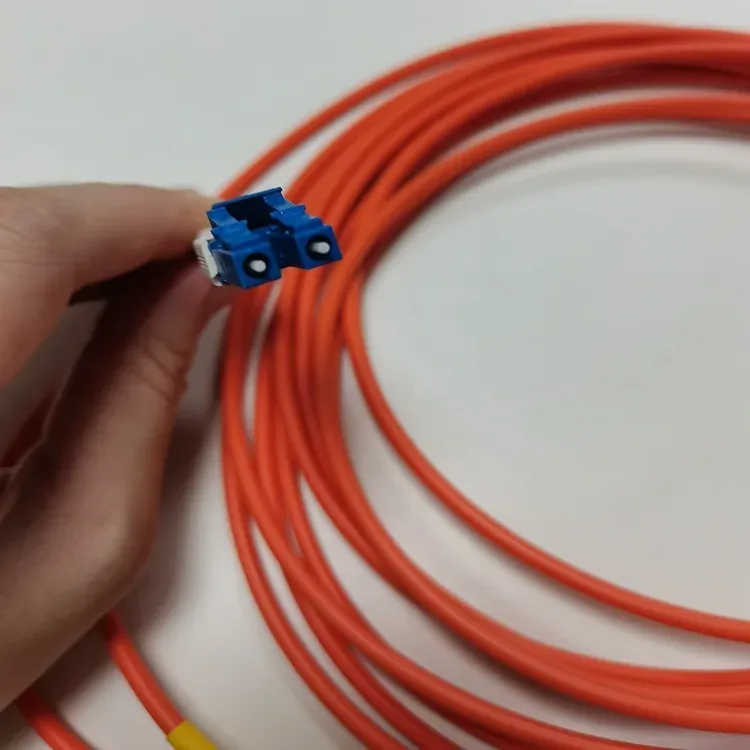

QG-G50-2C-5M-B-LL 5-20 m Industrial Fiber Optic Cable Harness Assembly
QG-G50-2C-5M-B-LL QG-G50-2C-10M-B-LL QG-G50-2C-15M-B-LL factory-terminated industrial fiber-optic harness — EMI-immune optical cable assembly for servo drives, CNC and factory automation networks.
Specifications
- Type
- Fiber Optic Cable, MR-J3BUS
- Certifaction
- ISO9001 ,ROHS,CE
- Fiber material
- PMMA-1.0mm
- length
- 1m, Accept customization
- Operating temperature
- -55~+85C
- Color
- Orange
- Weight
- 0.05kg
- Fiber patch cord Outer diameter
- PE
QG-G50-2C-5M-B-LL 5-20 m Industrial Fiber Optic Cable Harness Assembly
QG-G50-2C-5M-B-LL QG-G50-2C-10M-B-LL QG-G50-2C-15M-B-LL is a JINSHANG TECH factory-terminated optical fiber harness built to drop into automation and motion-control networks.
Manufactured for production use rather than as a one-off sample, the QG-G50-2C-5M-B-LL QG-G50-2C-10M-B-LL QG-G50-2C-15M-B-LL is built to a stable fiber specification so orders can be repeated with consistent dimensions and performance.
Key Characteristics
- Certified to ISO9001 ,ROHS,CE
- Outer jacket: PE
- Housing/jacket color: Orange

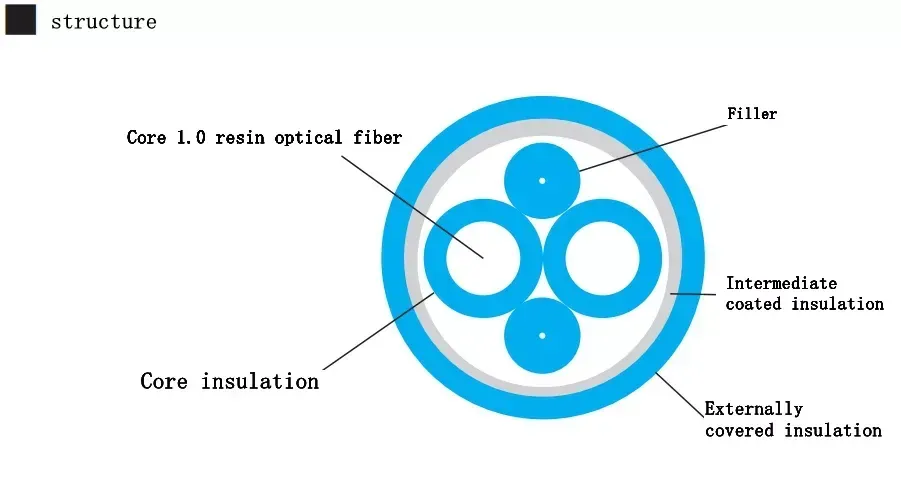

- PMMA (polymethyl methacrylate) core for high light transmission and low-cost optical links
- Operating temperature range: -55~+85C
- Standard length: 1m, Accept customization
- Available in multiple standard lengths with custom lengths on request
- Drop-in replacement for industrial OEM optical cables
Typical Applications

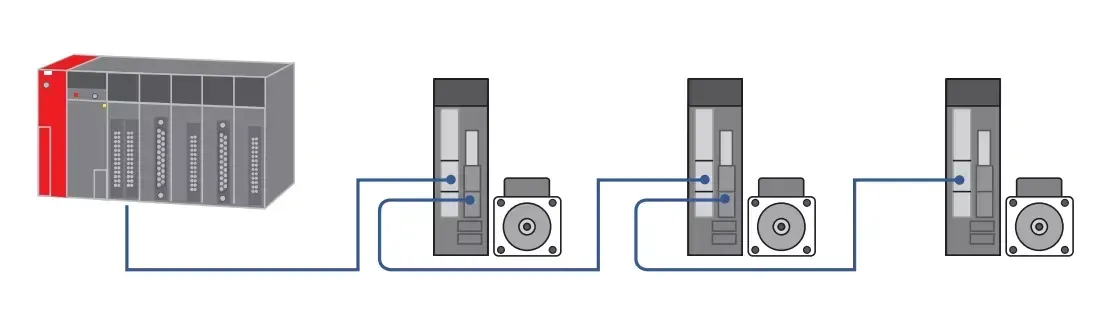

The QG-G50-2C-5M-B-LL QG-G50-2C-10M-B-LL QG-G50-2C-15M-B-LL is commonly used for servo drive and amplifier networks in motion control, CNC, PLC and factory automation optical links, and machine and equipment harnesses requiring OEM-form fit. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions
Q: How do I choose the length? A: Standard lengths are listed in the specifications; custom lengths can be produced by confirming the routing distance and connectors.
Q: What is a fiber-optic harness? A: It is a factory-terminated optical cable with connectors installed on both ends, ready to plug into servo drives, controllers or modules without field termination.
Q: Is it a direct replacement for the OEM cable? A: The harness is built to match the listed fiber type and connector interfaces, so confirm the model/part number against the original equipment before ordering.
Q: Why use fiber in a servo system? A: Optical links are immune to drive-generated EMI and provide galvanic isolation, improving reliability in noisy motion-control cabinets.
