OPTICAL FIBER CABLES

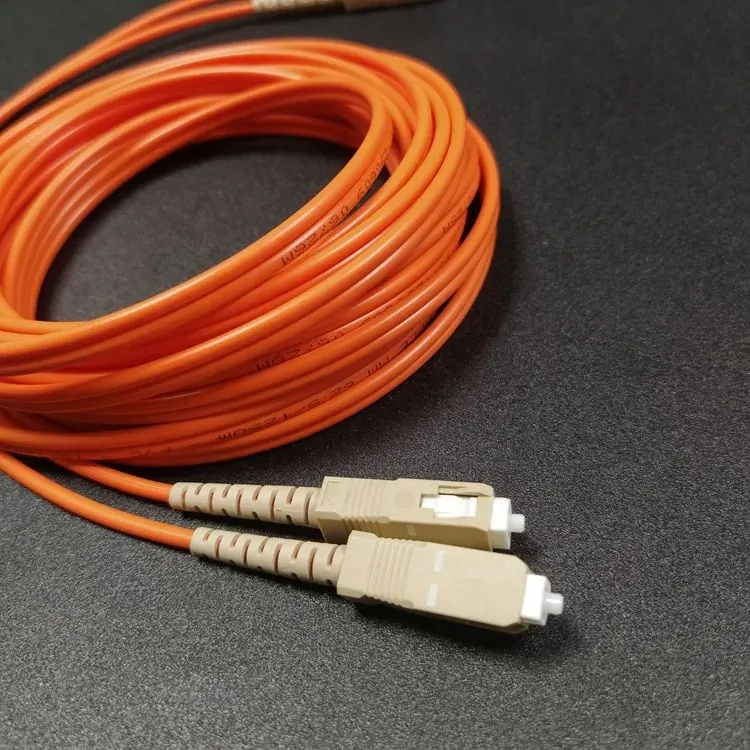

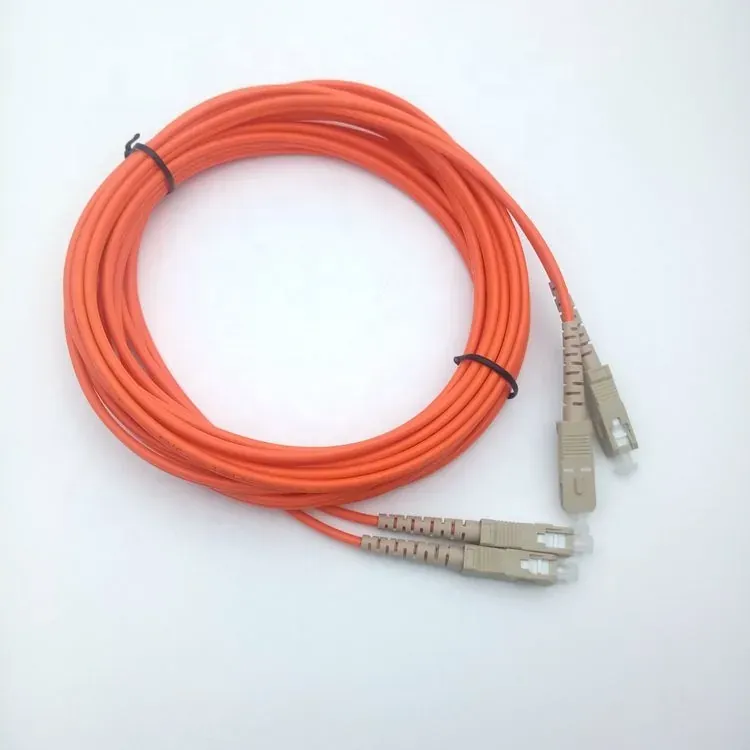

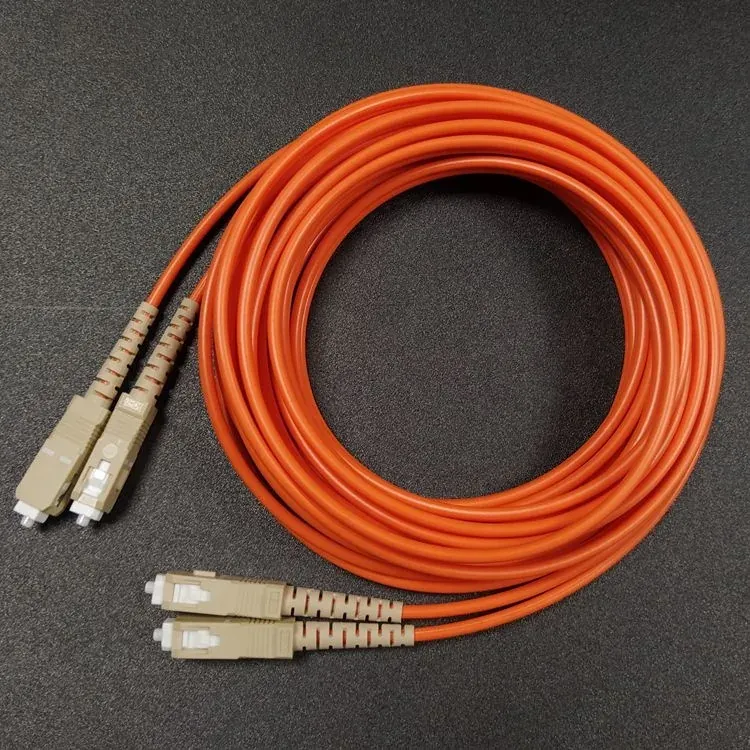

SC-SC Multimode Fiber Optic Patch Cord Jumper
This is a factory-terminated fiber-optic patch cord with matched connectors for plug-and-play, low-loss POF/HCS/glass connections.
Specifications
- Type
- Fiber Optic Cable
- Interface Type
- SC-SC
- Certifaction
- ISO9001,ROHS,CE
- Fiber material
- PMMA-1.0mm
- length
- 10m, Accept customization
- Operating temperature
- -55~+85C
- Color
- Orange
- Weight
- 010kg
- Fiber patch cord Outer diameter
- PE
- Application
- Servo industrial system
SC-SC Multimode Fiber Optic Patch Cord Jumper
This is a JINSHANG TECH pre-terminated optical fiber jumper for low-loss, plug-and-play connections between fiber equipment.
Because the optical path is non-conductive, the unit provides electrical isolation between connected equipment and can be routed past motors, drives and power wiring without picking up noise.
Key Characteristics

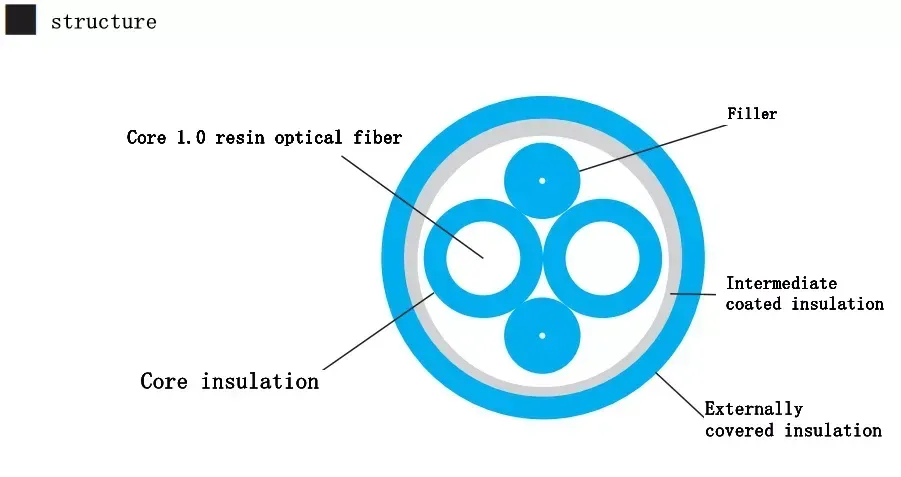

- PMMA (polymethyl methacrylate) core for high light transmission and low-cost optical links
- Operating temperature range: -55~+85C

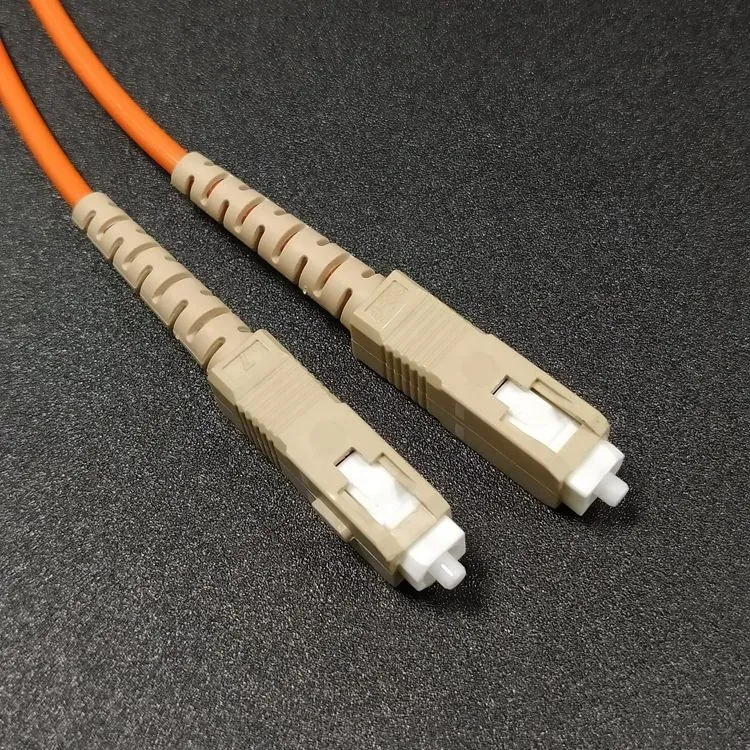

- Connector/interface: SC-SC
- Standard length: 10m, Accept customization
- Certified to ISO9001,ROHS,CE
- Outer jacket: PE
- Matched connector pair with correct polarity and keying
- Plug-and-play replacement without field termination
Typical Applications
The unit is commonly used for device-to-panel and device-to-device optical connections, transceiver and instrument patching in data/control systems, and replacement jumpers for existing optical networks. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions
Q: Which connectors should each end have? A: Match the connectors to the two ports being joined; confirm the fiber type (POF/HCS/glass) and the connector standard (ST/SC/LC/SMA/HFBR/F07).
Q: What is a patch cord? A: A patch cord is a factory-terminated optical cable with connectors on both ends, used to link transceivers, panels or devices without field termination.
Q: Is it shielded against noise? A: An optical patch cord carries no electrical signal, so it is inherently immune to EMI and provides ground isolation.
Q: Can I order a specific length? A: Standard lengths are available and custom lengths can be supplied by specifying the routing distance.
