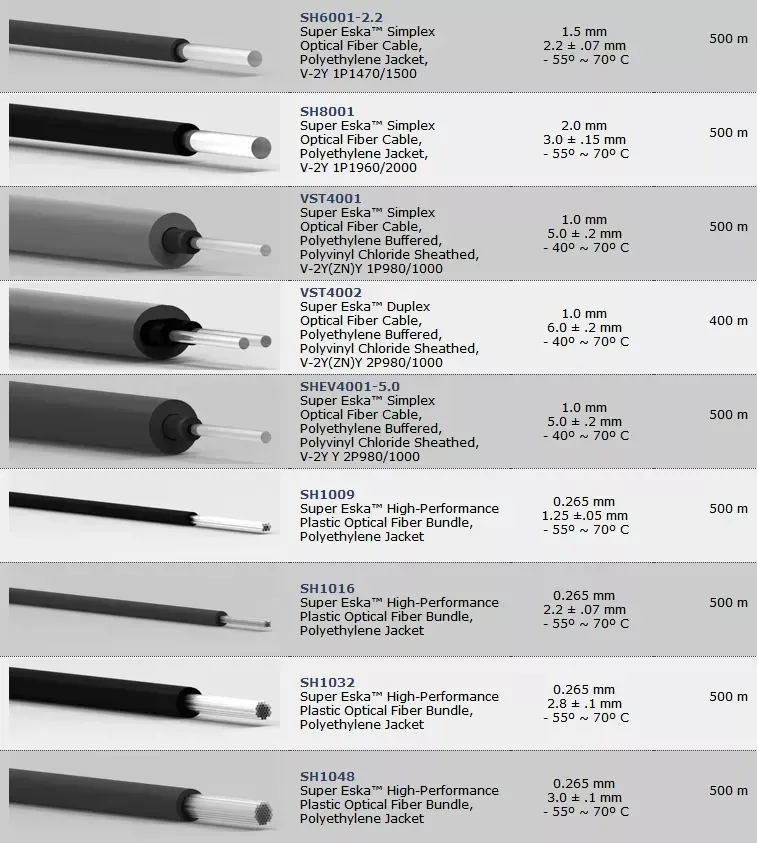

SH1048 Mitsubishi ESKA POF Data Cable for Point-to-Point Optical Links
SH1048 SH1064 SH104 jacketed PMMA plastic optical fiber data cable for EMI-immune point-to-point links. Large-core, easy-to-terminate POF for industrial and consumer networks.
Specifications
- Type
- Fiber Optic Cable
- Application
- Illumination, Sensors, Short-Distance Data Transfer
- Fiber type
- SH Grade Bundle Cable
- Certification
- ISO9001, RoHS, CE
- Core diameter
- 48,64 cores
- Attenuation(dB/KM)
- ≤0.2
- Operating temperature
- -55~80Degree
- IP rating
- IP68
- Core Material
- pmma
- Cladding Material
- Fluorinated Polymer
SH1048 Mitsubishi ESKA POF Data Cable for Point-to-Point Optical Links
The SH1048 SH1064 SH104 POF data cable from Mitsubishi is a jacketed plastic optical fiber built for reliable point-to-point data transfer where copper is too noisy or fragile.
JINSHANG TECH supplies the SH1048 SH1064 SH104 as a production item; fiber diameter, jacketing, connectorization and length can be confirmed against the specification before ordering.
Key Characteristics
- Core/fiber material: 48,64 cores
- Fluorinated-polymer cladding (specified as Fluorinated Polymer) for efficient total internal reflection
- Fiber diameter: 48,64 cores
- Attenuation rated at ≤0.2 over the operating wavelength
- Operating temperature range: -55~80Degree
- IP68 ingress protection for damp or wash-down environments
- Suitable for short-reach, high-availability links in equipment and building networks
- Light weight with good flexibility and vibration resistance for moving machinery
Typical Applications
The SH1048 SH1064 SH104 is commonly used for industrial point-to-point links between PLCs, drives, sensors and controllers, factory automation and equipment where EMI from motors and inverters is present, and short-range consumer and appliance data networks. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions
Q: Why choose POF instead of copper for data? A: POF provides complete electrical isolation and is immune to EMI, so links remain stable near variable-frequency drives and motors without grounding or shielding concerns.
Q: Can it be used in moving equipment? A: Yes. The polymer core and flexible jacket resist vibration and repeated flexing better than glass, making it suitable for machinery and light-motion applications.
Q: Is POF data cable hard to terminate? A: No. Its large core tolerates alignment, and simple cutting/crimping tools are used — no laser safety training or fusion splicer is required.
Q: What distance and bandwidth does POF data cable support? A: Plastic optical fiber is aimed at short-range links (typically within a room, cabinet or machine). Exact bandwidth/length follows the grade (e.g. SH/GH/LH/MH series) and the transceiver wavelength; consult the grade specification for your bit rate.
