OPTICAL FIBER CABLES

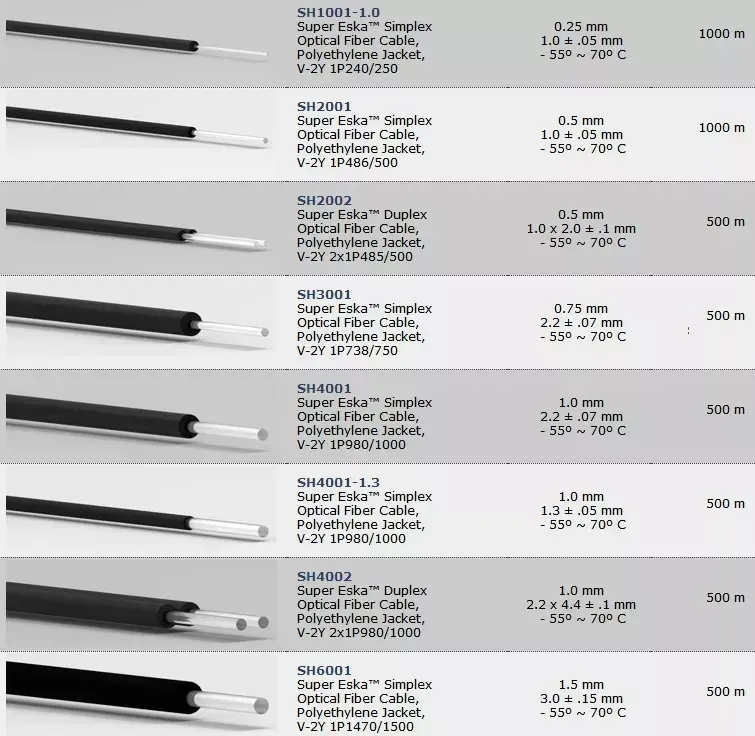

SH3001 Mitsubishi ESKA POF Data Cable for Point-to-Point Optical Links
SH3001 SH4001 SH4001-1.3 jacketed PMMA plastic optical fiber data cable for EMI-immune point-to-point links. Large-core, easy-to-terminate POF for industrial and consumer networks.
Specifications
- Type
- Fiber Optic Cable
- Application
- Illumination, Sensors, Short-Distance Data Transfer
- Fiber type
- Mitsubishi ESKA fiber optic cable
- Certification
- ISO9001, RoHS,
- Core diameter
- 1.0mm&2.0mm
- Numerical Aperture
- ≤0.2
- Core Refractive Index
- 1.49
- Cladding Material
- Fluorinated Polymer
- Core Material
- Polymethyl Methacrylate Resin (PMMA)
- Color and Material
- Black, Polyethylene
SH3001 Mitsubishi ESKA POF Data Cable for Point-to-Point Optical Links
SH3001 SH4001 SH4001-1.3 identifies a Mitsubishi plastic optical data cable that combines large-core alignment tolerance with electromagnetic immunity for short-range networks.
Because the optical path is non-conductive, the SH3001 SH4001 SH4001-1.3 provides electrical isolation between connected equipment and can be routed past motors, drives and power wiring without picking up noise.
Key Characteristics
- Certified to ISO9001, RoHS,
- Housing/jacket color: Black, Polyethylene
- Core/fiber material: 1.0mm&2.0mm
- Fluorinated-polymer cladding (specified as Fluorinated Polymer) for efficient total internal reflection
- Fiber diameter: 1.0mm&2.0mm
- Numerical aperture of ≤0.2 for high coupling efficiency and relaxed alignment tolerance
- Light weight with good flexibility and vibration resistance for moving machinery
- No electrical continuity between nodes, providing galvanic isolation and spark-free links
Typical Applications
The SH3001 SH4001 SH4001-1.3 is commonly used for industrial point-to-point links between PLCs, drives, sensors and controllers, and short-range consumer and appliance data networks. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions
Q: What distance and bandwidth does POF data cable support? A: Plastic optical fiber is aimed at short-range links (typically within a room, cabinet or machine). Exact bandwidth/length follows the grade (e.g. SH/GH/LH/MH series) and the transceiver wavelength; consult the grade specification for your bit rate.
Q: Why choose POF instead of copper for data? A: POF provides complete electrical isolation and is immune to EMI, so links remain stable near variable-frequency drives and motors without grounding or shielding concerns.
Q: Is POF data cable hard to terminate? A: No. Its large core tolerates alignment, and simple cutting/crimping tools are used — no laser safety training or fusion splicer is required.
Q: Which POF grade do I need? A: Lower-loss grades support longer/higher-speed links; standard grades suit short equipment connections. Match the grade to the attenuation and distance given in the specifications.
