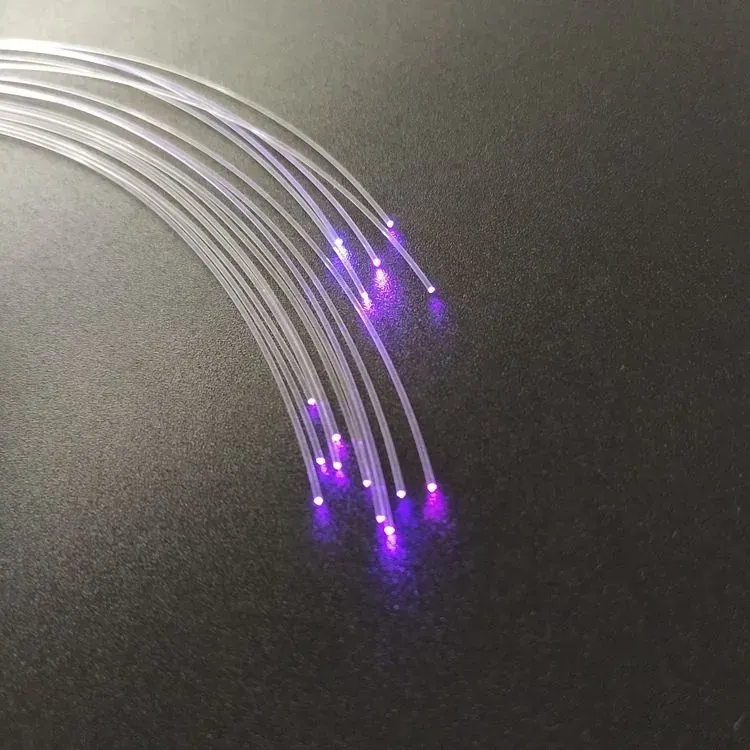

SK-30 Mitsubishi ESKA White 2700 m Roll PMMA End-Glow Fiber Optic Cable for Decorative Lighting

SK-30 end-glow PMMA plastic optical fiber for star ceilings, luminous furniture and decorative lighting. Flexible, waterproof, cool-running POF supplied in continuous spool lengths.

Specifications

Working Temperature(°C): -50°C to +70°C
IP Rating: IP68
Application: Lighting Decoration
Length/Weight (OD:0.75mm): 2700m/2.118kg
Fiber Diameter/Material: 0.25mm-3.0mm/PMMA
Max Receive Angle: 60
Core Material Refractive Index: 1.49
Bend Radius (mm): ≥10*Fiber Diameter
Fiber Type: PMMA end glow fiber optic cable
Attenuation (dB/km): ≤350(650nm)
Effect: End glow , side glow and sparkle
Clad Material: Fluorine Polymer
Certification: EMC, Reach, FCC

SK-30 Mitsubishi ESKA White 2700 m Roll PMMA End-Glow Fiber Optic Cable for Decorative Lighting

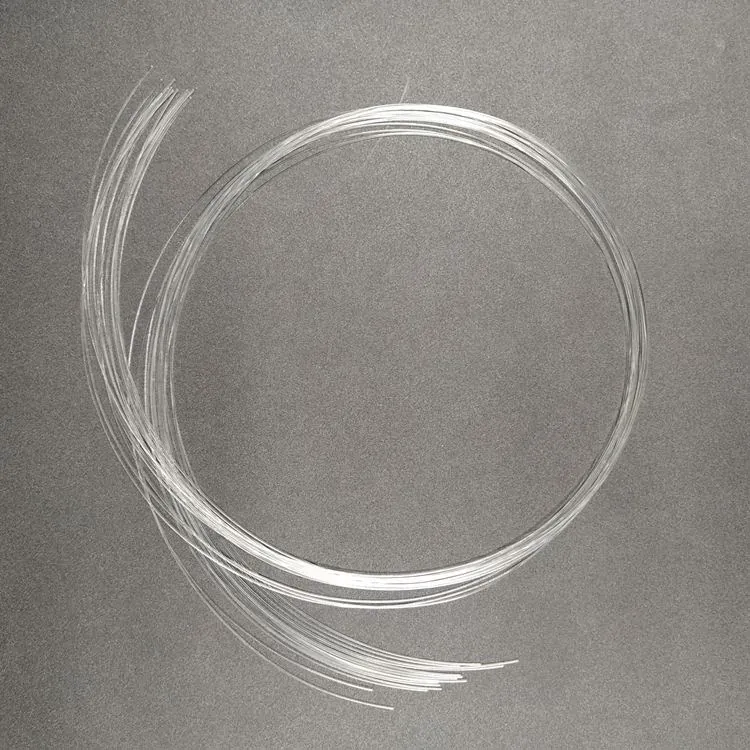

SK-30 is a Mitsubishi end-emitting plastic optical fiber with a PMMA core and fluorinated-polymer cladding, supplied for star ceiling / starry sky.

JINSHANG TECH supplies the SK-30 as a production item; fiber diameter, jacketing, connectorization and length can be confirmed against the specification before ordering.

Key Characteristics

Attenuation rated at ≤350(650nm) over the operating wavelength

Minimum bend radius: ≥10*Fiber Diameter

Refractive index figures: 1.49

Operating temperature range: -50°C to +70°C

IP68 ingress protection for damp or wash-down environments

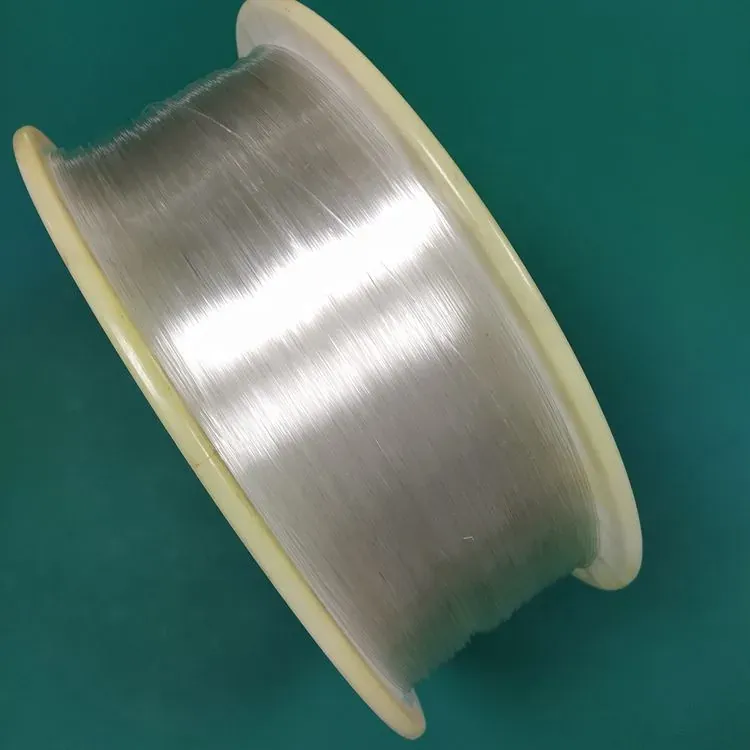

Standard length: 2700m/2.118kg

Safe around water and in public spaces — no electrical current at the light-emitting point

Fully dielectric light path: the fiber itself carries no electricity, heat or UV at the illuminated end

Typical Applications

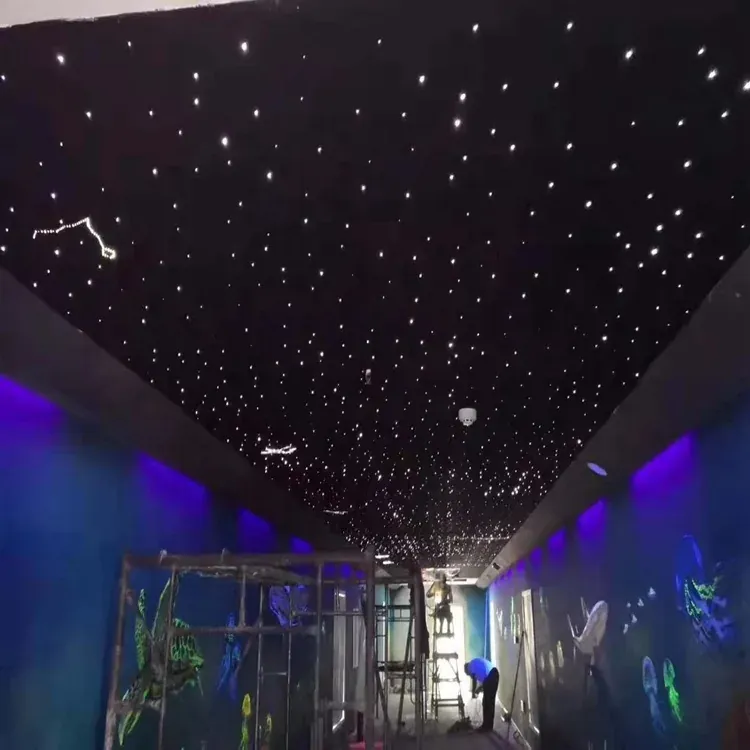

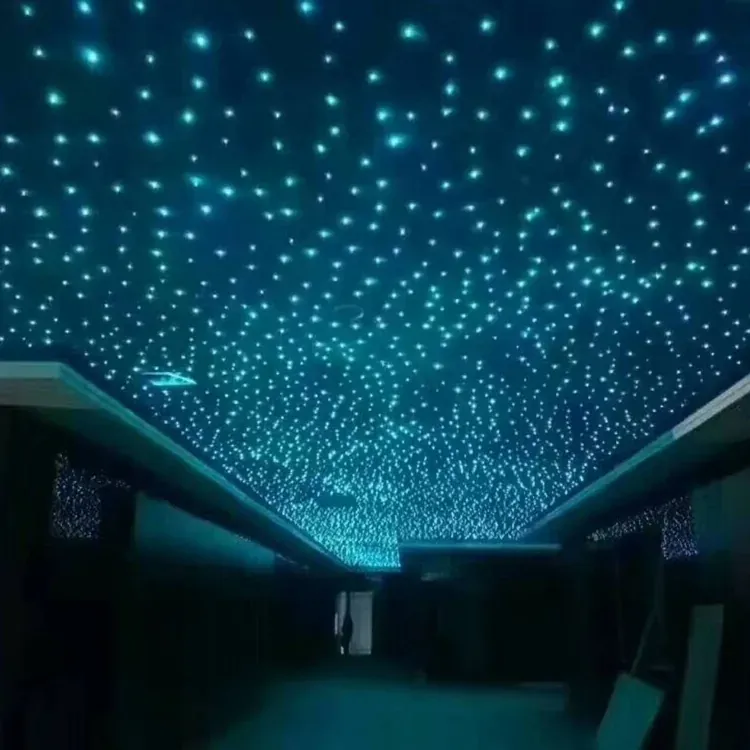

The SK-30 is commonly used for star ceilings and starry-sky panels in hotels, KTV rooms, home theaters and bedrooms. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.

Frequently Asked Questions

Q: How is it cut and installed? A: The POF is cut with a sharp fiber cutter and bundled into the illuminator chuck; no fusion splicing or electrical work is needed at the lit end.

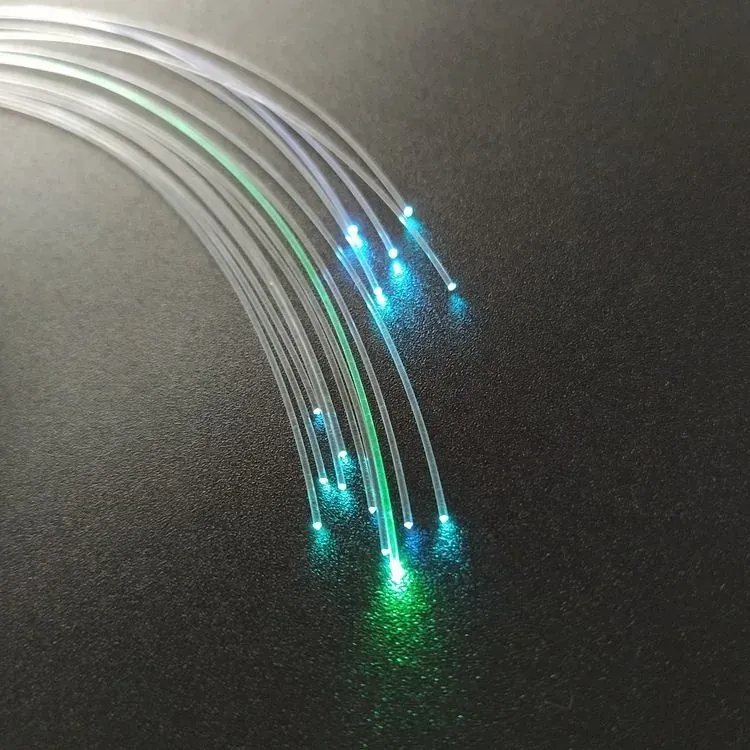

Q: What is end-glow PMMA fiber used for? A: End-glow PMMA fiber transmits light from a remote illuminator to the end of each strand, producing pin-points of light used for star ceilings, curtains, furniture and architectural decoration.

Q: Is the fiber safe near water or in a ceiling? A: Yes. The fiber itself carries no electricity and stays cool at the emitting end, so it is suitable for wet areas and occupied spaces when paired with a remotely located light source.

Q: Does it emit UV or heat? A: Virtually no UV or IR reaches the end points, which helps protect sensitive fabrics and artwork and makes the fiber comfortable to touch.
