POF CABLE

SK-60 Mitsubishi ESKA 1.5 mm PMMA End-Glow Fiber Optic Cable for Decorative Lighting

SK-60 1.5 mm end-glow PMMA plastic optical fiber for star ceilings, luminous furniture and decorative lighting. Flexible, waterproof, cool-running POF supplied in continuous spool lengths.

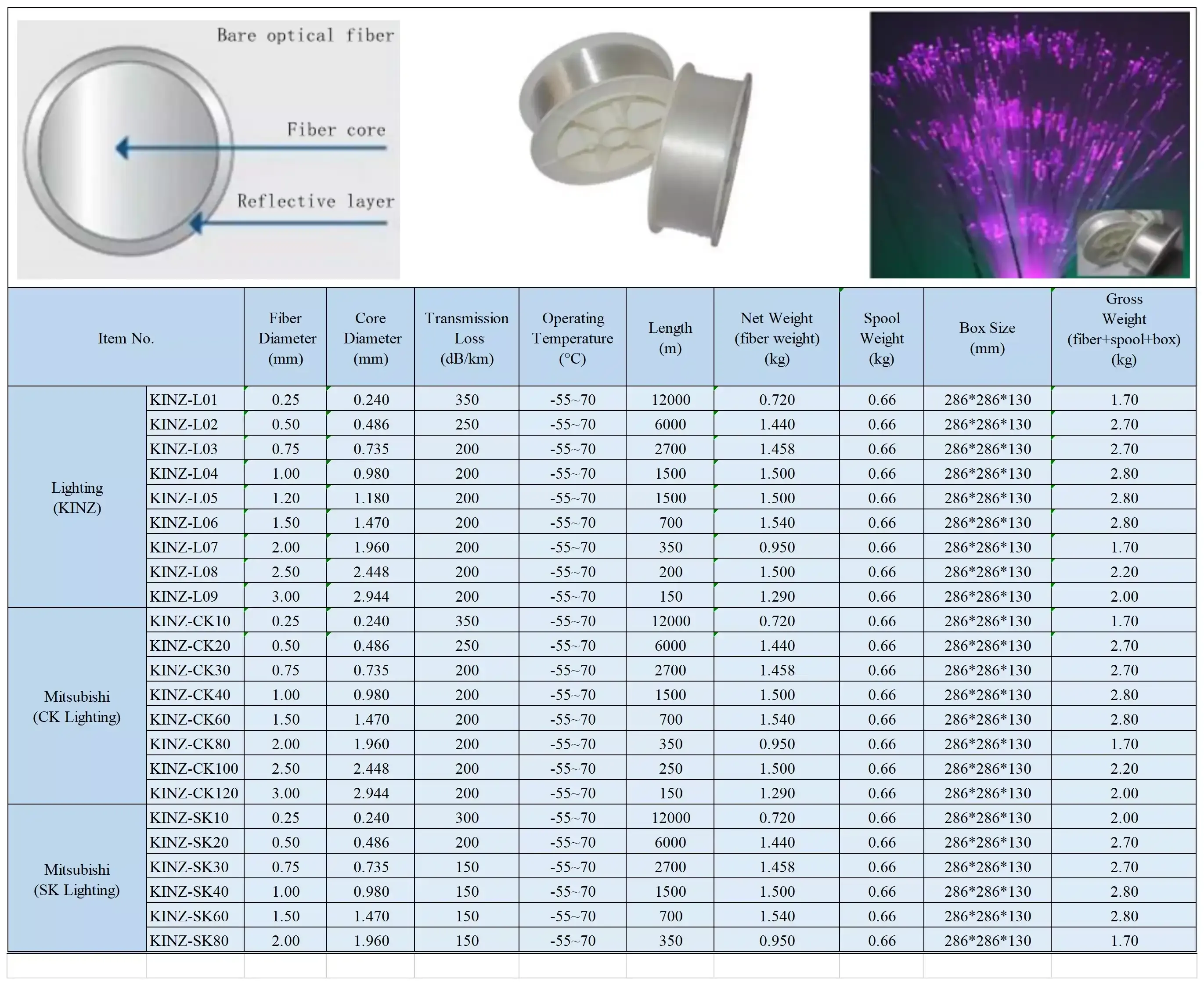

Specifications

Working Temperature(°C): -50°C to +70°C
IP Rating: IP68
Fiber diameter: 0.25mm , 0.3mm , 0.75mm , 1.0mm , 1.5mm ~3.0mm
Application: Lighting Decoration
Effect: End glow , side glow and sparkle
Bend Radius (mm): ≥10*Fiber Diameter
Max Receive Angle: 60
Length/Weight (OD:1.50mm): 700m/2.2kg
Attenuation (dB/km): ≤350(650nm)
Clad Material: Fluorine Polymer
Core Material Refractive Index: 1.49
Fiber Type: PMMA end glow fiber optic cable
Certification: EMC, Reach, FCC, ISO9001

SK-60 Mitsubishi ESKA 1.5 mm PMMA End-Glow Fiber Optic Cable for Decorative Lighting

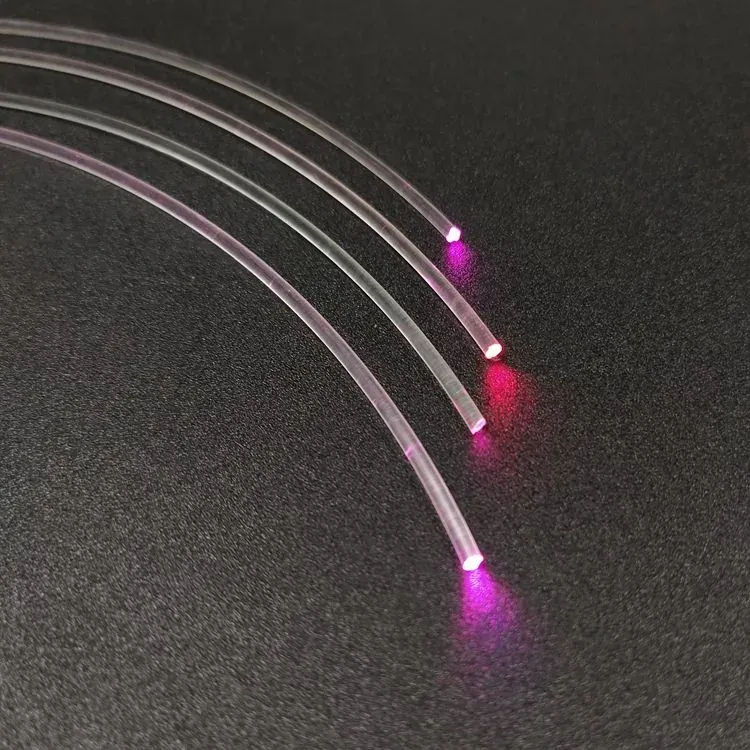

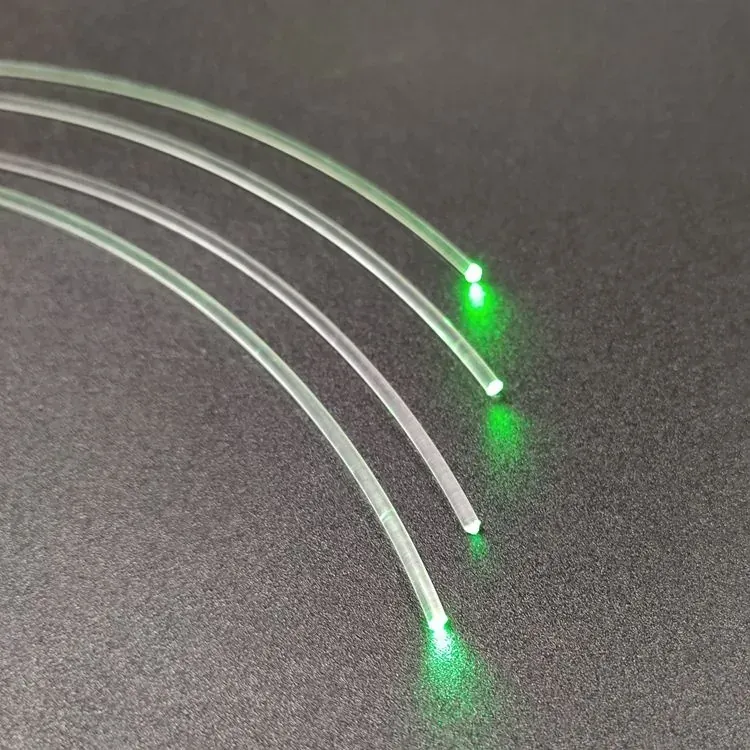

The SK-60 end-glow POF from Mitsubishi is a 1.5 mm polymer light-guide fiber that emits light at the far end, engineered for decorative lighting.

Manufactured for production use rather than as a one-off sample, the SK-60 is built to a stable fiber specification so orders can be repeated with consistent dimensions and performance.

Key Characteristics

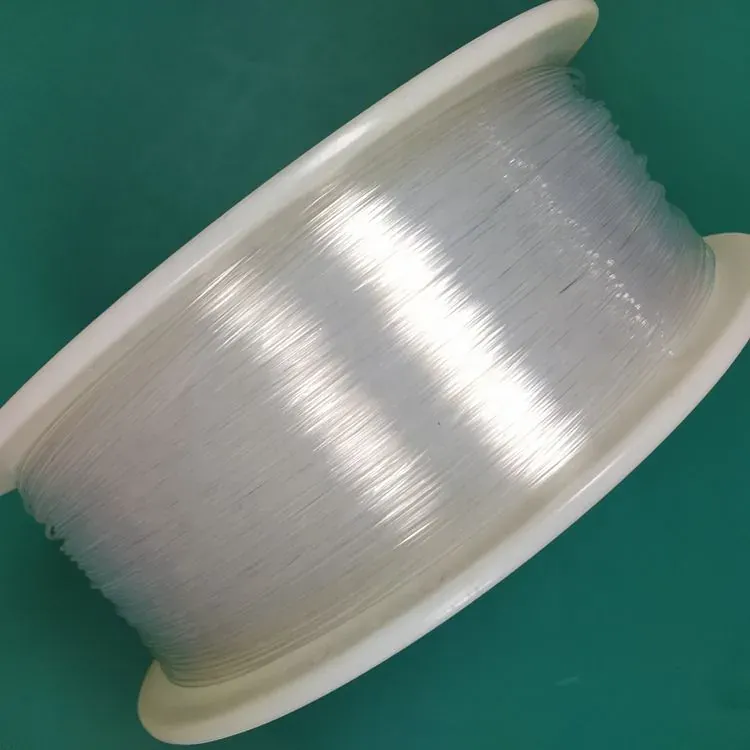

Standard length: 700m/2.2kg

Certified to EMC, Reach, FCC, ISO9001

Core/fiber material: 1.49

Fluorinated-polymer cladding (specified as Fluorine Polymer) for efficient total internal reflection

Fiber diameter: 0.25mm , 0.3mm , 0.75mm , 1.0mm , 1.5mm ~3.0mm

Attenuation rated at ≤350(650nm) over the operating wavelength

Cuts and terminates with simple tools; no polishing or fusion equipment required

Uniform core diameter and smooth cladding for consistent brightness strand to strand

Typical Applications

The SK-60 is commonly used for decorative outlines for bars, restaurants, weddings and public buildings. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.

Frequently Asked Questions

Q: How is it cut and installed? A: The POF is cut with a sharp fiber cutter and bundled into the illuminator chuck; no fusion splicing or electrical work is needed at the lit end.

Q: What is end-glow PMMA fiber used for? A: End-glow PMMA fiber transmits light from a remote illuminator to the end of each strand, producing pin-points of light used for star ceilings, curtains, furniture and architectural decoration.

Q: Is the fiber safe near water or in a ceiling? A: Yes. The fiber itself carries no electricity and stays cool at the emitting end, so it is suitable for wet areas and occupied spaces when paired with a remotely located light source.

Q: Does it emit UV or heat? A: Virtually no UV or IR reaches the end points, which helps protect sensitive fabrics and artwork and makes the fiber comfortable to touch.
