SK10 Mitsubishi ESKA 0.25 mm PMMA End-Glow Fiber Optic Cable for Decorative Lighting

SK10 0.25 mm end-glow PMMA plastic optical fiber for star ceilings, luminous furniture and decorative lighting. Flexible, waterproof, cool-running POF supplied in continuous spool lengths.

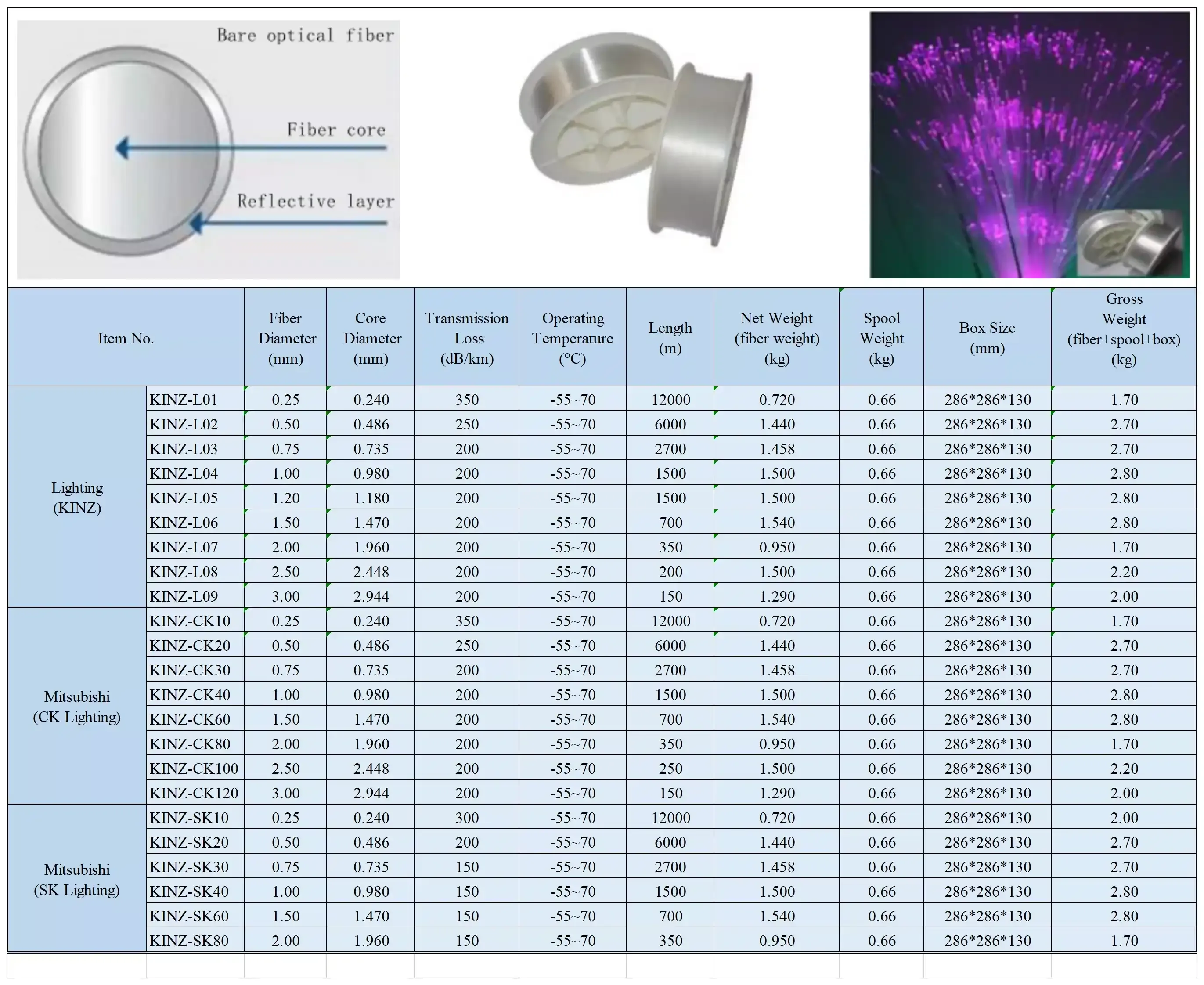

Specifications

Working Temperature(°C): -50°C to +70°C
IP Rating: IP68
Fiber diameter: SK10
Length/Weight (OD:0.25mm): 12000/1.38kg
Application: Lighting Decoration
Attenuation (dB/km): ≤350(650nm)
Clad Material: Fluorine Polymer
Bend Radius (mm): ≥10*Fiber Diameter
Core Material Refractive Index: 1.49
Max Receive Angle: 60
Fiber Type: PMMA end glow fiber optic cable
Effect: Twinkle
Certification: EMC, Reach, FCC

SK10 Mitsubishi ESKA 0.25 mm PMMA End-Glow Fiber Optic Cable for Decorative Lighting

SK10 is a Mitsubishi end-emitting plastic optical fiber with a 0.25 mm PMMA core and fluorinated-polymer cladding, supplied for star ceiling / starry sky.

JINSHANG TECH supplies the SK10 as a production item; fiber diameter, jacketing, connectorization and length can be confirmed against the specification before ordering.

Key Characteristics

Refractive index figures: 1.49

Operating temperature range: -50°C to +70°C

IP68 ingress protection for damp or wash-down environments

Standard length: 12000/1.38kg

Certified to EMC, Reach, FCC

Core/fiber material: 1.49

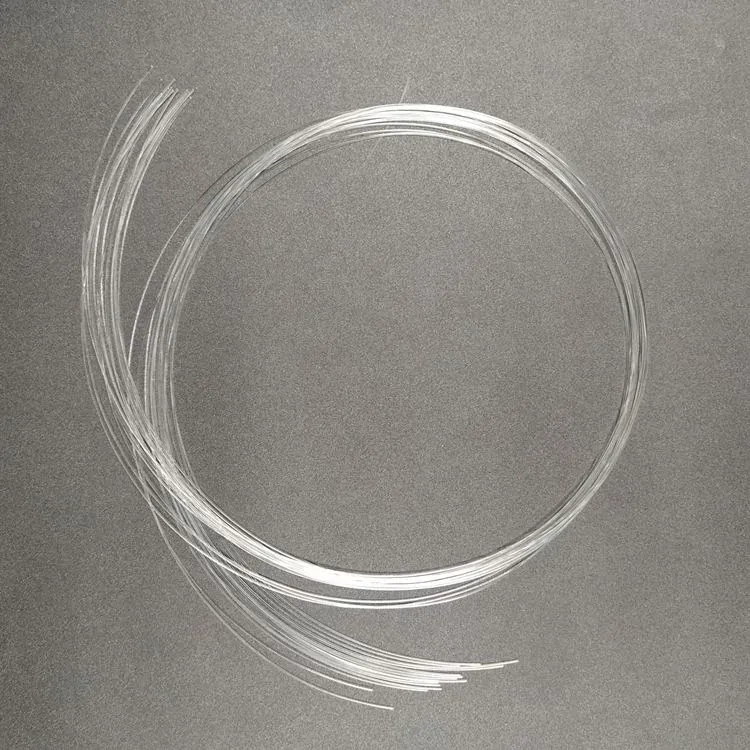

Flexible and easy to route around curves without the breakage risk of glass fiber

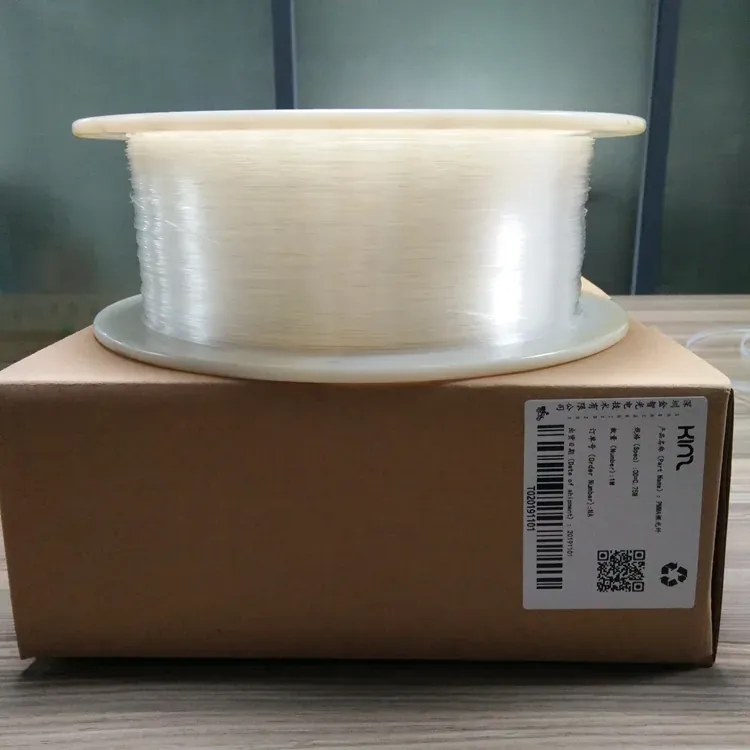

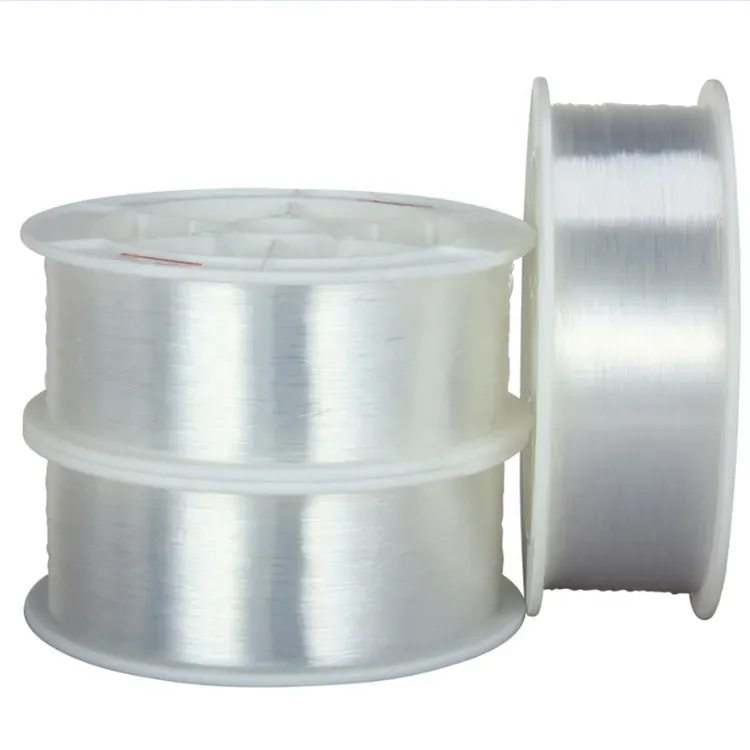

Available in continuous spool lengths for large ceilings, curtains and textiles

Typical Applications

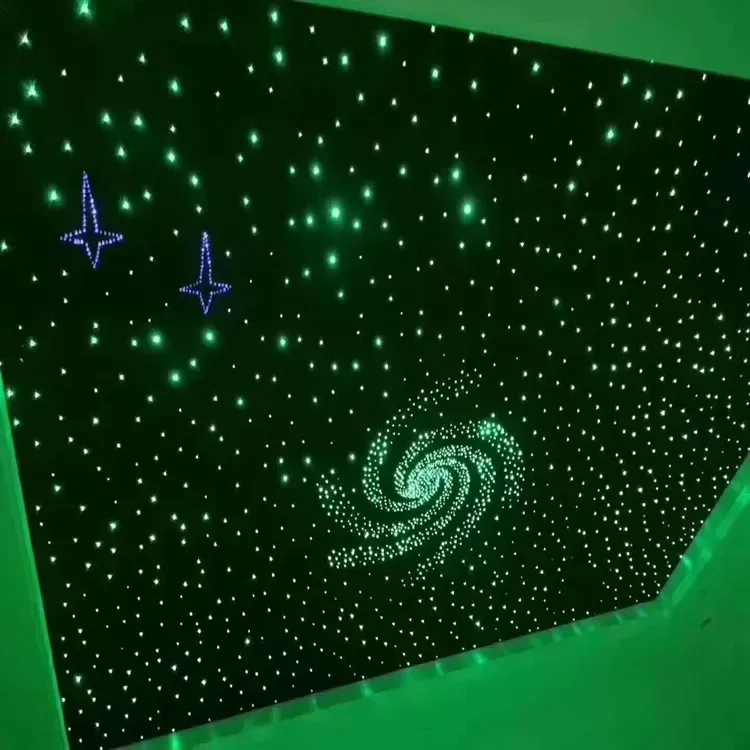

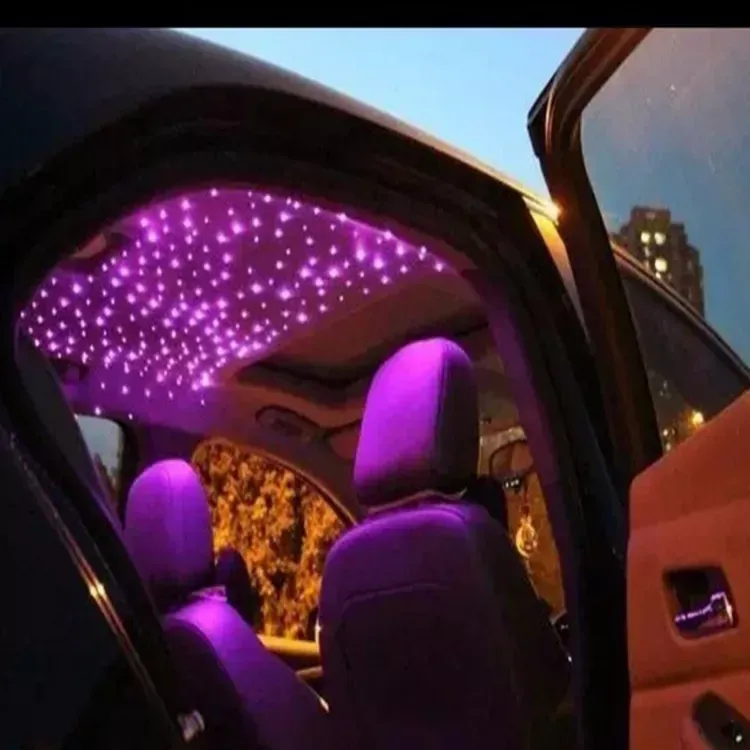

The SK10 is commonly used for star ceilings and starry-sky panels in hotels, KTV rooms, home theaters and bedrooms. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.

Frequently Asked Questions

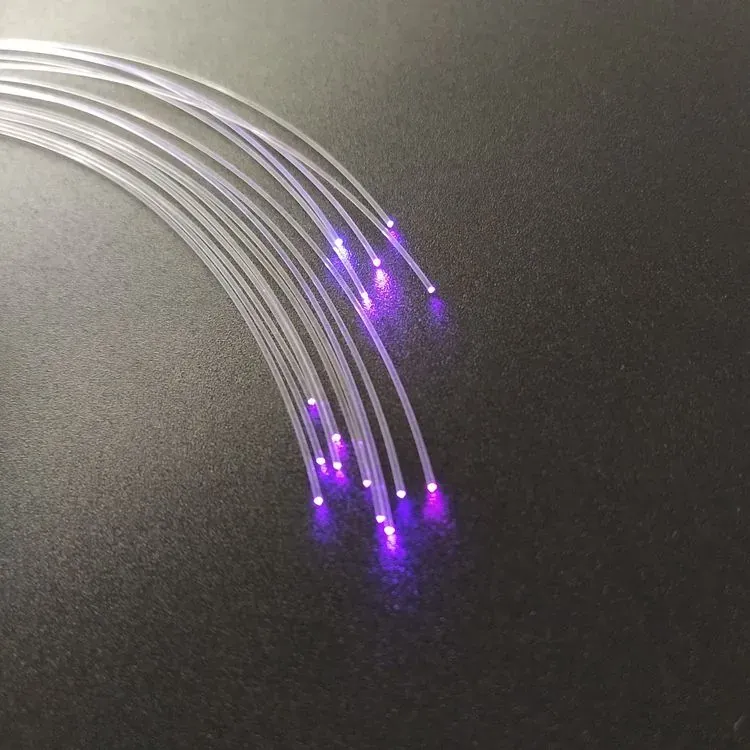

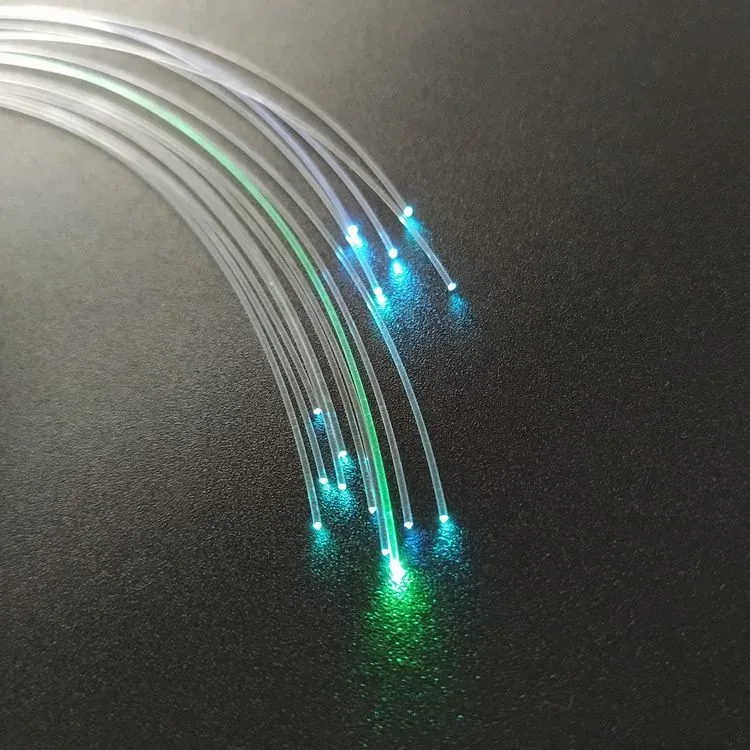

Q: What is end-glow PMMA fiber used for? A: End-glow PMMA fiber transmits light from a remote illuminator to the end of each strand, producing pin-points of light used for star ceilings, curtains, furniture and architectural decoration.

Q: What core diameter should I choose? A: Smaller diameters (0.25–0.75 mm) give fine, dense star points, while 1.0–3.0 mm strands produce brighter points over longer runs. Match the diameter to your illuminator and desired star density.

Q: Is the fiber safe near water or in a ceiling? A: Yes. The fiber itself carries no electricity and stays cool at the emitting end, so it is suitable for wet areas and occupied spaces when paired with a remotely located light source.

Q: How is it cut and installed? A: The POF is cut with a sharp fiber cutter and bundled into the illuminator chuck; no fusion splicing or electrical work is needed at the lit end.
