POF CABLE

SK40 Mitsubishi ESKA 1500 m Roll 1 mm PMMA End-Glow Fiber Optic Cable for Decorative Lighting

SK40 1 mm end-glow PMMA plastic optical fiber for star ceilings, luminous furniture and decorative lighting. Flexible, waterproof, cool-running POF supplied in continuous spool lengths.

Specifications

Working Temperature(°C): -50°C to +70°C
IP Rating: IP68
Application: Lighting Decoration
Effect: End glow ,end glow and sparkle
Bend Radius (mm): ≥10*Fiber Diameter
Max Receive Angle: 60
Length/Weight (OD:1.00mm): 1500m/2.16kg
Attenuation (dB/km): ≤350(650nm)
Clad Material: Fluorine Polymer
Core Material Refractive Index: 1.49
Fiber Type: PMMA end glow fiber optic cable
Diameter: 0.25mm , 0.3mm , 0.75mm , 1.0mm , 1.5mm ~3.0mm
Certification: EMC, Reach, FCC

SK40 Mitsubishi ESKA 1500 m Roll 1 mm PMMA End-Glow Fiber Optic Cable for Decorative Lighting

SK40 is a Mitsubishi end-emitting plastic optical fiber with a 1 mm PMMA core and fluorinated-polymer cladding, supplied for star ceiling / starry sky.

JINSHANG TECH supplies the SK40 as a production item; fiber diameter, jacketing, connectorization and length can be confirmed against the specification before ordering.

Key Characteristics

IP68 ingress protection for damp or wash-down environments

Standard length: 1500m/2.16kg

Certified to EMC, Reach, FCC

Core/fiber material: 1.49

Fluorinated-polymer cladding (specified as Fluorine Polymer) for efficient total internal reflection

Fiber diameter: 0.25mm , 0.3mm , 0.75mm , 1.0mm , 1.5mm ~3.0mm

Flexible and easy to route around curves without the breakage risk of glass fiber

Available in continuous spool lengths for large ceilings, curtains and textiles

Typical Applications

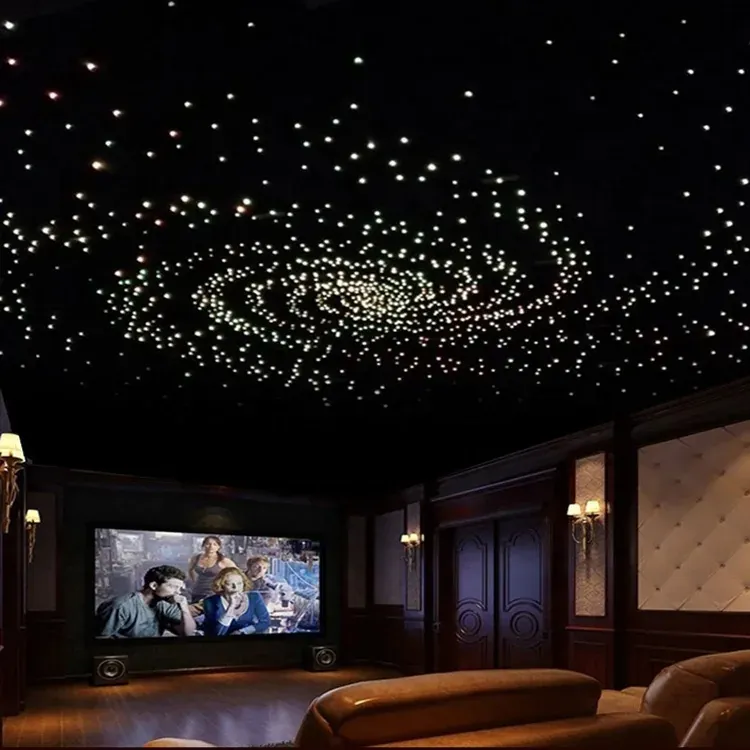

The SK40 is commonly used for star ceilings and starry-sky panels in hotels, KTV rooms, home theaters and bedrooms. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.

Frequently Asked Questions

Q: Is the fiber safe near water or in a ceiling? A: Yes. The fiber itself carries no electricity and stays cool at the emitting end, so it is suitable for wet areas and occupied spaces when paired with a remotely located light source.
