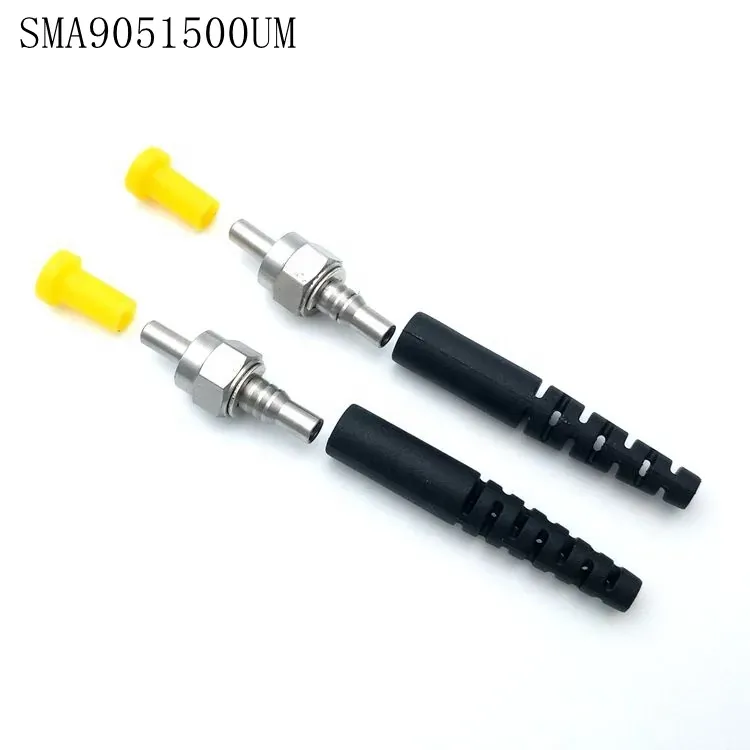

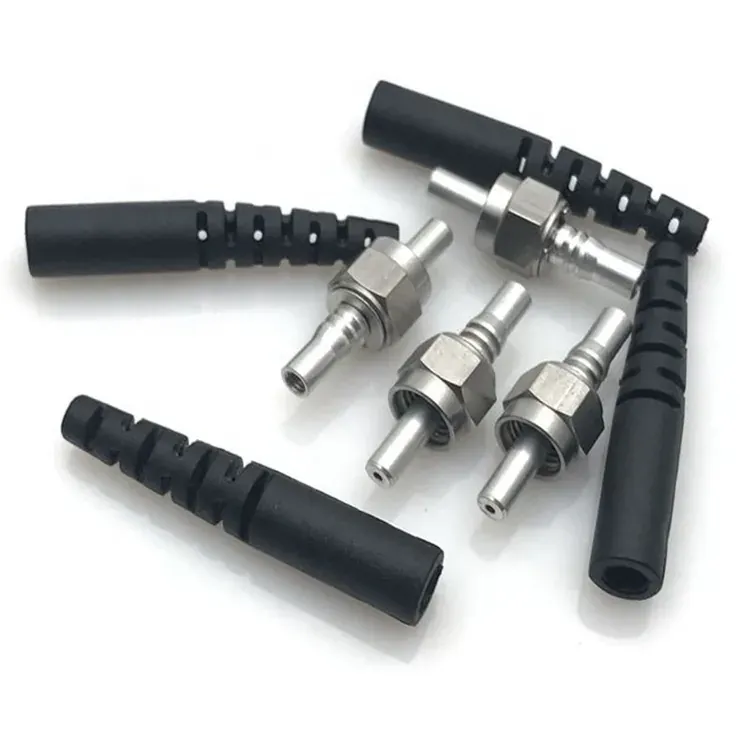

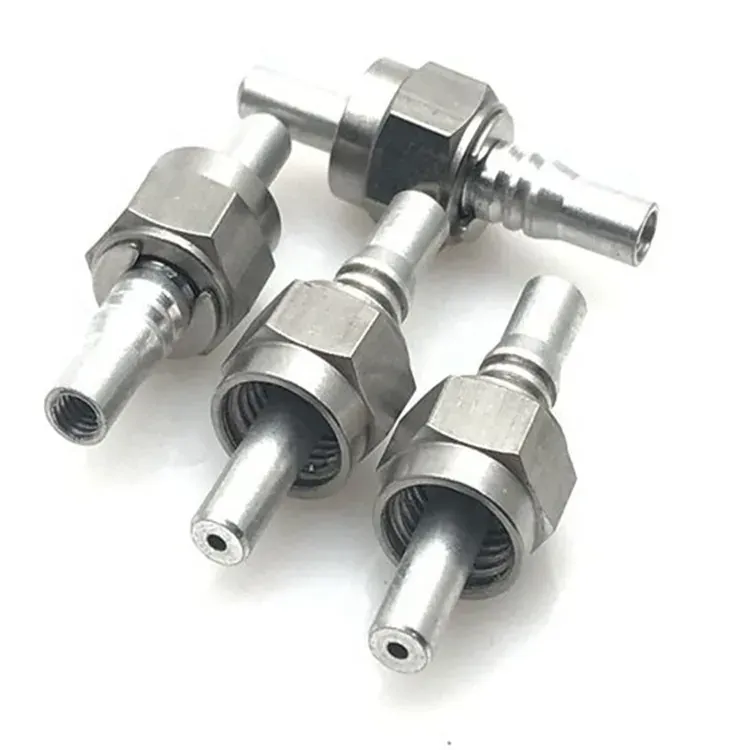

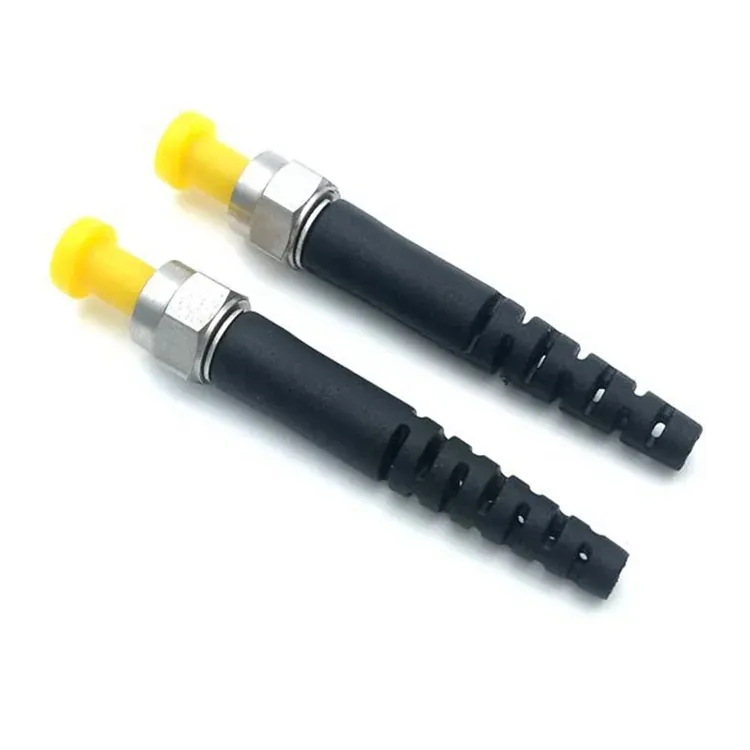

SMA905 Fiber Optic Patch Cord Jumper

SMA905 factory-terminated fiber-optic patch cord with matched connectors for plug-and-play, low-loss POF/HCS/glass connections.

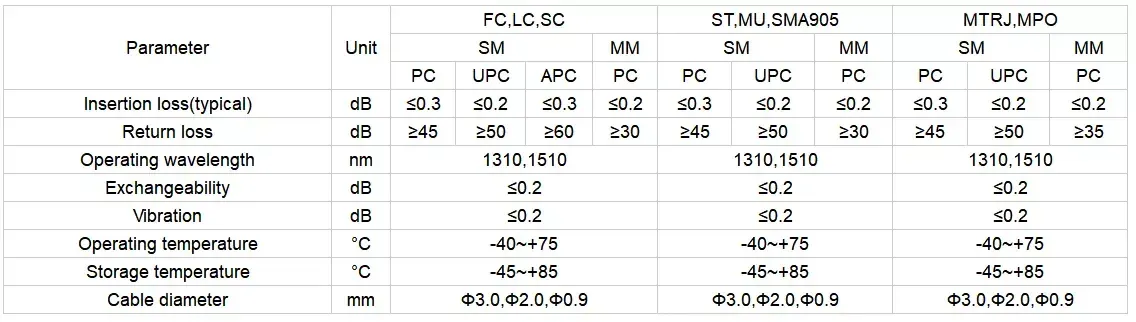

Specifications

Type: fiber optic connector, Terminal Connectors
Certifaction: ISO9001,ROHS,CE
fiber type: SM,MM
connector Type: SMA905
Ferrule material: Ceramic
Hole diameter: 1.50mm

SMA905 Fiber Optic Patch Cord Jumper

SMA905 is a JINSHANG TECH fiber patch lead for data, control or instrumentation optical ports.

JINSHANG TECH supplies the SMA905 as a production item; fiber diameter, jacketing, connectorization and length can be confirmed against the specification before ordering.

Key Characteristics

Fiber diameter: 1.50mm

Connector/interface: SMA905

Certified to ISO9001,ROHS,CE

POF, HCS or glass fiber options per the listed configuration

Factory-terminated both ends for controlled insertion loss

Typical Applications

The SMA905 is commonly used for device-to-panel and device-to-device optical connections, transceiver and instrument patching in data/control systems, and replacement jumpers for existing optical networks. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.

Frequently Asked Questions

Q: Is it shielded against noise? A: An optical patch cord carries no electrical signal, so it is inherently immune to EMI and provides ground isolation.

Q: Can I order a specific length? A: Standard lengths are available and custom lengths can be supplied by specifying the routing distance.

Q: Which connectors should each end have? A: Match the connectors to the two ports being joined; confirm the fiber type (POF/HCS/glass) and the connector standard (ST/SC/LC/SMA/HFBR/F07).

Q: What is a patch cord? A: A patch cord is a factory-terminated optical cable with connectors on both ends, used to link transceivers, panels or devices without field termination.
