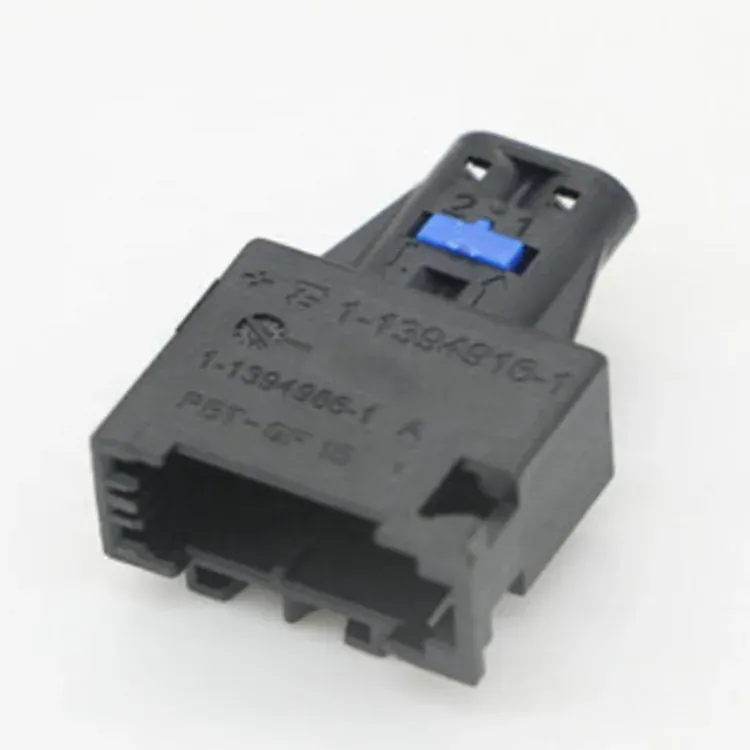

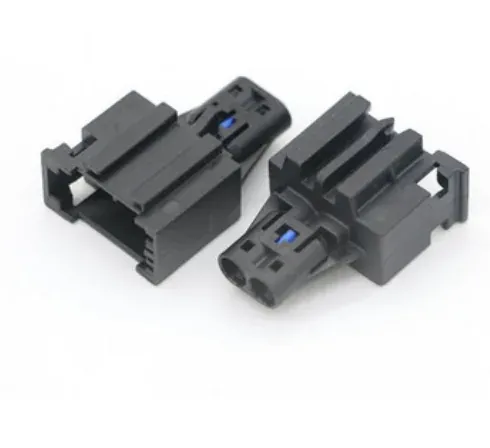

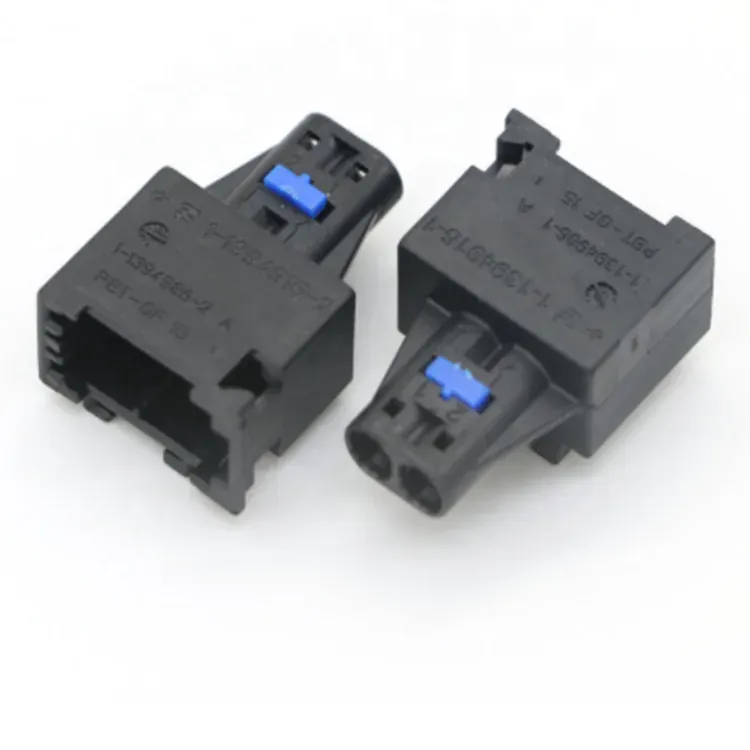

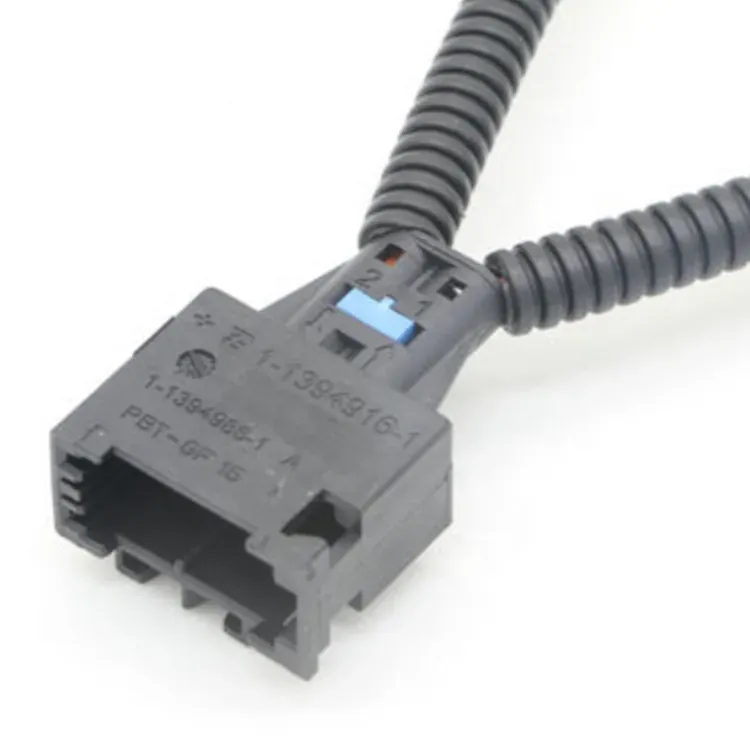

ST Loop Bypass Fiber Optic Adapter / Attenuator / Loop
This is a fiber-optic adapter, attenuator, loop or keystone coupler for precise connector alignment, MOST ring closure and link conditioning.
ST Loop Bypass Fiber Optic Adapter / Attenuator / Loop
This is a JINSHANG TECH fiber interface accessory that aligns two connector ferrules or provides a loop/attenuation path for testing and network build-out.
Because the optical path is non-conductive, the unit provides electrical isolation between connected equipment and can be routed past motors, drives and power wiring without picking up noise.
Key Characteristics
- Compact housing for DIN-rail, panel and faceplate mounting
- Precision sleeve aligns mating ferrules for low insertion loss
- Stable attenuation for receiver overload protection where specified
- Protects the optical joint from dust and mechanical offset
- Provides loop/bypass paths for MOST network diagnostics and ring closure
- Repeated-mating durability with consistent alignment
- Quick snap-in for service and reconfiguration
- Keystone and panel-mount options for tidy equipment integration
Typical Applications
The unit is commonly used for MOST automotive ring closure, loop and bypass diagnostics. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions

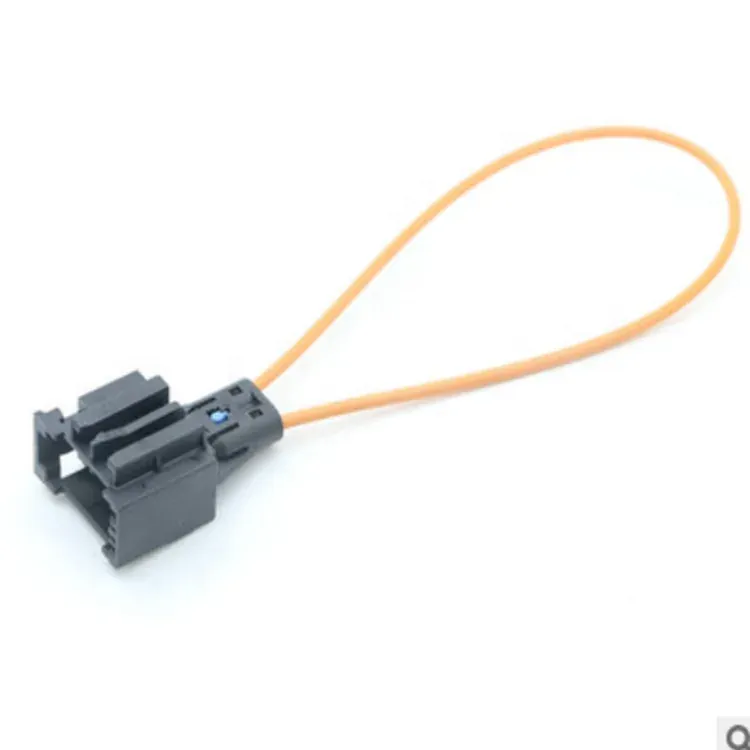

Q: What is a MOST loop / bypass used for? A: In a MOST optical ring, a loop or bypass connector closes the optical path when a node is removed, letting the ring be diagnosed or operated without that device.
Q: What does a fiber adapter do? A: It precisely aligns two connector ferrules so light passes between them with minimal loss, while holding the joint in a protected housing.
Q: Are adapters connector-specific? A: Yes, each adapter mates a defined connector pair or profile, so confirm compatibility before ordering.
Q: When is an attenuator needed? A: An attenuator reduces optical power where a receiver would otherwise be overloaded; use only the value specified for the link.
