FIBER CONNECTORS

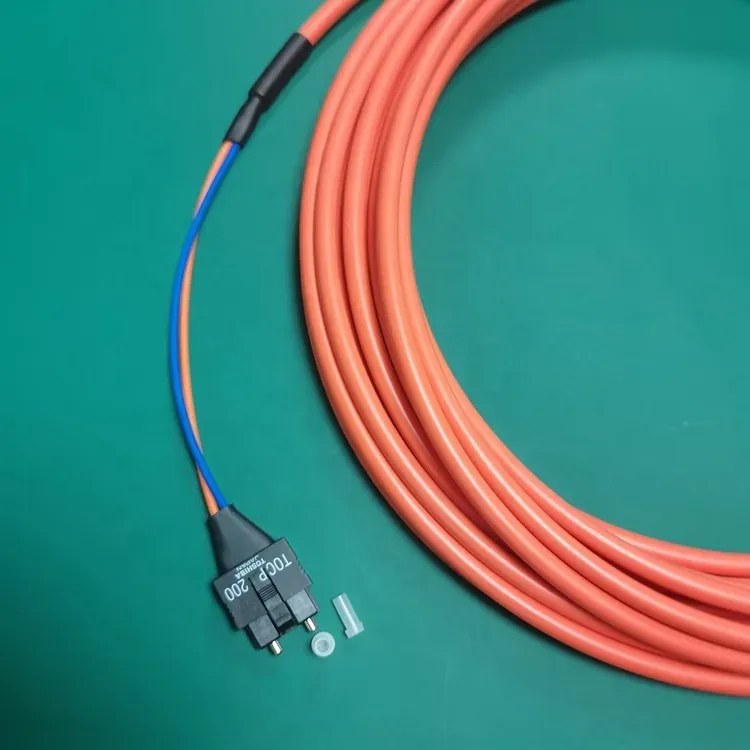

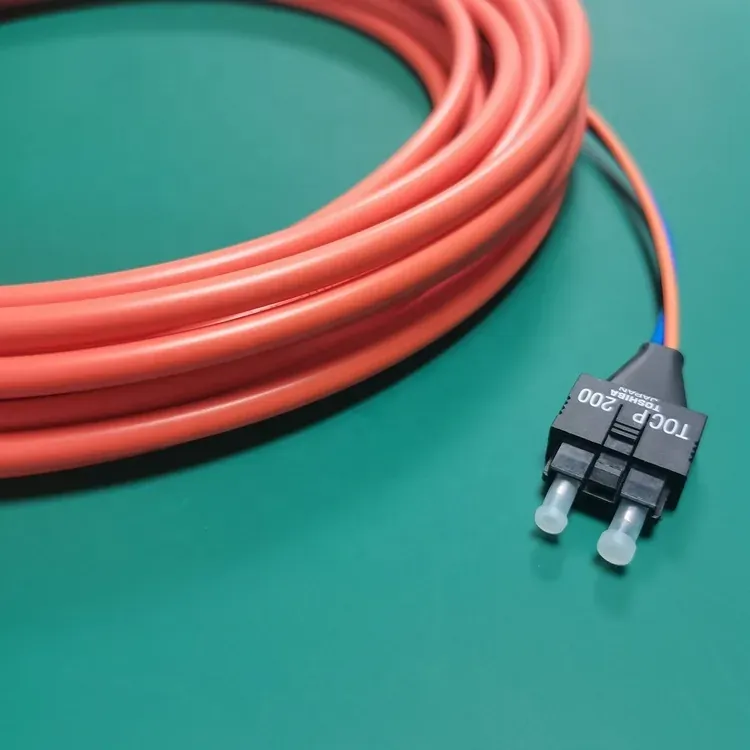

TOCP201QK Toshiba Fiber Optic Connector
TOCP201QK fiber-optic connector with precision ferrule for repeatable, low-loss termination of plastic, hard-clad or silica optical fiber.
Specifications
- Application
- industrial control
- Connector type
- TOCP201QK connector
- certification
- ISO9001,ROHS,CE
- Attenuation
- 160db/km
- Working temperature
- -55°C~+85°C
- Cladding Color
- Black
- Fiber Core material
- PMMA
TOCP201QK Toshiba Fiber Optic Connector
The TOCP201QK fiber connector from Toshiba aligns the fiber end to a transceiver port or mating adapter for a stable link.
Because the optical path is non-conductive, the TOCP201QK provides electrical isolation between connected equipment and can be routed past motors, drives and power wiring without picking up noise.
Key Characteristics
- Certified to ISO9001,ROHS,CE
- Housing/jacket color: Black
- PMMA (polymethyl methacrylate) core for high light transmission and low-cost optical links
- Attenuation rated at 160db/km over the operating wavelength
- Operating temperature range: -55°C~+85°C
- Connector/interface: TOCP201QK connector

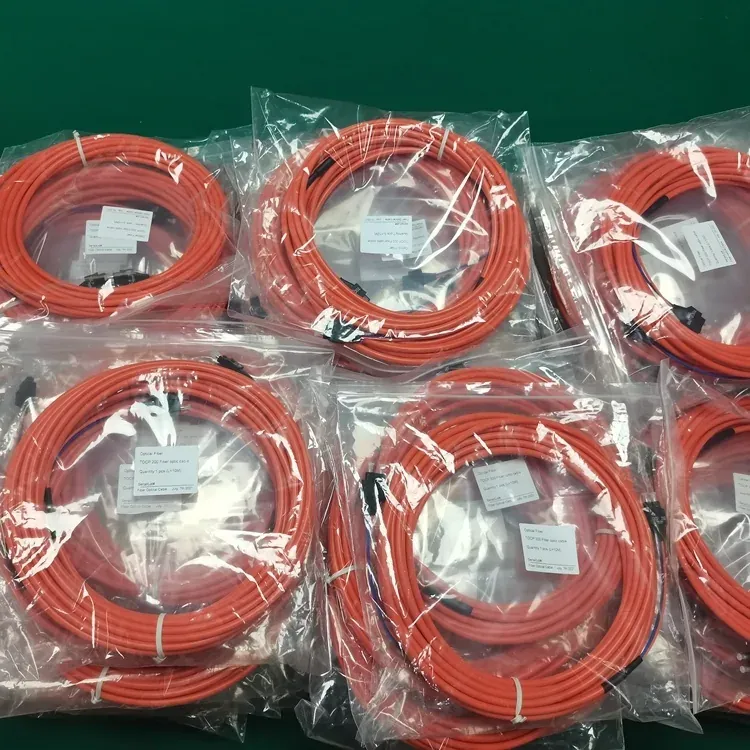

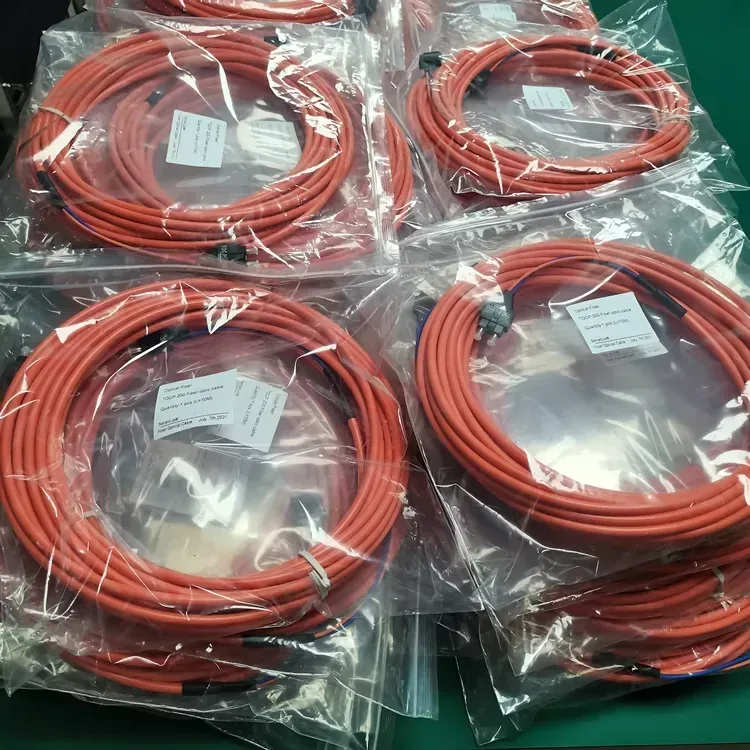

- Supplied as connector, pigtail or assembled cable
- Precision ferrule for repeatable fiber alignment
Typical Applications
The TOCP201QK is commonly used for termination of plastic and hard-clad fiber in equipment, and pigtails, patch cords and panel connections. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions
Q: Does the connector fit any fiber size? A: No — each connector is built with a ferrule for a specific fiber diameter, so confirm the cable core size before ordering.
