POF CABLE
TB-750 Asahi Kasei 0.75 mm PMMA End-Glow Fiber Optic Cable for Decorative Lighting
TB-750 0.75 mm end-glow PMMA plastic optical fiber for star ceilings, luminous furniture and decorative lighting. Flexible, waterproof, cool-running POF supplied in continuous spool lengths.

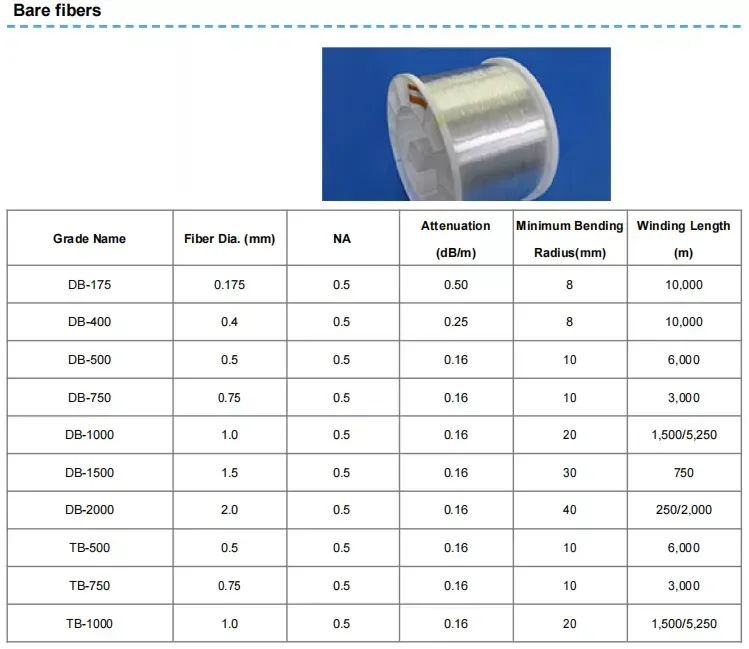

Specifications
- Working Temperature(°C)
- -20~70
- IP Rating
- IP68
- Application
- Illumination&Signal Transmission,,Decoration, ceilling,lighting
- Fiber Type
- PMMA end glow fiber optic cable
- Grade Name
- DB-750
- Fiber Dia. (mm)
- 0.75
- NA
- 0.5
- Attenuation (dB/m)
- 0.16
- Minimum Bending Radius(mm)
- 10
- Winding Length (m)
- 3,000
- Certification
- Reach, ISO9001
TB-750 Asahi Kasei 0.75 mm PMMA End-Glow Fiber Optic Cable for Decorative Lighting
TB-750 denotes a Asahi Kasei 0.75 mm PMMA end-glow fiber — a flexible, electrically passive light guide built for decorative lighting.
Manufactured for production use rather than as a one-off sample, the TB-750 is built to a stable fiber specification so orders can be repeated with consistent dimensions and performance.
Key Characteristics
- IP68 ingress protection for damp or wash-down environments
- Standard length: 3,000
- Certified to Reach, ISO9001
- Attenuation rated at 0.16 over the operating wavelength
- Minimum bend radius: 10
- Operating temperature range: -20~70
- Works with standard LED/halogen fiber illuminators and remote light sources
- Cuts and terminates with simple tools; no polishing or fusion equipment required
Typical Applications

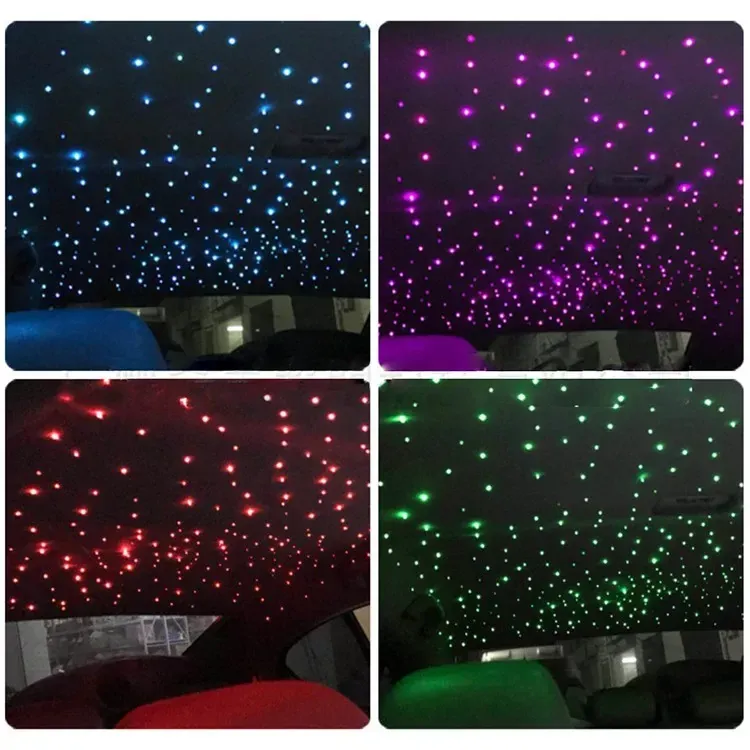

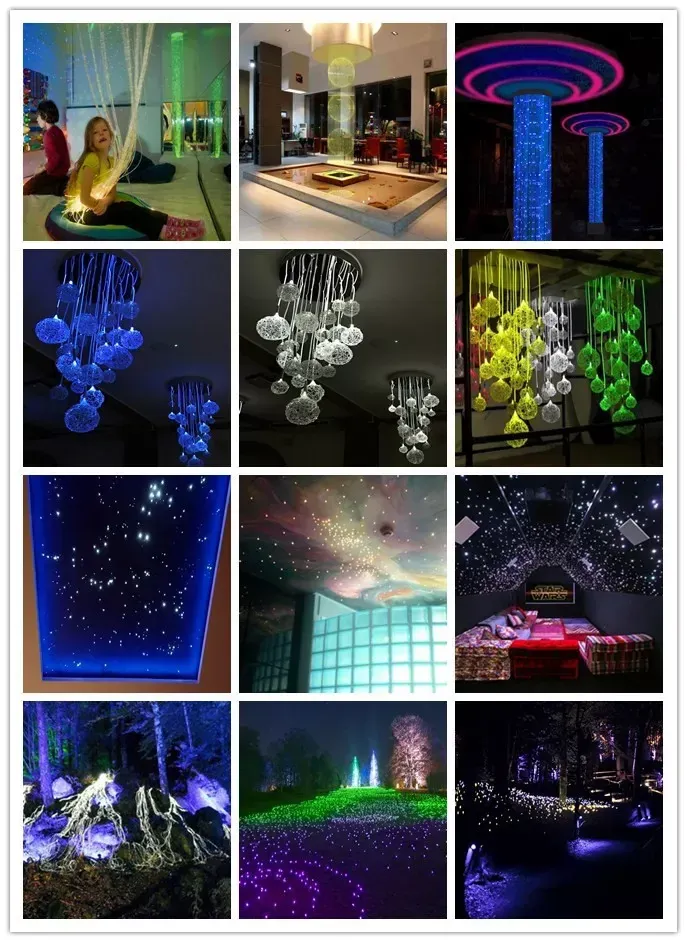

The TB-750 is commonly used for decorative outlines for bars, restaurants, weddings and public buildings. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions
Q: Does it emit UV or heat? A: Virtually no UV or IR reaches the end points, which helps protect sensitive fabrics and artwork and makes the fiber comfortable to touch.
Q: How is it cut and installed? A: The POF is cut with a sharp fiber cutter and bundled into the illuminator chuck; no fusion splicing or electrical work is needed at the lit end.
Q: Is the fiber safe near water or in a ceiling? A: Yes. The fiber itself carries no electricity and stays cool at the emitting end, so it is suitable for wet areas and occupied spaces when paired with a remotely located light source.
Q: What core diameter should I choose? A: Smaller diameters (0.25–0.75 mm) give fine, dense star points, while 1.0–3.0 mm strands produce brighter points over longer runs. Match the diameter to your illuminator and desired star density.
Find related POF cables, connectors and patch cords at www.tocpfibercable.com.
