FIBER CONNECTORS

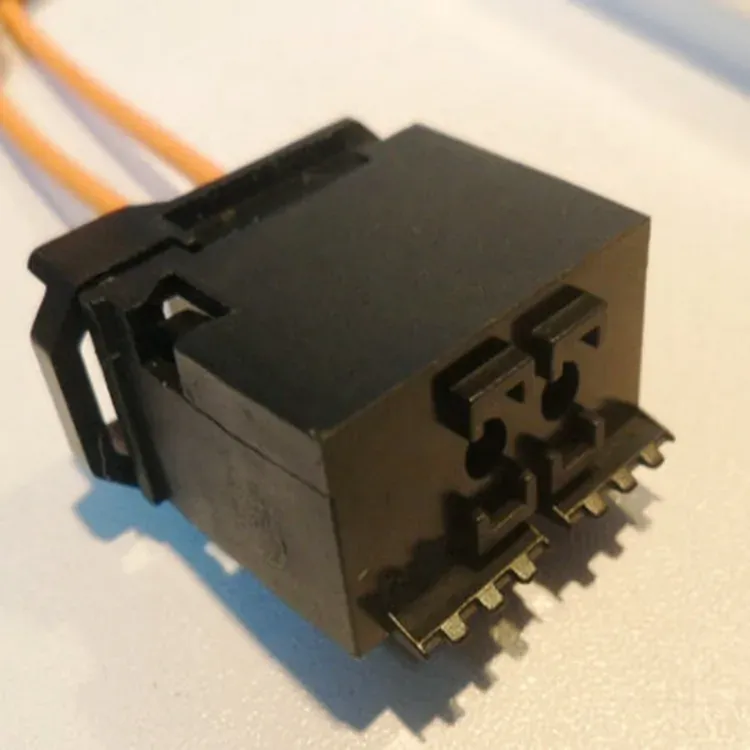

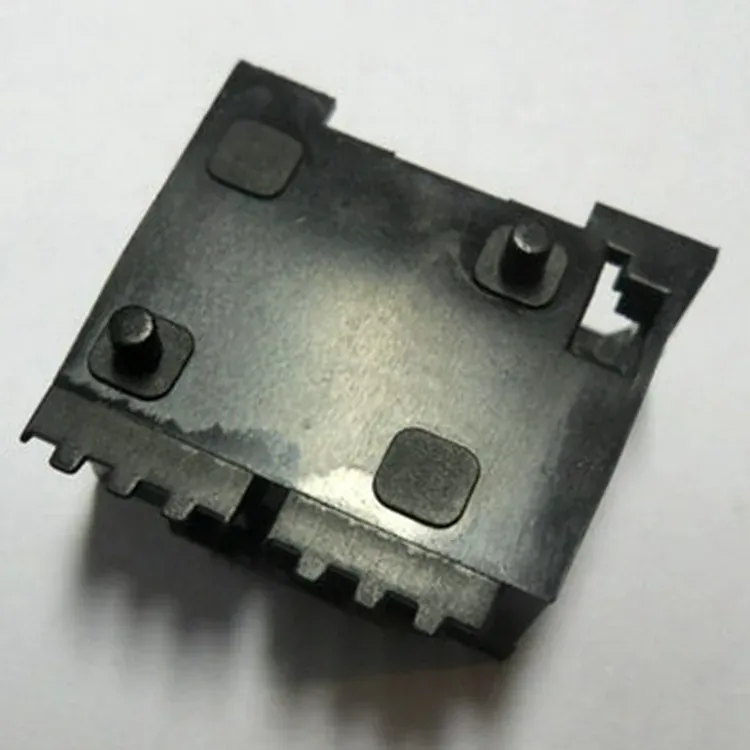

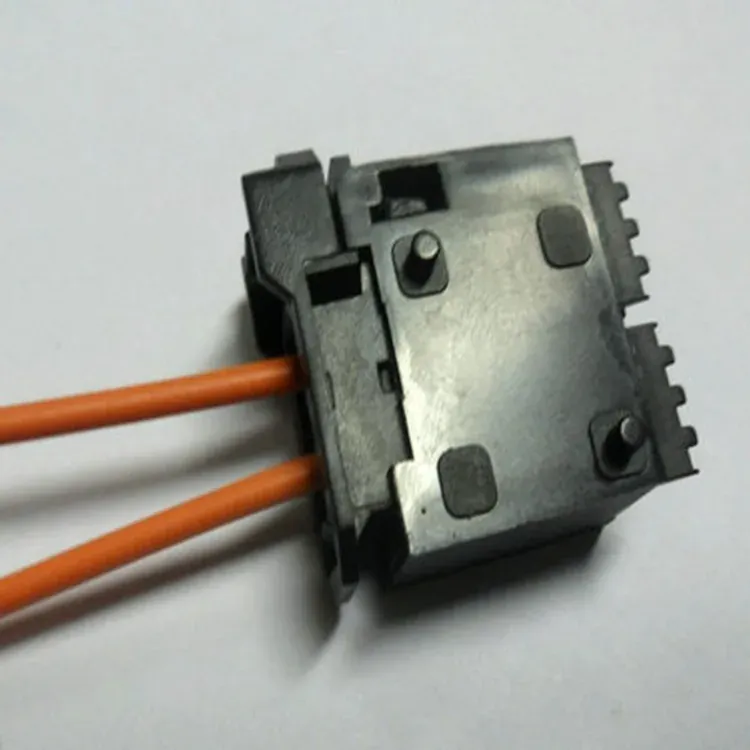

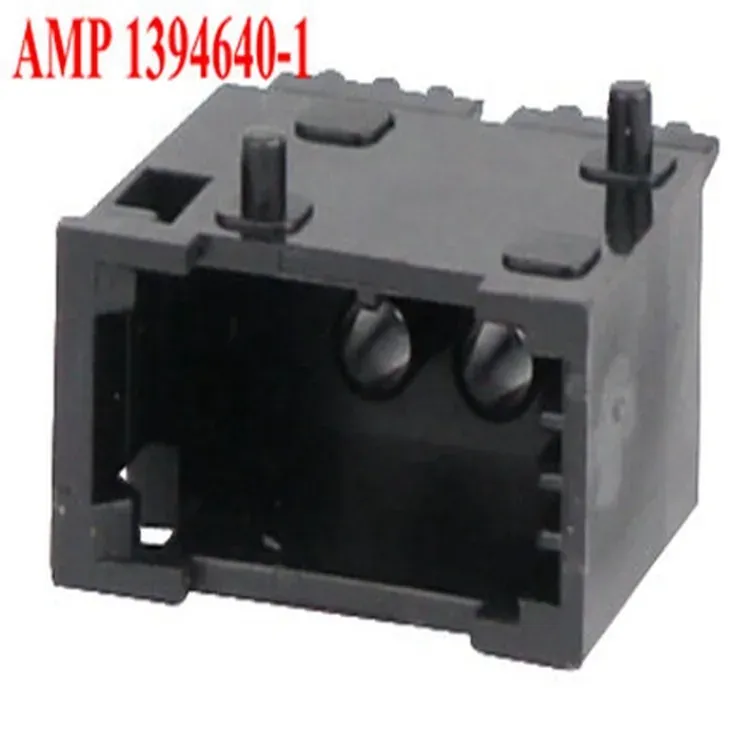

1394640-1A MOST Automotive Fiber Optic Connector
1394640-1A MOST automotive fiber-optic connector / module for plastic optical fiber infotainment rings, with loop/bypass options for vehicle diagnostics.
Specifications
- Type
- Fiber Adapter & Connectors

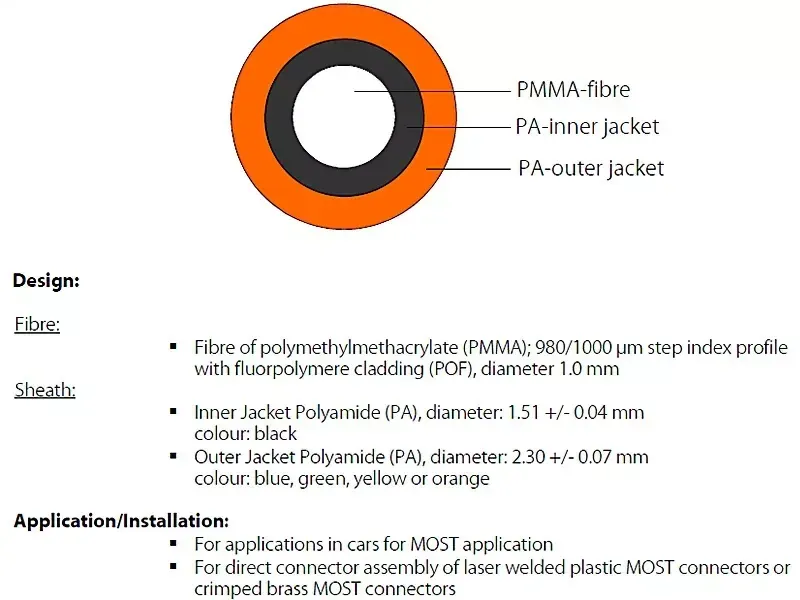

- Finished diameter
- 2.3mm
- Core material diameter
- 1.0mm
- Core material
- imported Japanese optical fiber
- Standard length
- 1000mm, 0-100m can be customized
- Working temperature
- -55 °C-+ 85 °C

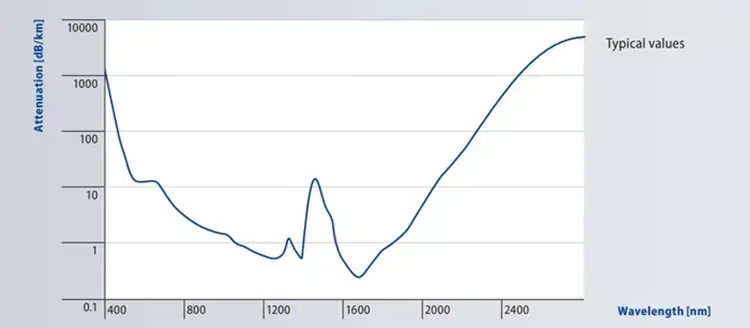

- Attenuation
- less than 180dB / km
- Color
- Black Connector ,Qrange Cable
- Application
- GPS navigation system,Video display etc.
- Certifaction
- ISO9001, European ROHS,CE
- No. of Fiber
- 2.
1394640-1A MOST Automotive Fiber Optic Connector
1394640-1A is a JINSHANG TECH vehicle-grade MOST optical connector that aligns large-core POF fibers between head units, amplifiers, gateways and displays.
Because the optical path is non-conductive, the 1394640-1A provides electrical isolation between connected equipment and can be routed past motors, drives and power wiring without picking up noise.
Key Characteristics
- Standard length: 1000mm, 0-100m can be customized
- Certified to ISO9001, European ROHS,CE
- Housing/jacket color: Black Connector ,Qrange Cable
- Core/fiber material: 1.0mm
- Fiber diameter: 2.3mm
- Attenuation rated at less than 180dB / km over the operating wavelength
- OEM and replacement options for European and Asian vehicle platforms
- Precision-aligned POF interface for low-loss automotive optical links
Typical Applications
The 1394640-1A is commonly used for MOST infotainment rings in passenger cars and commercial vehicles. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions
Q: What is a loop/bypass connector for? A: When a MOST node (such as a head unit or amplifier) is removed, a loop/bypass connector closes the optical path so the rest of the ring keeps operating for diagnosis.
Q: What is a MOST connector? A: A MOST connector terminates the plastic optical fibers of a vehicle's MOST multimedia ring, aligning the large-core POF between infotainment devices with low loss.
Q: Is it plastic or glass fiber? A: MOST25 and MOST150 optical rings use 1 mm plastic optical fiber (POF), so these connectors are designed for large-core POF alignment.
Q: Which vehicles use it? A: MOST optical rings appear across many European and Asian infotainment platforms; match the part number and pinning to the vehicle and node.
