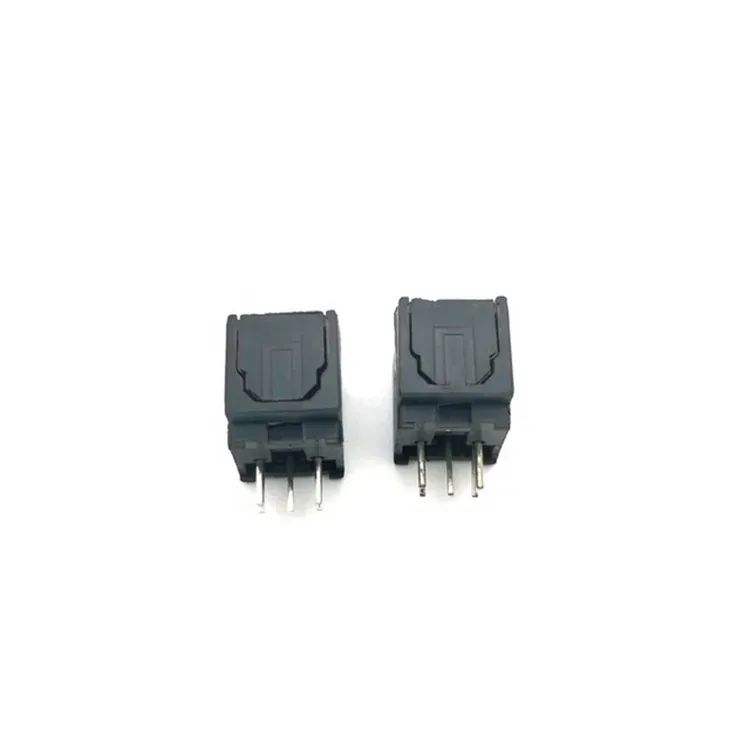

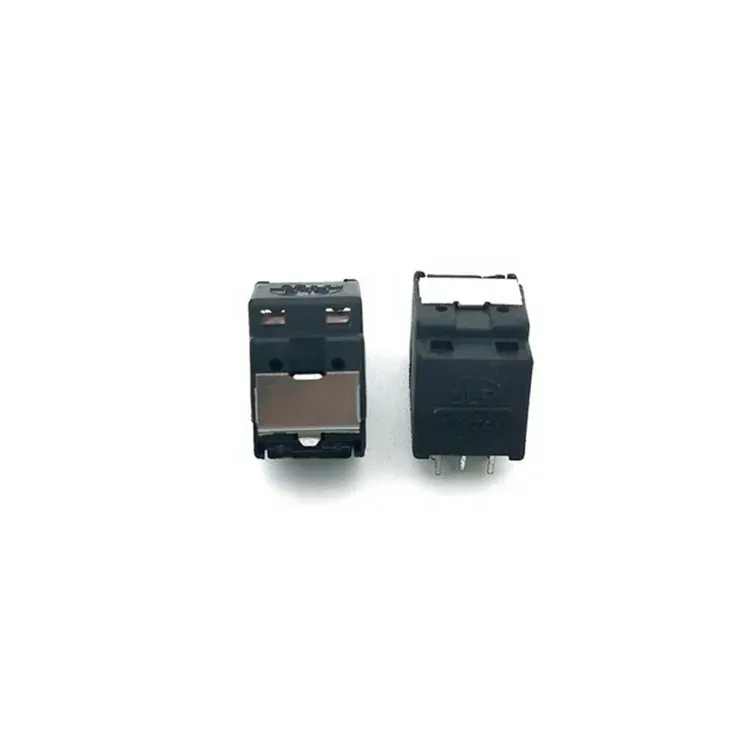

DLR1150 Drone Fiber Optic Adapter / Attenuator / Loop
DLR1150 fiber-optic adapter, attenuator, loop or keystone coupler for precise connector alignment, MOST ring closure and link conditioning.
Specifications
- Type
- Fiber Optic Transceivers, optic jack
- Use
- FTTH,FTTX,FTTP
- Application
- PCB
- Operating Voltage
- 2.7~5.5V
- plastic material
- PBT black
- Gender
- Female
- Shielding shell platin
- Nickel
- Certification
- ISO90001,RoHS
DLR1150 Drone Fiber Optic Adapter / Attenuator / Loop
DLR1150 denotes a JINSHANG TECH fiber coupler/loop accessory used to connect, bypass or condition an optical link in industrial and automotive systems.
JINSHANG TECH supplies the DLR1150 as a production item; fiber diameter, jacketing, connectorization and length can be confirmed against the specification before ordering.
Key Characteristics
- Supply voltage: 2.7~5.5V
- Certified to ISO90001,RoHS
- Quick snap-in for service and reconfiguration
- Protects the optical joint from dust and mechanical offset
- Compact housing for DIN-rail, panel and faceplate mounting
- Repeated-mating durability with consistent alignment
- Stable attenuation for receiver overload protection where specified
- Keystone and panel-mount options for tidy equipment integration
Typical Applications
The DLR1150 is commonly used for panel and faceplate coupling of POF/HCS patch cords. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions
Q: Are adapters connector-specific? A: Yes, each adapter mates a defined connector pair or profile, so confirm compatibility before ordering.
Q: When is an attenuator needed? A: An attenuator reduces optical power where a receiver would otherwise be overloaded; use only the value specified for the link.
Q: What is a MOST loop / bypass used for? A: In a MOST optical ring, a loop or bypass connector closes the optical path when a node is removed, letting the ring be diagnosed or operated without that device.
Q: What does a fiber adapter do? A: It precisely aligns two connector ferrules so light passes between them with minimal loss, while holding the joint in a protected housing.
