FIBER CONNECTORS

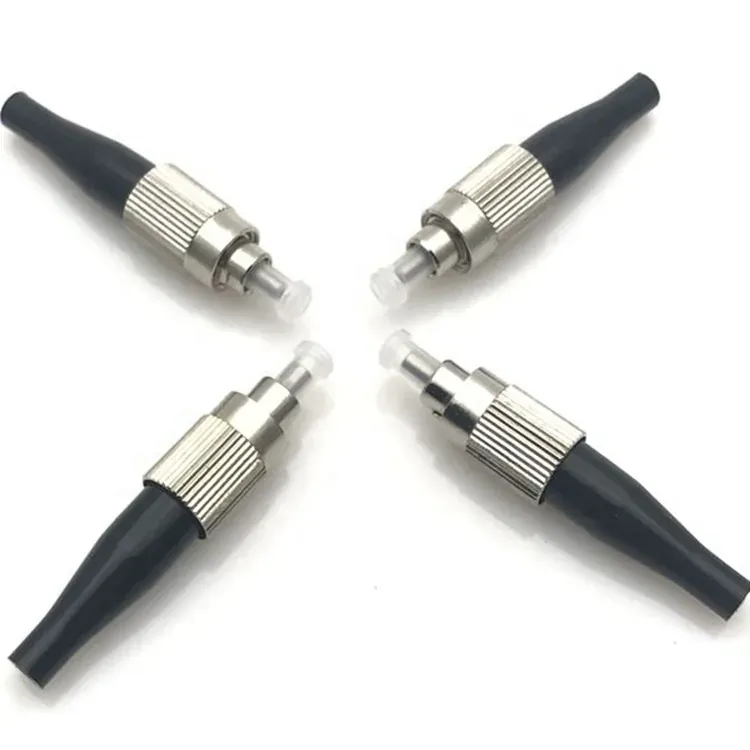

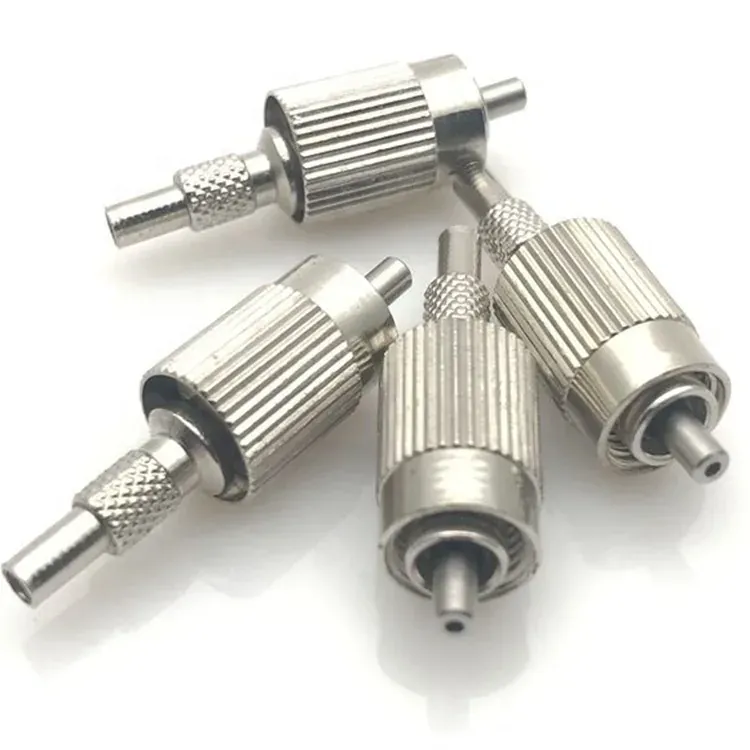

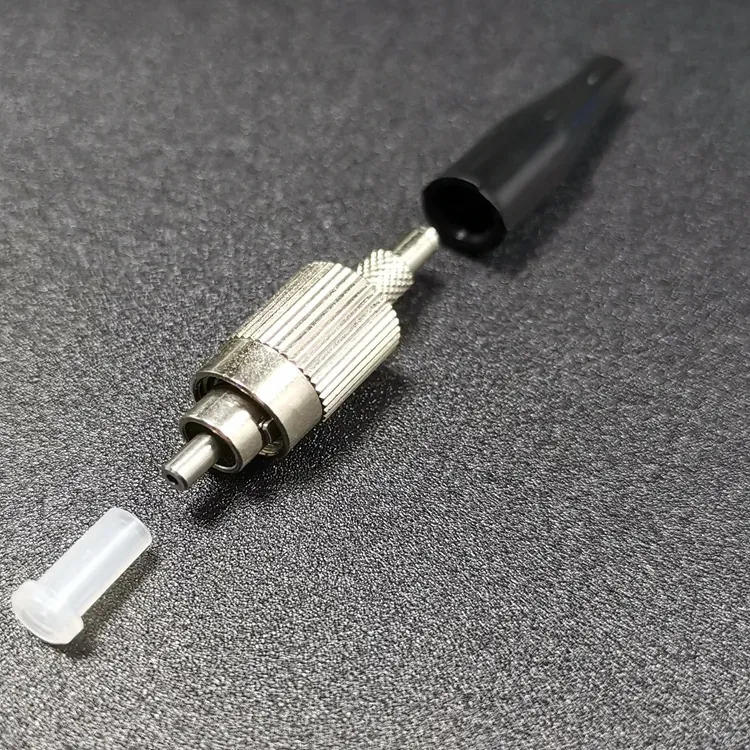

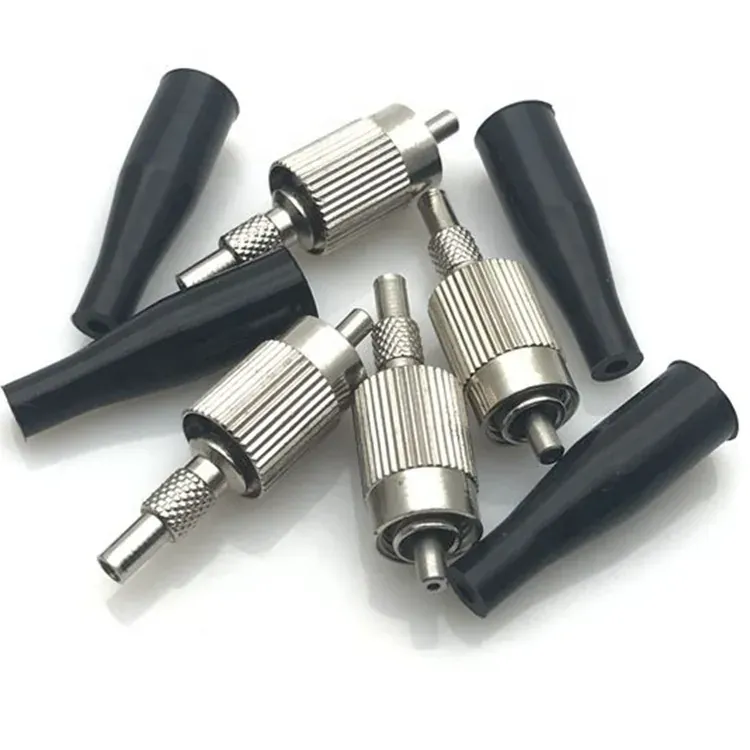

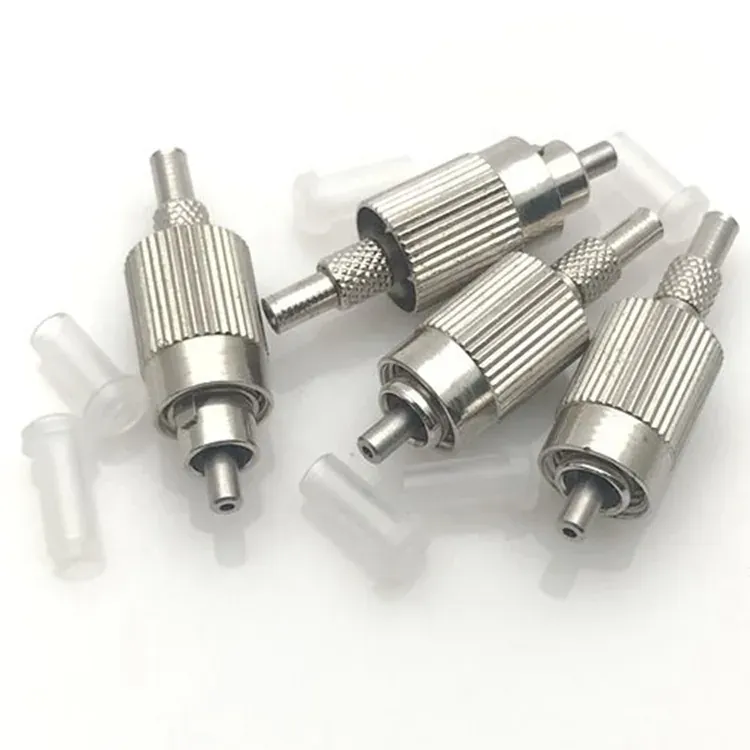

Fast SC/LC/FC/ST Field-Assembly Quick Fiber Optic Connector
Fast field-assembly fast connector (SC/LC/FC/ST) for quick on-site plastic and glass fiber termination without epoxy or polishing.
Specifications
- Type
- fiber optic connector
- Diameter
- 1000mm
- connector Type
- FC
- Use
- FTTH
- Free Sample
- yes
- No. of Fiber
- 1
- Color
- white
Fast SC/LC/FC/ST Field-Assembly Quick Fiber Optic Connector
The Fast is a JINSHANG TECH field-assembly fast connector for SC/LC/FC/ST fiber, enabling quick on-site termination without epoxy, fusion splicing or bench polishing.
Because the optical path is non-conductive, the Fast provides electrical isolation between connected equipment and can be routed past motors, drives and power wiring without picking up noise.
Key Characteristics
- Fiber diameter: 1000mm
- Connector/interface: FC
- Fiber count: 1
- Housing/jacket color: white
- Field termination without epoxy, curing or power polishing
- Pre-polished zirconia/polymer ferrule for low insertion loss
- Mechanical splice accommodates a range of fiber coating diameters
- Available in SC, LC, FC and ST profiles for common ports
Typical Applications
The Fast is commonly used for rapid FTTH and field drop-cable termination. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions
Q: What is a fast/quick connector? A: It is a field-assembly connector with a pre-polished ferrule and mechanical splice, so fiber can be terminated on site without epoxy, oven or polishing equipment.
Q: Which connector types are available? A: Fast connectors are commonly offered in SC, LC, FC and ST profiles; choose the profile that matches the adapter or equipment port.
Q: What tools are needed? A: A precision cleaver and the matching assembly tool are usually sufficient; no fusion splicer or power polisher is required.
Q: Is it as good as a factory connector? A: A correctly installed fast connector gives low loss for field and FTTH use; for the most demanding links, factory-terminated patch cords are preferred.
