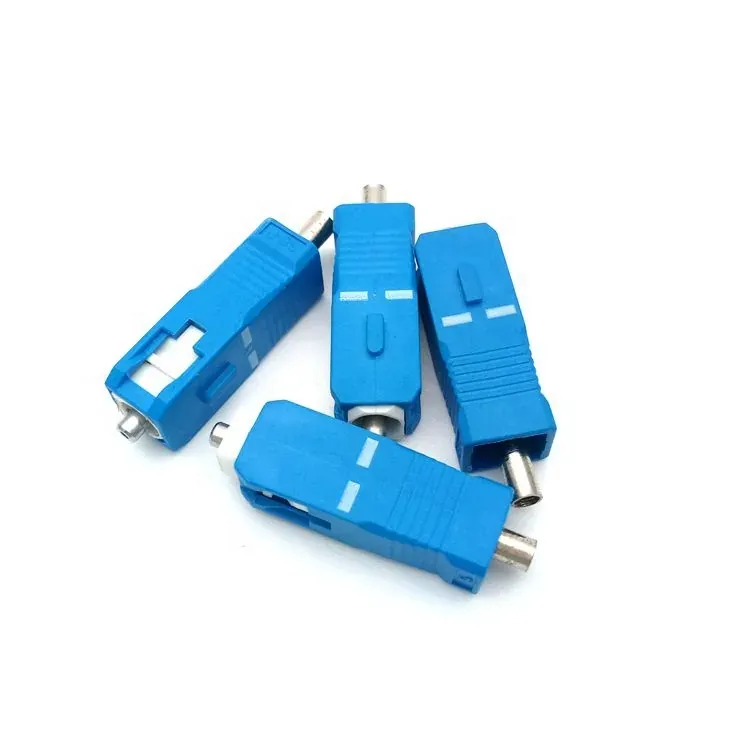

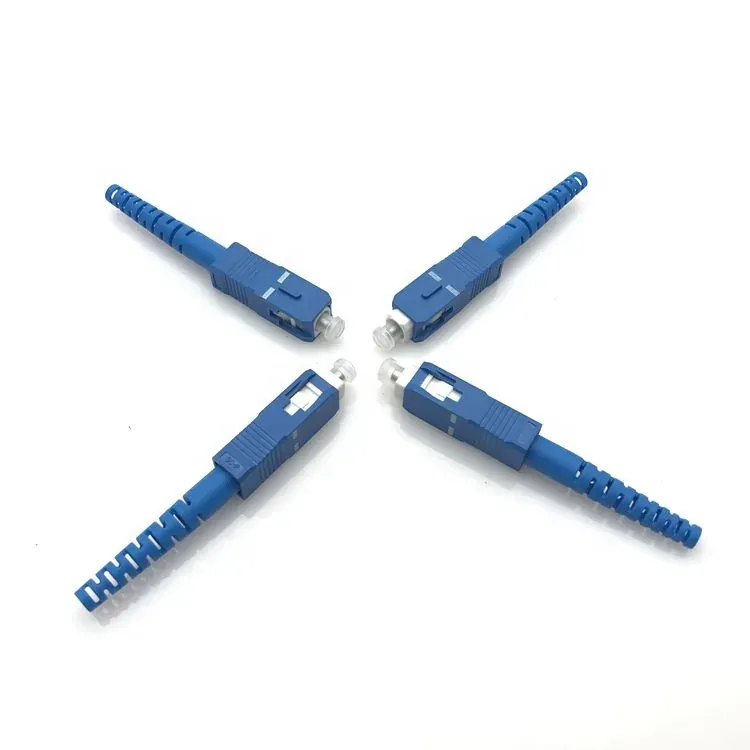

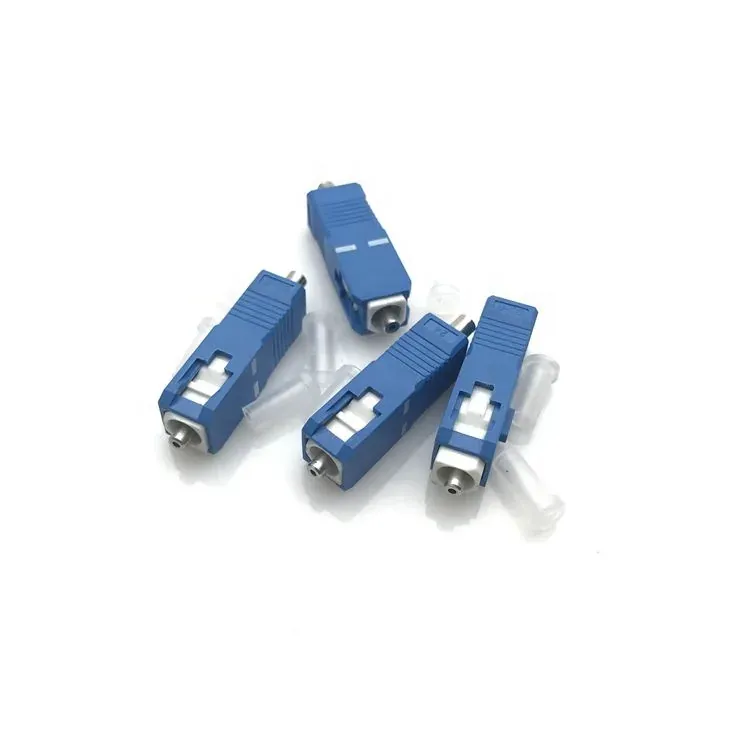

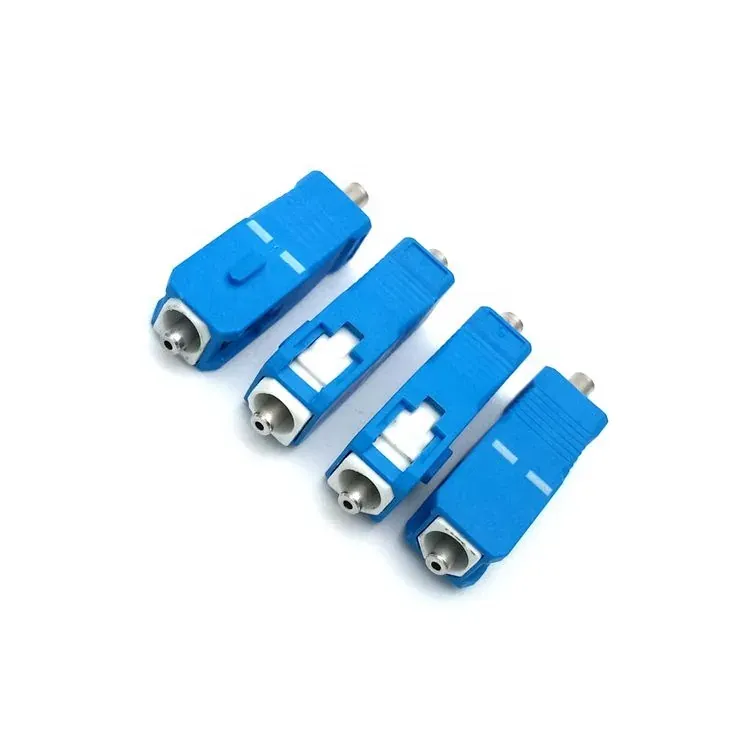

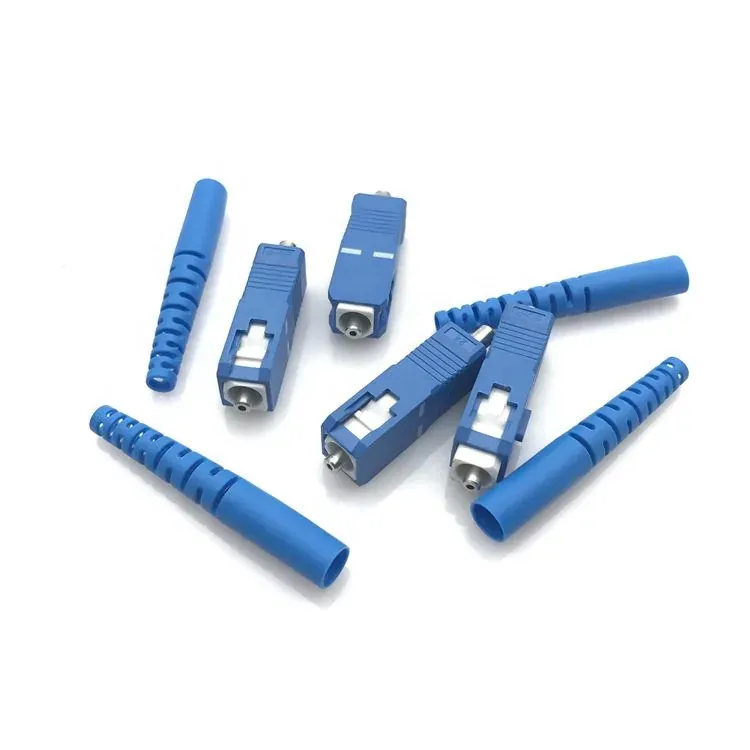

Fast SC/LC/FC/ST Field-Assembly Quick Fiber Optic Connector Type 2
Fast field-assembly fast connector (SC/LC/FC/ST) for quick on-site plastic and glass fiber termination without epoxy or polishing.
Specifications
- Type
- fiber optic connector, Terminal Connectors
- Certifaction
- ISO9001,ROHS,CE
- fiber type
- SM,MM
- connector Type
- SC type
- Color
- blue
- Return loss
- ≤0.3dB
Fast SC/LC/FC/ST Field-Assembly Quick Fiber Optic Connector Type 2
The Fast is a JINSHANG TECH field-assembly fast connector for SC/LC/FC/ST fiber, enabling quick on-site termination without epoxy, fusion splicing or bench polishing.
Manufactured for production use rather than as a one-off sample, the Fast is built to a stable fiber specification so orders can be repeated with consistent dimensions and performance.
Key Characteristics
- Connector/interface: SC type
- Certified to ISO9001,ROHS,CE
- Housing/jacket color: blue
- Return loss: ≤0.3dB
- Quick assembly with a cleaver and basic tool, ideal for service calls
- Clear window/windowless body to confirm fiber insertion
- Reliable retention and vibration resistance once seated
- Suitable for FTTH, industrial links and emergency repairs
Typical Applications
The Fast is commonly used for rapid FTTH and field drop-cable termination. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions
Q: What is a fast/quick connector? A: It is a field-assembly connector with a pre-polished ferrule and mechanical splice, so fiber can be terminated on site without epoxy, oven or polishing equipment.
Q: Which connector types are available? A: Fast connectors are commonly offered in SC, LC, FC and ST profiles; choose the profile that matches the adapter or equipment port.
Q: What tools are needed? A: A precision cleaver and the matching assembly tool are usually sufficient; no fusion splicer or power polisher is required.
Q: Is it as good as a factory connector? A: A correctly installed fast connector gives low loss for field and FTTH use; for the most demanding links, factory-terminated patch cords are preferred.
