FIBER CONNECTORS

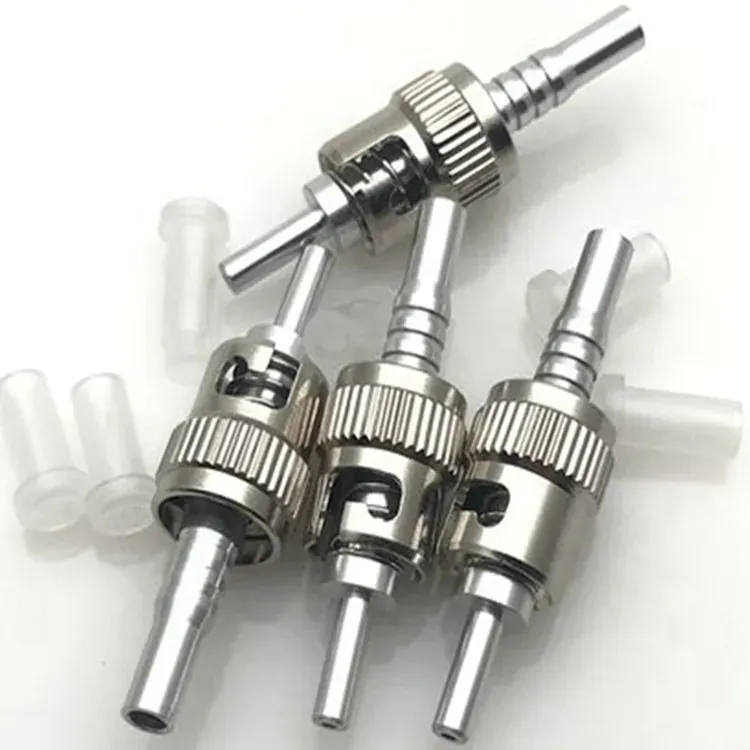

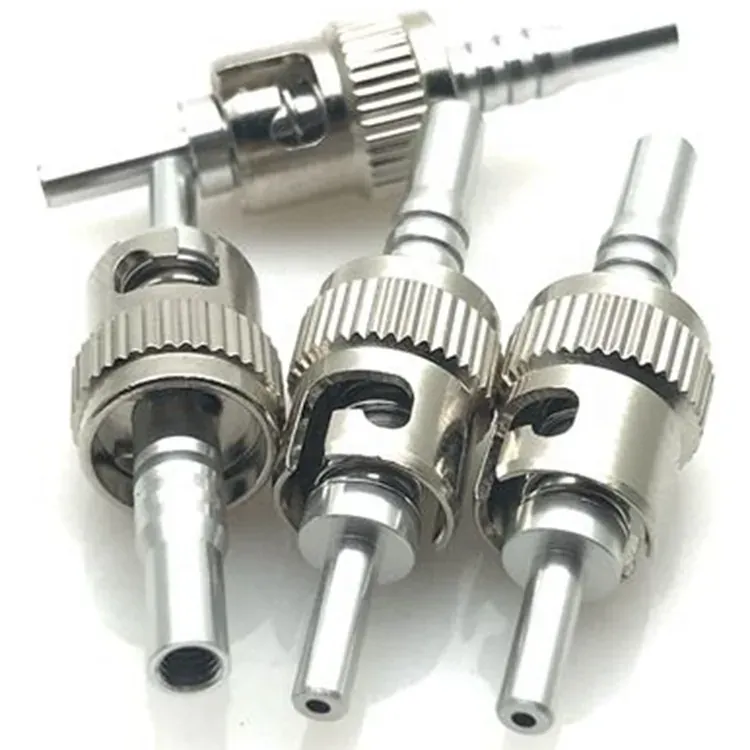

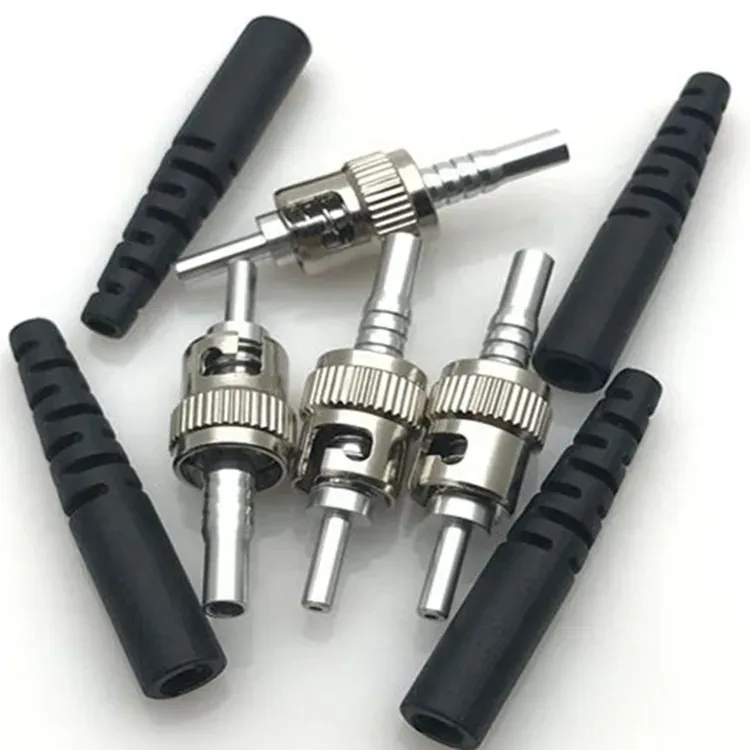

Fiber Optic Connector 500 um
Fiber Optic Connector fiber-optic connector with precision ferrule for repeatable, low-loss termination of plastic, hard-clad or silica optical fiber.
Specifications
- Type
- fiber optic connector, Terminal Connectors
- Certifaction
- ISO9001 ,ROHS,CE
- Diameter
- 500UM
- Return loss
- ≥50.0dB
- Durability
- 1000 insertions and removals
- Operating temperature
- -20 °C to + 70 °C
- Test wavelength
- 1310nm, 1550nm
Fiber Optic Connector 500 um
The Fiber Optic Connector is a JINSHANG TECH fiber-optic connector for terminating plastic, hard-clad or silica fiber, providing a repeatable optical interface for the matching cable.
Manufactured for production use rather than as a one-off sample, the Fiber Optic Connector is built to a stable fiber specification so orders can be repeated with consistent dimensions and performance.
Key Characteristics
- Fiber diameter: 500UM
- Operating wavelength: 1310nm, 1550nm
- Operating temperature range: -20 °C to + 70 °C
- Standard length: 1310nm, 1550nm
- Certified to ISO9001 ,ROHS,CE
- Return loss: ≥50.0dB
- Supplied as connector, pigtail or assembled cable
- Precision ferrule for repeatable fiber alignment
Typical Applications
The Fiber Optic Connector is commonly used for termination of plastic and hard-clad fiber in equipment, and pigtails, patch cords and panel connections. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions
Q: Which connector type do I need? A: Choose the interface that matches the transceiver port (SMA, ST, SC, LC, HFBR, F07, etc.) and the ferrule that matches your fiber diameter.
Q: Does the connector fit any fiber size? A: No — each connector is built with a ferrule for a specific fiber diameter, so confirm the cable core size before ordering.
Q: Is it sold as a pigtail? A: Connector, pigtail and pre-assembled cable options are available depending on the configuration.
