FIBER CONNECTORS
Fiber Optic Connector Medical

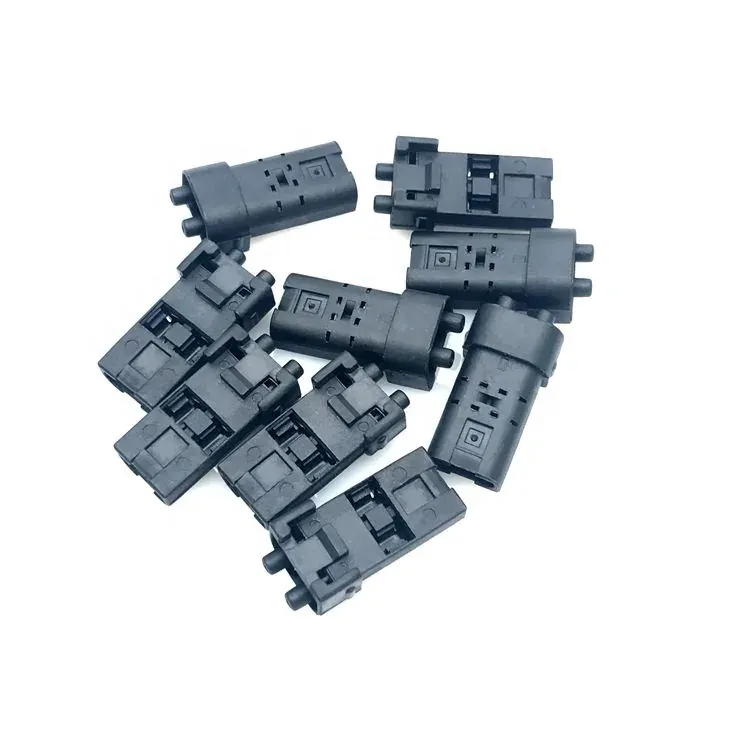

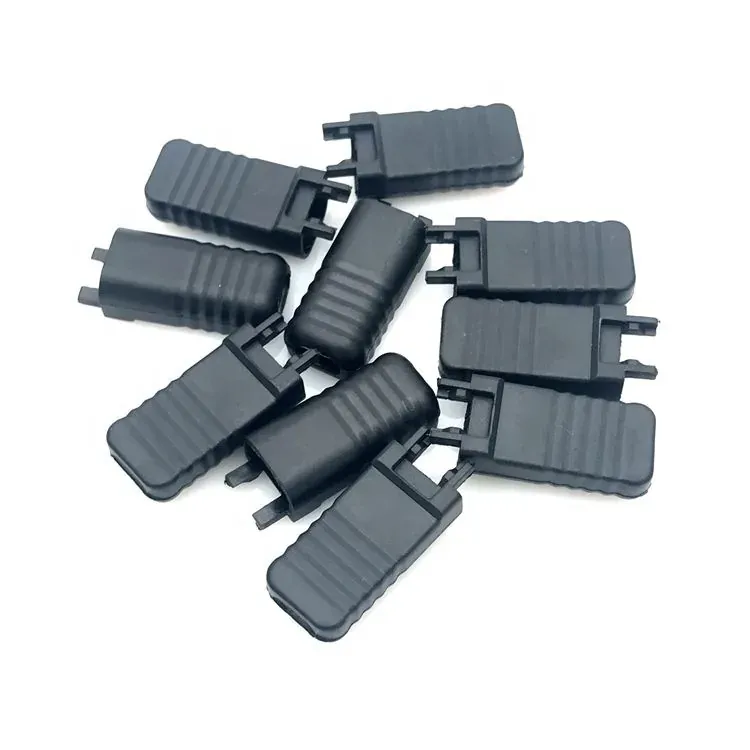

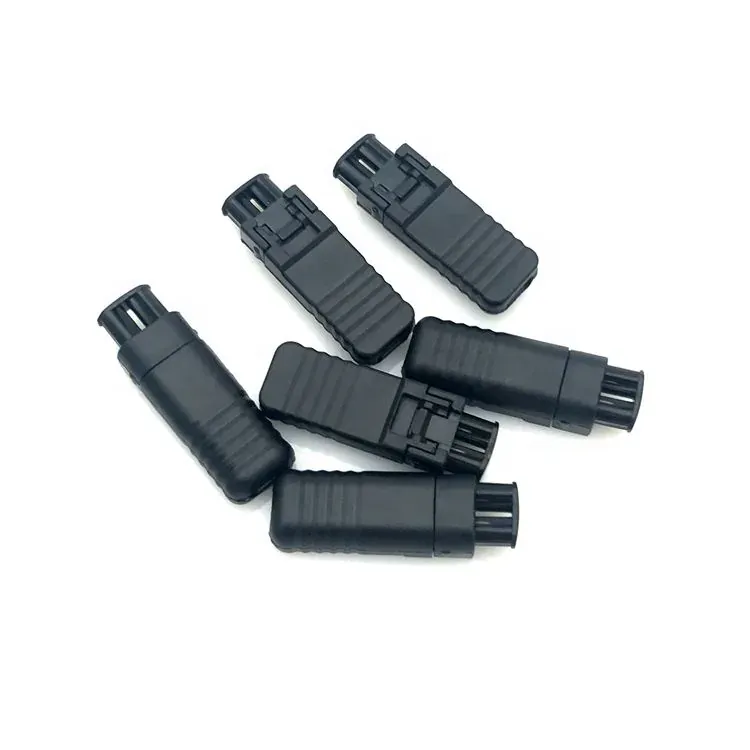

Fiber Optic Connector fiber-optic connector with precision ferrule for repeatable, low-loss termination of plastic, hard-clad or silica optical fiber.
Specifications
- Type
- fiber optic connector, Terminal Connectors
- Certifaction
- ISO9001 ,ROHS,CE
- Name1
- SMI Connector
- Return loss
- ≥50.0dB
- Working temperature
- -20 °C to + 70 °C
- Mating times
- 10000
- Product name2
- Fiber Optic Connector
- Package
- Carton
Fiber Optic Connector Medical
Fiber Optic Connector is a JINSHANG TECH fiber connector with a precision ferrule for reliable, low-loss termination of the specified optical fiber.
JINSHANG TECH supplies the Fiber Optic Connector as a production item; fiber diameter, jacketing, connectorization and length can be confirmed against the specification before ordering.
Key Characteristics
- Operating temperature range: -20 °C to + 70 °C
- Certified to ISO9001 ,ROHS,CE
- Return loss: ≥50.0dB
- Supplied as connector, pigtail or assembled cable
- Precision ferrule for repeatable fiber alignment
- Positive latch/thread coupling for stable connection
- RoHS/ISO-certified production where specified
- Available for a range of POF, HPCF and silica fiber diameters
Typical Applications
The Fiber Optic Connector is commonly used for termination of plastic and hard-clad fiber in equipment. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions
Q: Is it sold as a pigtail? A: Connector, pigtail and pre-assembled cable options are available depending on the configuration.
Q: Does the connector fit any fiber size? A: No — each connector is built with a ferrule for a specific fiber diameter, so confirm the cable core size before ordering.
Q: Which connector type do I need? A: Choose the interface that matches the transceiver port (SMA, ST, SC, LC, HFBR, F07, etc.) and the ferrule that matches your fiber diameter.
