FIBER CONNECTORS
Fiber Optic Connector Orange

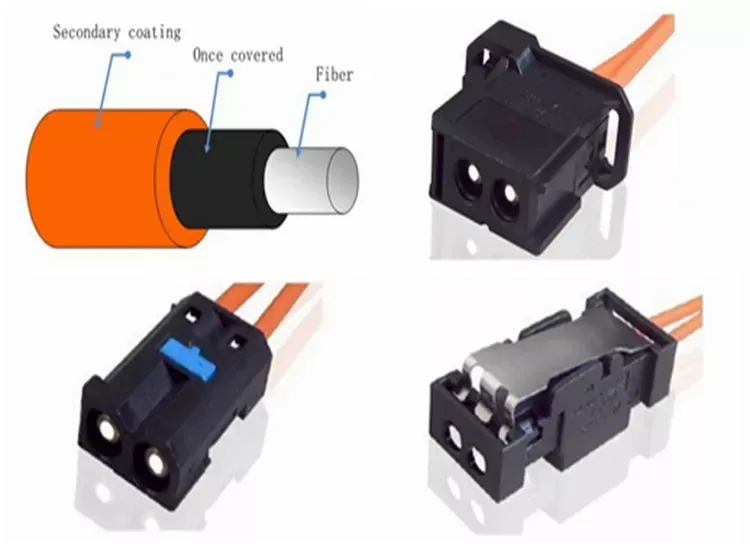

Fiber Optic Connector fiber-optic connector with precision ferrule for repeatable, low-loss termination of plastic, hard-clad or silica optical fiber.

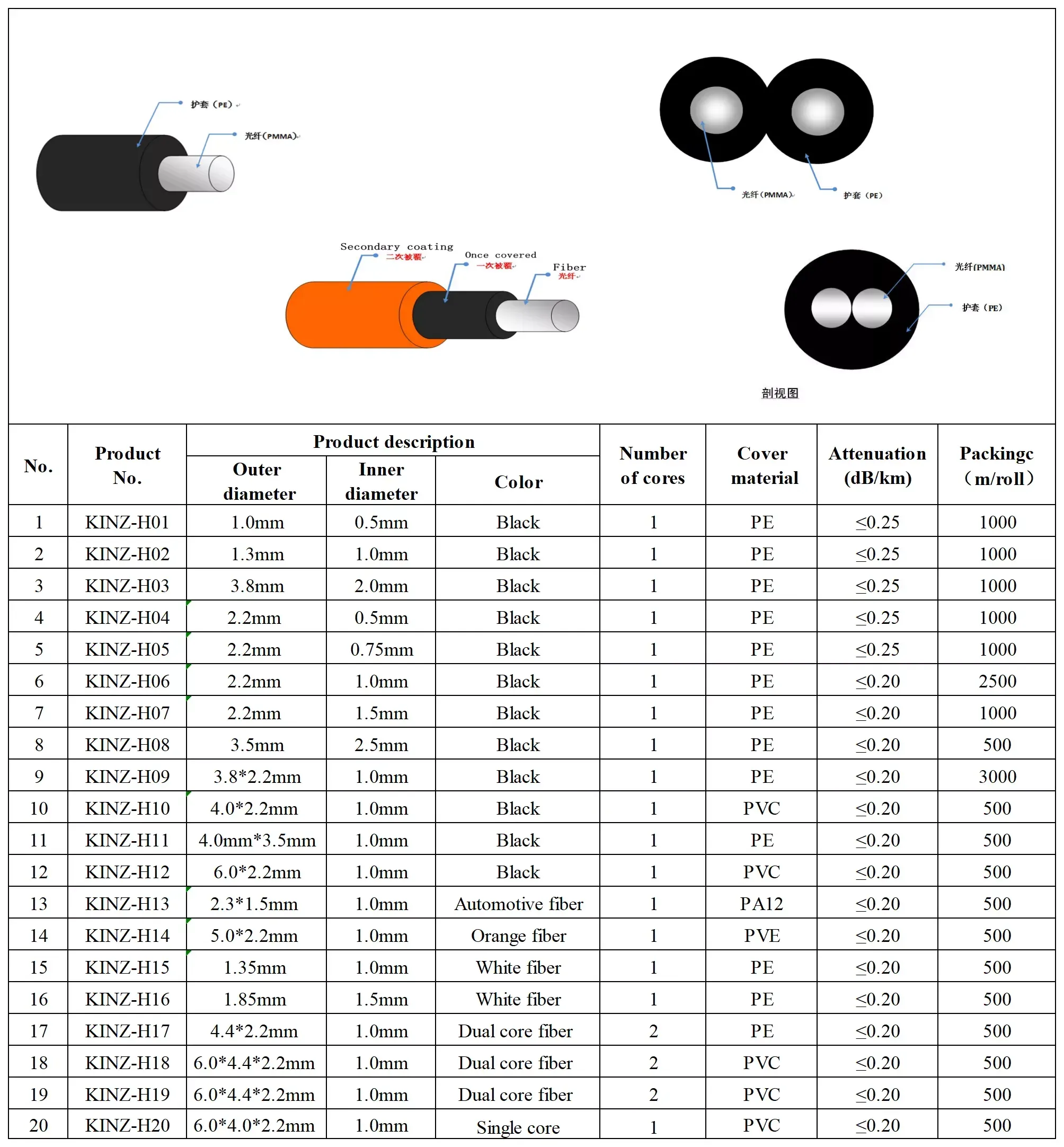

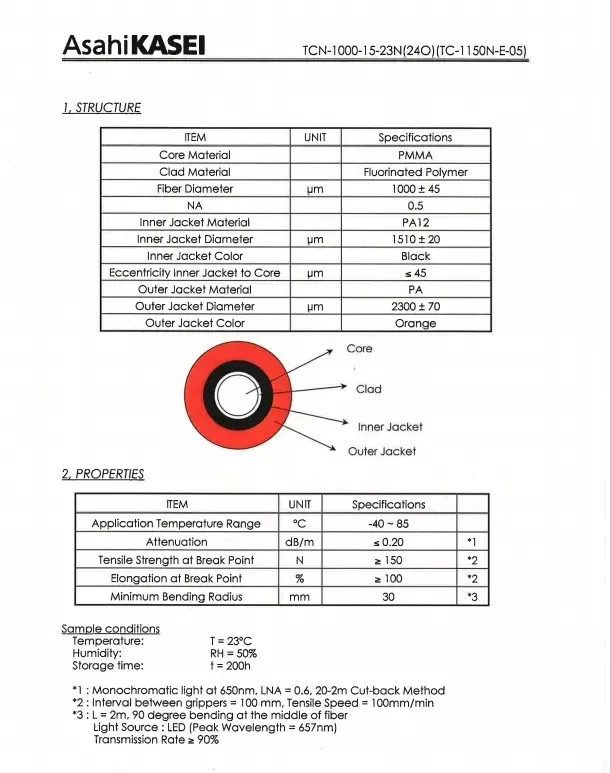

Specifications
- Type
- Fiber Optic Cable
- Application
- Sensing,Lighting ,Communication, Transmission signal
- Fiber type
- PMMA fiber optic cable
- Certification
- ISO9001, RoHS, CE
- Core diameter
- 1.0mm
- Outer diameter
- 1.5*2.3mm
- Attenuation(dB/KM)
- ≤0.2
- Operating temperature
- -55~80Degree
- IP rating
- IP68
- Outer material
- PA12
- Core Material
- pmma
Fiber Optic Connector Orange
Fiber Optic Connector is a JINSHANG TECH fiber-optic connector and pigtail family for plastic and hard-clad optical cabling.
Because the optical path is non-conductive, the Fiber Optic Connector provides electrical isolation between connected equipment and can be routed past motors, drives and power wiring without picking up noise.
Key Characteristics
- Attenuation rated at ≤0.2 over the operating wavelength
- Operating temperature range: -55~80Degree
- IP68 ingress protection for damp or wash-down environments
- Certified to ISO9001, RoHS, CE
- Outer jacket: 1.5*2.3mm
- Core/fiber material: 1.0mm
- Positive latch/thread coupling for stable connection
- Precision ferrule for repeatable fiber alignment
Typical Applications
The Fiber Optic Connector is commonly used for termination of plastic and hard-clad fiber in equipment, and pigtails, patch cords and panel connections. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions
Q: Does the connector fit any fiber size? A: No — each connector is built with a ferrule for a specific fiber diameter, so confirm the cable core size before ordering.
