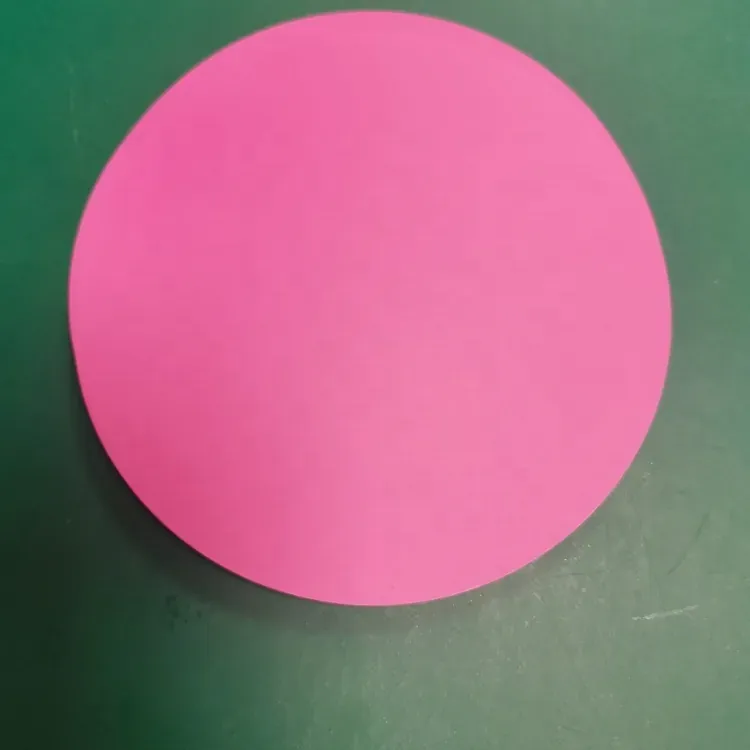

Fiber Lapping Film main fiber lapping film

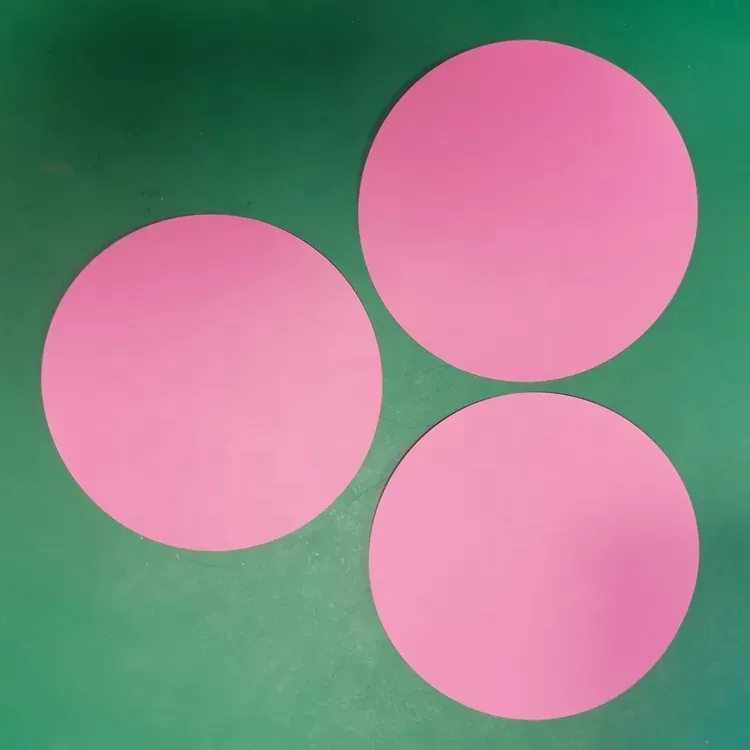

Fiber Lapping Film detail fiber lapping film
Fiber Lapping Film detail fiber lapping film
FIBER CONNECTORS

Fiber Optic Polishing Lapping Film Type 2

This is a precision fiber-optic lapping film for polishing connector ferrules and cleaved fiber ends to a flat, low-loss optical surface.

Specifications

Type
Testers &Tools
Certification
RoHS,ISO9001
IP rating
IP68
Operating Temperature
-55~80Degree
Insertion Loss
0.2(dB)
Color
Pink
Application
polishing
Size
13CM

Fiber Optic Polishing Lapping Film Type 2

This is a JINSHANG TECH precision lapping film (polishing paper) used to finish the end face of plastic and glass optical fiber after cleaving, producing a smooth, low-loss optical surface.

Manufactured for production use rather than as a one-off sample, the unit is built to a stable fiber specification so orders can be repeated with consistent dimensions and performance.

Key Characteristics

  • Operating temperature range: -55~80Degree
  • IP68 ingress protection for damp or wash-down environments
  • Certified to RoHS,ISO9001
  • Insertion loss: 0.2(dB)
  • Controlled, uniform micron abrasive for a repeatable end-face finish
  • Reduces insertion loss by removing cleave burrs and irregular facets
  • Used dry or with standard fiber polishing pads for hand termination
  • Consumable sheets sized for field and bench polishing of POF/HCS connectors



Typical Applications

The unit is commonly used for field and factory termination of POF/HCS connector ferrules, repair and re-polishing of previously terminated fiber ends, and low-loss optical links in industrial and audio assemblies. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.

Frequently Asked Questions

Q: What is lapping film used for in fiber termination? A: After the fiber is cleaved, lapping film polishes the end face to a flat, smooth surface so light crosses the joint with minimal insertion and return loss.
Q: Which grit/grade do I need? A: Coarser grades remove cleave marks quickly; finer grades (such as 3 um) give the final optical finish. Follow the connector maker's recommended polishing sequence.
Q: Can it be used on plastic optical fiber? A: Yes — POF and HCS ferrules are commonly hand-polished with these films, using light pressure to avoid rounding the end face.
Q: Is it a powered process? A: No. These sheets are designed for hand polishing on a pad or glass plate, making them practical for field service.
A matching item is available on the BH Cables product page.
