HP-Type Fiber Optic Adapter Compact Threaded Bulkhead Alignment Coupler

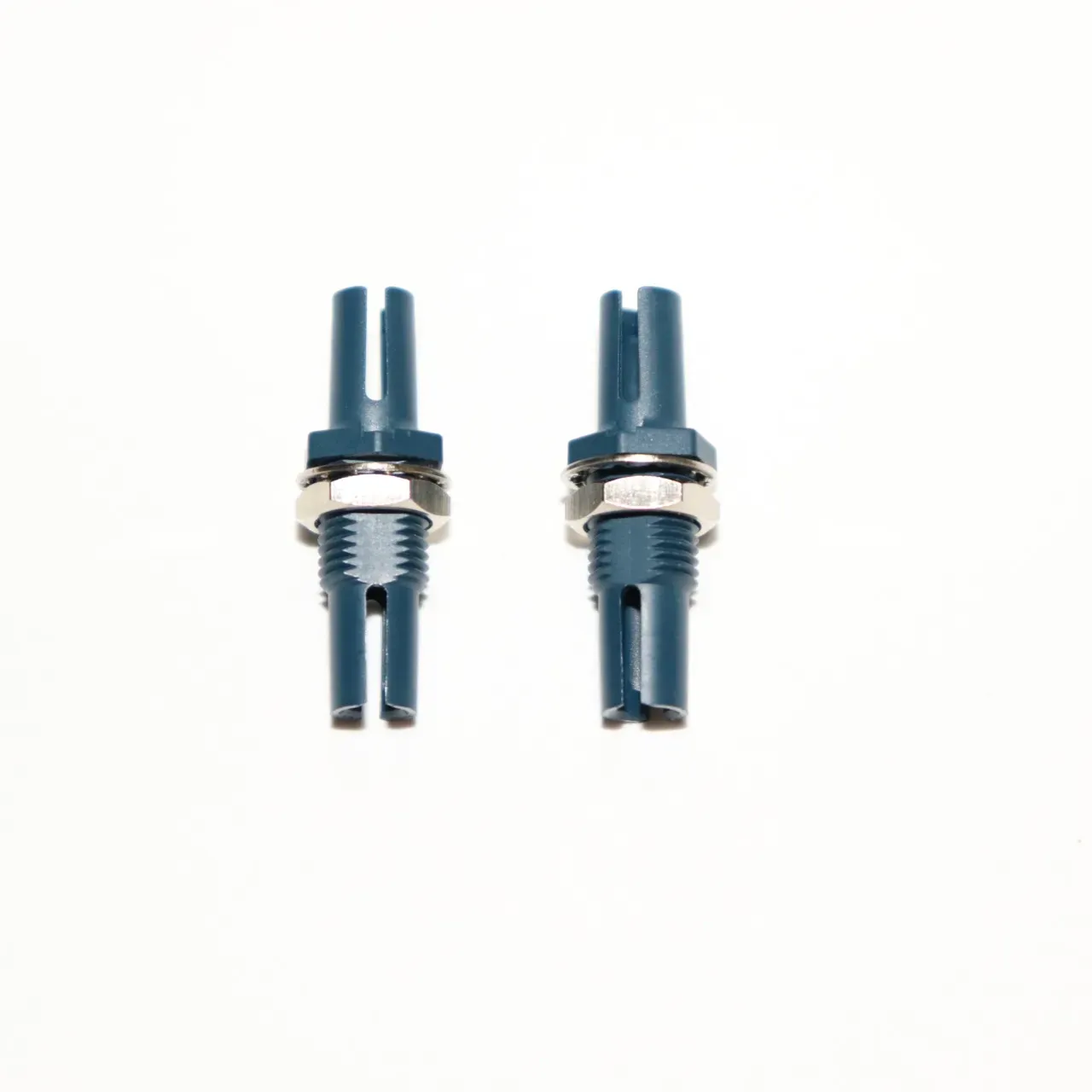

HP-Type Fiber Optic Adapter Compact Threaded Bulkhead Alignment Coupler. This HP-type fiber optic adapter provides a compact bulkhead interface for mating compatible HP optical connectors. The threaded body and hex mounting nut support secure installation through an instrument panel, while the slotted housing geometry provides the mechanical interface required by the matching connector design.

HP Type Fiber Optic Adapter Compact Threaded Bulkhead Alignment Coupler

HP fiber optic adapter, HP optical coupler, compact fiber bulkhead adapter, specialty fiber adapter, panel mount optical connector, precision fiber alignment
PRODUCT INTRODUCTION This HP-type fiber optic adapter provides a compact bulkhead interface for mating compatible HP optical connectors. The threaded body and hex mounting nut support secure installation through an instrument panel, while the slotted housing geometry provides the mechanical interface required by the matching connector design.

USES It can be used to create removable optical ports in sensors, analytical instruments, light sources and custom equipment. The adapter joins an external fiber lead to an internal pigtail or optical subassembly.
PERFORMANCE A controlled internal alignment path helps position compatible fiber terminations for repeatable light transfer. Panel hardware provides stable mounting, and the compact body is suitable for equipment with limited space. Optical performance depends on the matching connector, fiber geometry and cleanliness.
KEY FEATURES
  • Compact HP-type mating interface
  • Threaded bulkhead body with hex nut
  • Designed for compatible specialty fiber connectors
  • Panel-mount format for OEM equipment
  • Protective and alignment structure integrated into the housing
APPLICATION SCENARIOS
  • Spectroscopy instruments
  • Optical sensors
  • Medical and analytical devices
  • Compact light sources
  • Custom laboratory equipment
SUMMARY A space-efficient adapter for building serviceable HP-type optical interfaces. Mechanical dimensions, fiber size and connector compatibility should be confirmed against the equipment design.
