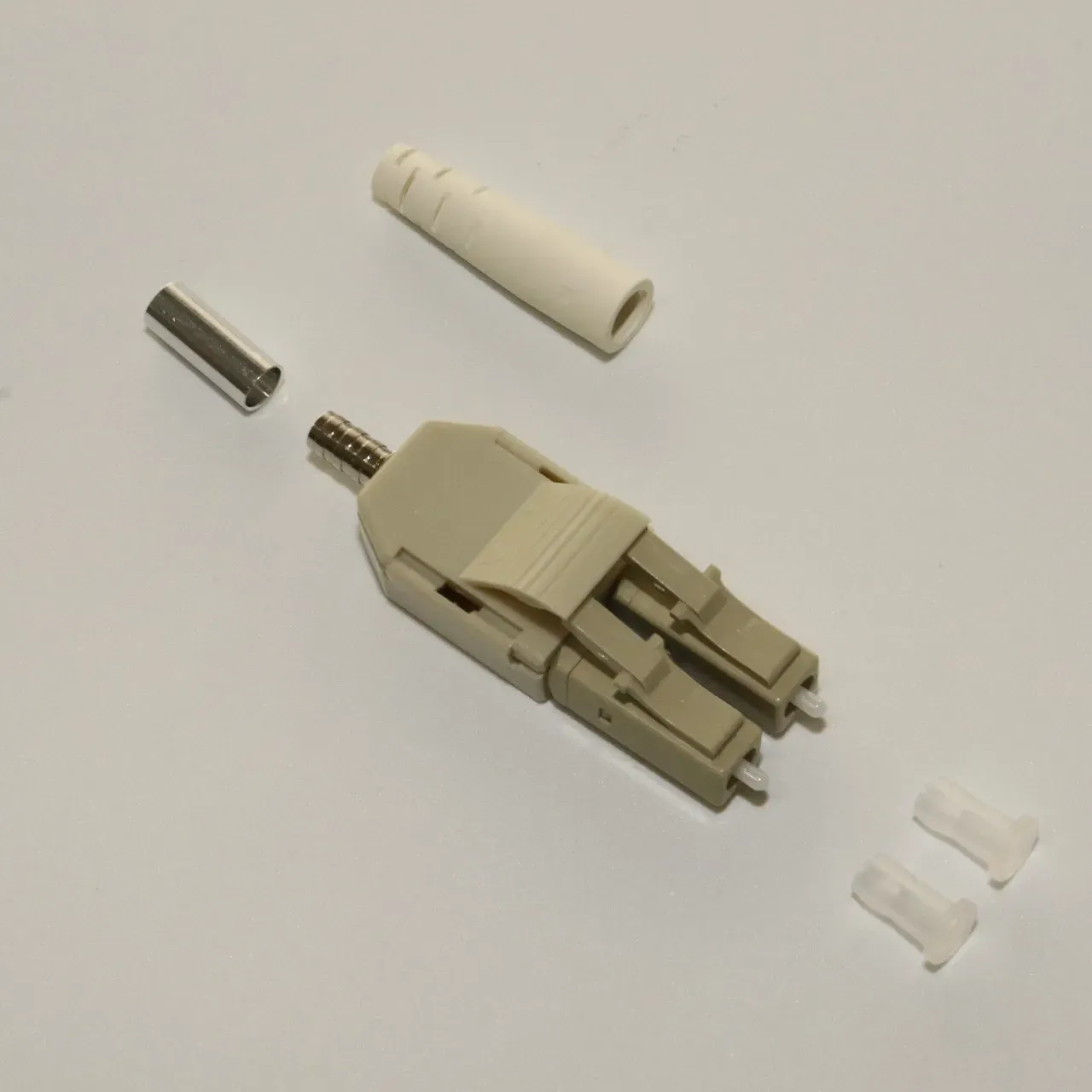

LC Duplex Uniboot Connector Kit Compact Single-Jacket Two-Fiber Termination
LC Duplex Uniboot Connector Kit Compact Single-Jacket Two-Fiber Termination. This LC duplex uniboot connector kit routes two fibers through a compact shared boot and duplex connector body. The design reduces cable bulk compared with two independently jacketed simplex legs and supports cleaner routing in high-density patching environments.
LC Duplex Uniboot Connector Kit Compact Single Jacket Two Fiber Termination
LC uniboot connector, LC duplex uniboot, single jacket duplex fiber, high density patch cord connector, polarity reversible LC connector, uniboot fiber cable
PRODUCT INTRODUCTION
This LC duplex uniboot connector kit routes two fibers through a compact shared boot and duplex connector body. The design reduces cable bulk compared with two independently jacketed simplex legs and supports cleaner routing in high-density patching environments.
USES
It is used to manufacture duplex LC patch cords for data centers, transceiver connections, telecom racks and equipment cabinets where airflow, cable organization and port density are important.
PERFORMANCE
The paired LC interfaces support two-channel transmit-and-receive links. A shared boot manages the two fibers within one cable entry, and the compact housing helps reduce congestion. Polarity handling depends on the selected connector design and assembly method.
KEY FEATURES
- Two LC channels with one shared cable boot
- Reduced cable bulk in dense racks
- Compact duplex connector body
- Crimp and protective components for assembly
- Can support application-specific polarity management
APPLICATION SCENARIOS
- Data-center interconnects
- SFP and QSFP breakout links
- Telecom racks
- High-density patch panels
- Enterprise network cabinets
SUMMARY
A space-saving termination solution for duplex LC patch cords using a single cable jacket. Confirm cable construction, polarity method, fiber type and connector polish before assembly.
