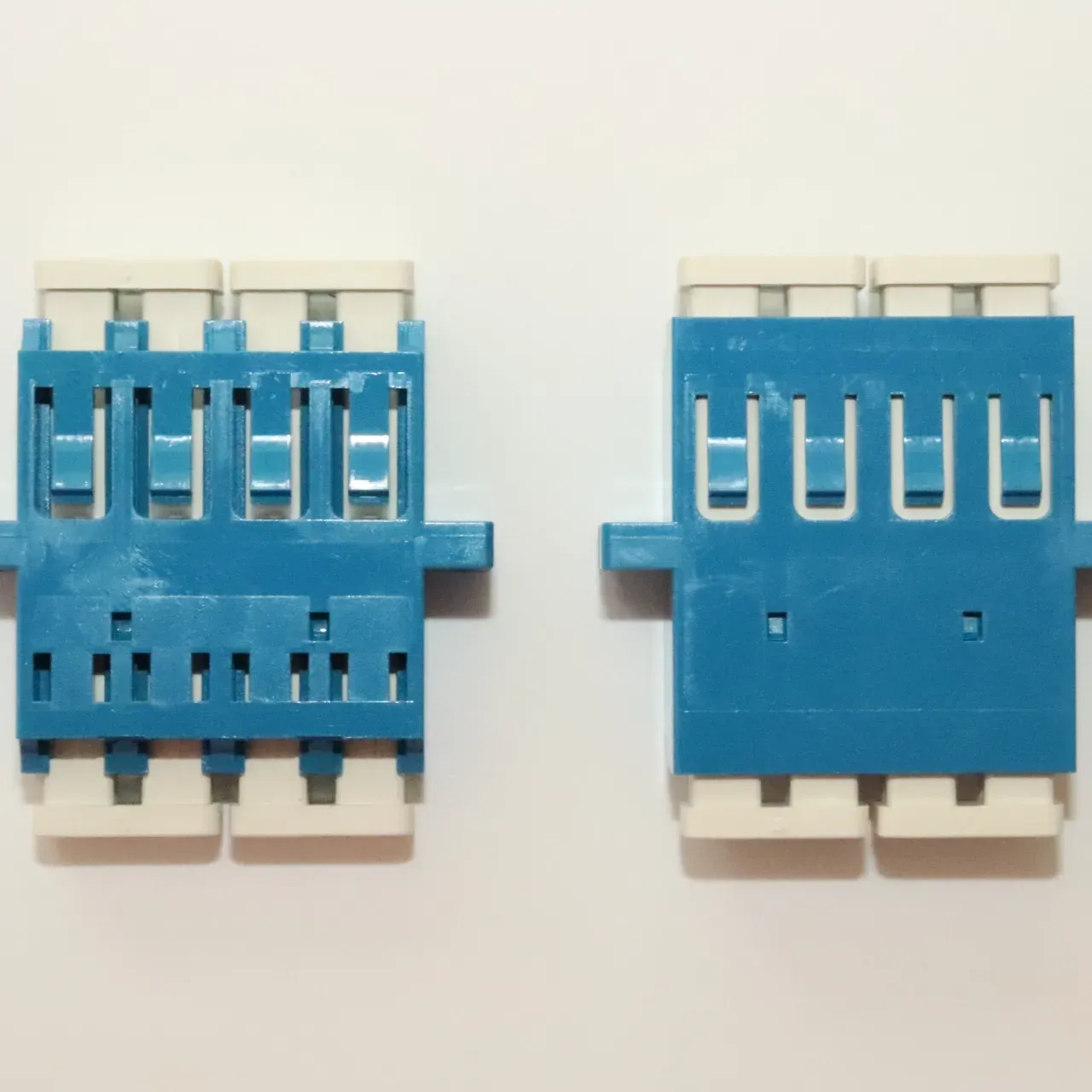

LC Quad Fiber Optic Adapter without Clip 4 Ports OEM Panel Coupler
LC Quad Fiber Optic Adapter without Clip Four-Port OEM Panel Coupler. This clipless LC quad adapter combines four LC coupling channels in a compact molded housing intended for equipment designs that use an alternative retention method. Removing the conventional external clip gives OEM designers flexibility to integrate the adapter into a custom panel, carrier or enclosure.
LC Quad Fiber Optic Adapter without Clip | Four-Port OEM Panel Coupler
LC quad adapter no clip, LC four port adapter, OEM fiber adapter, high density LC coupler, clipless panel adapter, LC optical coupler
PRODUCT INTRODUCTION
This clipless LC quad adapter combines four LC coupling channels in a compact molded housing intended for equipment designs that use an alternative retention method. Removing the conventional external clip gives OEM designers flexibility to integrate the adapter into a custom panel, carrier or enclosure.
USES
The adapter joins LC patch cords to pigtails or other LC cables in dense optical equipment. It is suitable for factory-installed modules, custom faceplates and internal fiber distribution assemblies.
PERFORMANCE
Each channel contains an alignment sleeve that positions the mating ferrules for repeatable optical coupling. The housing supports dense port layouts, and protective caps help keep interfaces clean before connection. Mounting security depends on the surrounding mechanical design.
KEY FEATURES
- Four LC channels in one housing
- Clipless format for custom OEM retention
- Compact, high-density footprint
- Independent ferrule alignment paths
- Protective caps on the optical ports
APPLICATION SCENARIOS
- OEM optical equipment
- Custom patch panels
- Telecom subassemblies
- Data-center hardware
- Industrial communication modules
SUMMARY
A flexible quad LC coupler for equipment designers who need a four-port adapter without a standard mounting clip. Confirm the panel geometry and retention method during mechanical design.
