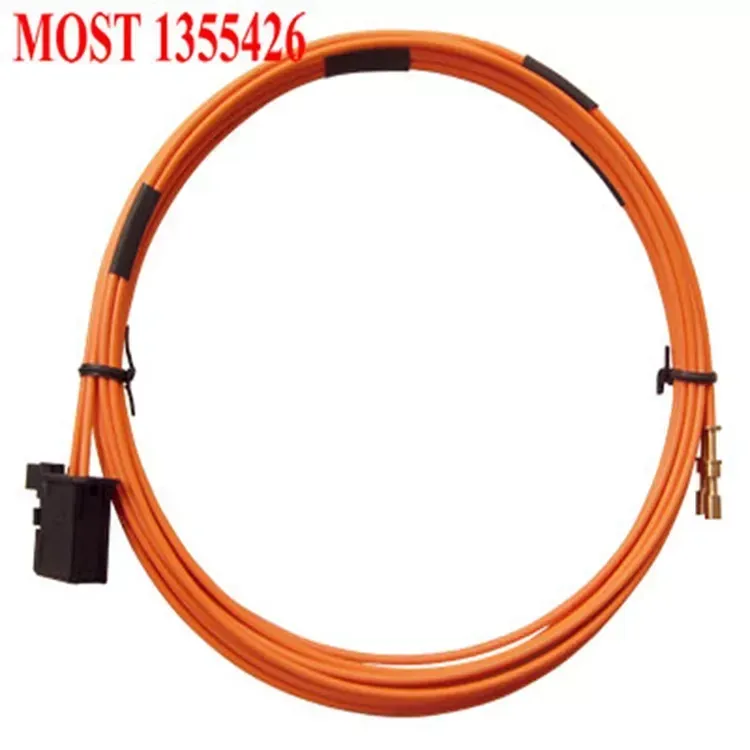

MOST Automotive Fiber Optic Connector
MOST MOST automotive fiber-optic connector / module for plastic optical fiber infotainment rings, with loop/bypass options for vehicle diagnostics.
Specifications
- Type
- Fiber patch cord,Jumper
- Finished diameter
- 2.3mm
- Core material diameter
- 1.0mm
- Core material
- imported Japanese optical fiber
- Standard length
- 1000mm, 0-100m can be customized
- Working temperature
- -55 °C-+ 85 °C
- Attenuation
- less than 180dB / km
- Color
- Black Connector ,Qrange Cable
- Application
- GPS navigation system,Video display etc.
- Certifaction
- ISO9001, European ROHS,CE
- No. of Fiber
- 2.
MOST Automotive Fiber Optic Connector

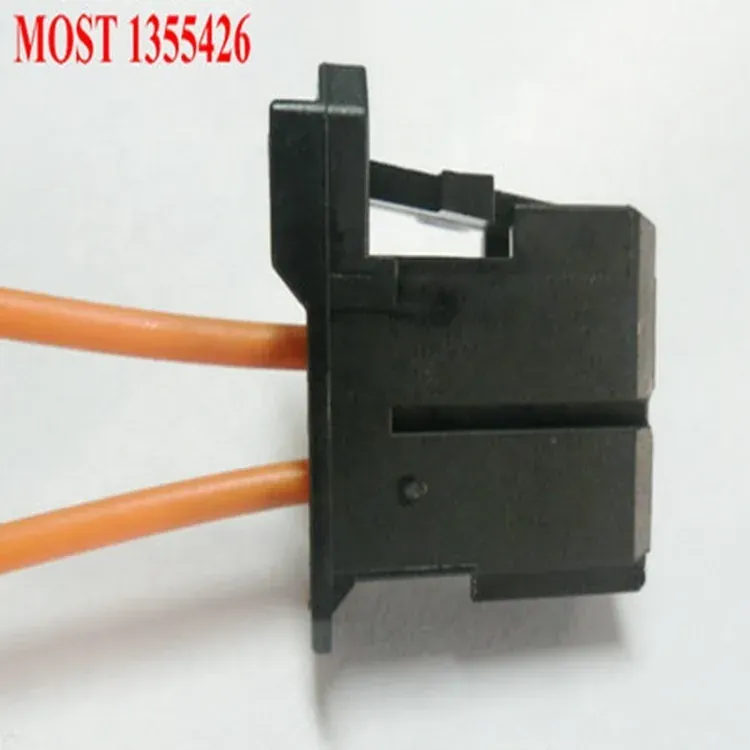

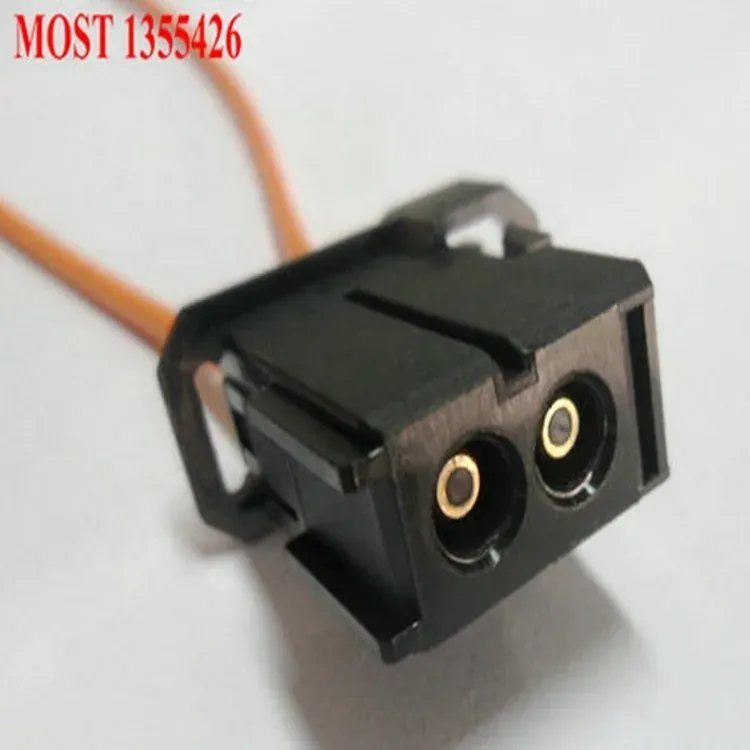

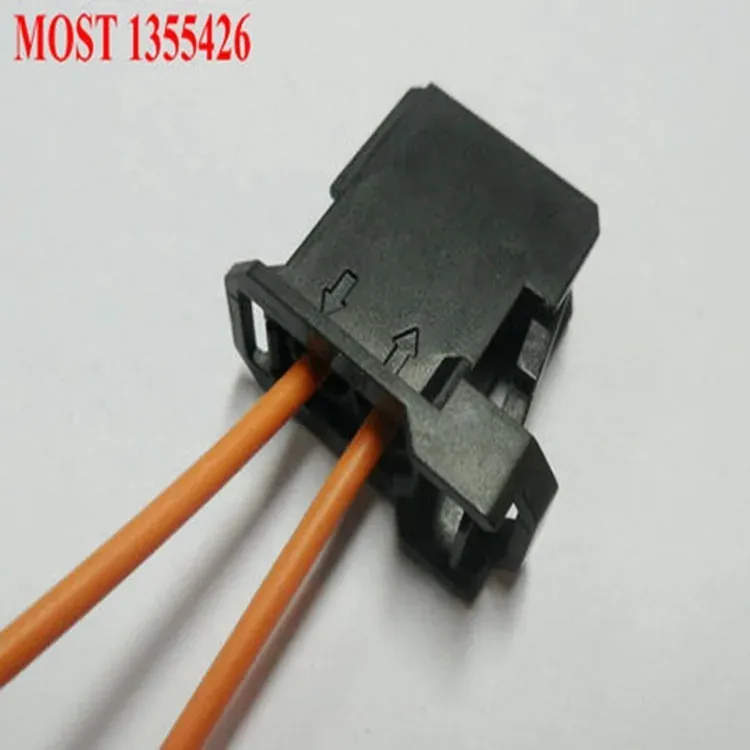

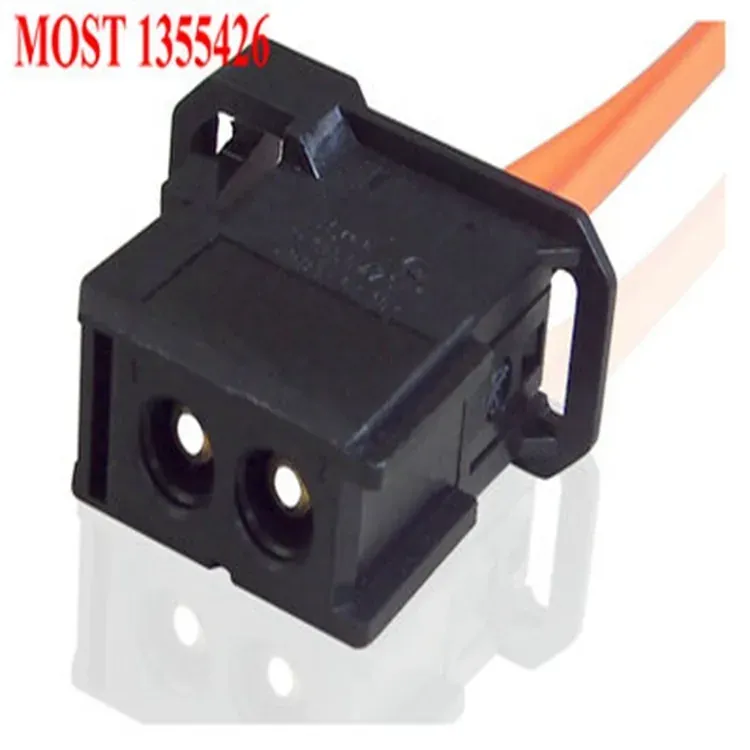

MOST is a JINSHANG TECH vehicle-grade MOST optical connector that aligns large-core POF fibers between head units, amplifiers, gateways and displays.
JINSHANG TECH supplies the MOST as a production item; fiber diameter, jacketing, connectorization and length can be confirmed against the specification before ordering.
Key Characteristics
- Fiber diameter: 2.3mm

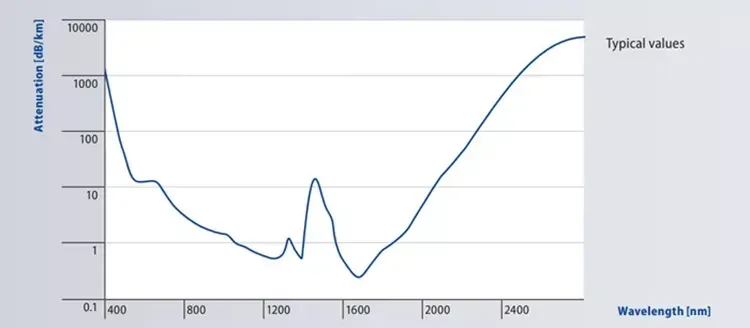

- Attenuation rated at less than 180dB / km over the operating wavelength
- Operating temperature range: -55 °C-+ 85 °C
- Fiber count: 2.
- Standard length: 1000mm, 0-100m can be customized
- Certified to ISO9001, European ROHS,CE
- Vehicle-qualified housing resistant to vibration and temperature cycling
- Supports infotainment, amplifier, gateway and display nodes
Typical Applications
The MOST is commonly used for MOST infotainment rings in passenger cars and commercial vehicles. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions
Q: What is a loop/bypass connector for? A: When a MOST node (such as a head unit or amplifier) is removed, a loop/bypass connector closes the optical path so the rest of the ring keeps operating for diagnosis.
Q: What is a MOST connector? A: A MOST connector terminates the plastic optical fibers of a vehicle's MOST multimedia ring, aligning the large-core POF between infotainment devices with low loss.

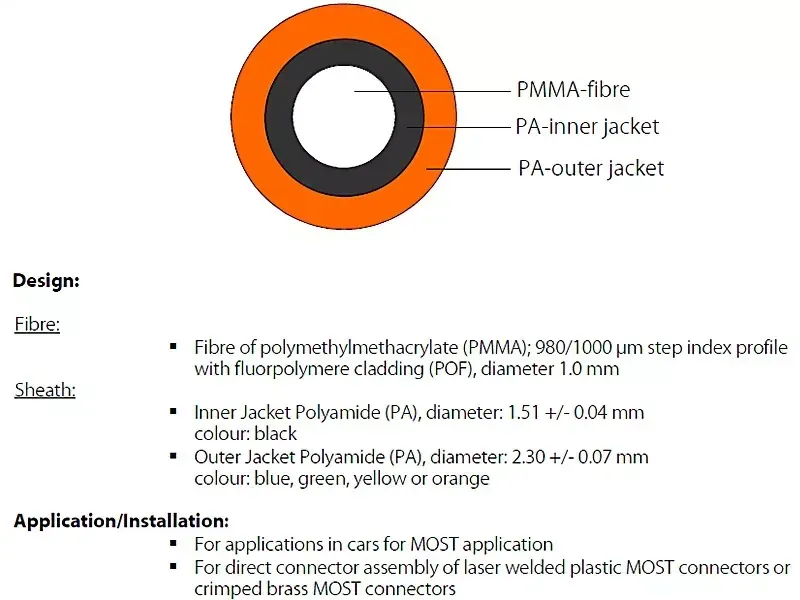

Q: Is it plastic or glass fiber? A: MOST25 and MOST150 optical rings use 1 mm plastic optical fiber (POF), so these connectors are designed for large-core POF alignment.
Q: Which vehicles use it? A: MOST optical rings appear across many European and Asian infotainment platforms; match the part number and pinning to the vehicle and node.
