SMA905 CONNECTOR
SMA905 230-2000 um High-Power Fiber Optic Connector
SMA905 threaded SMA905 high-power fiber connector with stainless ferrule for large-core POF, HCS and silica fibers in laser, medical and industrial optics.
Specifications
- Type
- fiber optic connector, Terminal Connectors
- Certifaction
- ISO9001,ROHS
- fiber type
- SM,MM
- connector Type
- SMA905
- Weight
- 0.015KG
- Hole diameter

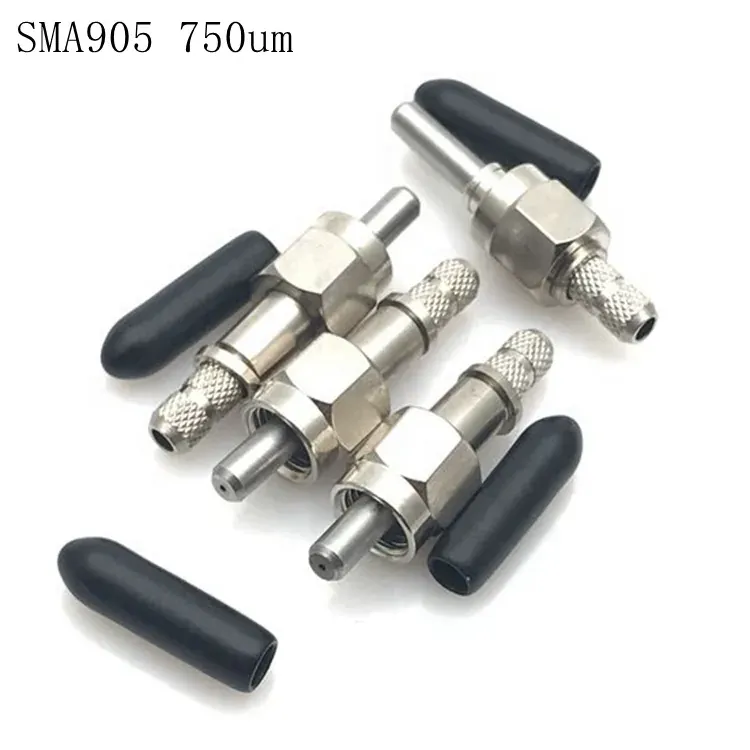

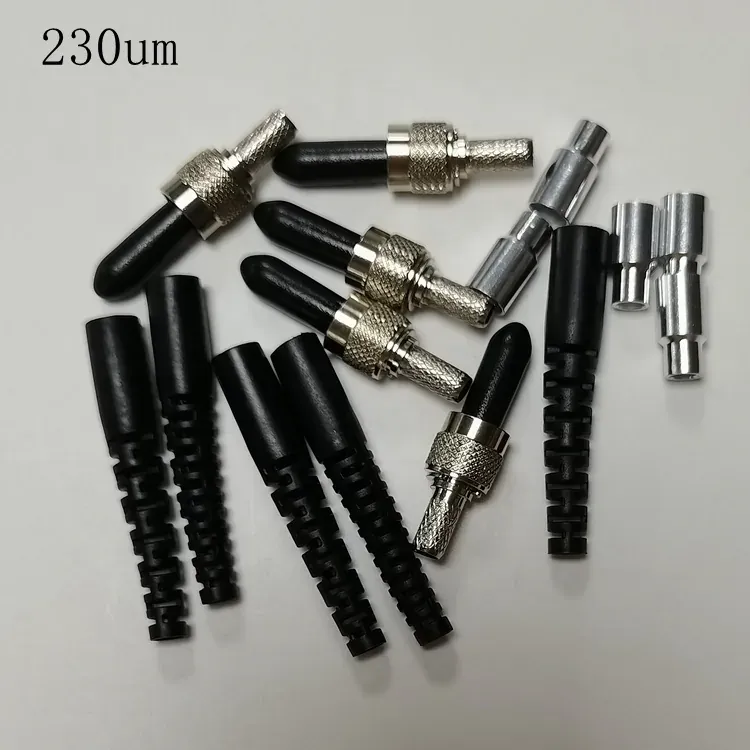

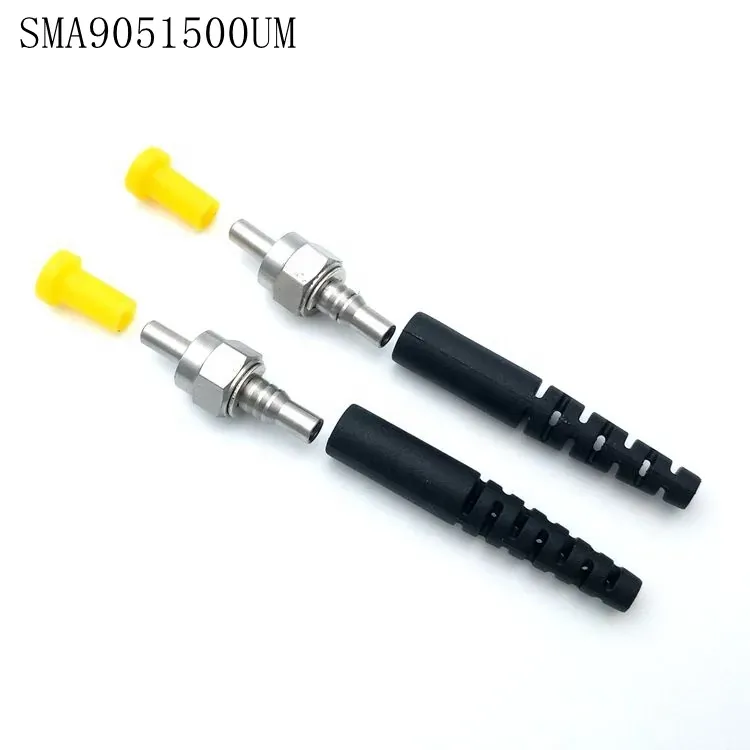

- 0.23mm 0.25mm 0.50mm 0.75mm 1.0mm 1.5mm 2.0mm
SMA905 230-2000 um High-Power Fiber Optic Connector
SMA905 is a JINSHANG TECH FSMA/SMA905 fiber connector with a precision ferrule for large-core POF, HCS and silica fibers.
Because the optical path is non-conductive, the SMA905 provides electrical isolation between connected equipment and can be routed past motors, drives and power wiring without picking up noise.
Key Characteristics
- Fiber diameter: 0.23mm 0.25mm 0.50mm 0.75mm 1.0mm 1.5mm 2.0mm
- Connector/interface: SMA905
- Certified to ISO9001,ROHS
- Accepts a wide range of fiber diameters (e.g. 230–2000 um) with matched ferrules
- Industry-standard interface for spectroscopy, medical and industrial optics
Typical Applications
The SMA905 is commonly used for high-power laser light delivery and medical/dental fibers, spectroscopy and sensing probes, and industrial large-core POF/HCS/quartz fiber termination. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions
Q: SMA905 vs SMA906? A: SMA905 uses a straight ferrule tip and is the standard for large-core optical fibers; SMA906 has a stepped tip for different fiber handling.
Q: How does it lock? A: It uses a threaded SMA coupling nut rather than a push-pull latch, which resists loosening under vibration.
Q: Which fiber diameters fit? A: SMA905 is produced for a broad range of core diameters; select the ferrule matching your fiber (common sizes from roughly 230 um to 2000 um are listed for the model).
Q: What is SMA905 used for? A: SMA905 is a threaded, high-power connector widely used for large-core and laser-delivery fibers in medical, spectroscopy and industrial systems where secure coupling matters.
