SMA905 CONNECTOR

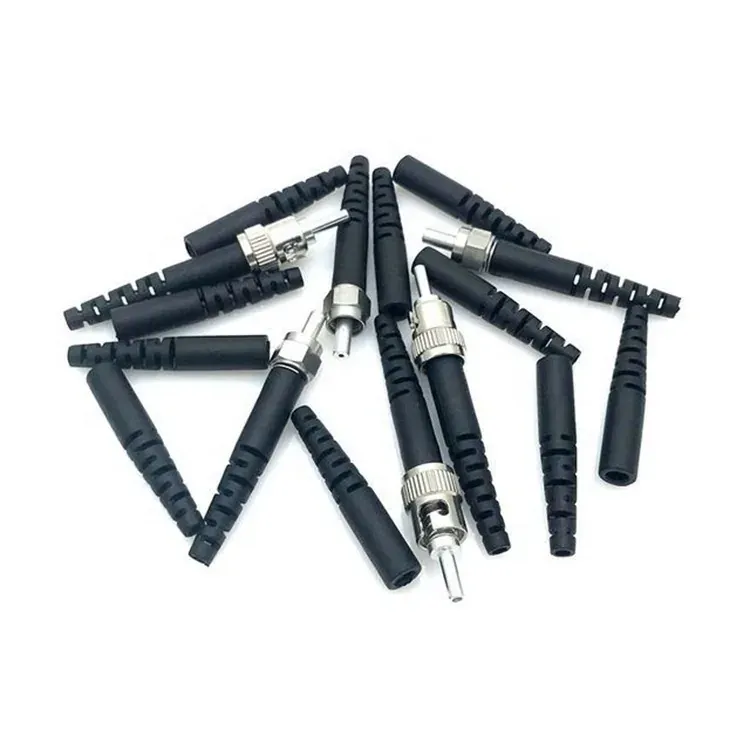

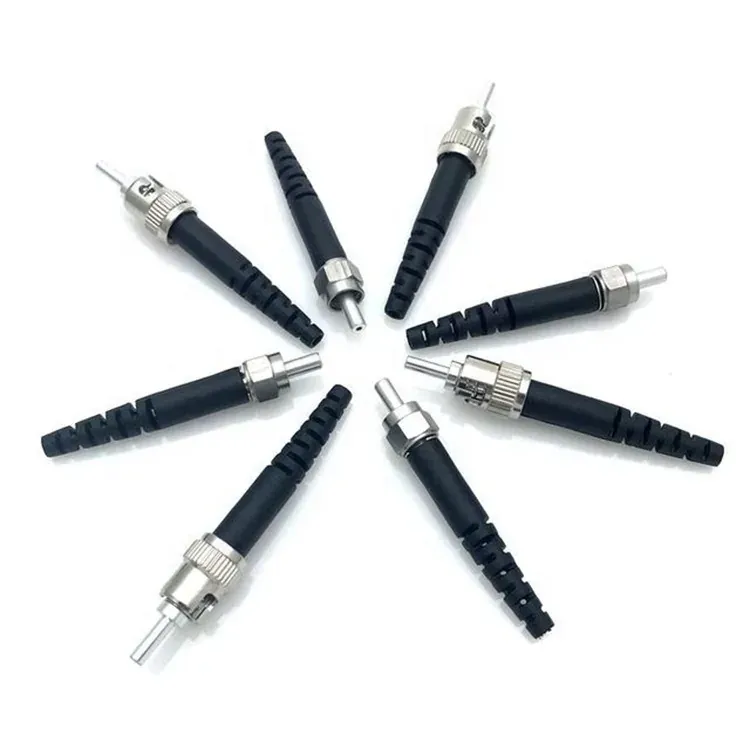

SMA905 High-Power Fiber Optic Connector
SMA905 threaded SMA905 high-power fiber connector with stainless ferrule for large-core POF, HCS and silica fibers in laser, medical and industrial optics.
Specifications
- Type
- Testers &Tools, SMA905
- Use
- FTTH
- Application
- FTTH FTTB FTTX Network
- Certification
- SGS, RoHS, UL
- IP rating
- IP68
- Operating Temperature
- -55~80Degree
- Insertion Loss
- 0.2(dB)
- Plug-in times
- 100000
- Color
- Black
SMA905 High-Power Fiber Optic Connector
The SMA905 SMA905 connector from JINSHANG TECH provides the rugged threaded coupling preferred for industrial, medical and laser light-delivery fibers.
JINSHANG TECH supplies the SMA905 as a production item; fiber diameter, jacketing, connectorization and length can be confirmed against the specification before ordering.
Key Characteristics
- IP68 ingress protection for damp or wash-down environments
- Certified to SGS, RoHS, UL
- Housing/jacket color: Black
- Insertion loss: 0.2(dB)
- Operating temperature range: -55~80Degree
- Stainless-steel ferrule suited to high optical power and laser delivery
- Accepts a wide range of fiber diameters (e.g. 230–2000 um) with matched ferrules
- Threaded SMA905 coupling for vibration-resistant, repeatable mating
Typical Applications
The SMA905 is commonly used for high-power laser light delivery and medical/dental fibers, spectroscopy and sensing probes, and industrial large-core POF/HCS/quartz fiber termination. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions
Q: How does it lock? A: It uses a threaded SMA coupling nut rather than a push-pull latch, which resists loosening under vibration.
Q: SMA905 vs SMA906? A: SMA905 uses a straight ferrule tip and is the standard for large-core optical fibers; SMA906 has a stepped tip for different fiber handling.
Q: What is SMA905 used for? A: SMA905 is a threaded, high-power connector widely used for large-core and laser-delivery fibers in medical, spectroscopy and industrial systems where secure coupling matters.
Q: Which fiber diameters fit? A: SMA905 is produced for a broad range of core diameters; select the ferrule matching your fiber (common sizes from roughly 230 um to 2000 um are listed for the model).
